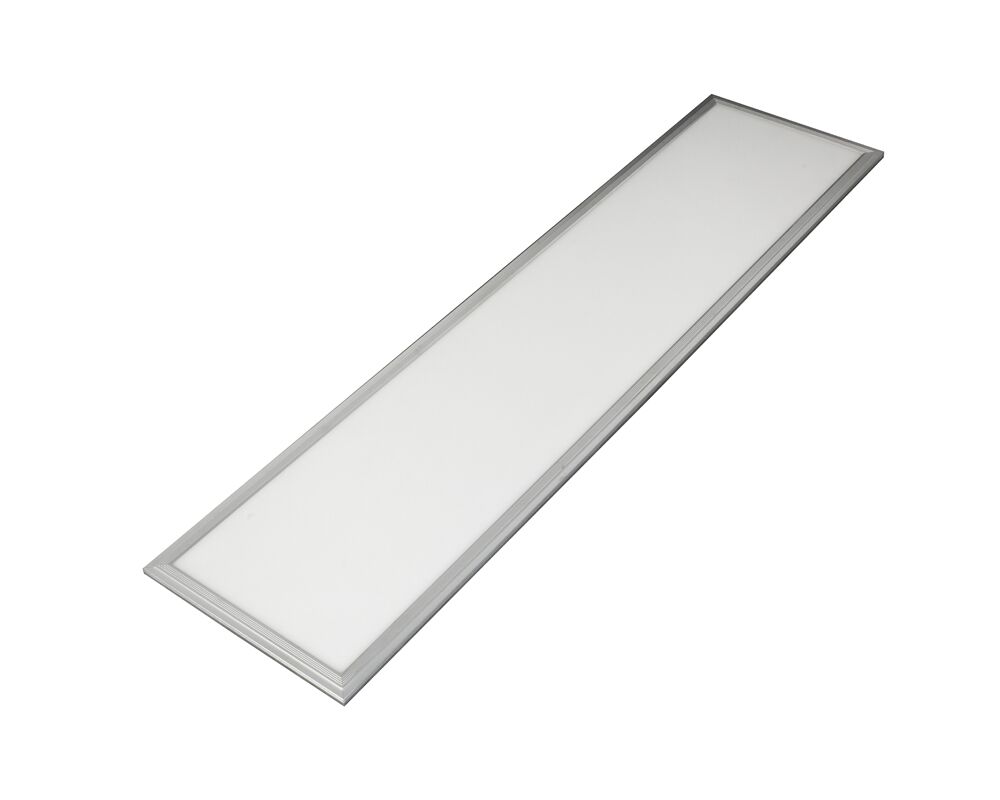

1200×300 ultra slim LED Panel Light 110lm/W

1200x300 led panel light with pmma light guide plate

Tech Specs

Tech Specs
Model No             MG-PL066-30W-T         MG-PL066-40W-T        MG-PL123-30W-T      MG-PL123-40W-T    MG-PL126-60W-T
Input Power                     30W                              40W                                   30W                            40W                          60W
Dimension               595*595*9mm              595*595*9mm              1195*295*9mm         1195*295*9mm       1195*595*9mm
CCT                              3000-6000K                3000-6000K                   3000-6000K                     3000-6000K            3000-6000K
CRI                                   >85                                >85                                      >85                              >85                            >85
Power Factory               >0.9                               >0.9                                     >0.9                             >0.9                          >0.9
IP Grade                         IP44                              IP44                                       IP44                               IP44                          IP44
Input Voltage             200-240V                     200-240V                           200-240V                       200-240V                200-240V
Luminous              110~120lm/W              110~120lm/W                     100~110lm/W             100~110lm/W           110~120lm/W
LEDs QTY                    144PCS                        192PCS                                 144PCS                         144PCS                      288PCS
Beam Angle                 120˚                                120˚                                  120˚                                  120˚                        120˚
Working Temp         -20˚-50˚                        -20˚-50˚                             -20˚-50˚                           -20˚-50˚                  -20˚-50˚
Warranty                    5 Years                        5 Years                                5 Years                           5 Years                       5 Years
Lifespan                     50000H                        50000H                               50000H                          50000H                      50000H
More Details
  • High Output LED’s,up to 115-120lm/W,LM80 certified light source
  • High CRI >85 • TUV UL CE SAA CB certificate,High PF>0.96 low THD driver
  • Flicker free(different brand optional)
  • Environmentally friendly, no mercury, No UV, No IR
  • Polyester powder coated frame with white finish.
  • IP44, indoor using • Energy Efficiency Grade: A+
  • Quick Start instant 100% luminous flux
  • 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)
  • Certificate: CE,RoHs
  • Optional: 1-10V Dimming,MW Sensor, 3h Emergency Battery Backup
  • Hanging mount accessories available
  • Office Lighting
  • School Lighting
  • Healthcare Lighting
  • Workshops
  • Supermark
