200W 30000 lumens Round LED High Bay Light UGR19 150lm/w

UL listed Meanwell driver,High PF>0.96 low THD driver,Flicker free

industrial ufo high bay lighting fixtures | TUBU

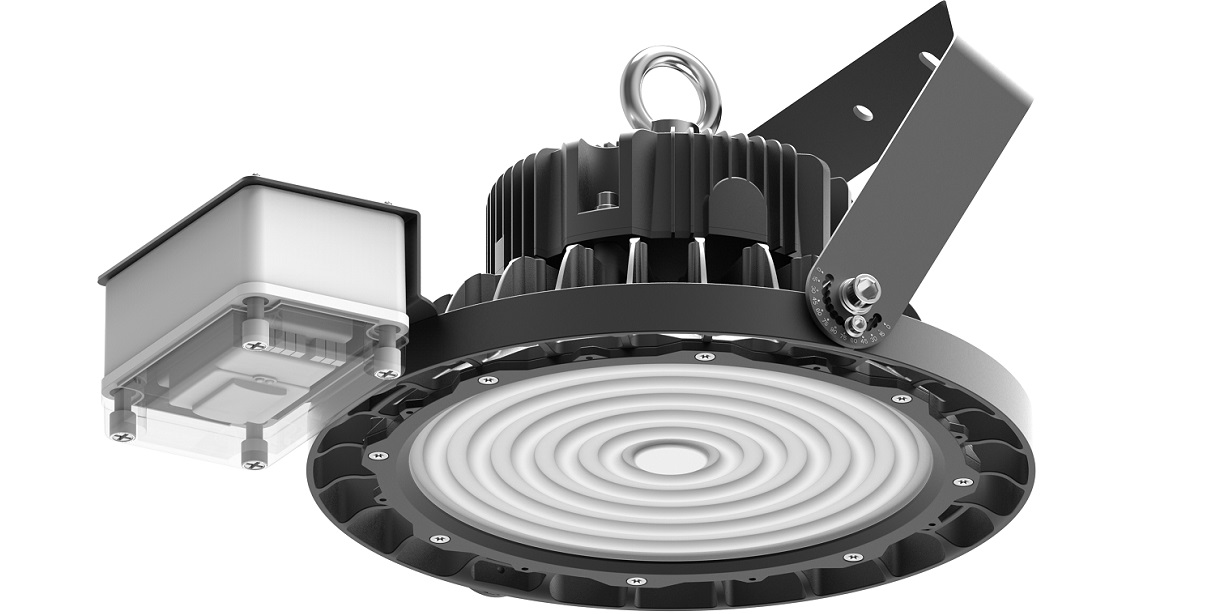

1-10v Step Dim Microwave Sensor 15m

Dali driver series

Professional eye care，no glare, uniform luminance.

Environmentally friendly, no mercury, No UV, No IR 60°/90°/ 120°for option

1-10V Dimming,Microwave Sensor, Dali Options

certification

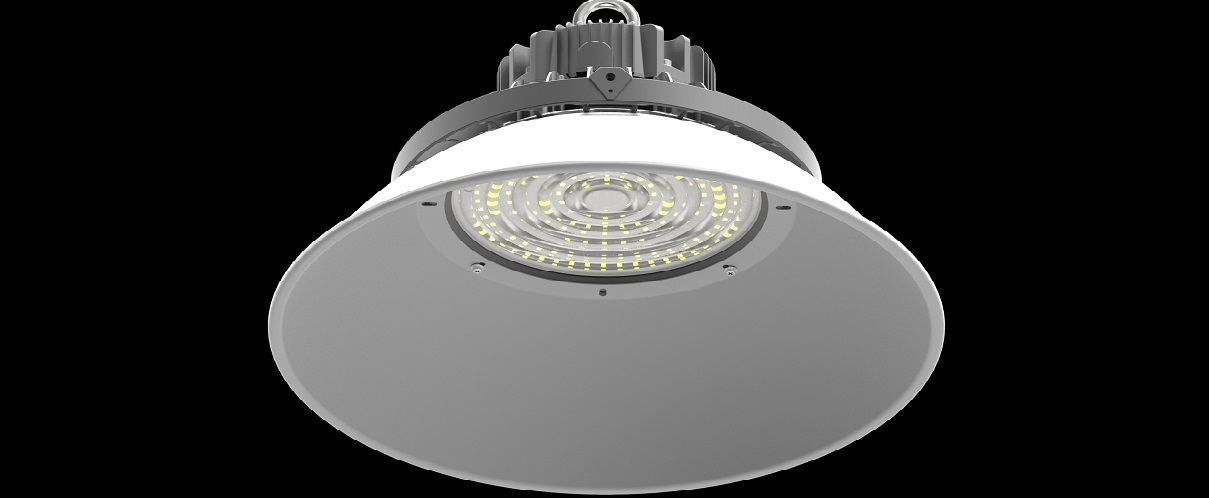

no glare ufo led high bay with pc cover

Tech Specs

Tech Specs
Model No                       TBHBR-100W                               TBHBR-150W                             TBHBR-200W                      TBHBR-240W
Input Power                        100W                                                150W                                          200W                                   240W
CCT                                     5500K                                                5500K                                         5500K                                   5500K
CRI                                        >80                                                    >80                                              >80                                        >80
Power Factor                     >0.95                                                >0.95                                             >0.95                                     >0.95
IP Grade                               IP65                                                  IP65                                              IP65                                       IP65
Input Voltage                  100-277VAC                                  100-277VAC                               100-277VAC                           100-277VAC
Luminous                          150lm/W                                         150lm/W                                     150lm/W                               150lm/W
Beam Angle                    60°/90°/ 120°                                60°/90°/ 120°                            60°/90°/ 120°                        60°/90°/ 120°
Working Temp                 -20˚-50˚                                           -20˚-50˚                                        -20˚-50˚                                  -20˚-50˚
Warranty                           5 Years                                            5 Years                                         5 Years                                         5 Years
Lifetime                           50,000hrs                                      50,000hrs                                       50,000hrs                              50,000hrs
More Details

• High Output LED’s,up to 150m/W standard

• High CRI >80

• UL listed Meanwell driver,High PF>0.96 low THD driver,Flicker free

• Environmentally friendly, no mercury, No UV, No IR

• 60°/90°/ 120°for option

• IP65 protections rating ; for indoor&outdoor using

• Energy Efficiency Grade: A+++

• Quick Start instant 100% luminous flux

• 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)

• Certificate: CE,RoHs,ETL,DLC,SAA,TUV (Pending）

• Body: Aluminium alloy

• Stainless steel screws

• Options: 1-10V Dimming, 1-10v Step Dim Microwave Sensor > 15m

Application

• Bus station
• Sports Halls
• Factories
• Warehouse
• Badminton court
• Exhibition Halls
• Airport
• Workshops
• Supermark

Downlod
Interested in LED UFO High Bay? Click to download the datasheet.
