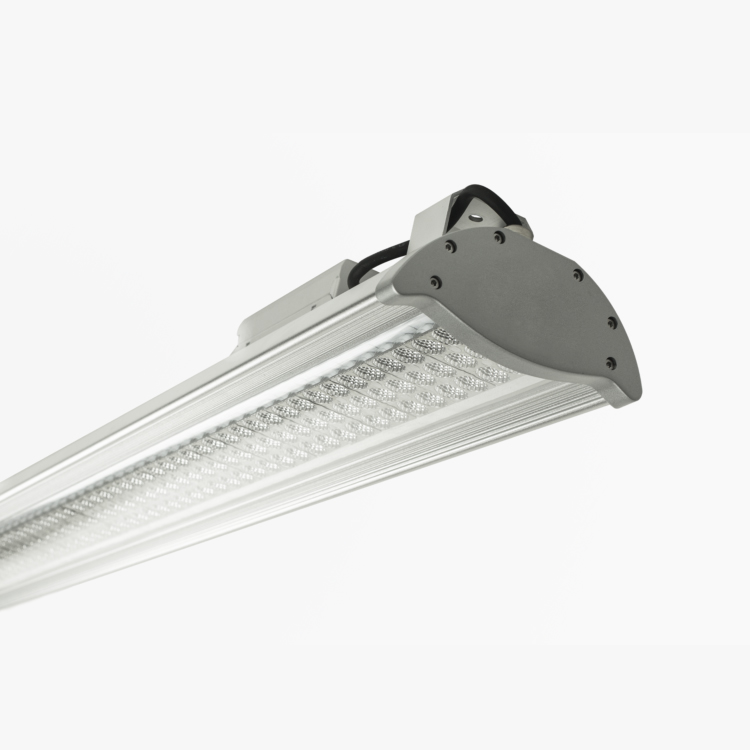

3ft 120W UGR19 Anti-glare LED High Bay Fixtures IP65

Water-proof,Dust-proof,Corrosion-proof,Pressure-proof

Anti-glare UGR19

Professional eye care，no glare, uniform luminance.

Intelligent control

1-10V Dimming,Microwave Sensor, Dali control, ZigBee Wireless Control Options

certification

Tech Specs

Tech Specs
Model No                       MG-HT80WF-DXG           MG-HT120WF-DXG          MG-HT150WF-DXG             MG-HT200WF-DXG
Input Power                                80W                                   120W                                      150W                                           200W
Dimension                               600mm                                 900mm                                 1200mm                                    1500mm
CCT                                                                                           3000K/4000K/5000K/6000K
CRI                                                                                                              >80
Power Factor                                                                                            >0.9
Driver                                                                                        Mean Well ELG/HLG
IP Grade                                                                                                IP65
Input Voltage                                                                                 200~240VAC/100-277VAC
Luminous Efficiency                                                                       120~130lm/W
Beam Angle                                                                                           40˚ 60° 90°
Working Temp                                                                                    -20˚-50˚
Warranty                                                                                               5 Years
Lifespan                                                                                               50,000H
More Details
  • High Output LED’s,up to 110~120lm/W
  •  Glare-free UGR<19, Provides Improved Visual Comfort • High CRI >80
  • Meanwell brand driver ,TUV UL CE certificate,PF>0.96, THD<12
  • Flicker free
  • Environmentally friendly, no mercury, No UV, No IR
  • IP66, indoor, outdoor use
  • 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)
  • ETL/cETL/DLC/CE/RoHs/FCC/IP66 certified
  • 1-10V Dimming,Microwave Sensor, Dali control, Zigbee Wireless Control Options
  • Pendent Mount or Surface Mount
  • Hanging mount accessories included
Application

• Bus station
• Sports Halls
• Factories
• Warehouse
• Badminton court
• Exhibition Halls
• Airport
• Workshops
• Supermark

Downlod
Interested in Anti-glare LED High Bay Fixture? Click to download the datasheet.

Applications

LED high bay gym lighting application

LED high bay gym lighting application

compact led linear high bay application for gym

Compact LED Linear High Bay application for gym

tennis court application of led linear high bay

Linear High Bay application for tennis court

tennis court project application with smart control led high bay

Tennis Court Project with LED Linear High Bay

linear led high bay application project in Sweden for Hockey field

Hockey Field project with LED Linear High Bay
