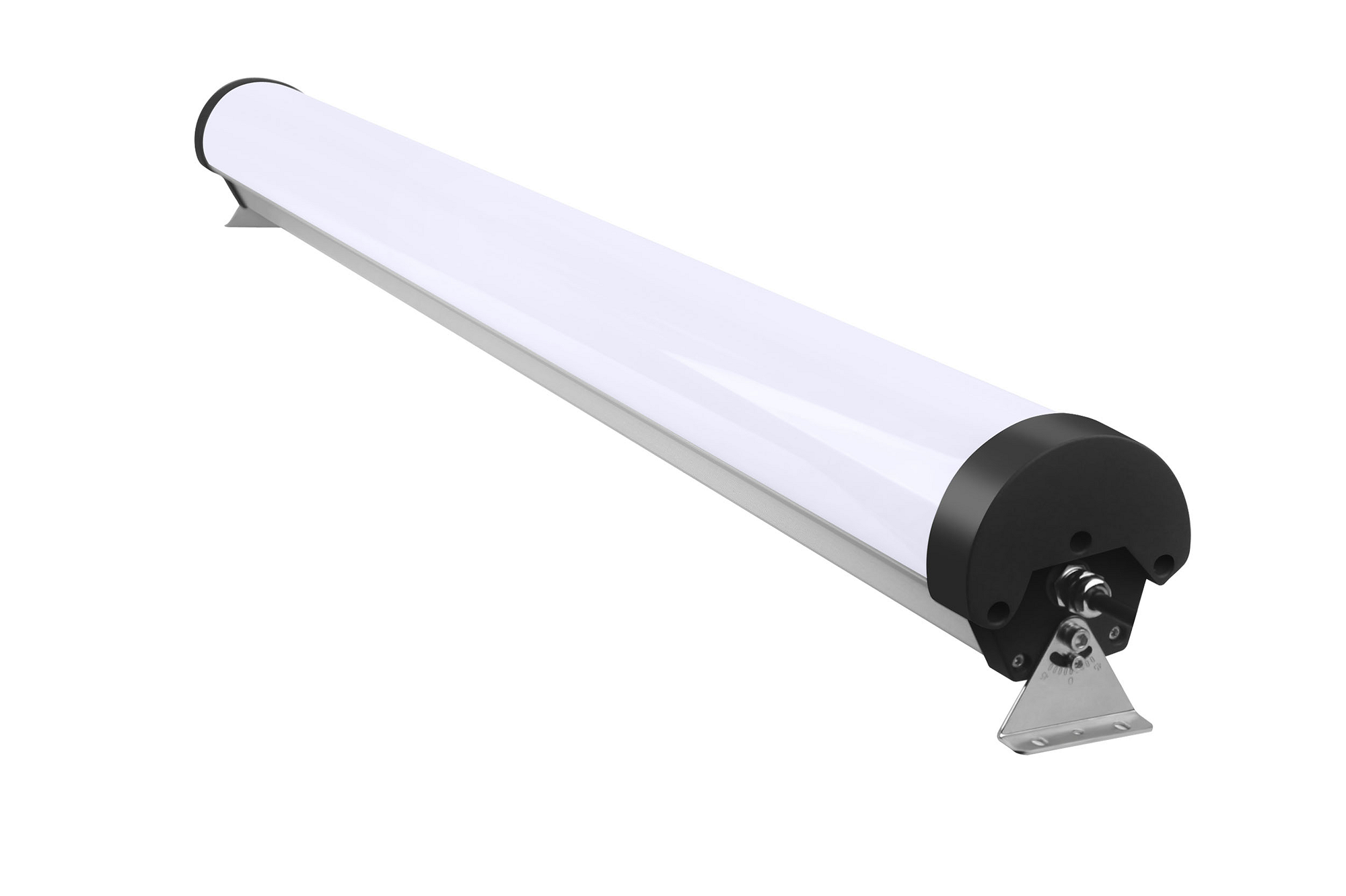

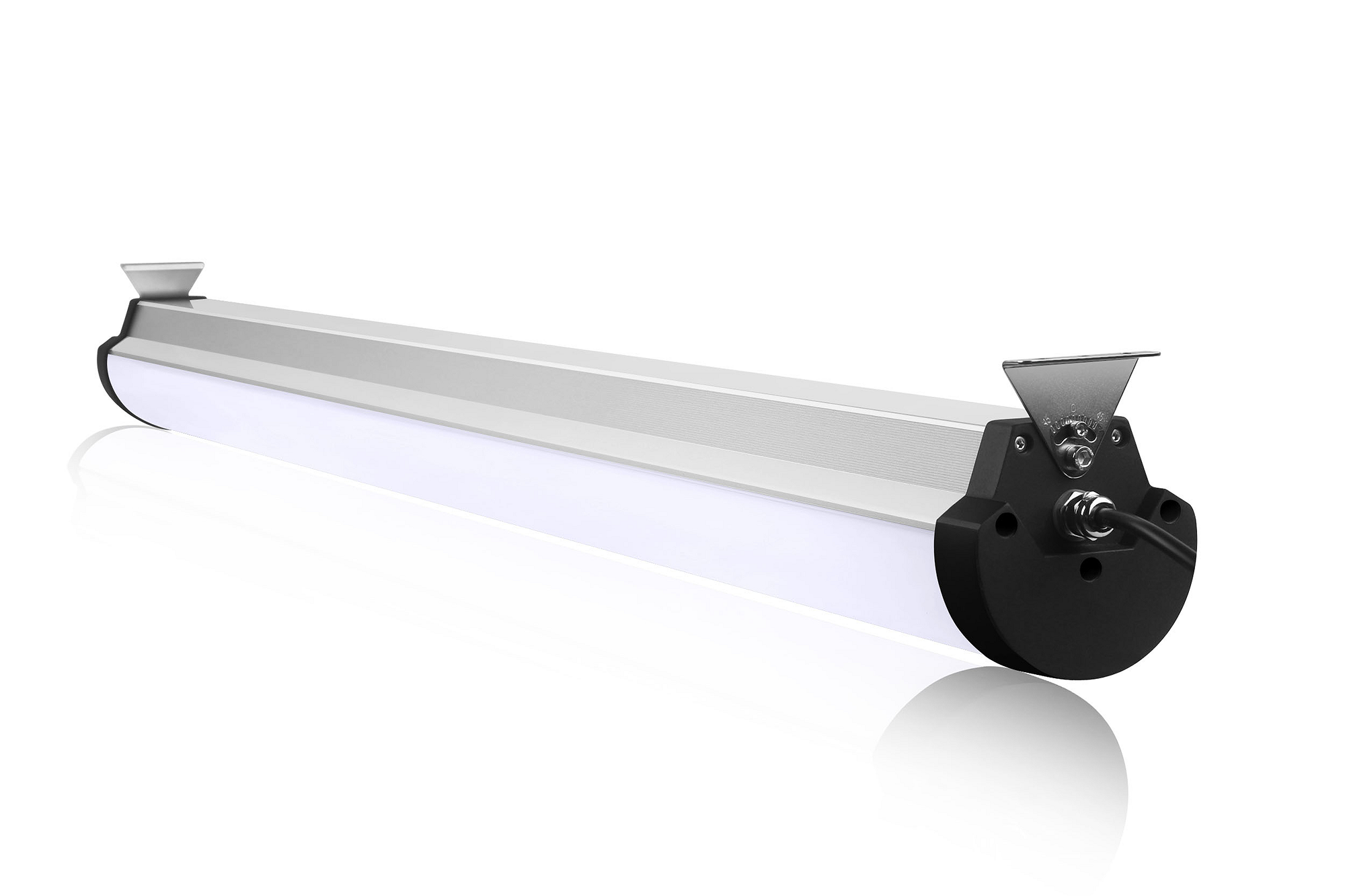

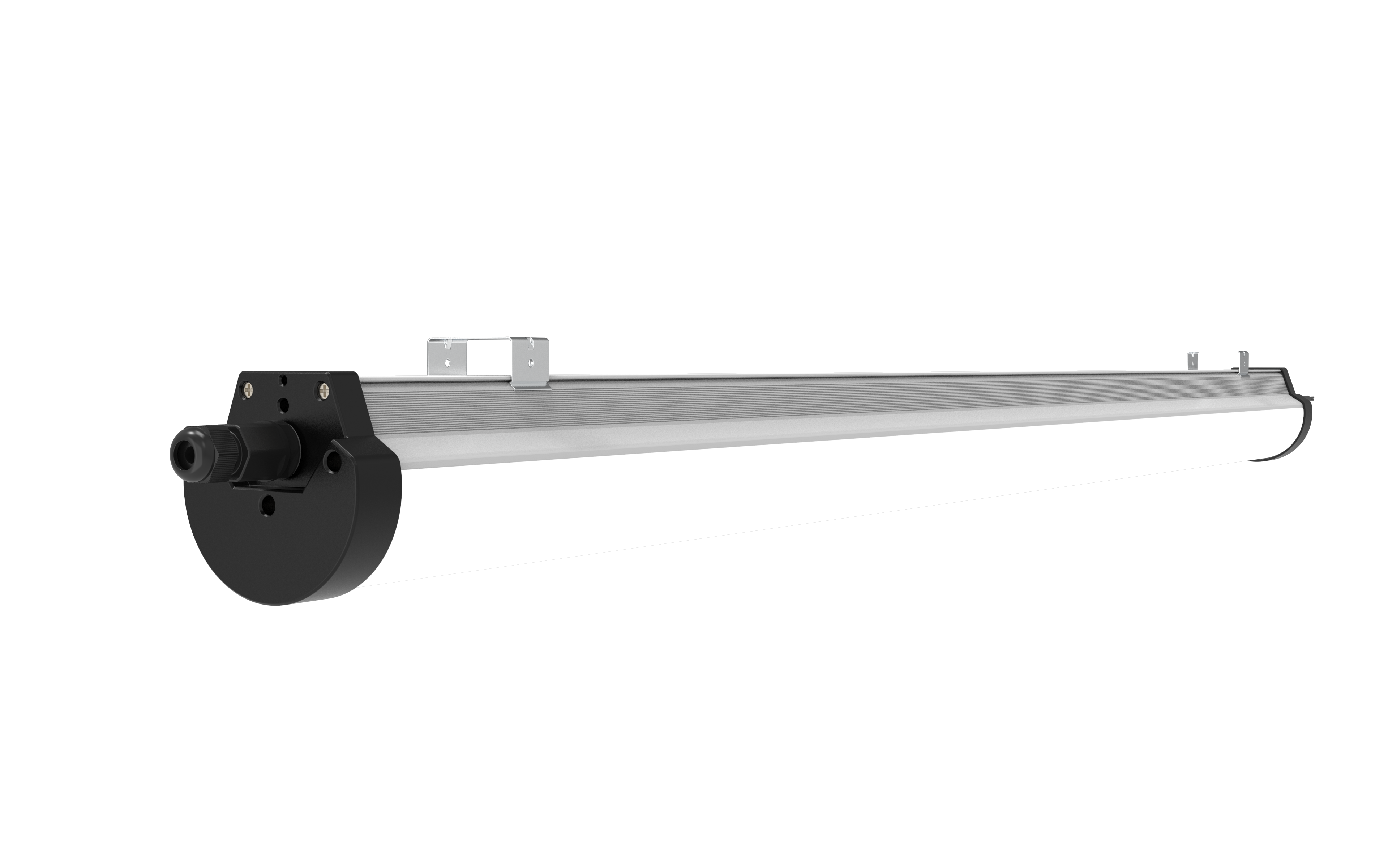

5ft LED tri-proof light 80W 100W IP65
High Output LED’s, up to 130lm/W
CE, RoHs, ETL, cETL, DLC certified,
1-10V Dimming, DALI option

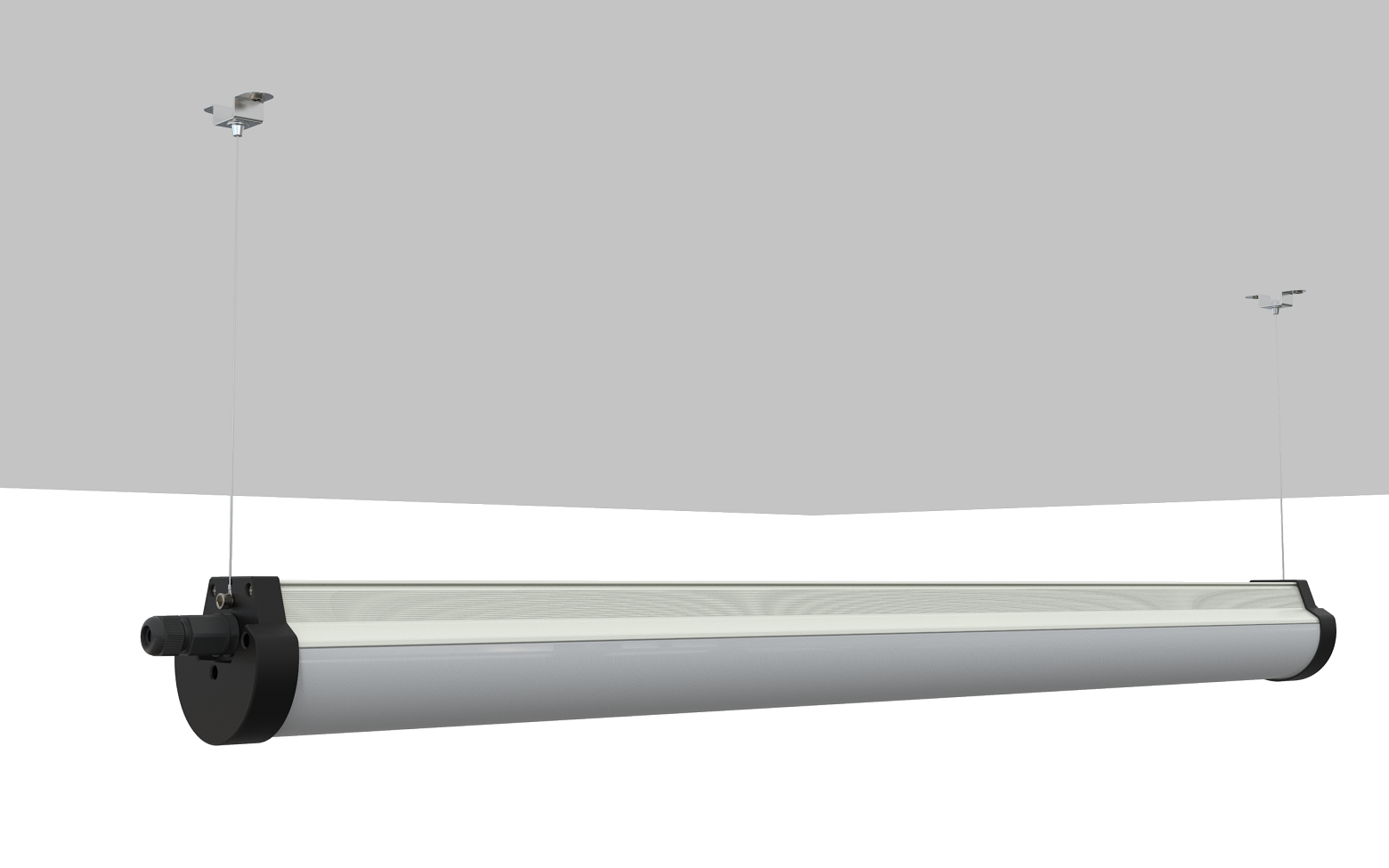

Suspension Mount
Surface mounting

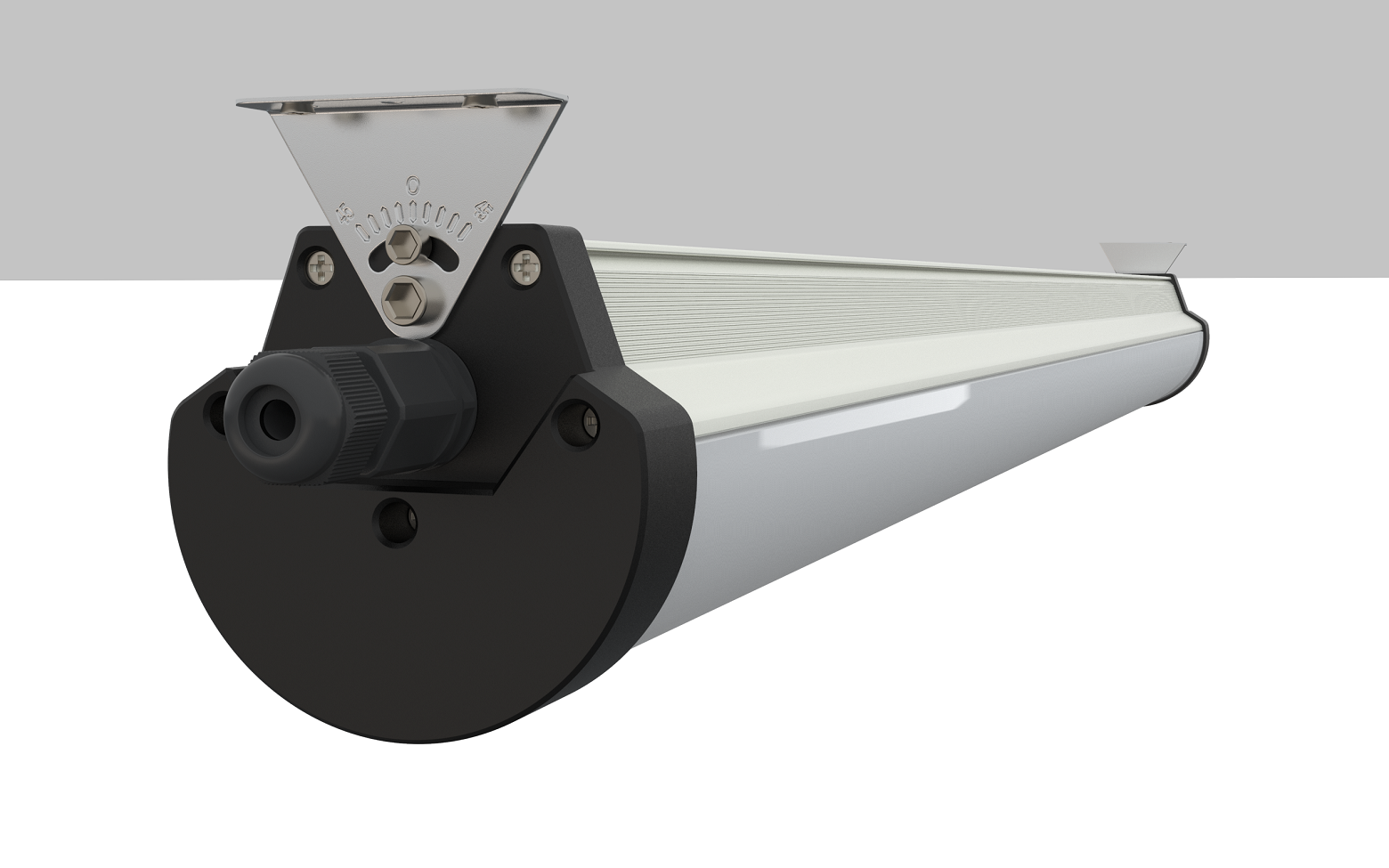

90° adjustable wall mounting clips for option
IP65 Water-proof, Dust-proof, Corrosion-proof, Pressure-proof
Wide beam angle almost 180°, 3 pin / 5 pin quick connectors available for option
High Output LED’s, up to 130lm/W, PF>0.96, THD<12, Environmentally friendly, no mercury, No UV, No IR, Certificate: CE, RoHs, ETL, cETL, DLC ,1-10V Dimming, MW Sensor, DALI Control Options
Tech Specs
Tech Specs
| Model No | LBF5F-100W | LBF5F-80W | LBF4F-60W | LBF4F-40W | LBF2F-30W |
| Input Power | 100W | 80W | 60W | 40W | 30W |
| Ambient temp | -35 ~ +40℃ | -35 ~ +40℃ | -35 ~ +40℃ | -35 ~ +40℃ | -35 ~ +40℃ |
| IK | 10 | 10 | 10 | 10 | 10 |
| Lifespan | 50000H | 50000H | 50000H | 50000H | 50000H |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
| IP Grade | IP65 | IP65 | IP65 | IP65 | IP65 |
| Power factor | >0.92 | >0.92 | >0.92 | >0.92 | >0.92 |
| CRI | >80 | >80 | >80 | >80 | >80 |
| Luminous Efficiency | 130lm/W | 130lm/W | 130lm/W | 130lm/W | 130lm/W |
| CCT | 2700~6500K | 2700~6500K | 2700~6500K | 2700~6500K | 2700~6500K |
| LED QTY | 456pcs Epistar | 456pcs Epistar | 336pcs Epistar | 336pcs Epistar | 180pcs Epistar |
| Input Voltage | AC200~240V | AC200~240V | AC200~240V | AC200~240V | AC200~240V |
| Dimension | 1500*105*102mm | 1500*105*102mm | 1200*105*102mm | 1200*105*102mm | 600*105*102mm |
More Details
• High Output LED’s,up to 125~130m/W,LM80 light source
• High CRI >80
• UL,FCC,TUV,RCM,CB,CE certified driver,High PF>0.96 low THD driver
• Environmentally friendly, no mercury, No UV, No IR
• Linkable Option(Customize cable length)
• Wide beam angle 180°
• IP66 waterproof,dust,corrosion and pressure-proof; for indoor&outdoor use
• Energy Efficiency Grade: A+
• Quick Start instant 100% luminous flux
• Aluminium housing+PC cover
• 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)
• Certificate: CE,RoHs,ETL,DLC,SAA,TUV (Pending)
• Options:
1-10V Dimming,
1-10v Step Dim Microwave Sensor > 15m (Can be used as On/Off on non 1-10v)MW,
3h Emergency Battery Backup
• Hanging mount accessories included ;90°adjustable mounting clips for option
Application
• Cold Storage: Food Distribution Centers, Grocery Storage, Commercial Wineries, Restaurant Storage, Brewery Facilities
• Food Processing: Meat Packing, Bottling Centers, Cheese Factories, Produce Centers, Fish Packing, Bakeries
• Warehouse & Logistics
• Parking Garages And More
