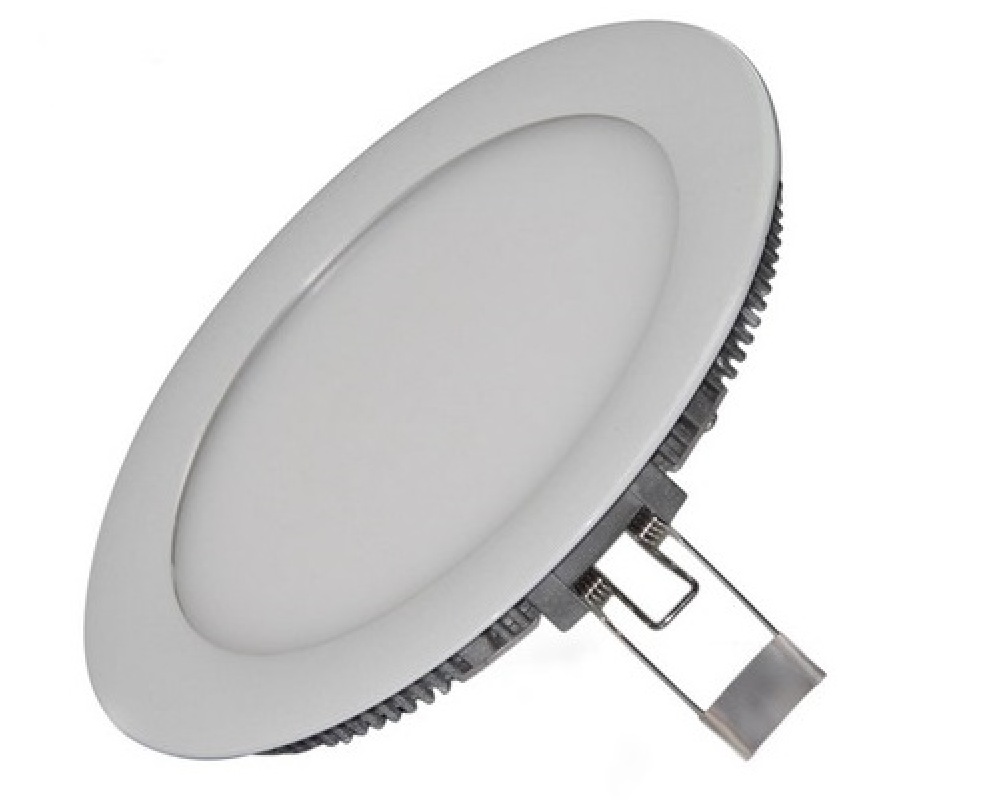

Slimline LED Round Panel Light, Ultra Thin
Tech Specs
Tech Specs
| Model No MG-PLR18-12W MG-PLR24-15W MG-PLR30-22W | ||||||||||
| Input Power 12W 15W 22W | ||||||||||
| Dimension Ø180*T14MM Ø240*T14MM Ø300*T14MM | ||||||||||
| CCT 3000-5700K 3000-5700K 3000-5700K | ||||||||||
| CRI >80 >80 >80 | ||||||||||
| Power Factory >0.9 >0.9 >0.9 | ||||||||||
| IP Grade IP40 IP40 IP40 | ||||||||||
| Input Voltage AC200~240V AC200~240V AC200~240V | ||||||||||
| Luminous 100lm/W 100lm/W 100lm/W | ||||||||||
| Beam Angle 120˚ 120˚ 120˚ | ||||||||||
| Working Temp -20˚-40˚ -20˚-40˚ -20˚-40˚ | ||||||||||
| Warranty 5 Years 5 Years 5 Years | ||||||||||
| Lifespan 50,000H 50,000H 50,000H |
More Details
- High Output LED’s,up to 100lm/W,LM80 certified light source
- High CRI >80
- TUV UL CE SAA CB certificate driver,High PF>0.96 low THD driver
- Flicker free (different brand optional)
- Environmentally friendly, no mercury, No UV, No IR
- Polyester powder coated frame with white finish.
- IP44, indoor using • Energy Efficiency Grade: A+
- Quick Start instant 100% luminous flux
- 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)
- Certificate: CE,RoHs
- Optional: 1-10V Dimming,MW Sensor, 3h Emergency Battery Backup
Application
- Office Lighting
- School Lighting
- Healthcare Lighting
- Workshops
- Supermark
