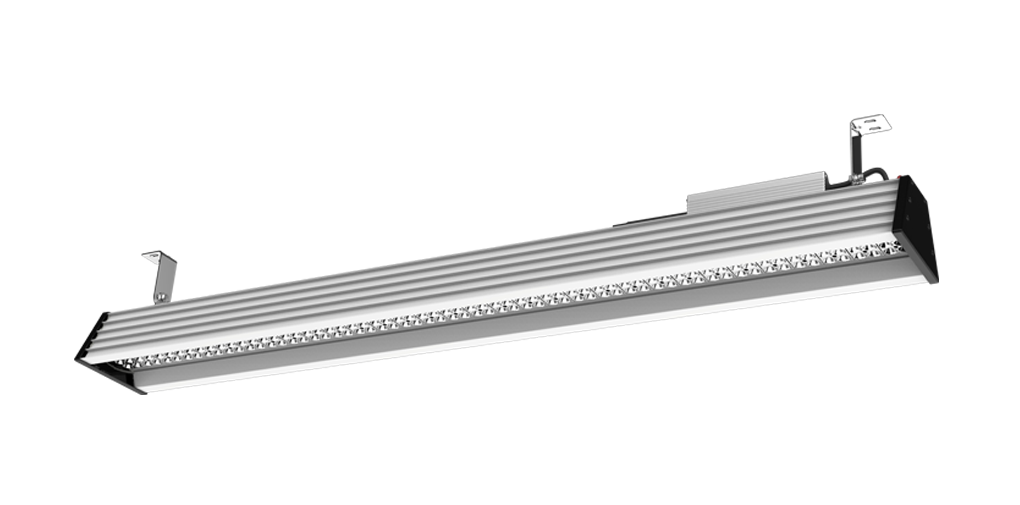

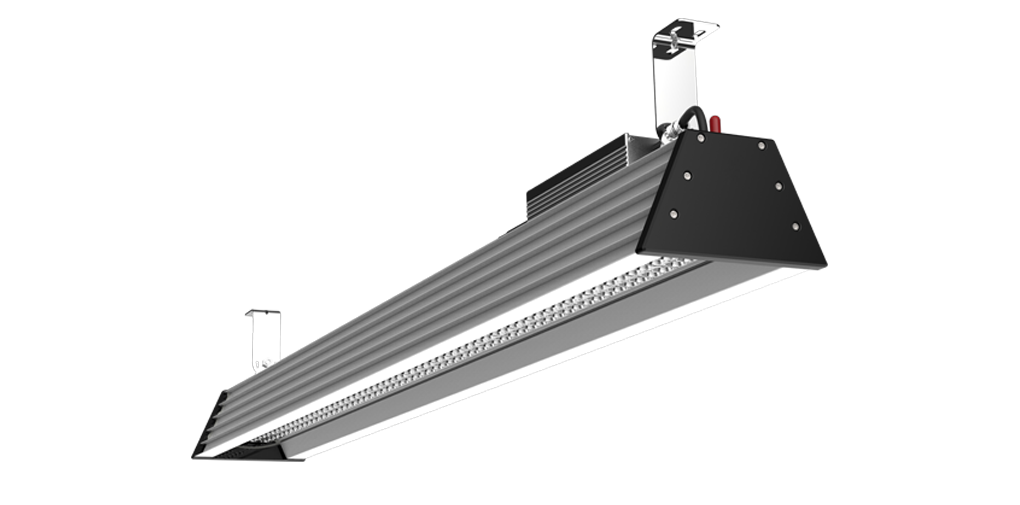

5ft 200W high temperature resistant LED High Bay Fixtures,-40~65℃

best workshop lighting 200w


smart led high bay | TUBU

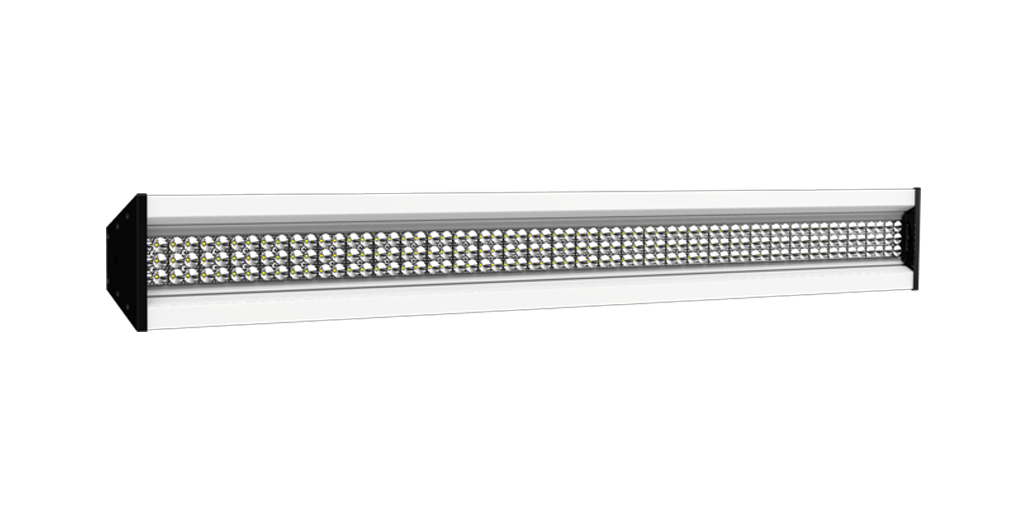

Anti-glare UGR19

Professional eye care,no glare, uniform luminance.

lighting design workshop

Intelligent control

1-10V Dimming,Microwave Sensor, Dali control, ZigBee Wireless Control Options

200w led warehouse lighting with factory price

Tech Specs

Tech Specs
Model No                          TBG5-80W-DXG              TBG5-120W-DXG             TBG5-150W-DXG                      TBG5-200W-DXG
Input Power                              80W                                  120W                                150W                                       200W
Dimension                              600mm                              900mm                            1200mm                                  1500mm
CCT                                                                                        3000K/4000K/5000K/6000K
CRI                                                                                                        >80
Power Factor                                                                                        >0.9
Driver                                                                                        Mean Well ELG( Internal)
IP Grade                                                                                                IP66
Input Voltage                                                                                 180~277VAC
Luminous Efficiency                                                                       110~120lm/W
Beam Angle                                                                                           40˚ & 60°
Working Temp                                                                                   -20˚-65˚
Warranty                                                                                               5 Years
Lifespan                                                                                               50,000H
More Details
  • High Output LED’s,up to 110~120lm/W
  •  Glare-free UGR<19, Provides Improved Visual Comfort • High CRI >80
  • Meanwell brand driver ,TUV UL CE certificate,PF>0.96, THD<12
  • Flicker free
  • Environmentally friendly, no mercury, No UV, No IR

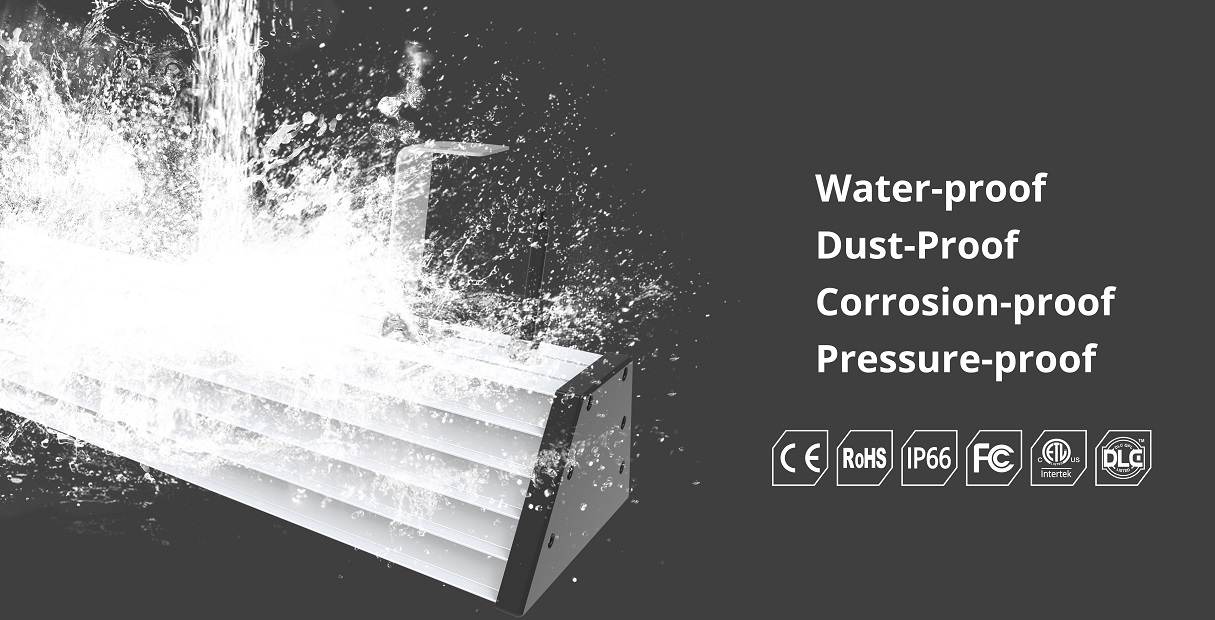

  • IP66, indoor, outdoor use
  • 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)
  • ETL/cETL/DLC/CE/RoHs/FCC/IP66 certified
  • 1-10V Dimming,Microwave Sensor, Dali control, Zigbee Wireless Control Options
  • Pendent Mount or Surface Mount
  • Hanging mount accessories included

• Bus station
• Sports Halls
• Factories
• Warehouse
• Badminton court
• Exhibition Halls
• Airport
• Workshops
• Supermark


When you have much file you can put here:
Download file name 1
Download file name 2
Download file name 3

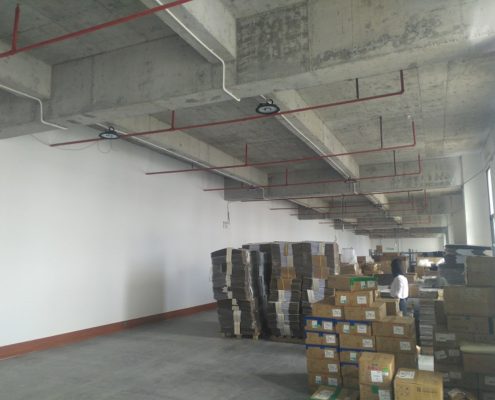

motion sensor led high bay application for factory warehouse

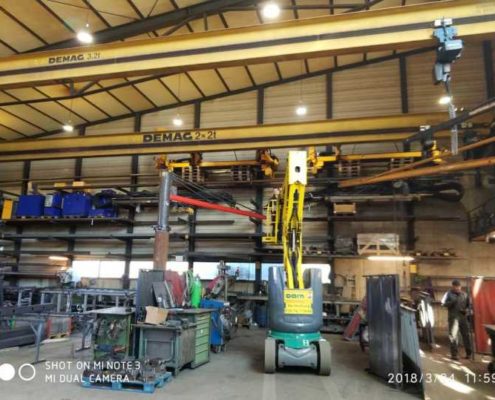

400w metal halide high bay led replacement application

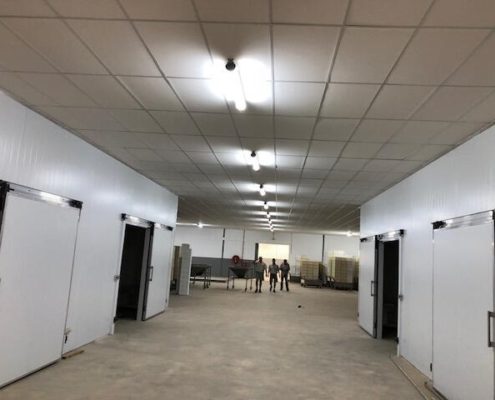

storage led lighting solutions

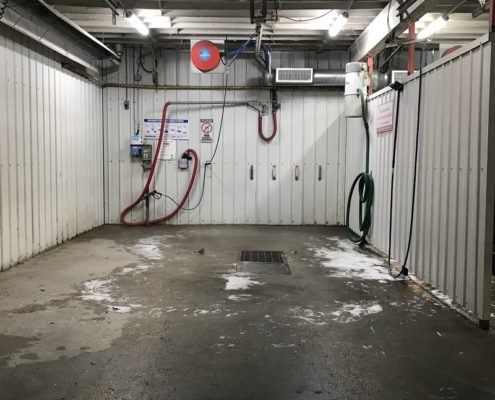

carwash lighting solutions

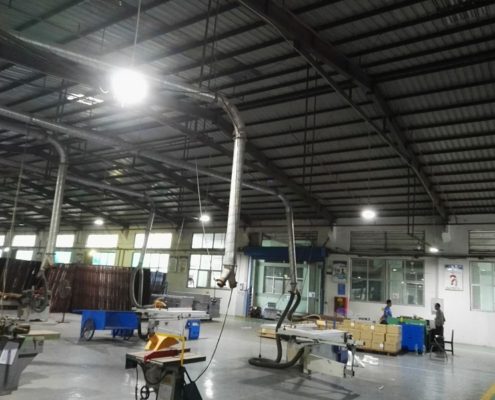

high bay luminaire application for factory in high temperature area

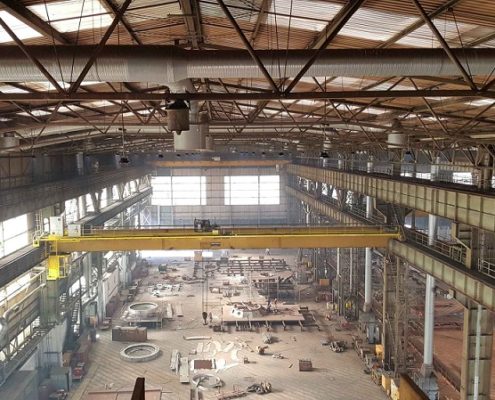

led high bay application for hardware industry

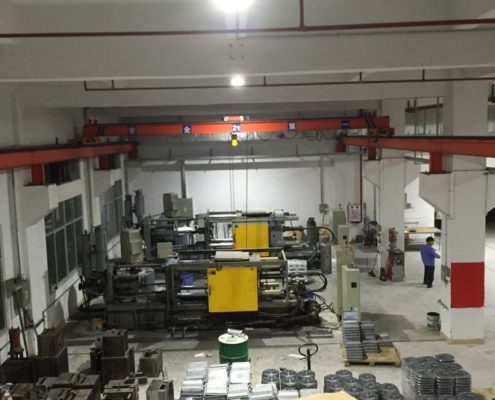

die-casting factory project with led high bay fixtures

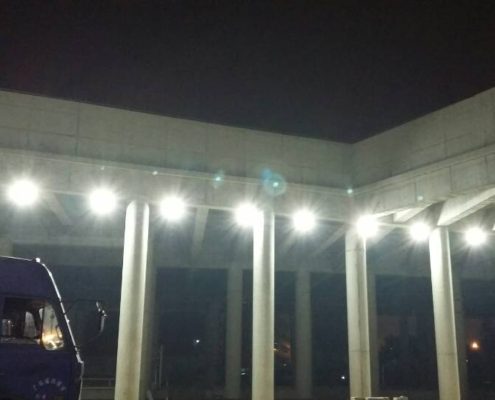

led high bay lighting application for construction industry

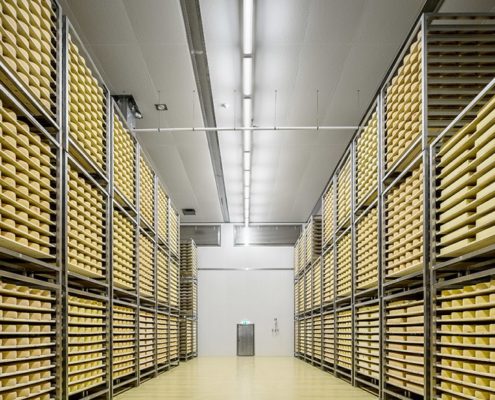

led linear high bay for cold storage

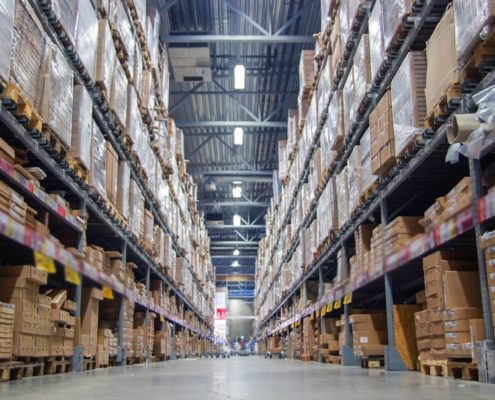

led linear high bay for Retail warehouse

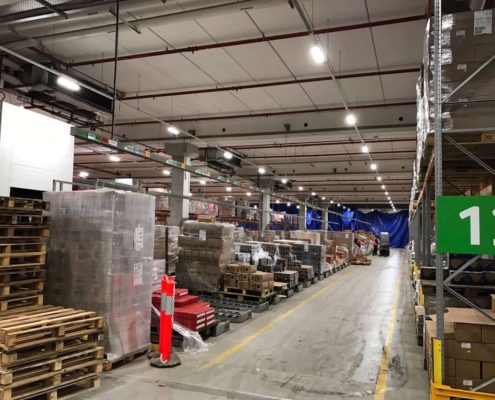

led linear high bay for warehouse

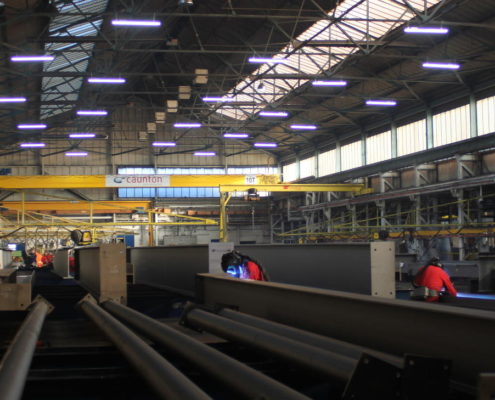

led linear high bay application
