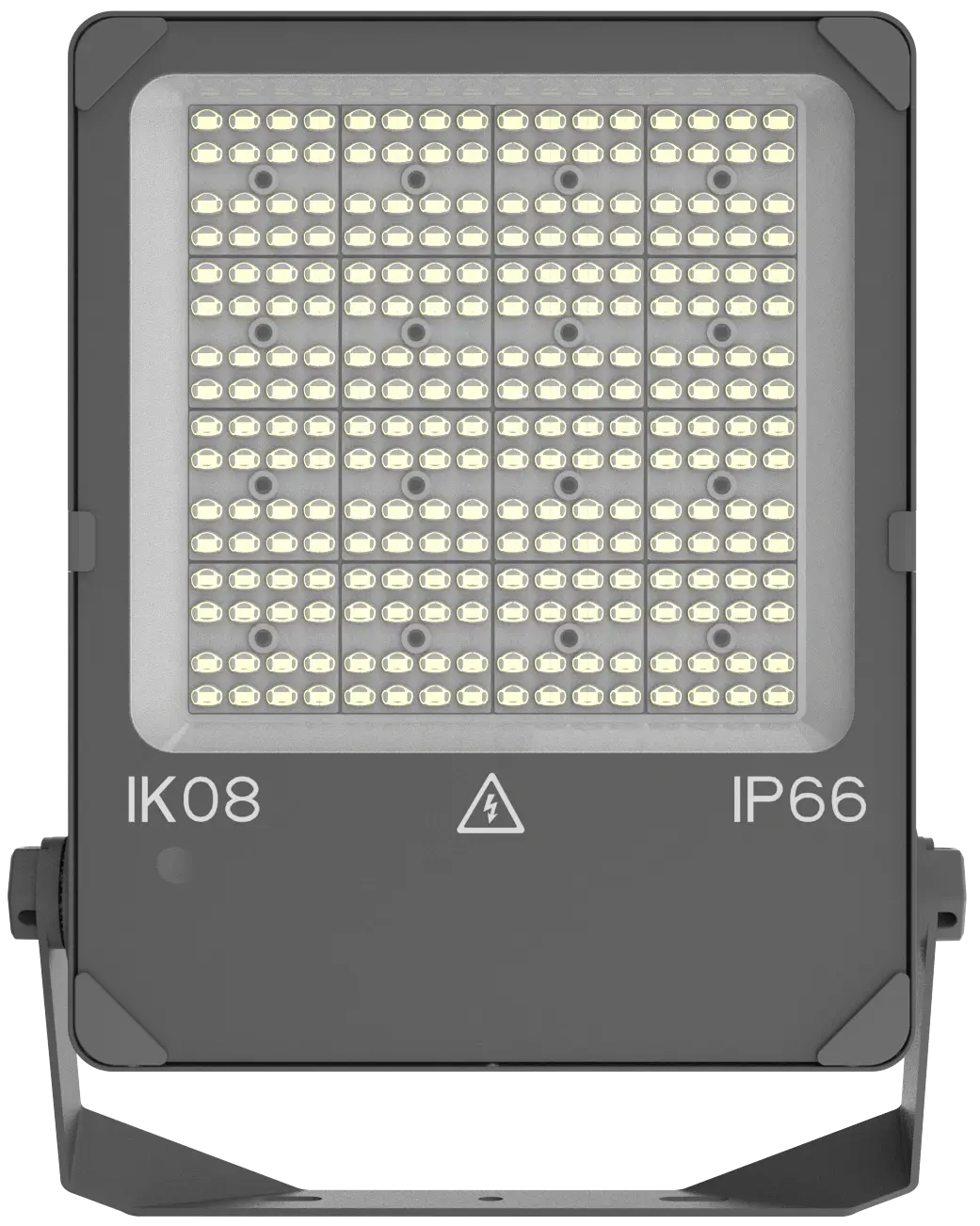

TG5 Series LED Floodlights for Large Industrial & Marine Areas
Features:
Description

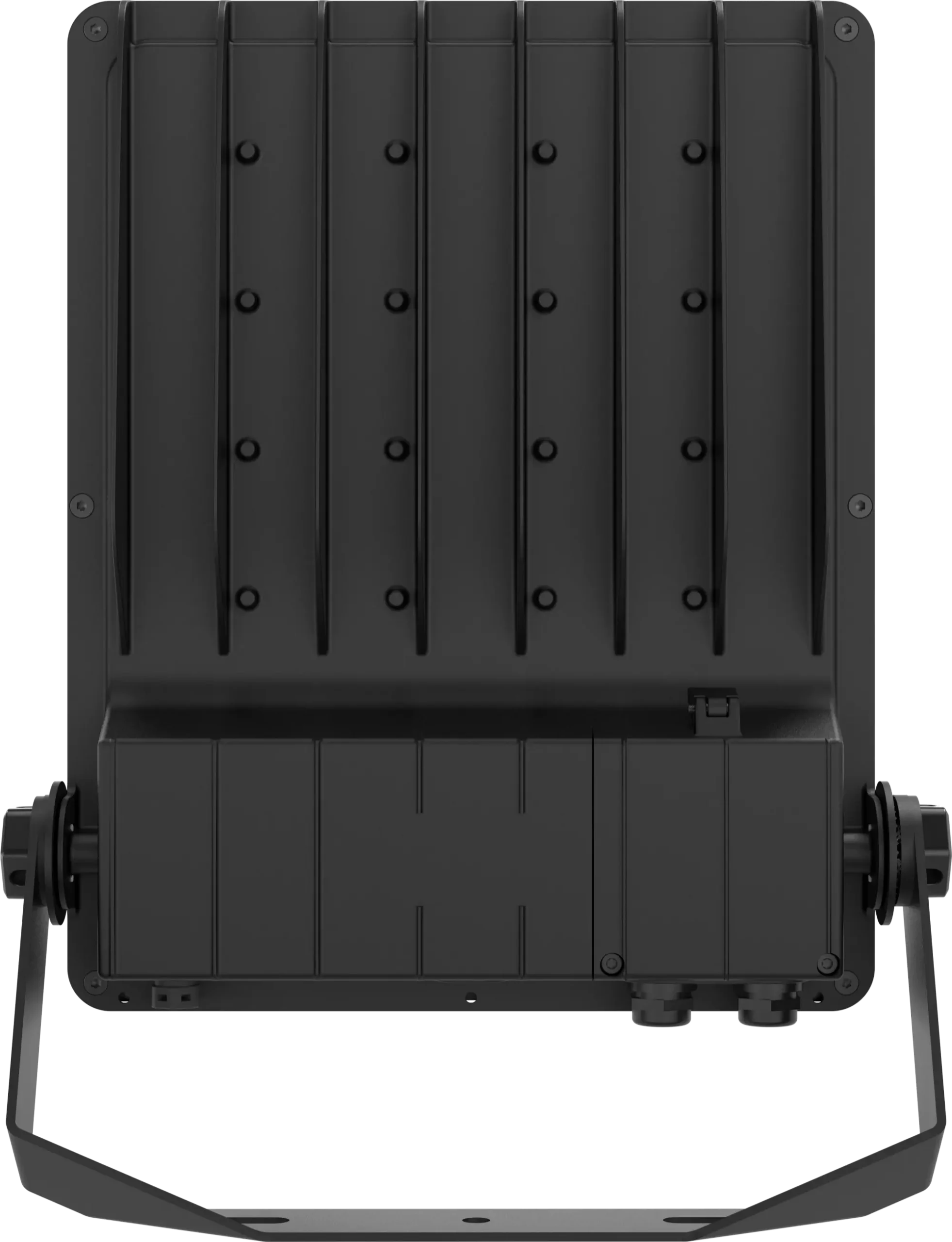

The TUBU TG5 LED floodlight high efficiency minimises energy consumption and CO2 emissions reliably and in the long run thanks to sophisticated thermal management. Based on a standardized component inventory system, the luminaire offers fast delivery, simplified maintenance, and flexible upgrade options, providing a future-ready lighting solution with lower lifecycle costs.
It supports 100W–240W power options, IK08 or IK11 protection ratings, single, dual, or tri-CCT configurations, and Loop-in and Loop-out cable entry are optional. It also offers 3-core or 5-core through-wiring, C4 or C5 corrosion-protection grades, and optional photocell-sensor configurations.

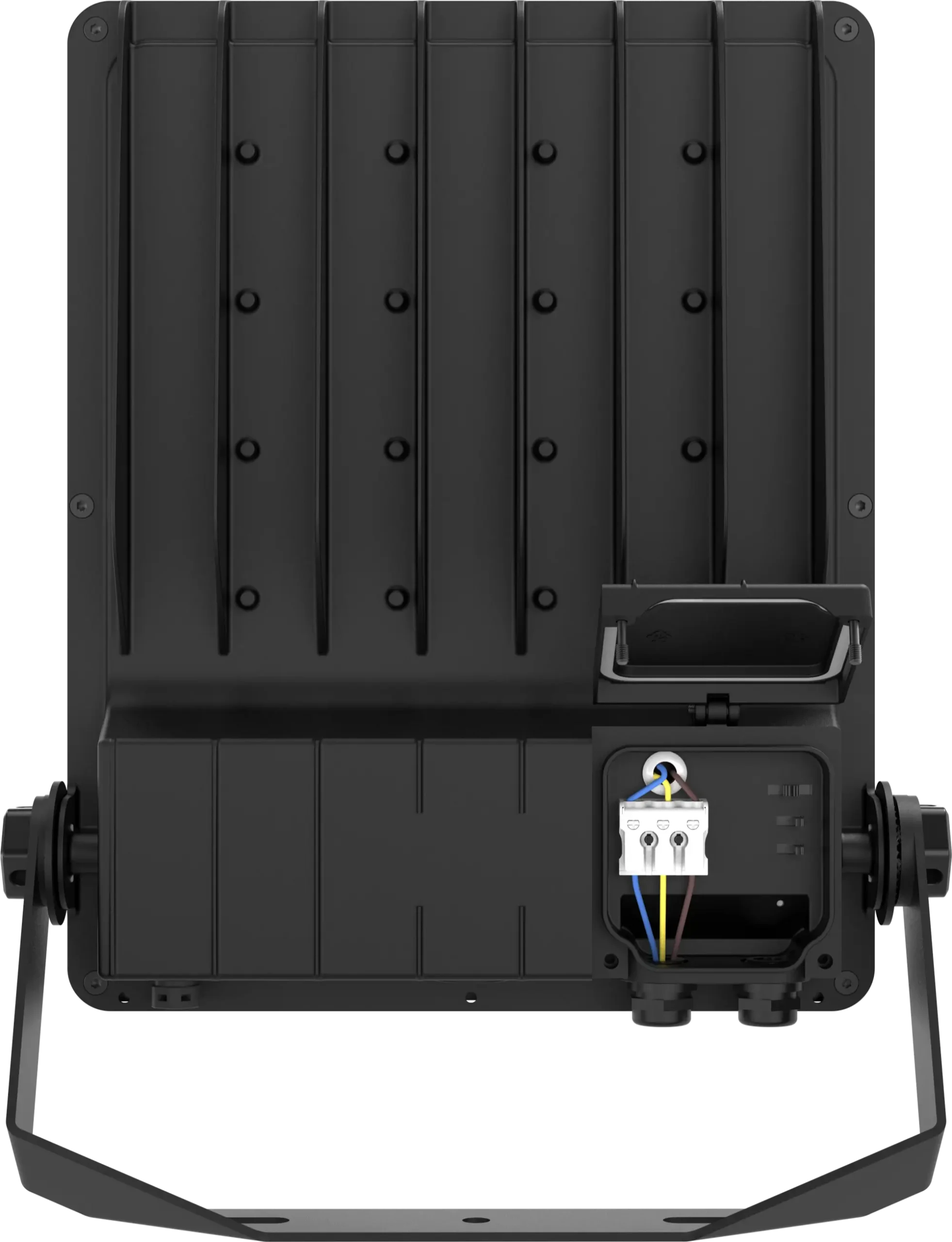

Integrated Design
Integrated with built-in DIP switch-adjustable CCT, photocell, and power output settings. Supporting both 3-core and 5-core wiring, it eliminates the need for additional external control components. Simply open the flip cover to quickly complete wiring, parameter configuration, and maintenance, simplifying installation and commissioning while reducing installation time and labor costs.
Flexible On-site Configuration

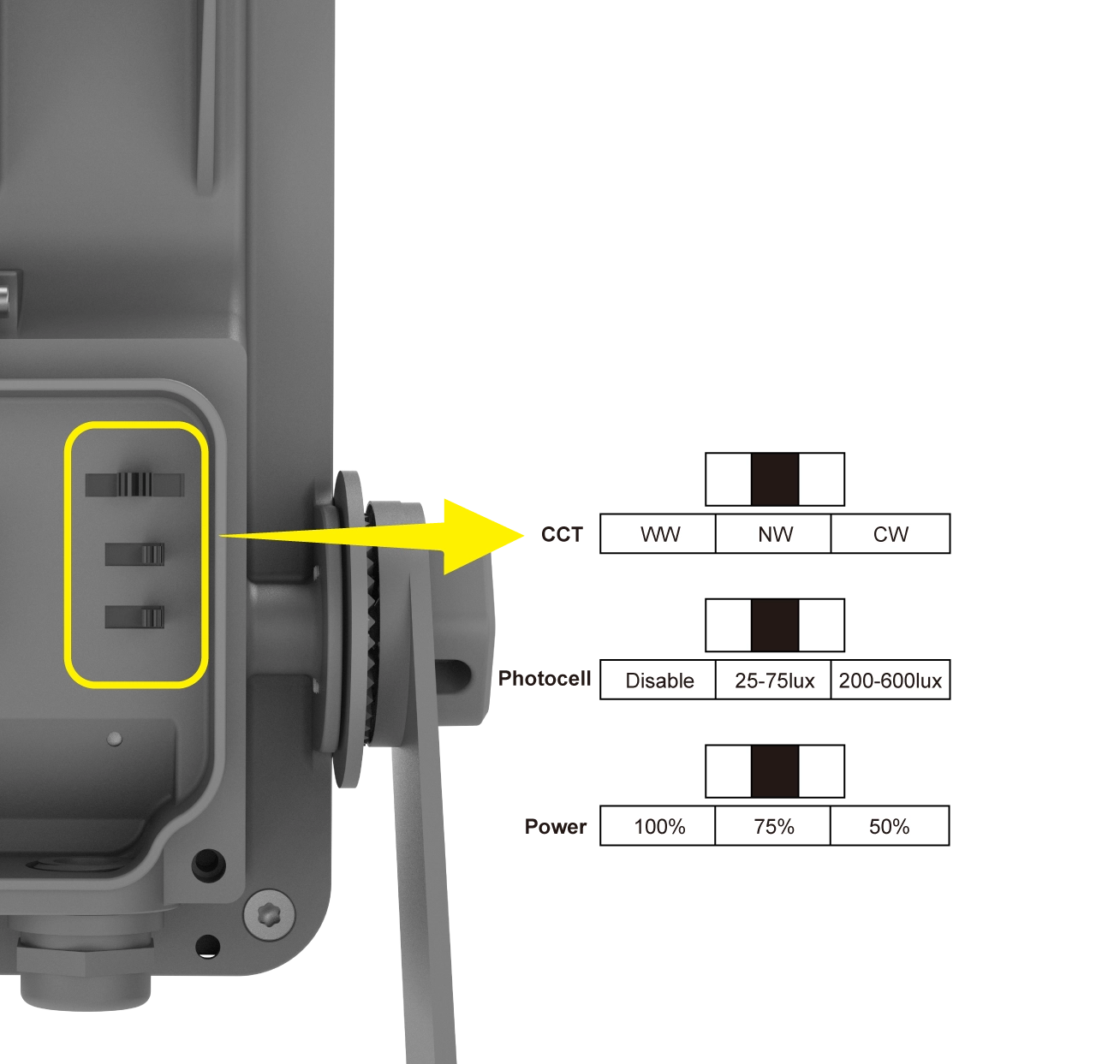

Configure lighting performance in minutes using the DIP switches.

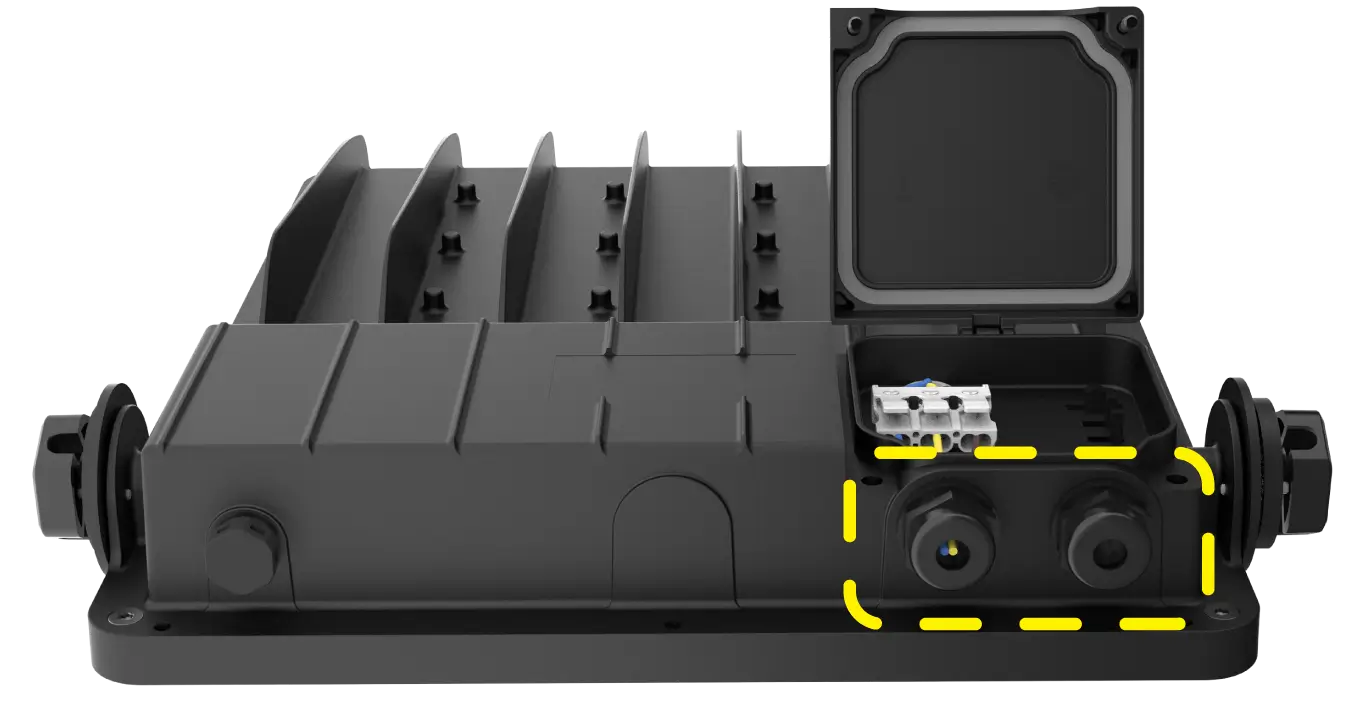

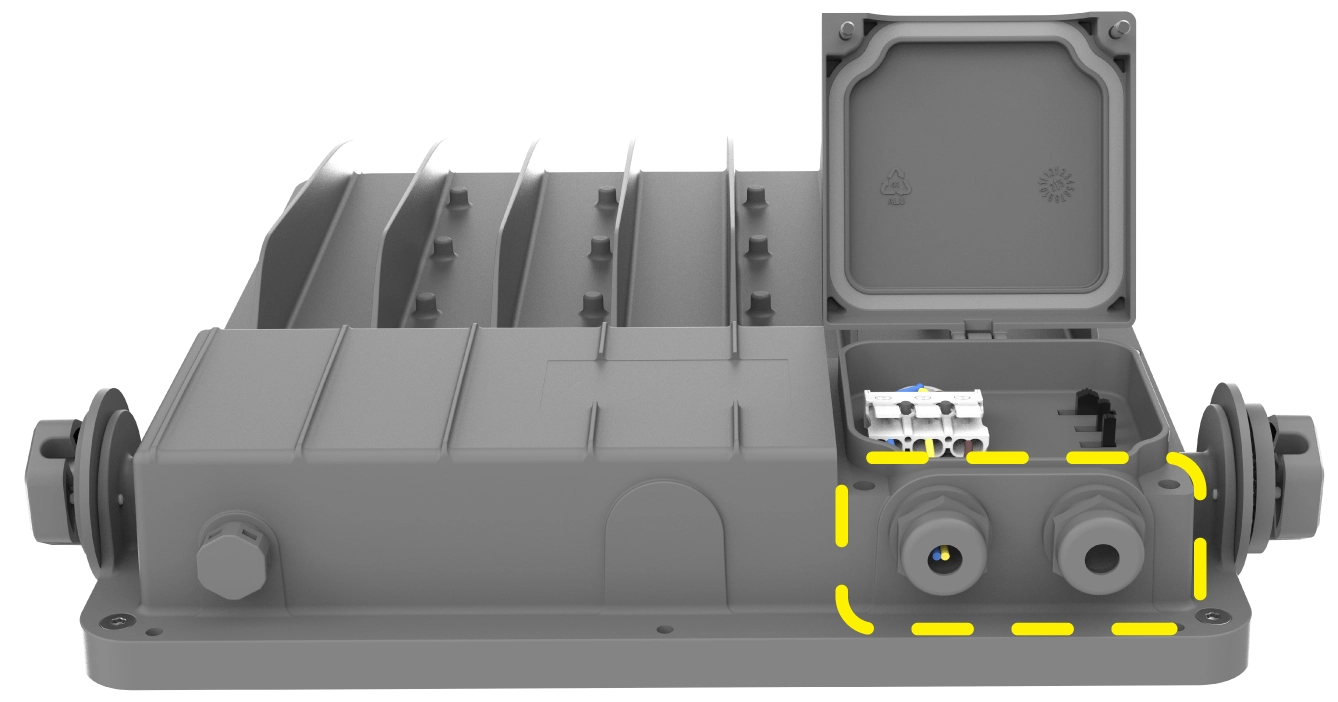

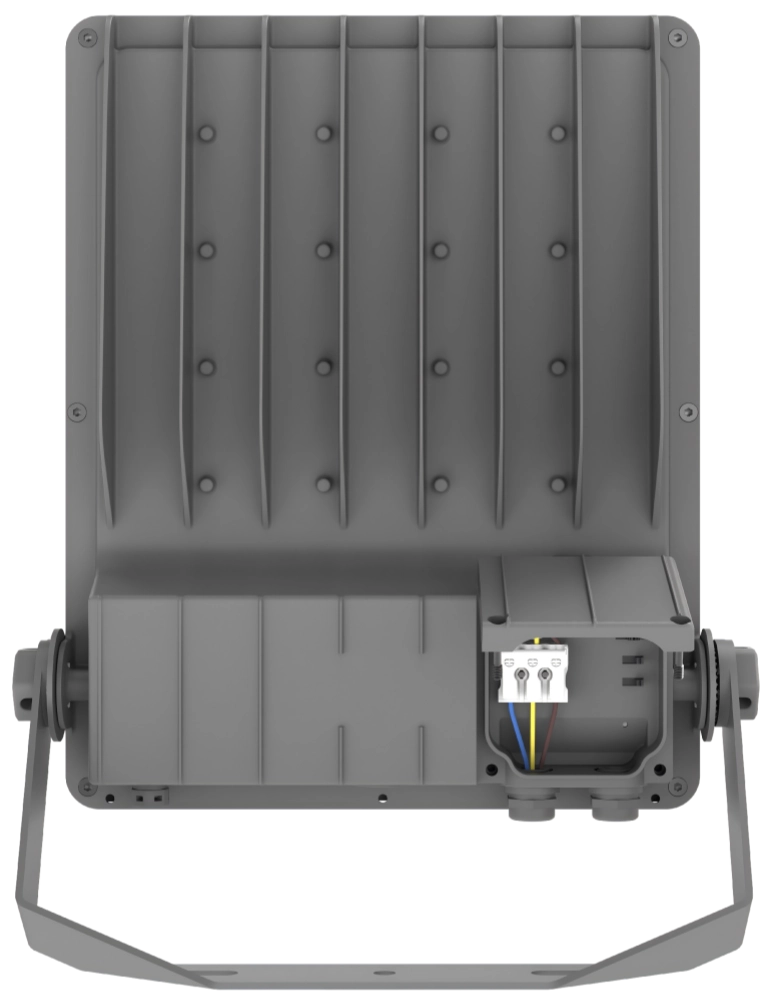

Dual Cable Glands for Easy Through-Wiring
Designed for easy through-wiring and linkable installation, reducing installation time and simplifying cable routing between fixtures.
Drainage

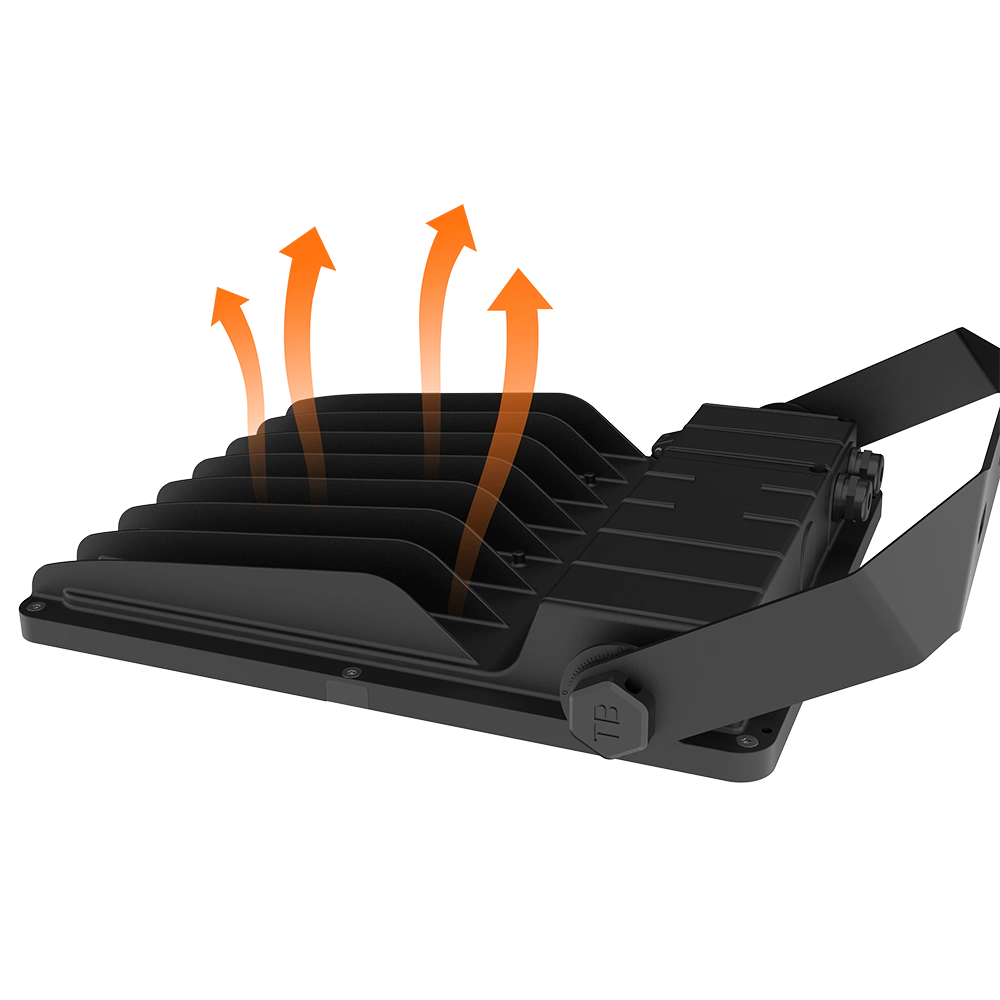

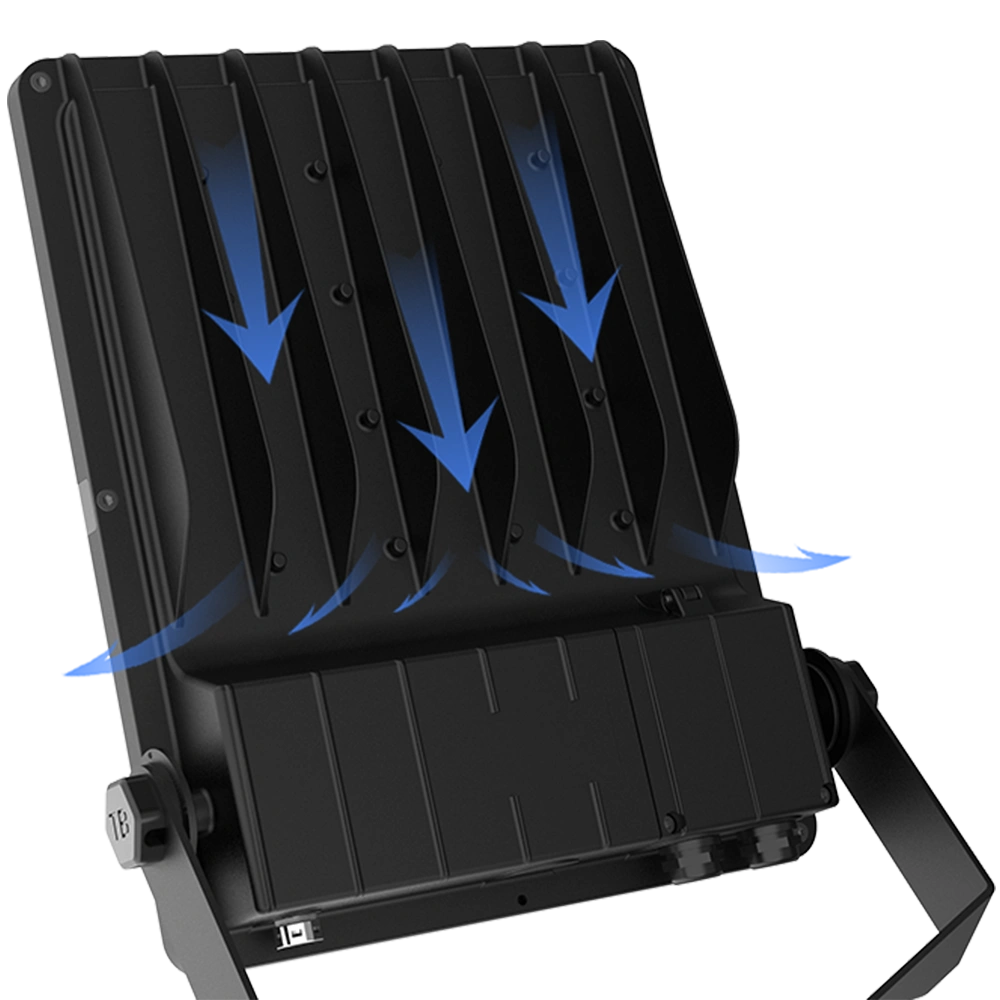

Heat dissipation

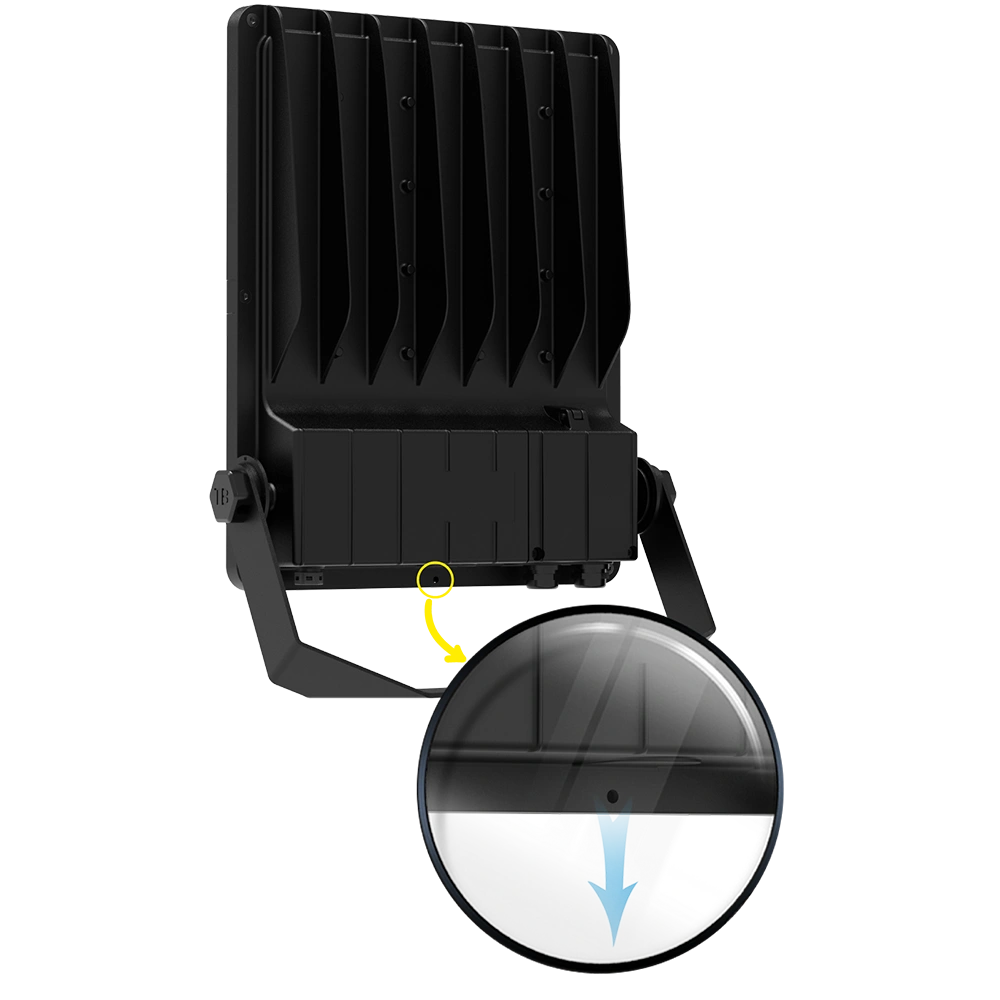

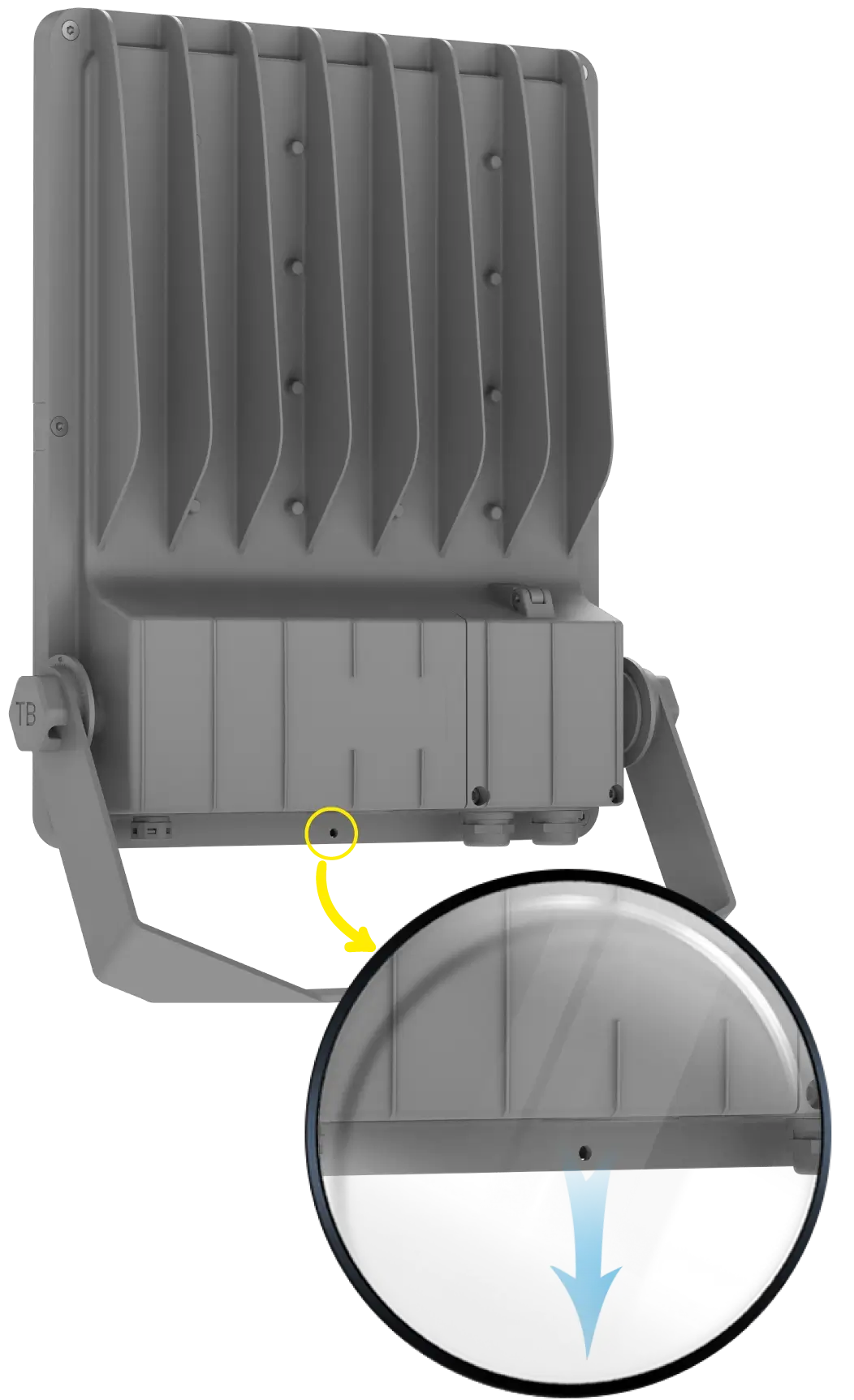

Drain hole

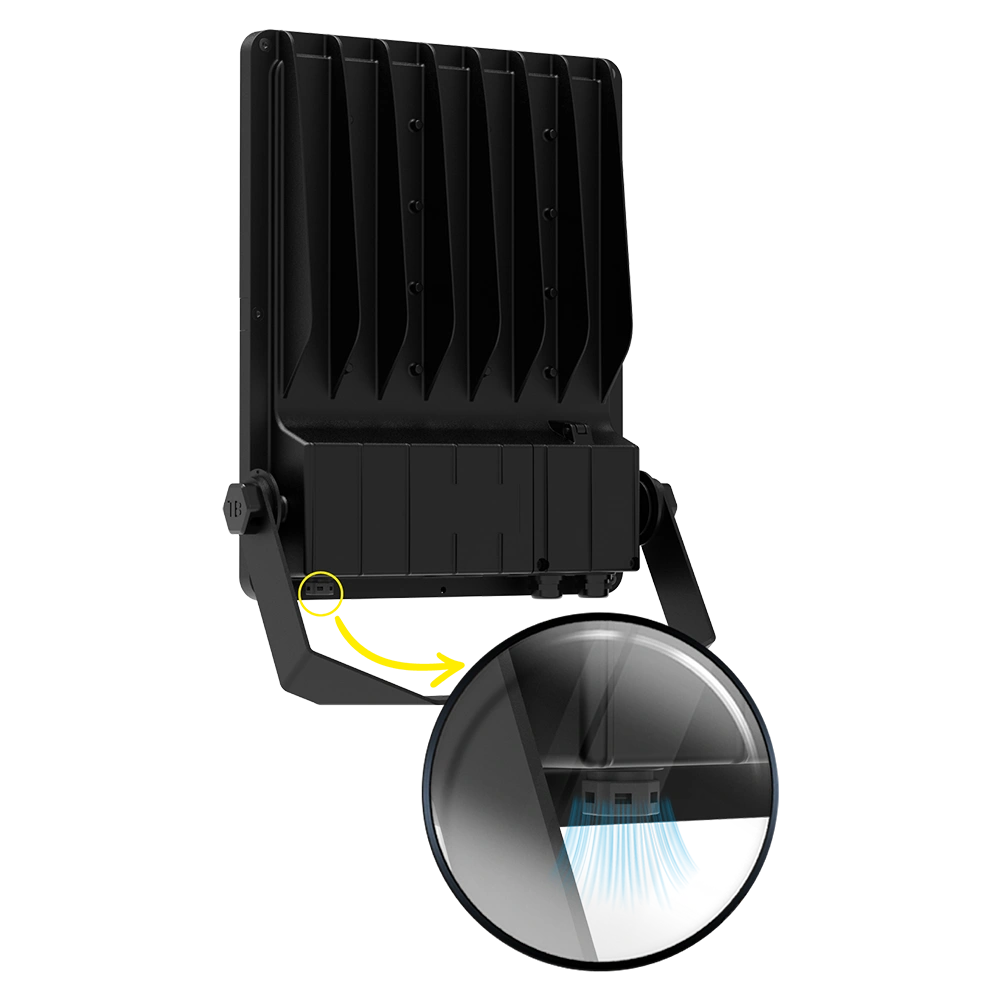

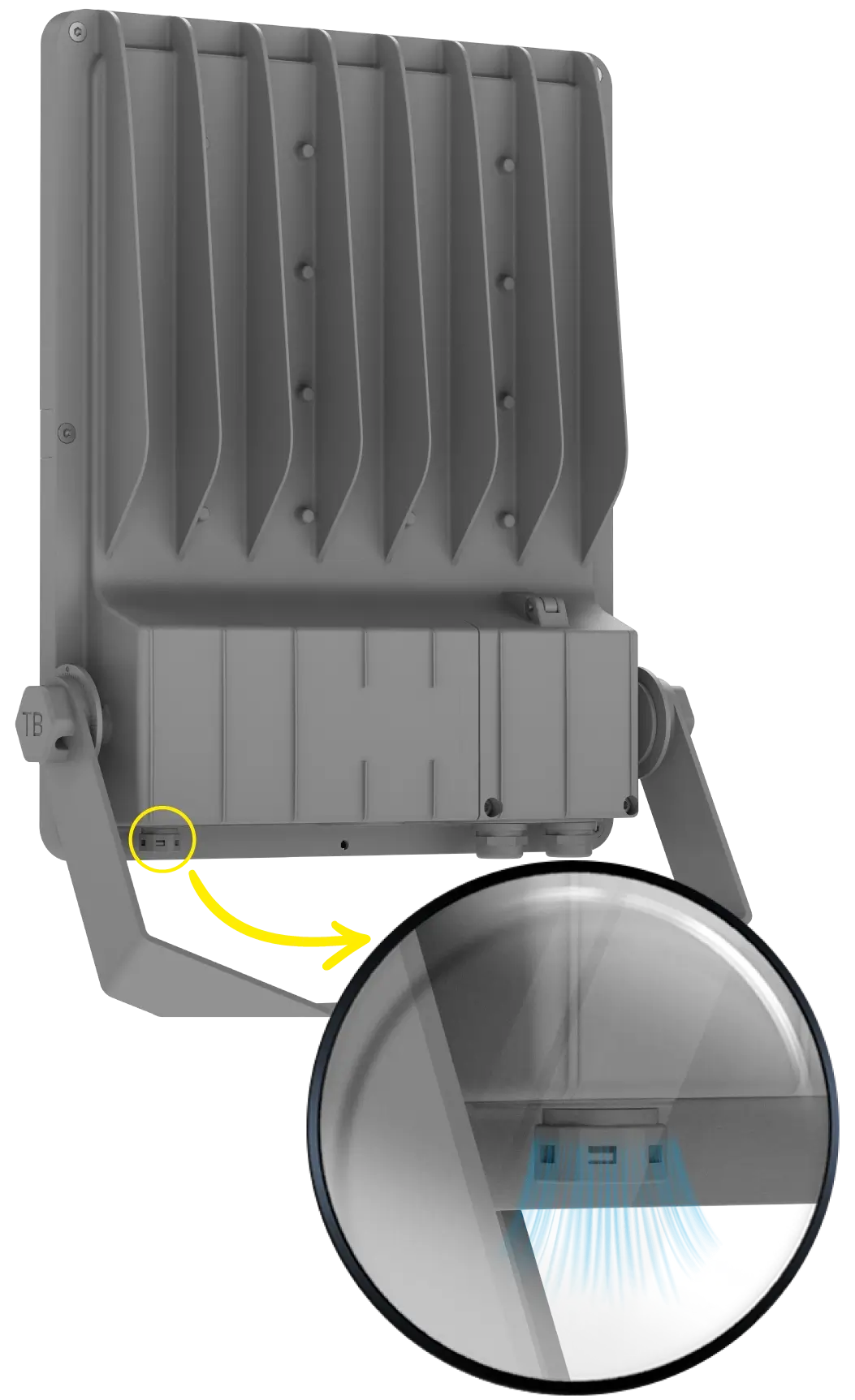

Breather valve

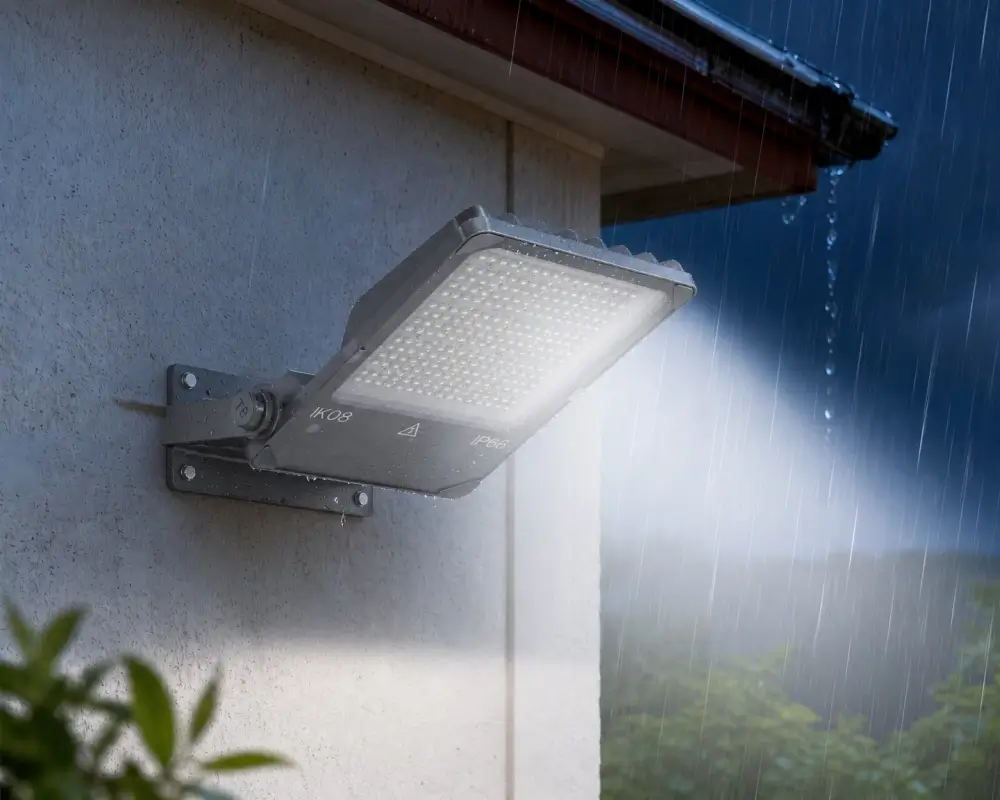

full outdoor protection
The IP66-rated design provides all-round protection against insects, dust, and powerful water jets from any direction, ensuring long-lasting. Available with IK08 (glass) or IK11 (PC), the luminaire offers outstanding and protection against mechanical impact.
Optional C4/C5 corrosion protection is another key feature, ensuring excellent corrosion resistance in coastal, marine, and other corrosive environments. making it a reliable solution for demanding outdoor and industrial applications.

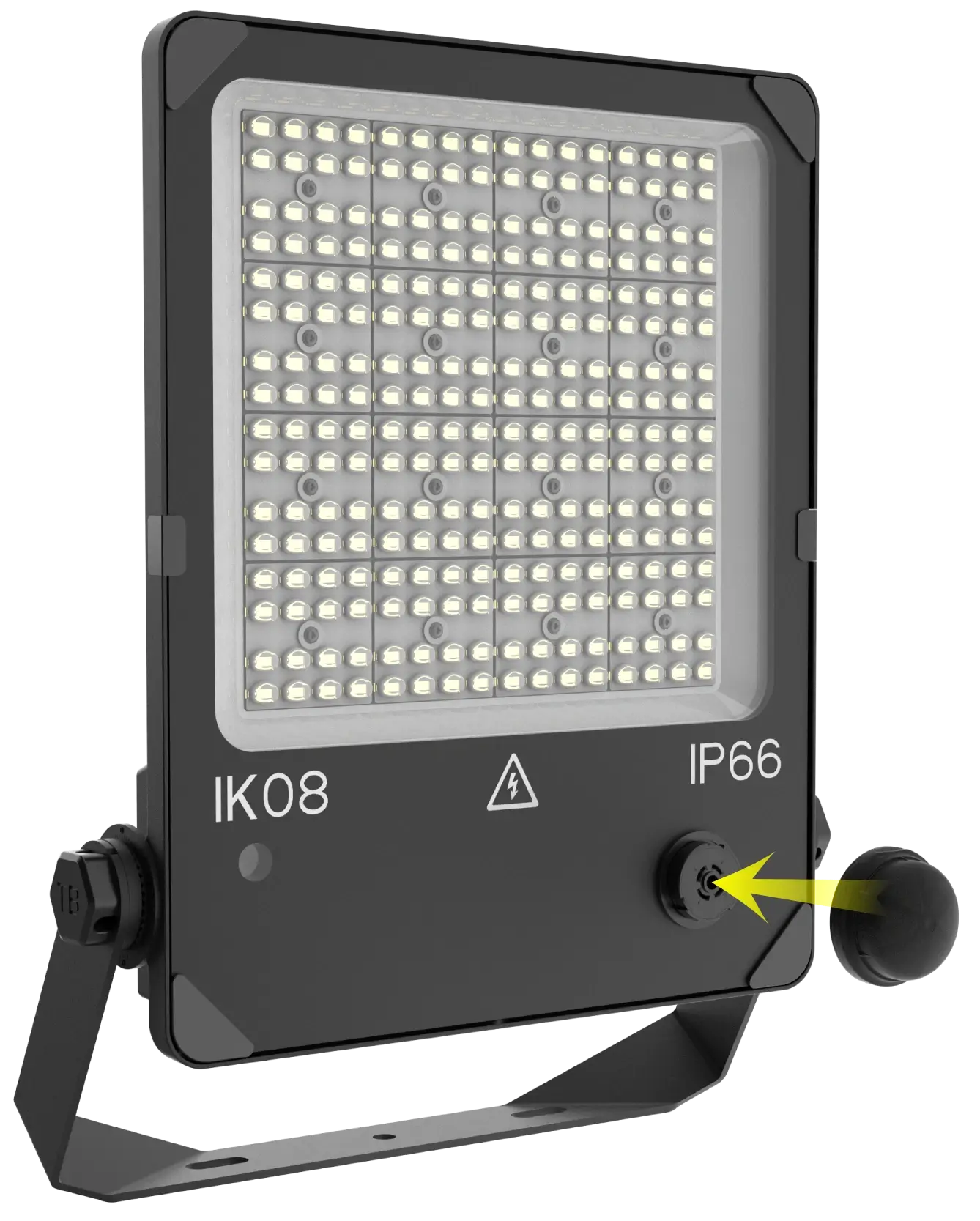

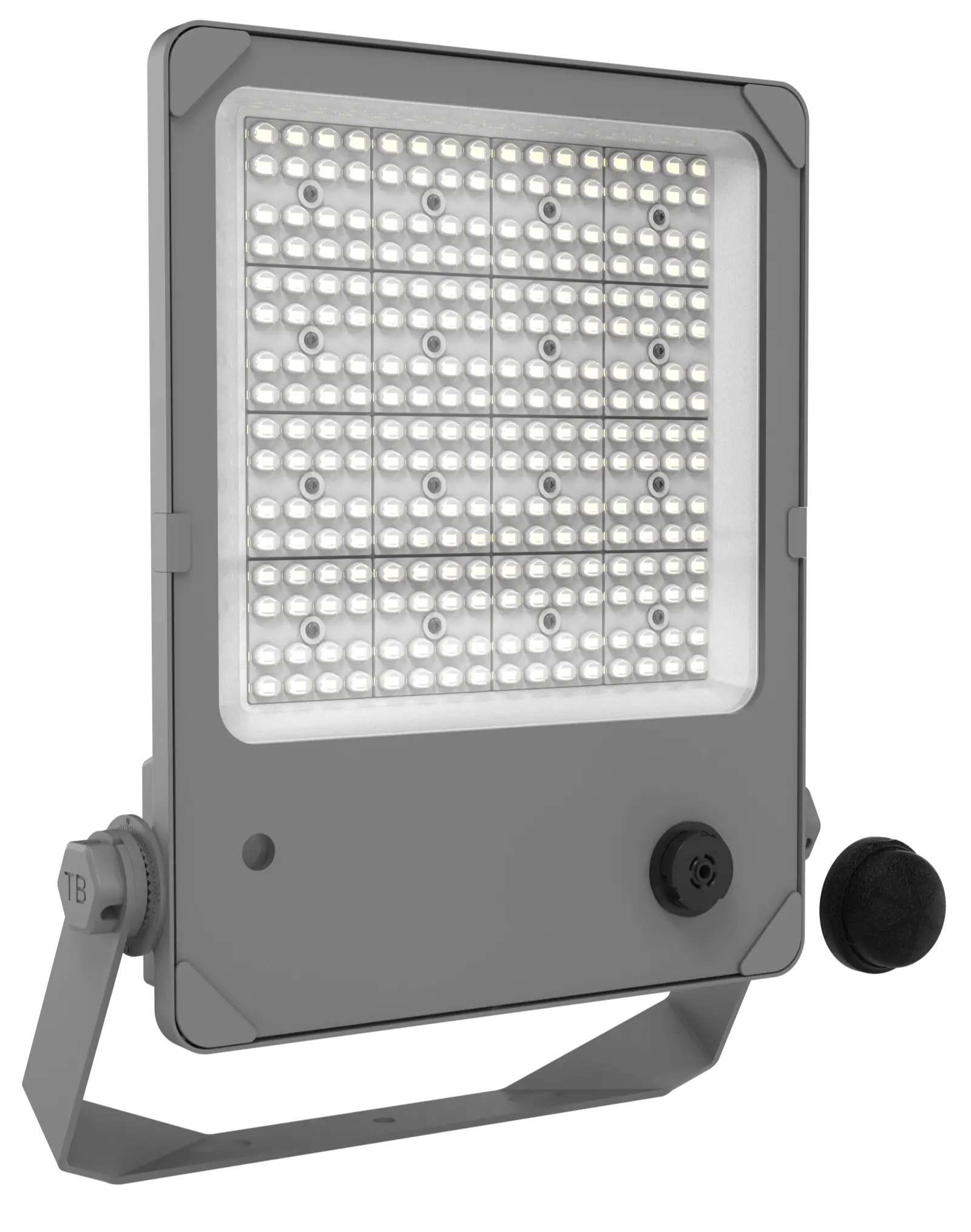

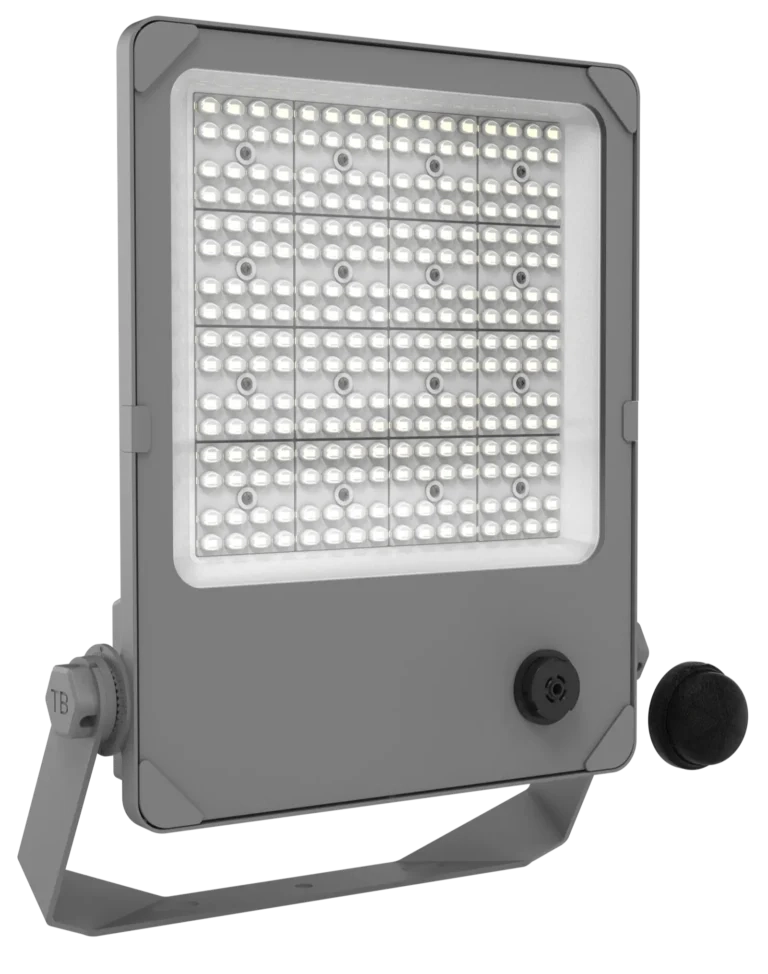

Optional Solution – Plug-and-Play PIR Sensor
The floodlight features a plug-and-play PIR sensor interface, allowing the sensor to be installed or replaced in seconds without opening the luminaire or modifying the internal wiring.

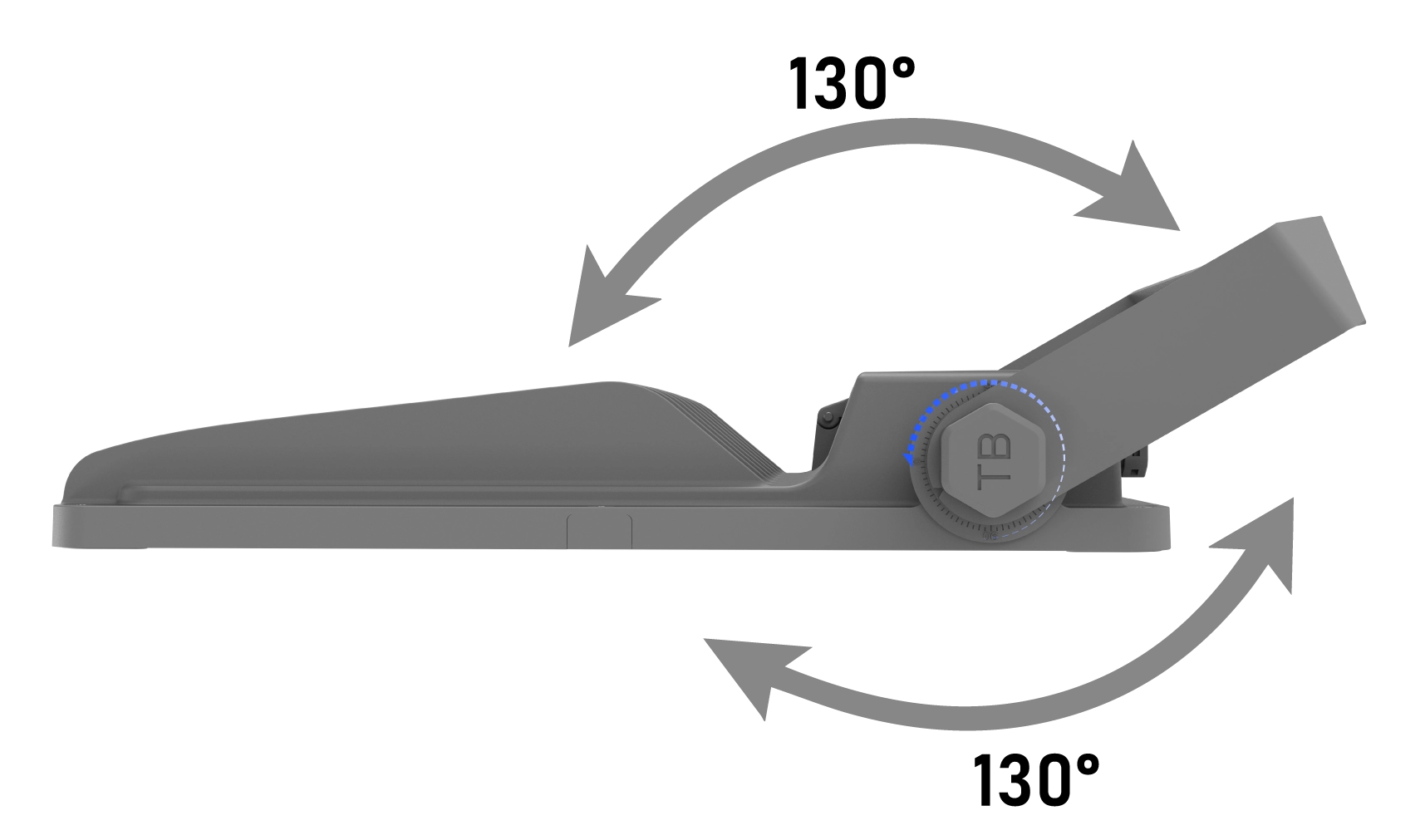

Adjustment bracket ±130°
The adjustable mounting bracket provides up to ±130° of angle adjustment, allowing precise light positioning for different installation requirements while improving lighting coverage and installation flexibility.

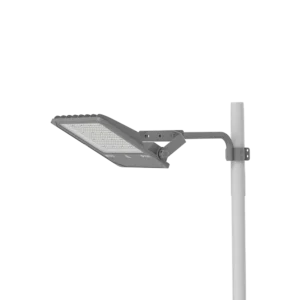

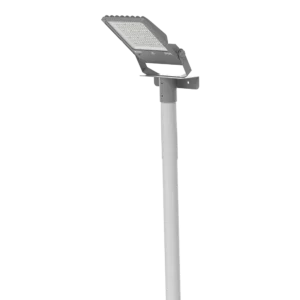

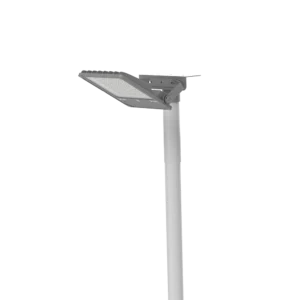

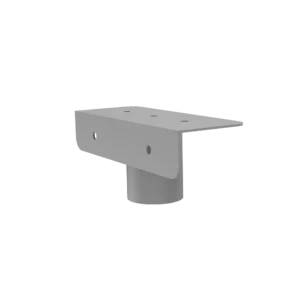

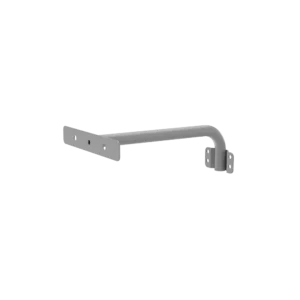

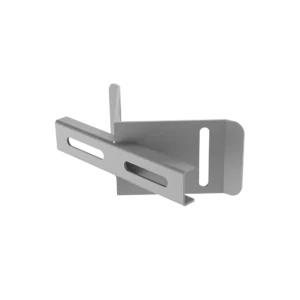

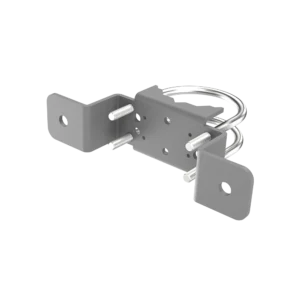

Different Installation Accessories
Discover our comprehensive range of Different Installation Accessories specially designed for floodlights. Engineered to meet diverse mounting needs, these high-quality accessories make installing your floodlights faster, stronger, and more flexible than ever.

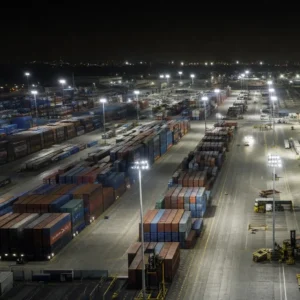

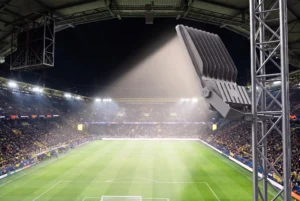

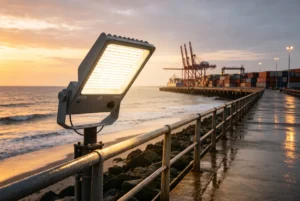

Application Scenarios

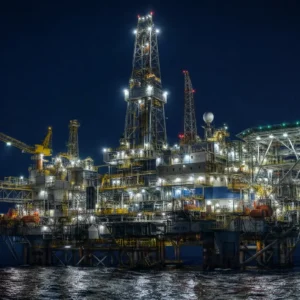

Delivering up to 48,000 lumens, the TG5 provides powerful, uniform illumination for large outdoor and industrial areas, even when installed at high mounting heights. Its compact, robust design and flexible installation options for walls, ceilings, and mounting arms make it suitable for a wide range of applications, including billboards, warehouses, logistics facilities, sports venues, public spaces, ports, and offshore platforms. With multiple beam angles and intelligent control options, the TG5 maximizes lighting performance while improving energy efficiency in both high- and low-traffic environments.
FAQ
The TG5 LED Flood Light offers three power settings: 100%, 75%, and 50%, allowing users to adjust power consumption according to different project requirements.
The photocell option is recommended for applications that require automatic lighting control. Depending on the installation environment, such as urban roads, public spaces, or other outdoor facilities, the luminaire can automatically adjust its operation based on ambient light levels, reducing energy consumption and maintenance requirements.
Beam angle options vary depending on the selected luminous efficacy.
- 160 lm/W version: 25°、45°、60°、90°、120°、135°、Type2、Type3、Type4 and P80X15.
- 180 lm/W and 200 lm/W versions: 60°×120°, 90°×120° and Type 3.
Please select the appropriate beam angle based on the installation height and application requirements to achieve optimal lighting performance.
The TG5 LED Flood Light is available in three CCT configurations to meet different project requirements.
- Single CCT: 3000K, 4000K, 5000K, or 6000K (one fixed CCT selected when ordering)
- Dual CCT: 3000K & 4000K (switchable via a 2-position DIP switch)
- Triple CCT: 3000K, 4000K & 5000K (switchable via a 3-position DIP switch)
Please select the appropriate CCT configuration based on the application and lighting requirements.
