Tubular IP69k LED Tri-Proof Light

Features:

  • IP67 & IP69K & IK10
  • PMMA IK08 / PC IK10
  • Anti-ammonia
  • Against water pressure of 100bar (1450psi) and temperature of 80℃
  • System efficiency up to 150Lm/W & 170Lm/W
  • High CRI>80
  • Environmentally friendly, no mercury, no UV, no IR
  • Wide beam angle 120°
  • 5 years warranty
  • Quick start instant 100% Iuminous flux
  • Certificate: CE, RoHS, CB, IK10, IP69K, ENEC,
    RCM, SAA, DLG, ETL certified
  • Surface mount or suspension mount

Description

TUBU's Tubular IP69K LED Tri-proof Light offers a comprehensive range of protective features, including waterproofing, dust resistance, corrosion resistance, and pressure resistance. It is constructed with robust housing made of PC and PMMA materials, providing UL94V2, UL94V0, and UL5VA fire-rated protection. To further enhance its durability, the fixture is equipped with anti-corrosion 304 and 316L stainless steel end caps, a breather, and a mounting bracket, making it suitable for various applications.

The IP69K LED Tri-proof Light from TUBU is specifically designed to meet the lighting requirements of industries such as food processing, marine applications, heavy industries, and farm lighting. With an IP69K rating, it offers the highest level of protection, making it suitable for applications where high-pressure water jets and elevated temperatures are involved in intense wash-down procedures. This level of protection is particularly crucial for industries like Food & Beverage and the automotive sector, where specialized cleaning processes may involve sensitization and chemical cleaning.

In industries where dust and dirt pose significant challenges, it is vital to prevent any infiltration into the product casing that could result in failure. The IP69K rating ensures the highest level of protection against such contaminants.

The TUBU's IP69K Tri-proof LED Light reaches an impressive 170lm/w, providing substantial energy savings. Additionally, it offers IK10 impact protection and a long lifespan of over L80>54,000 hours. For instance, a 50W 150cm IP69K Tri-proof light fixture can effectively replace a 2x60W fluorescent tube.

Tech Specs

Product Code

TBL92F-20W

TBL94F-40W

TBL95F-50W

TBL95F-60W

Power

20W

40W

50W

60W

Input Voltage

200-240VAC/100-277VAC (50/60HZ)

Input Current

0.09A@220VAC

0.19A@220VAC

0.23A@220VAC

0.28A@220VAC

PF

0.90@220VAC

Dimming Option

1-10V / DALI / MW Sensor / Emergency

CCT

2700K/3000K/4000K/5000K/5700K/6000K/6500K

Luminous Flux

3000Lm

6000Lm

7500Lm

9000Lm

Ra>80

Efficiency

150Lm/w±5%

Luminous Flux

3400Lm

6800Lm

8500Lm

10200Lm

Ra>80

Efficiency

170Lm/w±5%

LED Brand

Lumileds/Hongli 2835

Beam Angle

120°C

Driver Brand

BOKE

Operation Temp

-20C~+40°C

Storage Temp

-20C~+60°C

Life Span

Ta 40C L70>54000Hours

IP Class

IP67 & IP69K

IK Class

PMMA IK08 & PC IK10

Certificate

CE, RoHS, CB, IK10, IP69K, ENEC, RCM, SAA, DLG,ETL

Lamp Body Color

Milky PC/PMMA Housing & 304/316 Stainless Steel End Caps

Product Size (mm)

Ø75*552

Ø75*1152

Ø75*1452

Ø75*1452

Packing Size (mm)

730*260*260

1330*260*180

1630*260*180

1630*260*180

Quantity/carton

9PCS

6PCS

6PCS

6PCS

Gross weight (kg) ±0.3

11.1

1O.7

13.1

13.1

Installation mode

Surface Mount & Suspension Mount

IP69k protection LED tri-proof light

IP67 IP69K - Defending Against Water, Dust, Corrosion, Pressure, and Vibration! And passed the 850°C glow wire testing.

high-efficiency driver

With the flicker-free high-efficiency isolated driver, PF>0.96 utilizes power more efficiently, and THD<12% produces stable current, minimizing interference and potential damage to LED lights.

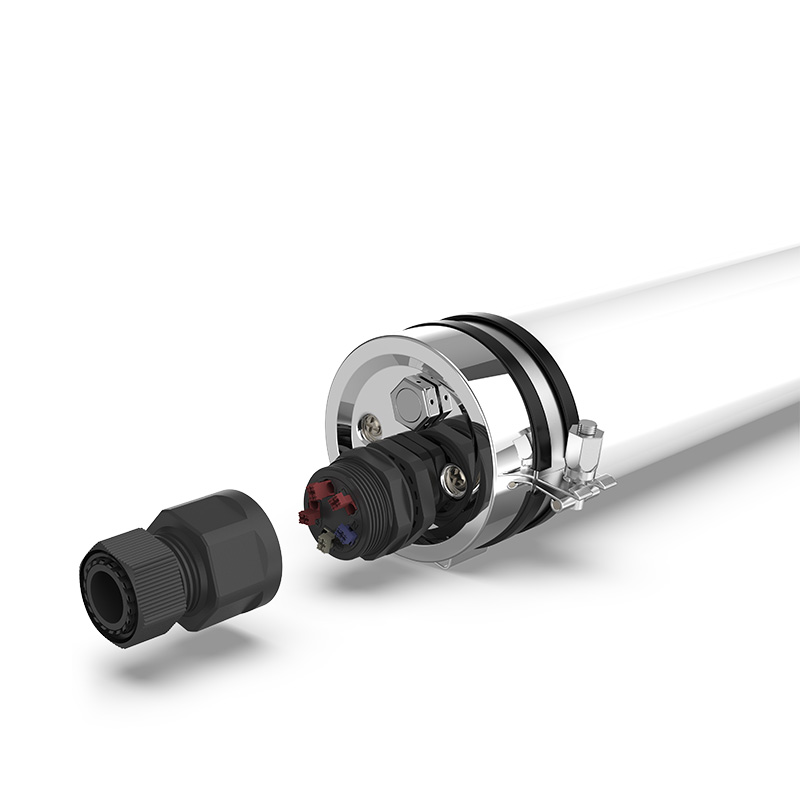

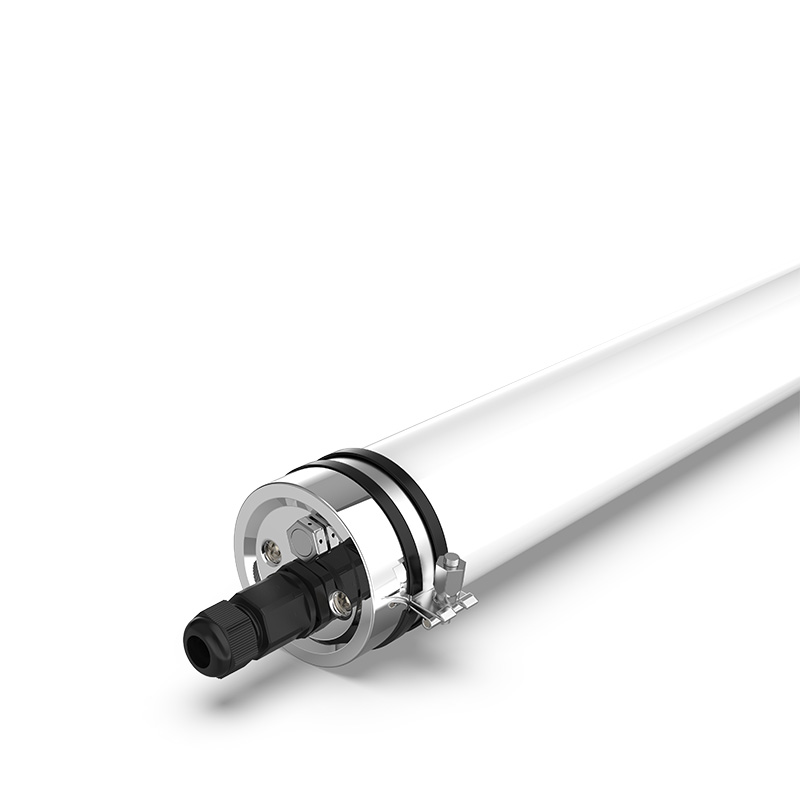

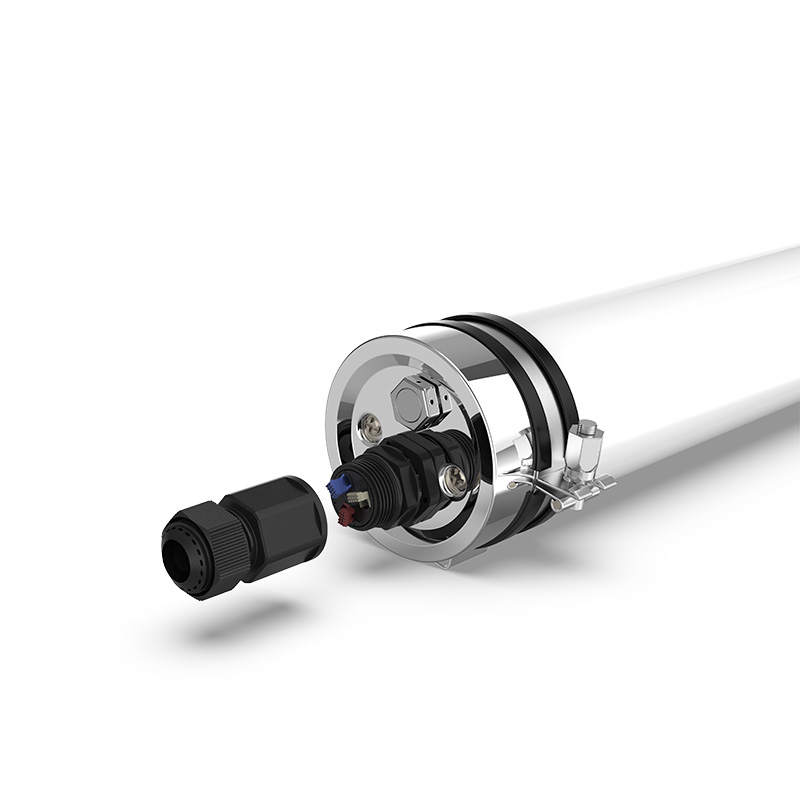

Through wiring optional

Through wiring 3×1.5mm² and 5×2.5mm² available, which enhances the convenience and flexibility of module installation.

L80 / B10 Durability Level

With a lifetime of up to 50,000 hours and a rating of L80 / B10, this means that after 50,000 hours of use, the LEDs will retain at least 80% of their initial brightness (L80) and only 10% of the LEDs will be less bright (B10).

Three-phase power

is optional and backup battery

Light your spaces responsibly with mercury-free, UV-free, and eco-friendly lighting solutions. Control systems are available with 1-10V / DALI / MW Sensor / Emergency options for enhanced safety and emergency preparedness.

Installation mode

Tubular IP69k LED Tri-Proof Light Installation mode

Applications

street lighting
Warehouse Illumination
Workshop lighting
