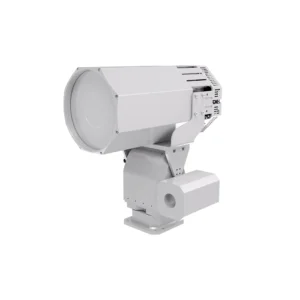

LED Searchlight – Stepless Beam Angle & Camera-Synchronized Zoom Series
Featuring a patented design, this searchlight is equipped with a high-performance long-range zoom lighting system that supports camera-synchronized zoom, providing reliable and efficient illumination for vessels, offshore operations, ports, and other long-range lighting applications.
Features
share:
controlled long-range lighting
This searchlight zoom solution combines long-range illumination with an adjustable beam angle. Camera-Synchronized Zoom. Unlike luminaires with a fixed beam angle, this searchlight allows the beam angle to be flexibly adjusted from 3.5° to 20°, providing operators with a wider range of applications to meet the requirements of various lighting tasks.
01 / beam
3.5°–20° Adjustable Beam
Shift from a concentrated, narrow beam to a wider distribution without changing the searchlight platform.
02 / Range
≥1000m at 1 Lux
Beam distance of at least 1000m at 1 lux when using the 3.5° beam angle.
03 / motion
Continuous 360° Rotation
0°–360° Horizontal Rotation for Flexible Beam Positioning
04 / Sustainability
Design for Sustainability
Focusing on sustainable design, the fixture supports easy disassembly and part replacement, which extends overall service life and lowers maintenance costs.
Stepless Beam Angle Zoom Effect
The variable-beam configuration makes the optical output part of the operating decision: 3.5° is the stated long-range configuration. At the same time, the adjustable system can open the beam to 20° when a broader illuminated area is preferred.

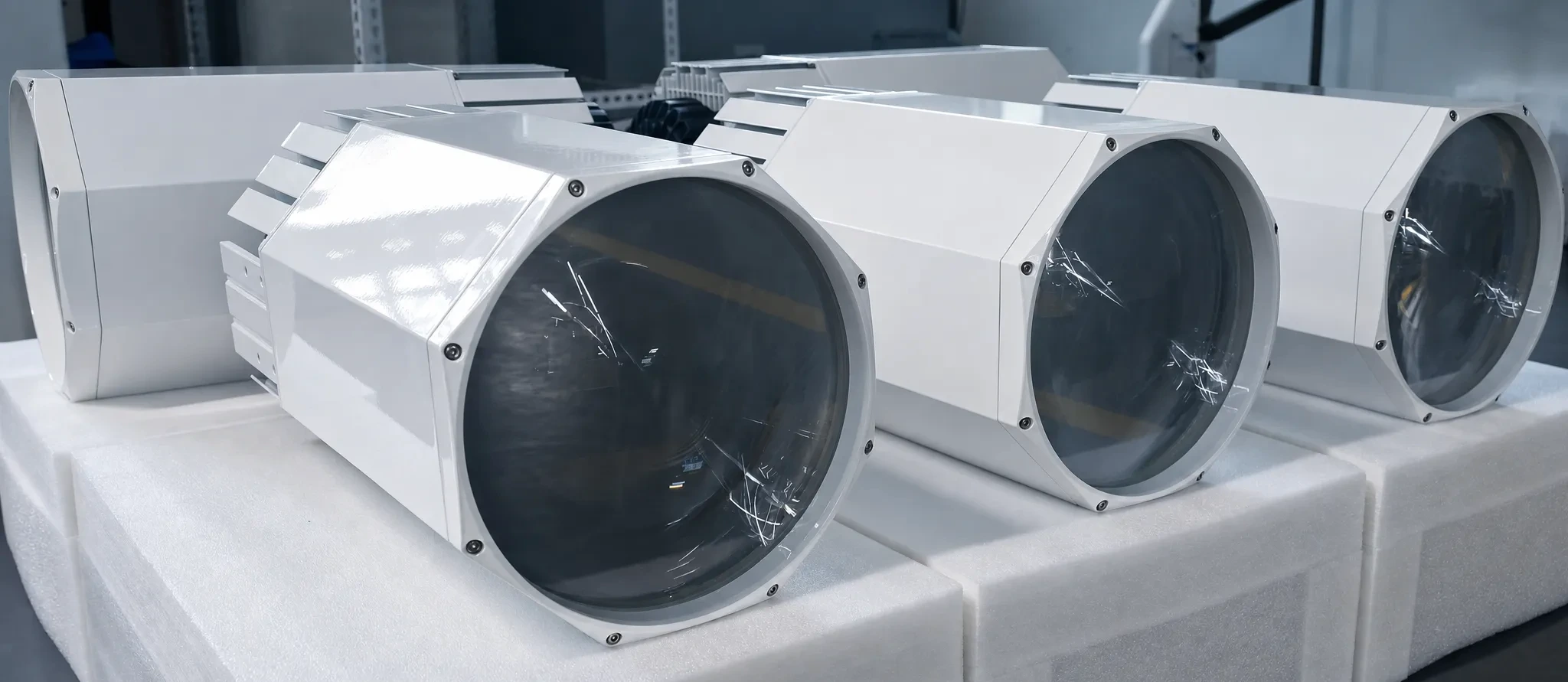

Unmistakable Design

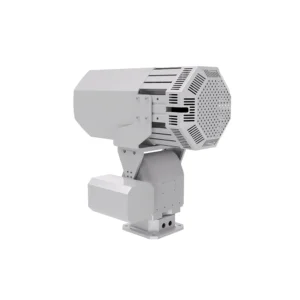

Featuring a single-LED light source module with an integrated cold-forged structure for natural heat dissipation. The fanless design eliminates a common failure point and helps extend service life. An intelligent pan-tilt head enables remote network control with high repeat positioning accuracy and can integrate with radar and infrared systems. The housing is manufactured from 1070 pure aluminum using a cold-forging process. Fasteners and selected structural components are made from marine-grade stainless steel and finished with a salt-spray-resistant powder coating for enhanced corrosion resistance in marine environments.

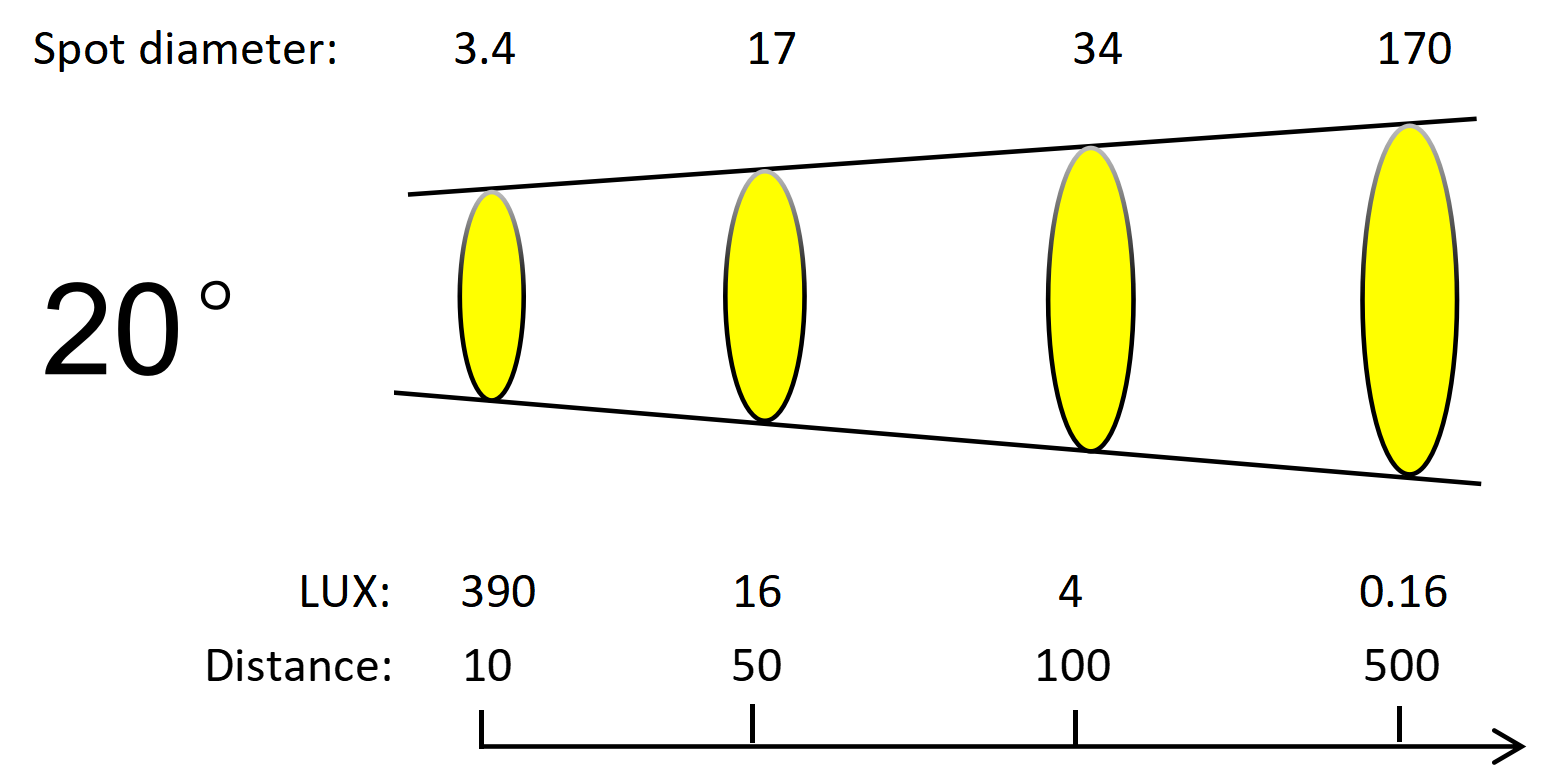

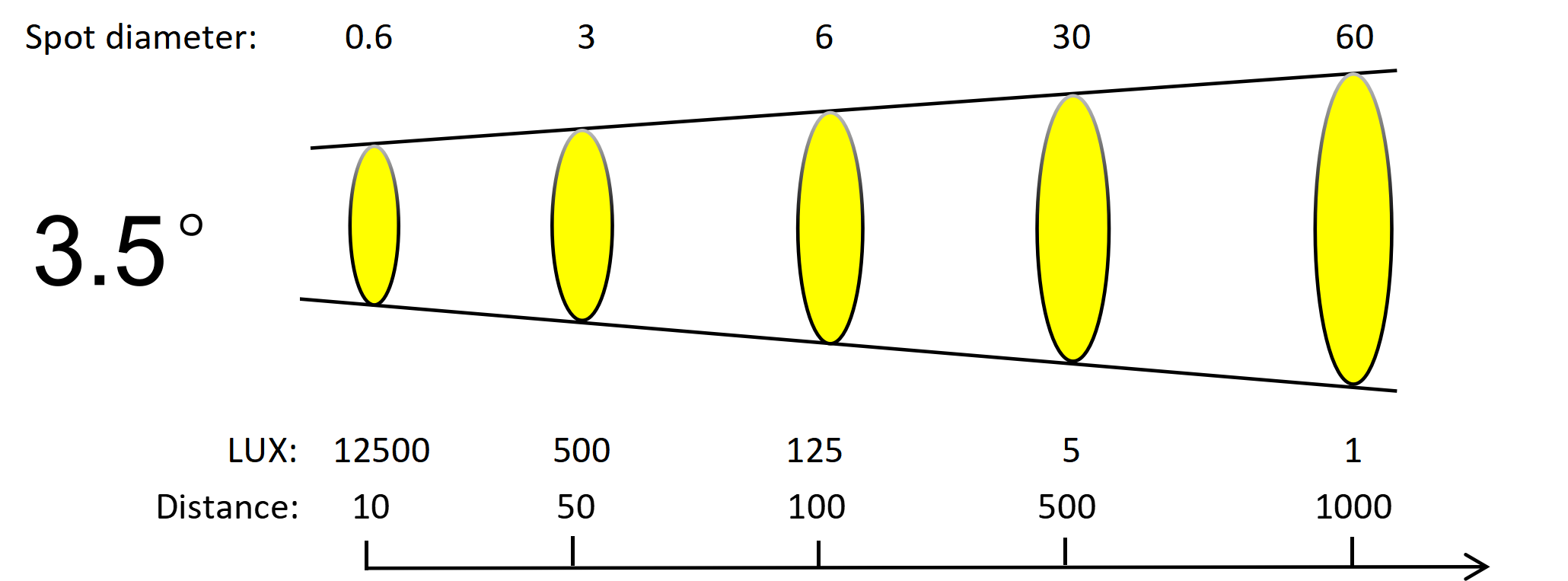

Beam Performance at Distance
A searchlight’s performance is defined by three key metrics: throw distance, illuminance, and beam coverage. Together, they show how far the light reaches, how much illumination is delivered at a given distance, and the size of the illuminated area. TUBU LED Searchlights provide a clear basis for evaluating long-range lighting performance.
Dimension
Quality
To support long-term reliability and peace of mind, TUBU provides dedicated after-sales warranty coverage for your searchlight solution. The light is covered by a 3-year warranty, while the adjustable base is covered for 1 year, providing continued support for the key components of your lighting system

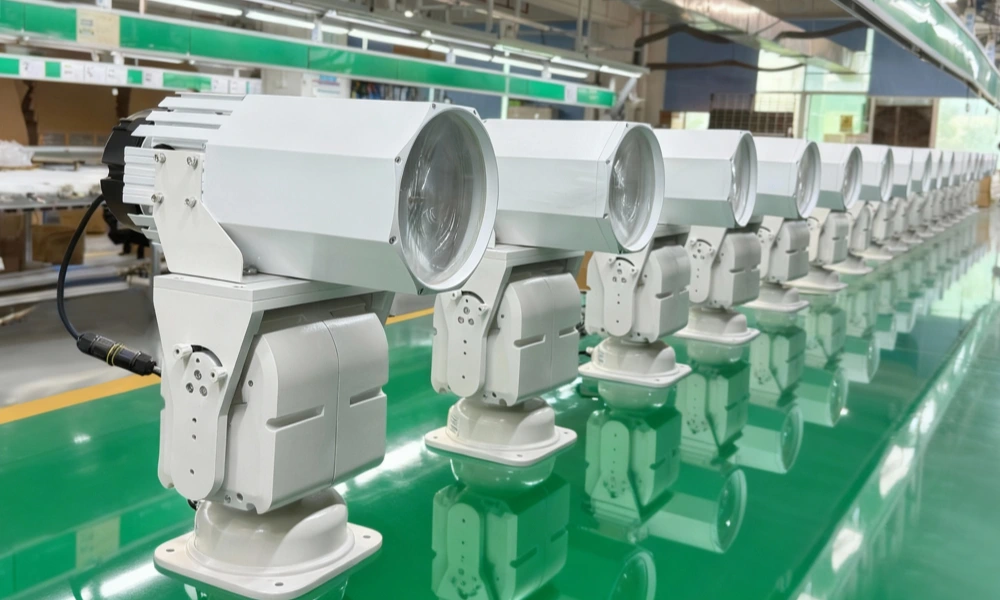

Supply
We continuously work to shorten lead times through professional solutions and efficient production, ensuring on-time delivery while maintaining consistent product quality.

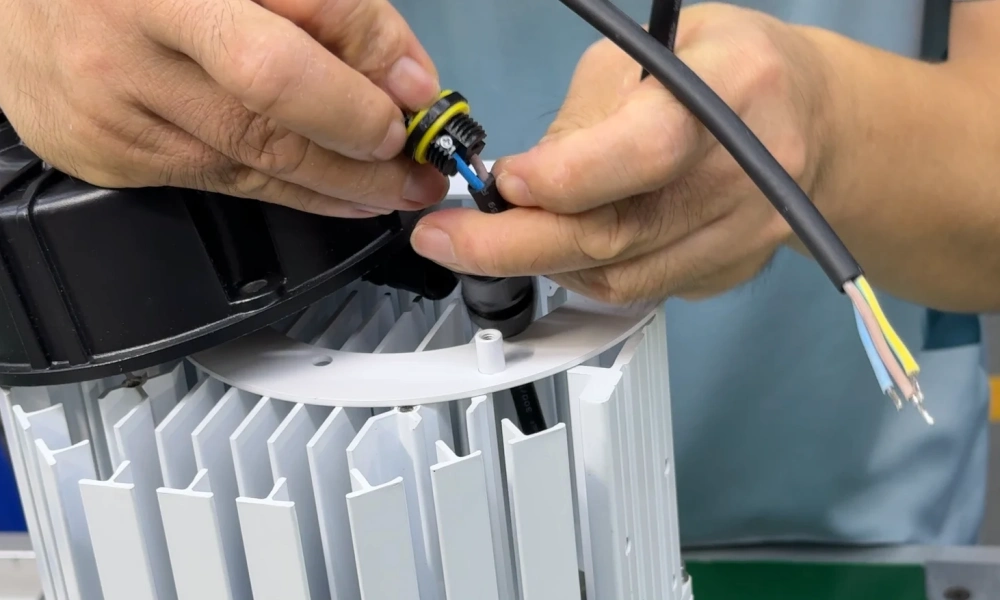

After-Sales Support
Our commitment extends beyond delivery. TUBU provides professional after-sales support to help customers maintain reliable lighting performance throughout the product lifecycle. From technical assistance and troubleshooting to spare parts and replacement support, we respond promptly to help minimize downtime and keep lighting systems operating reliably.
TBSL-T3L-360E-BZ at a glance
Item | Specification |
|---|---|
Product Model | TBSL-T3L-360E-BZ |
Light Source | LED |
Power Consumption | 300W + 60W |
Color Temperature | 6500K |
Input Voltage | AC 110V/220V, 50/60Hz |
Working Temperature | -25°C to +55°C |
IP Rating | IP66 |
Lifespan | Light: 3 years; Adjustable Base: 1 year |
Beam Angle | 3.5°–20° |
Beam Distance | ≥1000m (1 lux) at 3.5° |
Weight | 40kg |
Packing Size | 600 × 500 × 800mm (wooden box package) |
Material | 1070 pure aluminum cold forging, with salt-resistant, scratch-resistant white powder-coat finish |
Driver Brand | Inventronics |
Product Size | 540 × 275 × 585mm |
PTZ Packing Size | 600 × 400 × 600mm |
Cloud Platform Parameter | Specification |
|---|---|
Adjustable Speed | Horizontal: 0.1–20°/s; Vertical: 0.1–5°/s |
Adjustable Angle | Horizontal: 0–360°; Vertical: +35° to -35°; or customizable |
Repeated Positioning Accuracy | ±0.1° |
Preset Position | 200 pcs |
Communication Baud Rate | 2400 / 4800 / 9600 / 19200 bps (optional) |
Communication Interface | RS485 / RS422 |
PTZ Drive Power | 60W |
