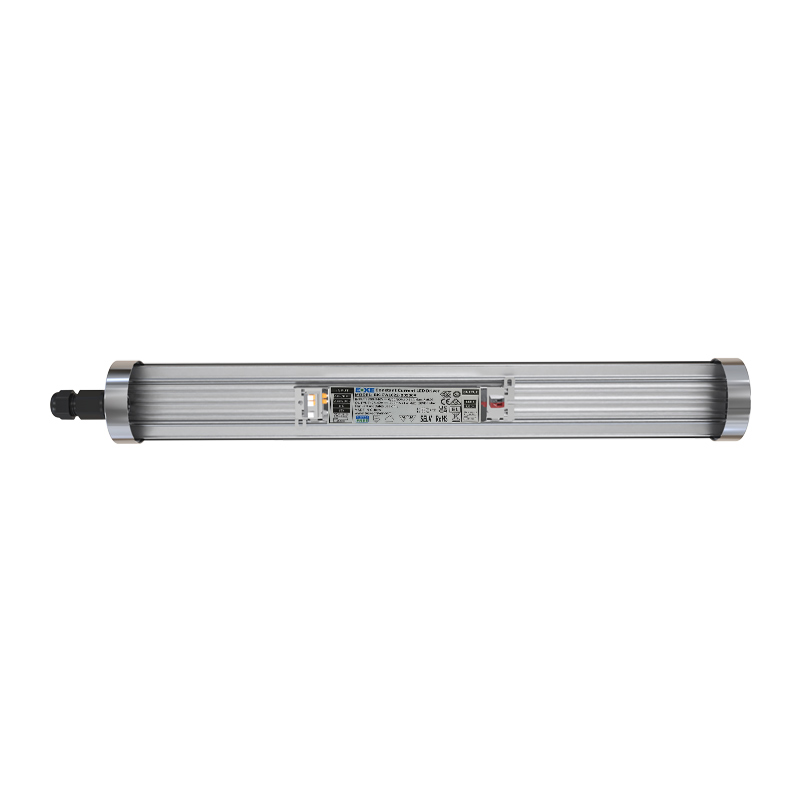

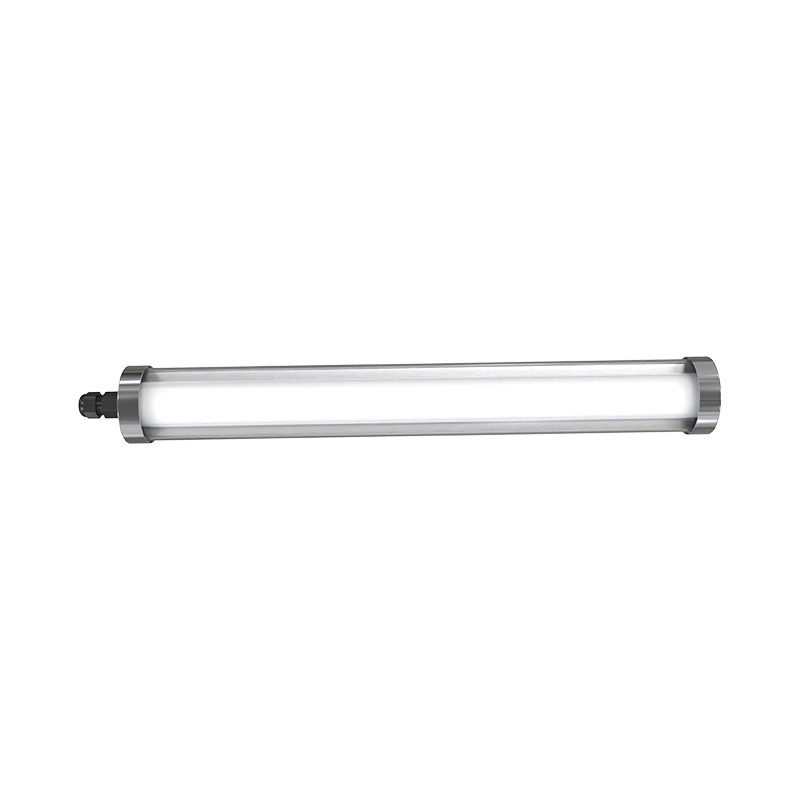

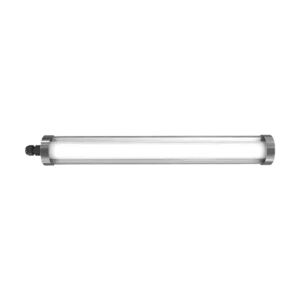

High Borosilicate Glass Tube LED Tri-Proof Light
Features:
Description
TUBU's borosilicate glass tube LED tri-proof light is chemical resistant for industrial and commercial environments. With its superior functionality and robust construction, this tri-proof light is designed to meet the most demanding requirements and provide reliable lighting in any environment.
The borosilicate glass tube LED tri-proof lights have IP67, IP69K, and IK07 ratings, offering unmatched protection against dust, water, and mechanical shocks. Made of high borosilicate material, it has excellent corrosion resistance, high hardness, acid, and alkali resistance, ensuring long service life and durability even under harsh conditions.
One of the outstanding features of TUBU's tri-proof lights is their ability to withstand water pressures up to 100 bar (1450 psi) and temperatures up to 80°C. This means it can easily withstand harsh environments while maintaining peak performance. And the borosilicate glass used in tri-proof light has a low coefficient of thermal expansion, making it highly resistant to sudden temperature changes. The instantaneous temperature difference ranges from -50°C to 150°C (sudden temperature change within 200°C), minimizing the risk of bursting and giving you peace of mind in any situation.
The high borosilicate glass tube LED tri-proof light not only complies with food-grade standards to ensure safety and quality but also provides excellent lighting performance. With system efficiencies of up to 130lm/W and 150lm/W, it provides bright and energy-efficient lighting, maximizing productivity and energy savings.
Tech Specs:
Product Code | TBL9 2F-20W | TBL9 4F-40W | TBL9 5F-50W | TBL9 5F-60W |
|---|---|---|---|---|
Power | 20W | 40W | 50W | 60W |
Input Voltage | 200-240VAC/100-277VAC (50/60HZ) | |||
Input Current | 0.09A@220VAC | 0.19A@220VAC | 0.23A@220VAC | 0.28A@220VAC |
PF | 0.90@220VAC | |||
Dimming Option | 0-10V/Dali | |||
CCT | 3000K/4000K/5000K/6000K | |||
Ra>80 Luminous Flux | 2800Lm±5%/3000Lm±5% | 5600Lm±5%/6000Lm±5% | 7000Lm±5%/7500Lm±5% | 8400Lm±5%/9000Lm±5% |
Ra>80 Efficiency | 140Lm±5%/150Lm±5% | |||
LED Brand | Lumileds/Hongli 2835 | |||
Beam Angle | 120°C | |||
Operation Temp | -20C~+40°C | |||
Storage Temp | -20C~+60°C | |||
Life Span | Ta 40C L70>54000Hours | |||
IP Class | IP67&IP69K | |||
IK Class | Glass IK07 | |||
Certificate | CE, RoHs, CB, IK07, IP69K | |||

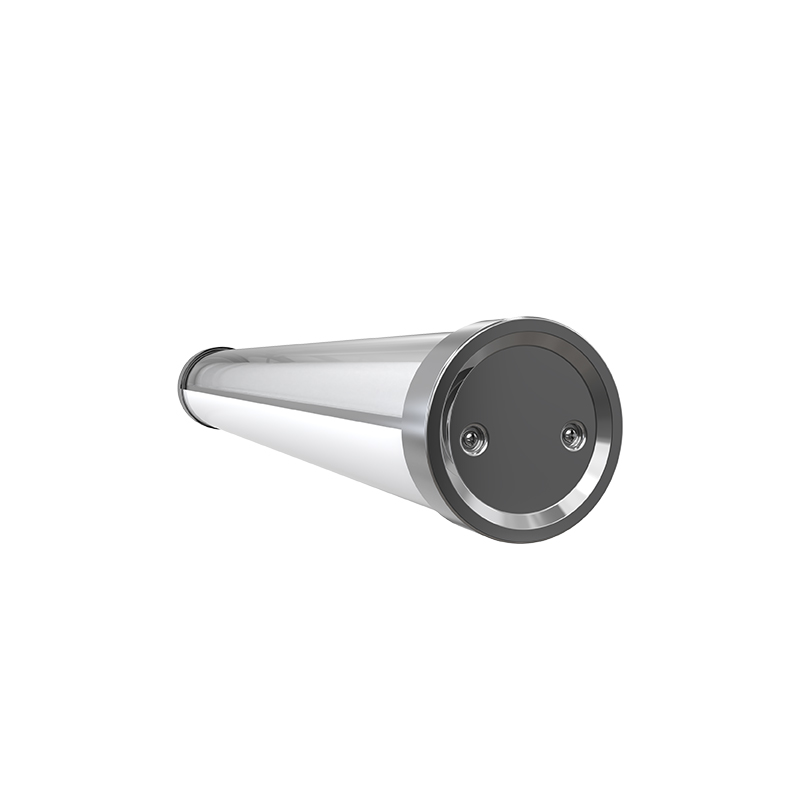

Lamp Body Color | Glass transparent & 304/316 Stainless Steel End Caps | |||
Product Size (mm) | Ø75*552 | Ø75*1152 | Ø75*1452 | Ø75*1452 |
Packing Size (mm) | 730*345*240 | 1330*345*240 | 1630*345*240 | 1630*345*240 |
Quantity/carton | 9PCS | 6PCS | 6PCS | 6PCS |
Gross weight (kg) ±0.3 | 16 | 18 | 28 | 28 |
Installation mode | Surface Mount/Suspension Mount | |||
High Hardness and Corrosion Resistance Glass Tube
With high corrosion resistance, high hardness, and acid and alkali resistance, it can withstand water pressure up to 100bar (1450psi) and a temperature of 80°C, ensuring reliability even under the harshest conditions.
Resistant to High Temperature And Temperature difference
The high borosilicate glass used in the product has an extremely low coefficient of thermal expansion and excellent resistance to high temperatures. With a temperature range of -50°C to 150°C, it can withstand sudden temperature changes of up to 200°C without risk of bursting.

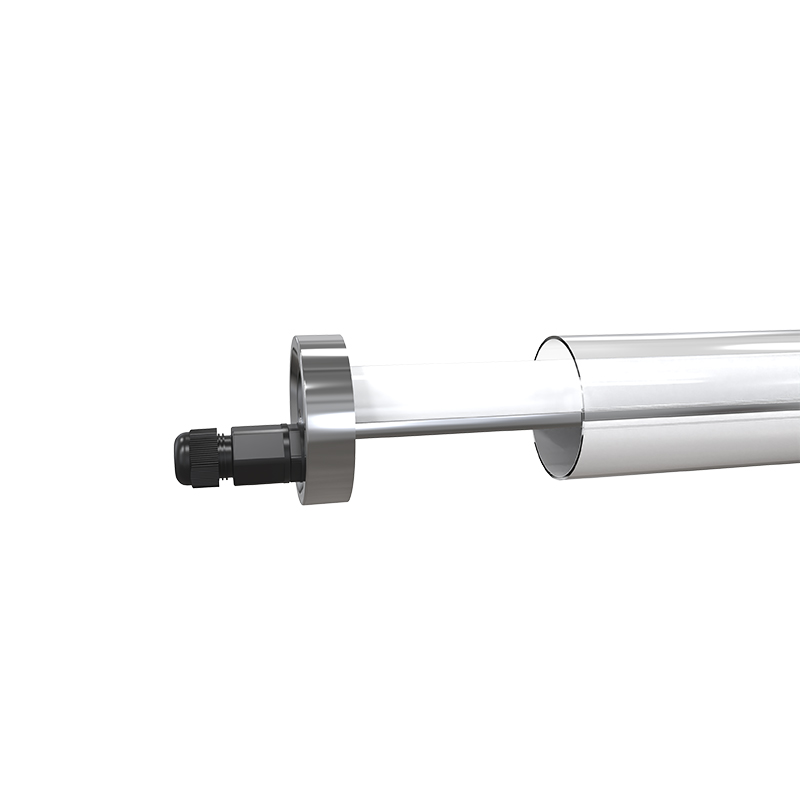

With Internal PC Protection Cover
The inner PC cover not only provides smooth and even light distribution but also adds an extra layer of protection that extends the life of the LED bulb.
LED Lights can be Linkable Mounted

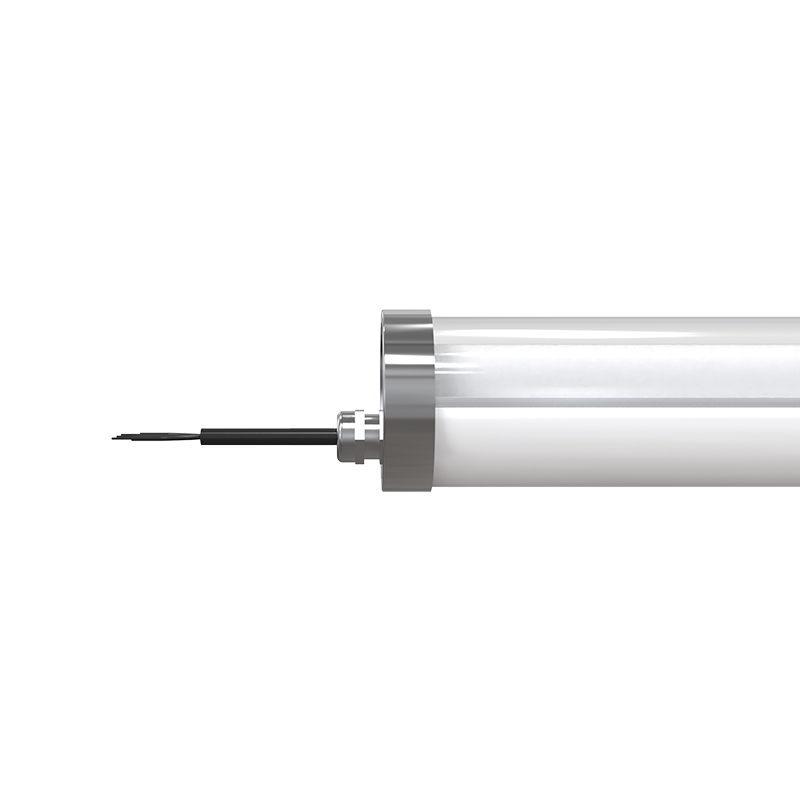

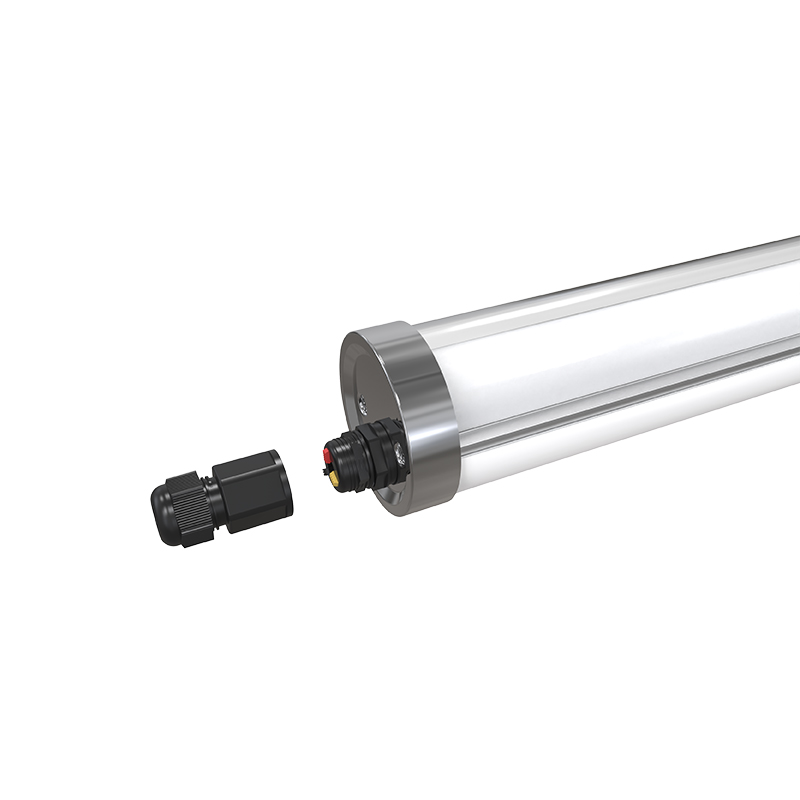

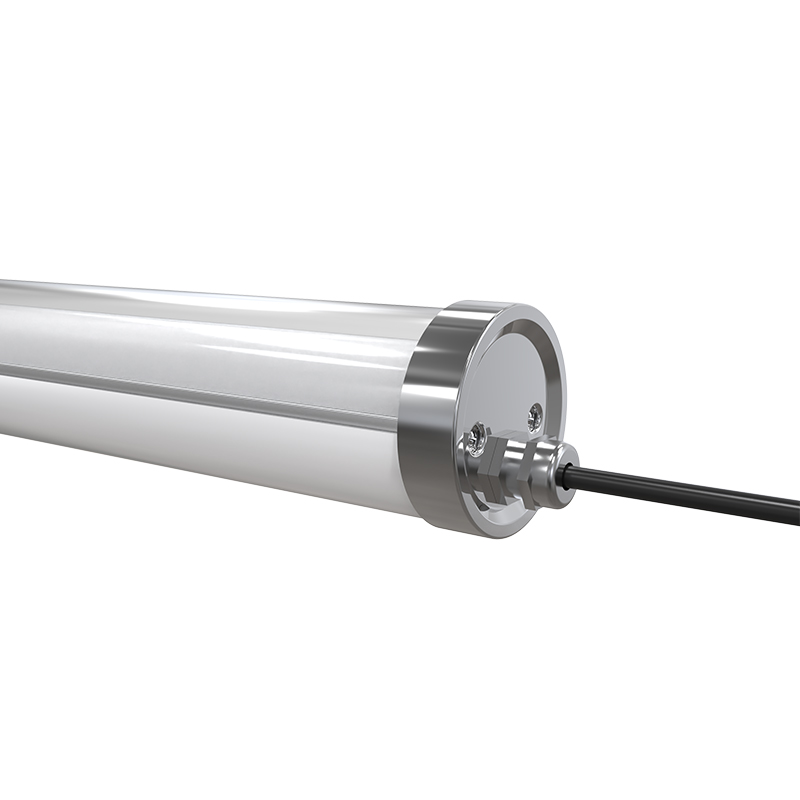

With connectable terminals and a quick wiring port, installation and connection between LEDs can be carried out effortlessly with the connectable terminals. The quick wiring port, which greatly simplifies the wiring process, ensures a safe and reliable connection.
Installation Mode
Application
