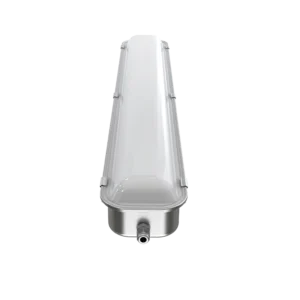

IP65 LED Batten Light L10-H1/L10-H2 Series

Features:

  • IP65 IK07
  • Stainless steel clips
  • 130Lm/W system efficiency, CRI>80 (Lumileds/Honglitronic brand leds)
  • Boke isolated flicker free driver
  • Tempered glass, 304/316 metal bottom shell
  • Self-test emergency with LiFePO4 battery optional
  • Microwave sensor options (wireless control)
  • Options: 0-10V, Motion Sensor, DALI, Emergency
  • Ambient temperatures: -20°C to + 40°C
  • Certificate: CE, RoHs Certified
  • Surface Mount or Suspension Mount
  • 5 years warranty on complete fixture (LED’s, Driver & Housing)

Description

IP65 LED Batten Light L10-H1/L10-H2 Series is the indoor and outdoor lighting solution for your pursuit of cost-effective, versatile and widely applicable lighting solutions! IP65 LED Batten Light L10-H1/L10-H2 Series is designed to meet your needs for cost-effective lighting with superior quality. Suitable for car parking lighting, workshops, school lighting, Warehouse, Storage, Supermarket. With its rugged construction, excellent energy efficiency and flexible application scenarios, it is the ideal choice for your indoor and outdoor lighting.

Tech Specs

Product Code

TBL10H15F-18W

TBL10H15F-36W

TBL10H15F-50W

TBL10H15F-60W

Power

18W

36W

50W

60W

Input Voltage

200-240VAC/100-277VAC (50/60HZ)


PF

0.90@220VAC


Dimming Option

1-10V/Dali


CCT

2700K/3000K/4000K/5000K/5700K/6000K/6500K


Luminous Flux

2340Lm

4680Lm

6500Lm

7800Lm

Efficiency

130Lm/W±5% (Ra>80)

LED Brand

Lumileds/Hongli 2835

Beam Angle

120°C


Operation Temp

-20C~+40°C


Storage Temp

-20C~+60°C


Life Span

Ta 40C L70>54000Hours


IP Class

IP65


IK Class

IK07


Certificate

CE, RoHs


Lamp Body Color

Tempered glass,304/316 Metal bottom shell


Product Size (mm)

700*140*90

1300*140*90

1600*140*90

1600*140*90

Packing Size (mm)

750*195*145

1350*195*145

1650*195*145

1650*195*145

Quantity/carton

1PCS

1PCS

1PCS

1PCS

Gross Weight (kg) ±0.3

3.6

5.4

7.3

7.3

Installation mode

Surface Mount/Suspension Mount


IP65 LED Batten Light L10-H1/L10-H2 Series

IP65 dust & water resistant, IK07 impact resistant, with stainless steel clips for secure mounting - built to last in various environments.

High Efficiency & Long-Lasting

Up to 130Lm/W system efficiency with Lumileds/Honglitronic LEDs delivers exceptional brightness while minimizing energy use. 5-year warranty ensures lasting performance.


Flicker-Free & Eye-Comforting

Boke isolated flicker-free driver provides smooth, stable light for reduced eye strain. Tempered glass and 304/316/Metal Shell for additional durability.

Versatile Functionality

Multiple options including dimming (0-10V/DALI), motion sensor for wireless control, and emergency backup with LiFePO4 battery.

Wide Application & Reliable Operation

Suitable for ambient temperatures from -20°C to +40°C. CE & RoHS certified for safety and quality. Surface or suspension mount for flexible installation.

Installation mode

Installation Mode

Applications

Car parking Lighting, Workshops, School Lighting,Warehouse, Storage, Supermarketg.
