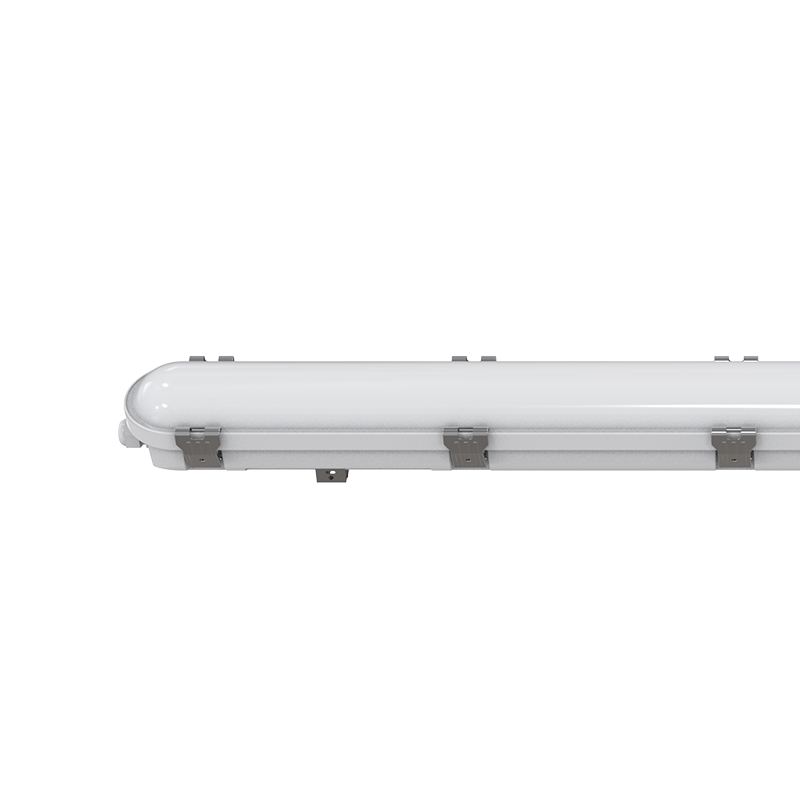

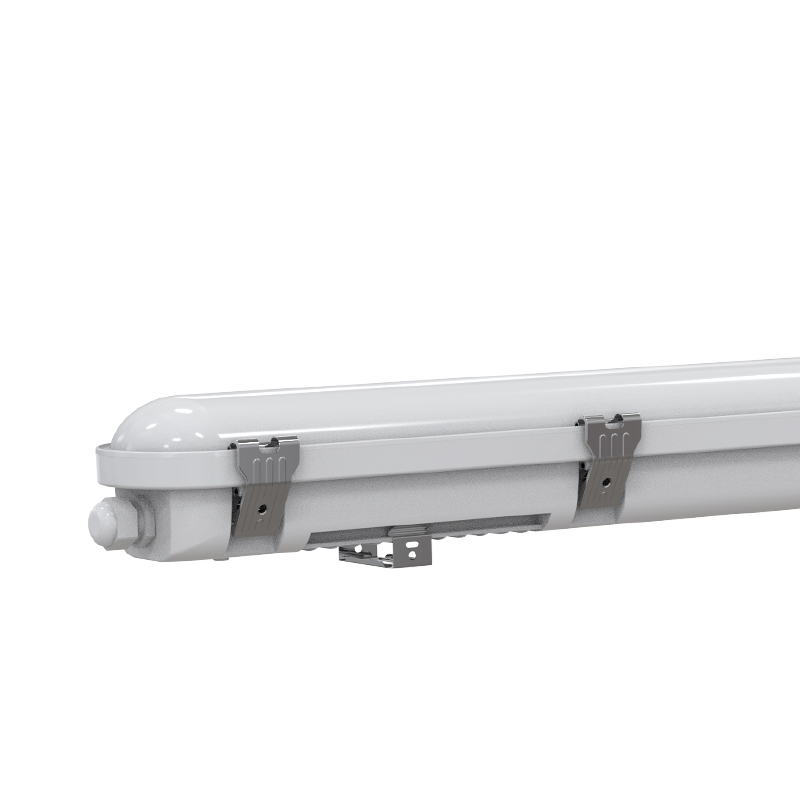

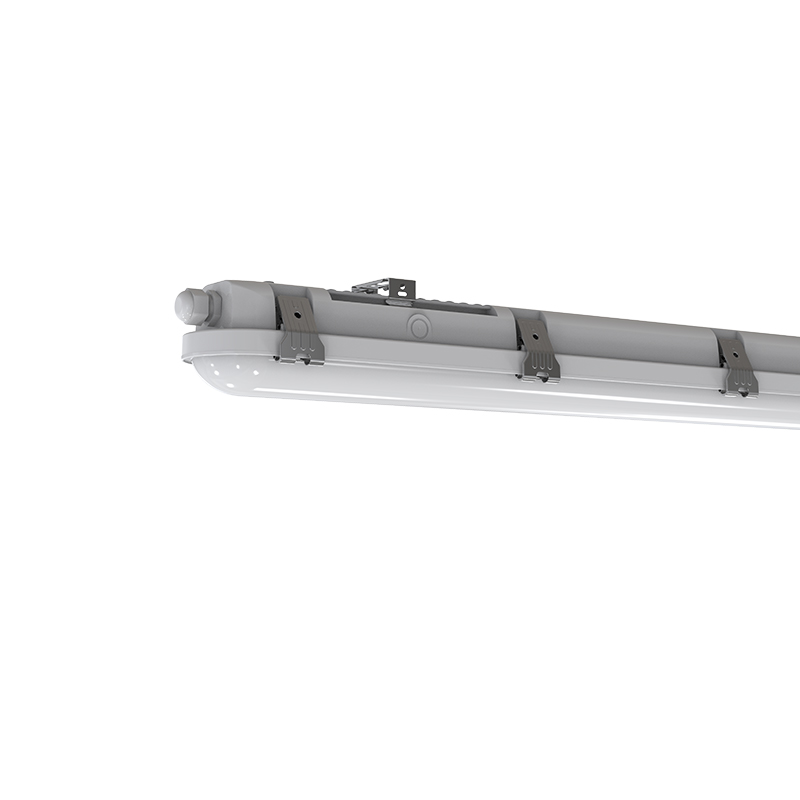

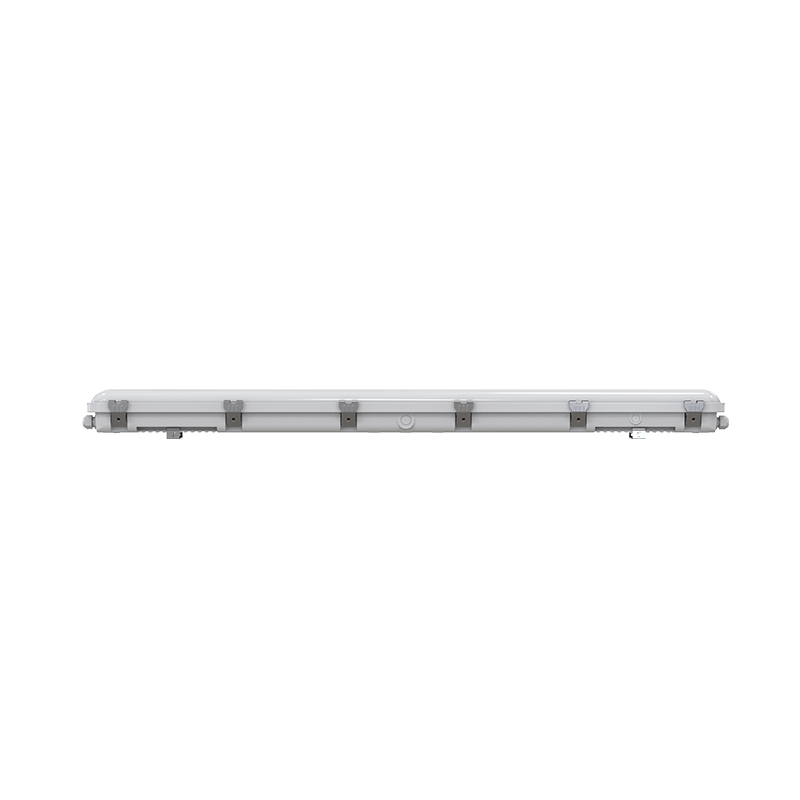

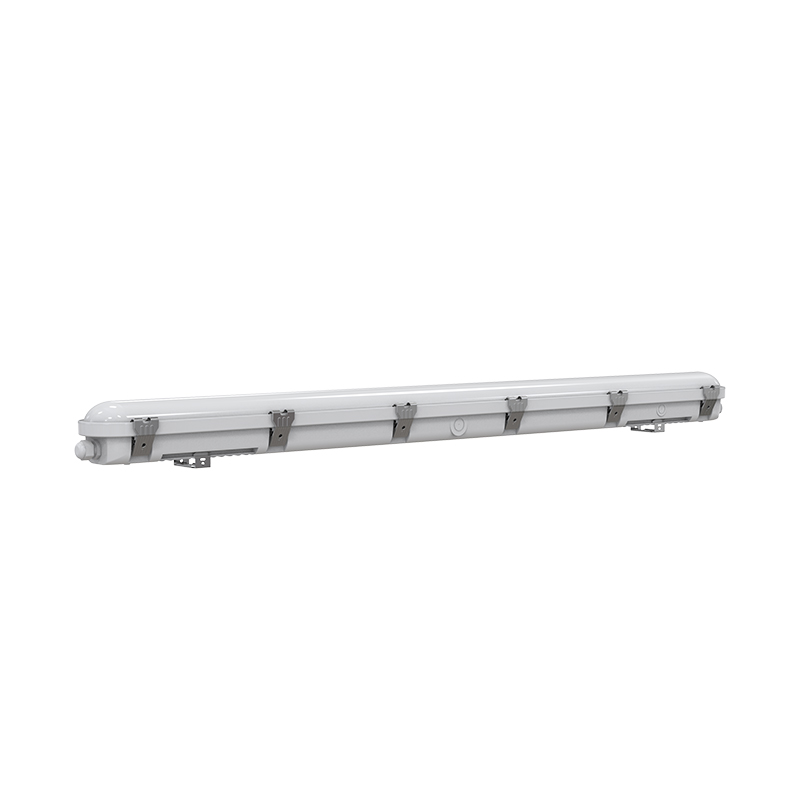

IP66 LED Batten Light L10-S Series Pro

Features:

  • IP66, IK10
  • Stainless steel clips & safety rope
  • 5*2.5mm² through wiring
  • 140Lm/W ~ 160Lm/W system efficiency, CRI>80
  • Isolated flicker free driver
  • PC cover & PC base (V2/V0/5VA)
  • Self-test emergency with LiFePO4 battery option
  • Microwave sensor options (wireless control)
  • 5 years warranty, CE, RoHS, ENEC, RCM certified
  • Ambient temperatures: -20°C ~ +40°C
  • Surface mount or suspension mount
  • Options: 0-10V, motion sensor, DALI, emergency

Description

IP66 LED Batten Light L10-S Series Pro Safe and reliable, easy to install. Adopting stainless steel clamp and safety rope, solid installation. 5*2.5mm² straight through wiring, convenient wiring. Isolated flicker-free driver, safe and reliable, no flicker hazards. IP66 LED Batten Light has multiple functions to meet different needs. Optional dimming, emergency, intelligent control etc. PC cover & PC base, sturdy and durable. Emergency self-test with LiFePO4 battery option. Microwave sensor option for intelligent control.

Tech Specs

Product Code

TBL10A2F-20W-S

TBL10A4F-40W-S

TBL10A4F-50W-S

TBL10A2F-60W-S

Power

20W

40W

50W

60W

Input Voltage

200-240VAC/100-277VAC (50/60HZ)


PF

0.9A@220VAC


Dimming Option

0-10V /DALl, MWV Sensor, Emergency


CCT

2700K/3000K/4000K/5000K/5700K/6000K/6500K


Luminous Flux

2800Lm

5600Lm

7000Lm

8400Lm

Efficiency

160Lm/W±5% (Ra>80)

LED Brand

Lumileds/Hongli 2835

Beam Angle

120°


Operation Temp

-20C~+40°C


Storage Temp

-20C~+60°C


Life Span

Ta 40C L70>54000Hours


IP Class

IP66


IK Class

IK10


Certificate

ENEC, CE, RoHs


Lamp Body Color

PC Base (Grey)+PC Cover (Milky)


Product Size (mm)

600*95*80

1200*95*83

1500*95*83

1500*95*83

Packing Size (mm)

750*195*145

1350*195*145

1650*195*145

1650*195*145

Quantity/carton

9PCS

6PCS

6PCS

6PCS

Gross Weight (kg) ±0.3

13

15

19

19

Installation mode

Surface Mount/Suspension Mount


IP66 LED Batten Light L10-S Series Pro

Ultra-Durable & Rugged

IP66 & IK10 rated for dust, water, shock, and impact - ideal for harsh environments.

High Efficiency & Long-Lasting

Up to 160Lm/W system efficiency delivers exceptional brightness while minimizing energy consumption. 5-year warranty ensures lasting performance.

Safe & Secure Installation

Stainless steel clips and safety rope for secure mounting. 5*2.5mm² through wiring simplifies electrical connection.

Versatile Functionality

Multiple options including dimming, emergency backup with LiFePO4 battery, microwave sensor for wireless control, and 0-10V dimming/DALI compatibility.

Flicker-Free & Reliable

Isolated flicker-free driver ensures smooth operation and eye comfort. PC cover & PC base (V2) for additional durability. CE, RoHS, ENEC, and RCM certified for safety and quality.

Installation mode

Installation Mode

Applications

Workshops, Warehouse, School lighting, Car parking lighting, Supermarket, Storehouse Storage, Offshore heavy industry.
