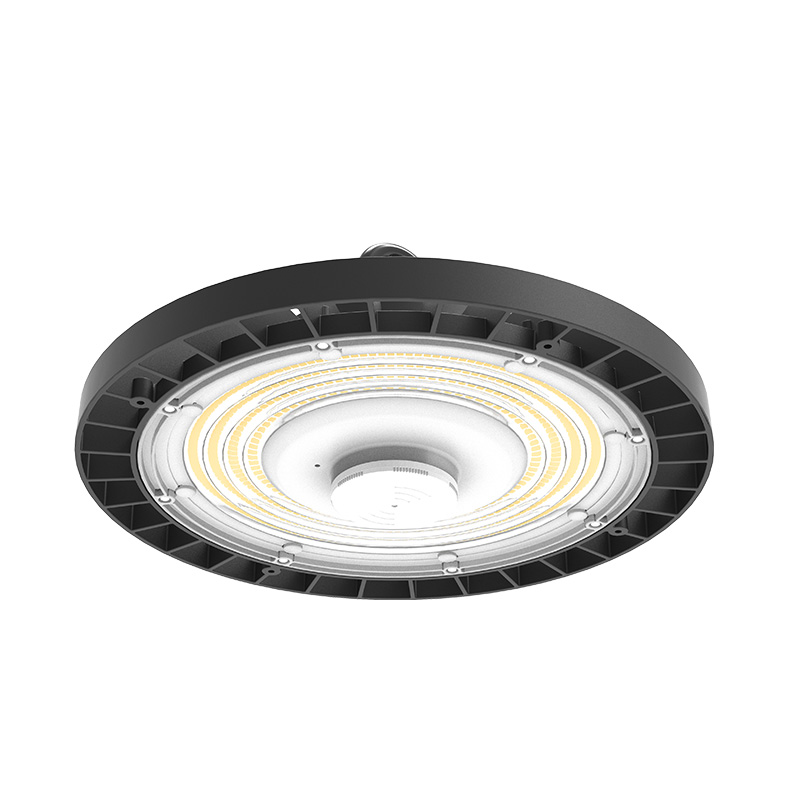

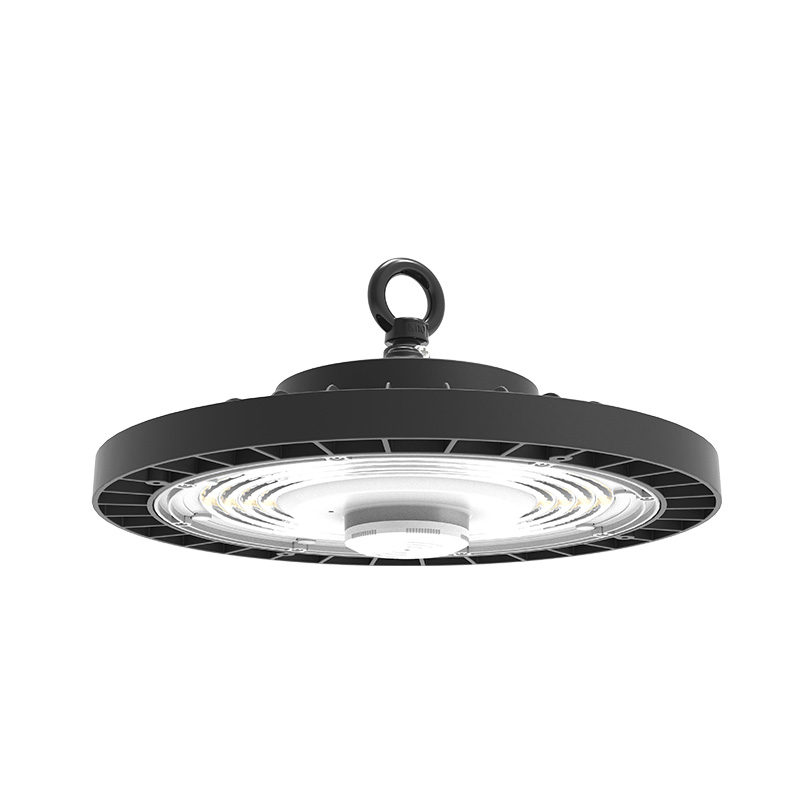

Smart Adjustable LED High Bay Light with Sensor


  • CCT Adjustable:4000K/5000K/5700K
  • Wattage: 200W(dimming to 150W/100W)
  • Lighting efficiency: 150LM/W(R80)/170LM/W (R80)/190LM/W(R70)
  • Beam angle: 90°(Channel version: one Angle can cover more than 90% of the market)
  • Protection grade: IP65 IK08
  • Operating environment: -40~50℃,life span 50000H
  • Power protection: power supply short circuit protected (SCP)/overvoltage protection(OVP)/over temperature protection(OTP).
  • Dimming control: 0-10V/PWM, auxiliary power supply 200MA 12V.
  • Controller selecting: single lamp microwave sensors/group microwave constant illuminance controllers are available in two standard configurations.
  • Installation(suspending /wall mounted) Meet different customers’ demands.
  • Quick Start instant 100% luminous flux
  • 5 Year Warranty on complete fixture. (LEDs, Driver, & Housing)
  • Body: Aluminium alloy, Stainless steel screws


The Smart Adjustable LED High Bay Light with Sensor developed by TUBU is designed to meet the diverse needs of various environments. The CCT (correlated color temperature) is adjustable with three options for flexibility: 4000K, 5000K, and 5700K. Power is adjustable from 200W to 150W or 100W, allowing for customized brightness levels. This high bay light achieves exceptional lighting efficiency with an impressive 150LM/W (R80), 170LM/W (R80), or 190LM/W (R70) lumen output. The 90° wide beam angle ensures efficient coverage, and the channel version can meet more than 90% of the market demand.

tubu smart adjustable LED high bay light is designed to withstand harsh conditions, with IP65 and IK08 protection ratings, dustproof, waterproof, and impact-resistant. This high bay light operates seamlessly in temperatures ranging from -40°C to 50°C and has a lifespan of up to 50,000 hours, ensuring long-lasting performance and reliability.

Safety is the top priority in life, this smart adjustable LED high bay light with sensor is equipped with power protection functions including short circuit protection (SCP), over-voltage protection (OVP), and over-temperature protection (OTP). For added control and customization, dimming control options include 0-10V and PWM with an auxiliary power supply of 200MA at 12V. In addition, This high bay light offers an easy choice between single-lamp microwave sensors or group microwave constant illuminance controllers for efficient energy management.

Tech Specs

Product Code



200W (adjustable 150W/100W)

Input Voltage

100-277VAC (50/60HZ)

Input Current




Dimming Option

3 in dimming (PWM, 0-10V, resistor), Power dial or internal microwave controller

Dimming DC 12V driver

12VDC±10%, Max current 200mA(Dimming :External control and built-in microwave control can only be used,Only use in 12V)




Luminous Flux




150Lm/w±5% / 170Lm/w±5%


Luminous Flux





LED Brand

SMD 3030 or SMD2835

Working temperature and humidity


Storage temperature and humidity

-40~85℃,10~95%RH non-condensing

Life Span


IP/IK Class

IP65 / IK08

Surge lighting stroke

6KV / 10KV


Accord with ETL, CB, CE, PSE, SAA, ROHS2.0

Material Color

Housing:die-casting aluminium/ Housing color:Black( RAL9005) Optics/ lens:PC

Product Size (mm)


Packing Size (mm)




Gross weight (kg) ±0.3


Installation mode

Suspending/wall mounted(reference the instruction)

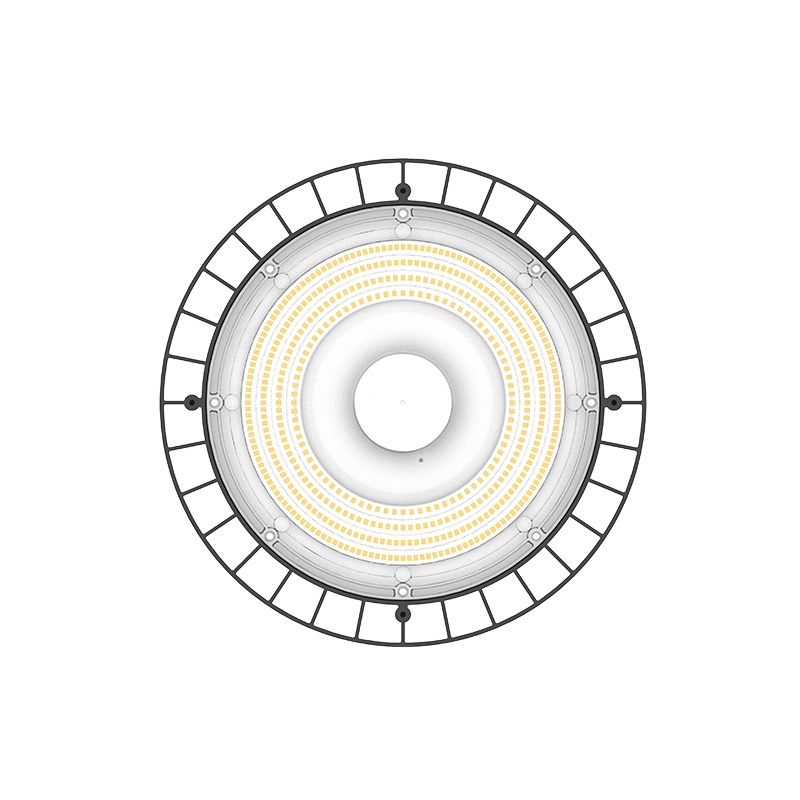

Versatile Adjustable LED High Bay Light

Three effects in one: equipped with an optional sensor, adjustable CCT, and wattage, Offers unmatched flexibility and customization to meet specific customer needs.

Lightweight Integration

Equipped with power protection functions including Short Circuit Protection (SCP), Over Voltage Protection (OVP), and Over Temperature Protection (OTP).

Various Control Options

Dimming control options include a single-lamp microwave sensor or group microwave constant illumination controller (0-10V/PWM, auxiliary power supply 200MA 12V)

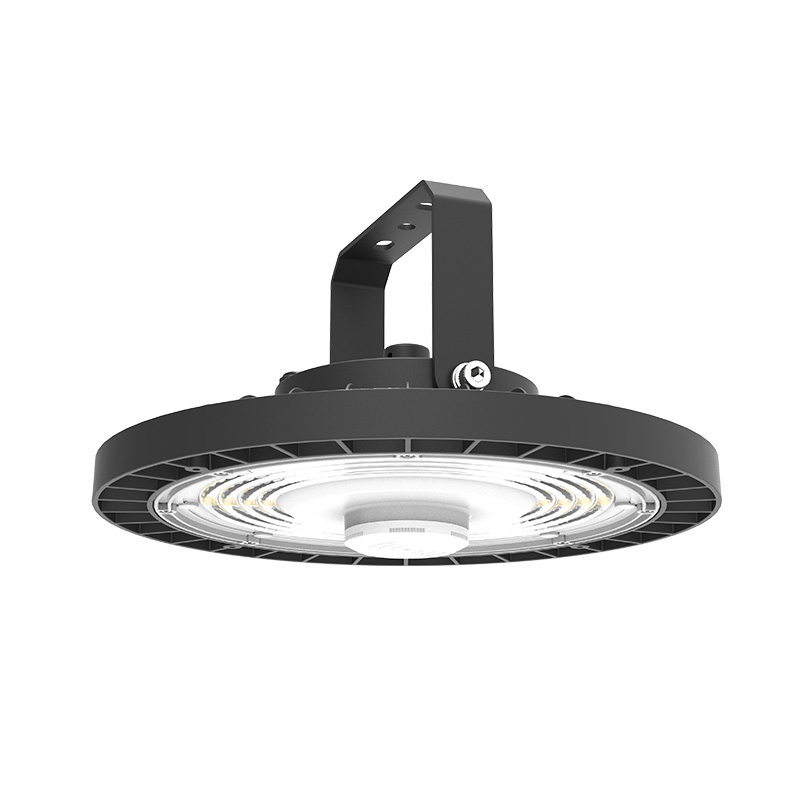

Customizable CCT and Power

Equipped with adjustable CCT options and power, you can flexibly choose the color temperature: 4000K, 5000K, 5700K; fine-tune the brightness level: 100W, 150W, or even 200W. Its lumen output is 150LM/W (R80), 170LM/W (R80) or even 190LM/W (R70).

Reserve Emergency

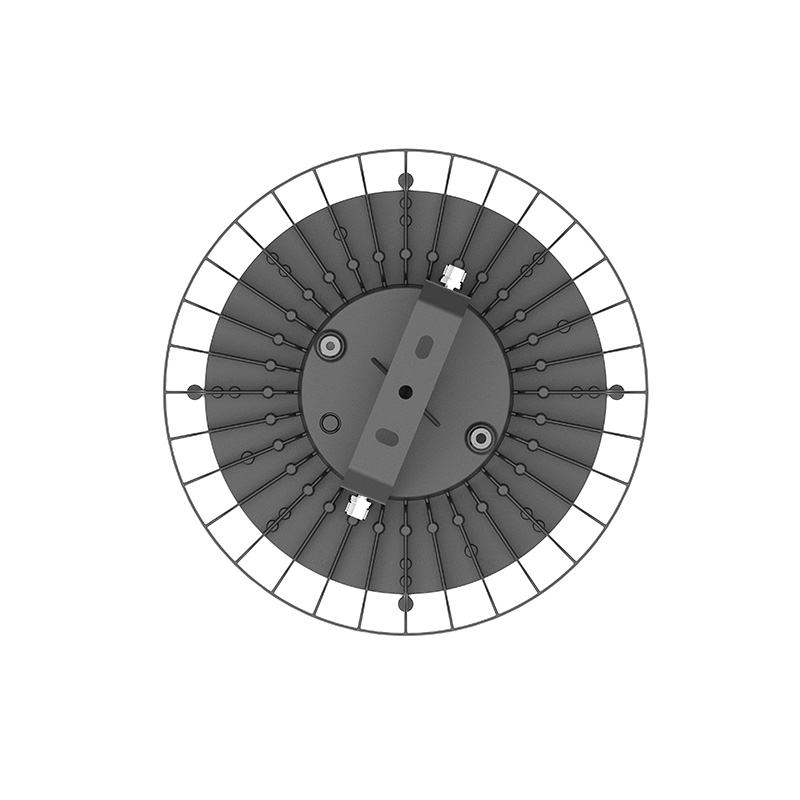

Power Interface And Externar
Dimming Interface Area

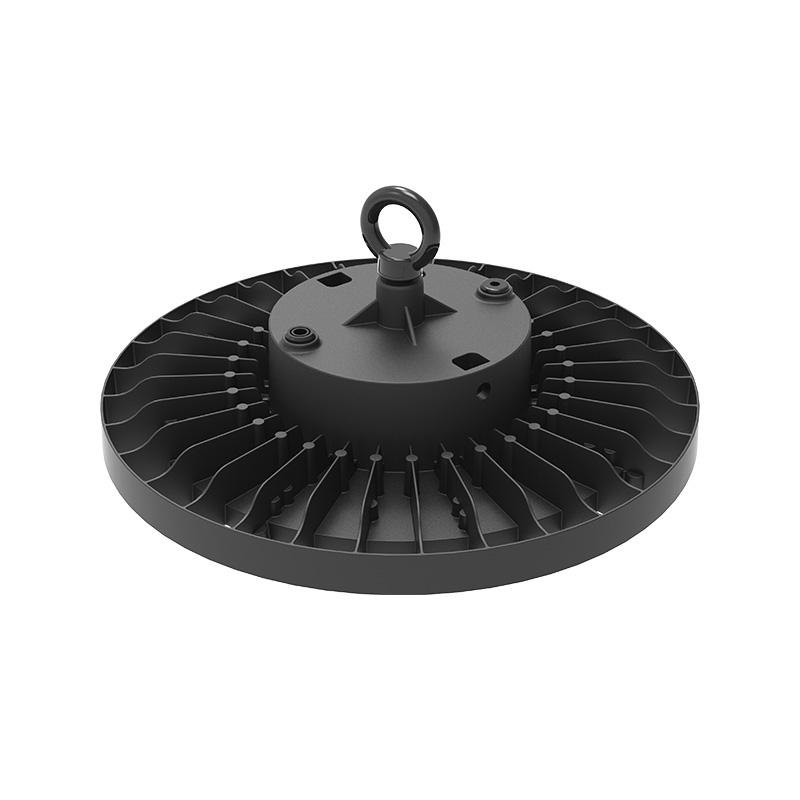

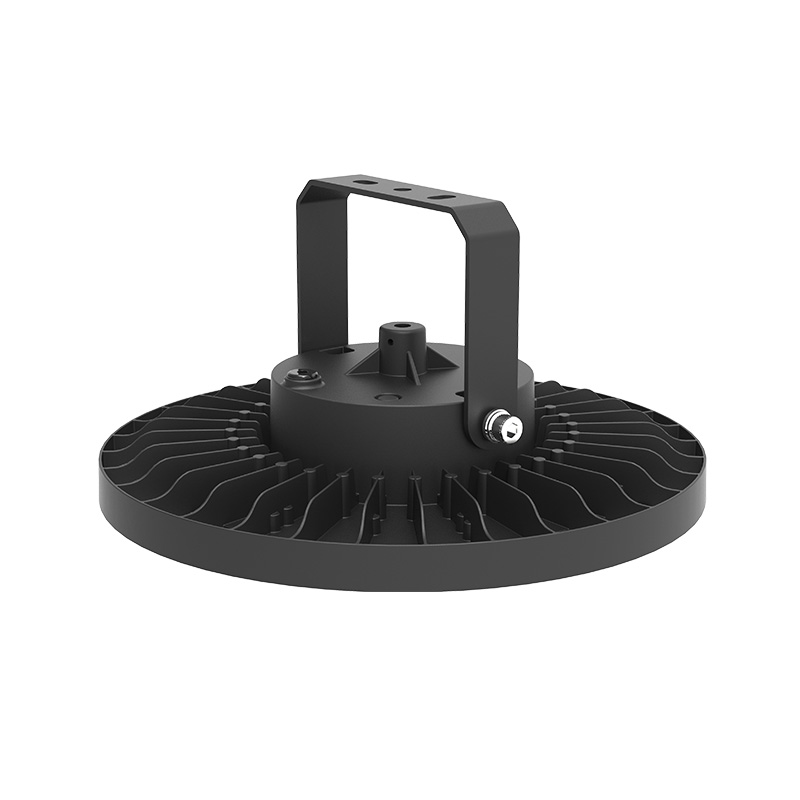

Installation Mode

Smart Adjustable LED High Bay Light With Sensor installation mode


street lighting
Indoor Lighting
dock lighting
