High Power Marine LED Flood Light
Features:
Description

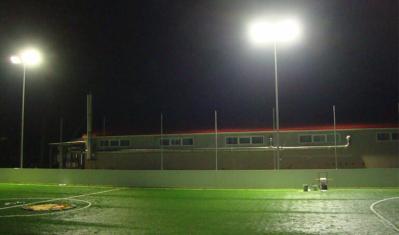

TUBU's High Power Marine LED Flood Light, is available in 350W, 500W, and 600W options. Is perfect for large outdoor areas that require uniform lighting over a large space, such as ports, rail yards, and roadways. It can also be used in other applications with large pole spacing and tall mounting heights.
TUBU's LED Flood Light comes with patent protection and offers various optical designs to suit different needs, including 10°, 15°, 24°, 36°, ANB, and AWB options. The die-casting housing ensures durability, while the IP66 and IK08 ratings guarantee protection against water and impact. With high lumen output and no flickering, our luminaire provides excellent lighting performance.
In addition, our product is designed to withstand high salt spray and offers anti-ultraviolet protection, making it suitable for special locations such as seaside areas, docks, iron towers, stadiums, and high poles.
Tech Specs
Product Code | TBHMG1-350W | TBHMG1-500W | TBHMG1-600W |
|---|---|---|---|
Power | 350W | 500W | 600W |
Input Voltage | 90-305VAC/200-480VAC | ||
Input Current | 1.59A@220VAC | 2.27A@220VAC | 2.73A@220VAC |
PF | >0.90@220VAC | ||
Dimming(Optional) | 3 in 1 dimming (PWM, 0-10V, Resistor)、Dali | ||
CCT | 2700K-6500K | ||
Ra>80 Luminous Flux | 5000Lm/52500Lm | 50000Lm/75000Lm | 60000Lm/90000Lm |
Ra>80 Efficiency | 100Lm±5%/150Lm±5% | ||
LED Brand | 3030 | ||
Light Type | 10°, 15°,24°,36° | ||
Operation Temp | -40℃~+50℃ | ||
Storage Temp | -40℃~+85℃ | ||
Life Span | Ta 45℃ L70>54000Hours | ||
IP Class | IP66 | ||
IK Class | IK08 | ||
Certificate | CE, RoHS | ||
Lamp Body Color | Black (RAL9005) | ||
Product Size (mm) | 690*708*94mm | ||
Net weight (kg) ± 0.3 | 23 | ||
Packing Size (mm) | 800*800*150mm | ||
Gross weight (kg) ±0.3 | 25.6 | ||
Installation mode | Bracket Mount | ||
TUBU Patent Protected

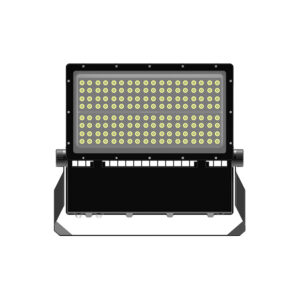

Marine LED Flood Light
Constructed with a solid aluminum alloy body, it ensures long-lasting performance even in harsh marine environments. The die-cast housing is IP66 rated for excellent protection against dust and water, while IK08 efficiency guarantees impact resistance.
Various beam angles
10°, 15°, 24°, 36°, ANB, AWB, and other beam angle designs, suitable for various application scenarios. Whether you need focused lighting or wider coverage.
Excellent Corrosion Resistance
Passed a rigorous 168-hour salt test proving its high resistance to salt spray and UV exposure. This makes it ideal for marine environments where corrosion is a major concern.
Efficient heat dissipation
The LED light adopts a special PCB design with temperature monitoring and a hollow design. This ensures efficient heat dissipation, preventing overheating and ensuring the life of the light.
Rugged and anti-vibration
It complies with 3G vibration standards and can withstand 100,000 times of vibration frequency. This makes it highly reliable in marine applications where vibrations are common.
Flexible Dimming Options
The LED light supports 1-10V and DALI dimming, allowing you to adjust the brightness according to your needs. The color temperature range is 2700K-6500K.
The installation angle
can be adjusted flexibly
Use the gear shaft to adjust the angle of the mounting bracket to change the light direction.
Anti-glare design
It has an anti-glare function design to ensure comfortable and safe lighting. Reduce eye strain and improve visibility.
installation mode
Application
