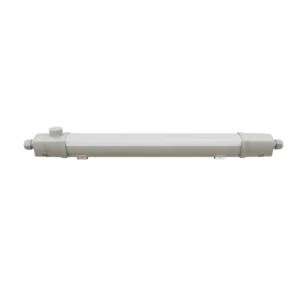

Motion Sensor LED Tri-proof Light

Features:

  • IP65 &IK08
  • Wireless Control: Microwave Sensor、PIR Sensor、Zhaga Socket
  • 3-core, 5-core Through Wiring
  • Dial to Adjusting Power and Color Temperature
  • Material Quality: PC
  • System Efficiency Up to 140lm/W & 160lm/W
  • High CRI >80
  • Environmentally Friendly, No Mercury, No UV, No IR
  • Wide Beam Angle 120°
  • Energy Efficiency Grade: C
  • Quick Start Instant 100% Luminous Flux
  • 5 Year Warranty on Complete Fixture. (LEDs, Driver, & Housing)
  • Certificate: CE, RoHS Certified
  • Surface Mount or Suspension Mount
  • Dimming mode: PWM/0~10V/DALI

Description

This Motion sensor LED Tri-proof Light is an advanced lighting solution that comes with three control options - microwave sensor, PIR sensor, and Zhaga socket. These wireless control mechanisms make operation easy and convenient, ensuring the lights are activated when needed and saving energy when not in use.

With 3-conductor and 5-conductor straight-through cabling, installation flexibility is provided, making it suitable for different cabling setups and environments.

One of the standout features of this LED Tri-proof Light is the fact that it comes with a dial that allows the power and color temperature to be adjusted using simple knobs. This allows users to customize the lighting according to their preferences and requirements, providing the perfect ambiance for any space.

This Motion sensor LED Tri-proof Light has excellent system efficiency of up to 140 lm/W and 160 lm/W, providing excellent brightness while ensuring energy saving. The lamp also boasts a high color rendering index (CRI) of over 80, ensuring accurate color performance and enhancing the visual experience. It contains no mercury, emits no harmful UV or IR radiation, and is safe for people and the environment. And with a wide beam angle of 120°, it provides uniform illumination over a large area.

tech specs

Product Code

 TBL11P2F-25W

TBL11P4F-35W

TBL11P5F-45W

Power

25W (25W/21W/18W/15W)

35W (35W/30W/25W/20W)

45W (45W/38W/32W/25W)

Input Voltage

200-240VAC/100-277VAC (50/60HZ)

Input Current

0.12A@220VAC

0.18A@220VAC

0.23A@220VAC

PF

0.90@220VAC

Dimming Option

0-10V/Dali

CCT

3000K/4000K/5000K/6000K

Ra>80

Luminous Flux

3500Lm±5%/4000Lm±5%

4900Lm±5%/5600Lm±5%

6300Lm±5%/5600Lm±5%

Ra>80

Efficiency

140Lm±5%/160Lm±5%

140Lm±5%/160Lm±5%

140Lm±5%/160Lm±5%

LED Brand

Lumileds/Hongli 2835

Beam Angle

120°C

Operation Temp

-20C~+40°C

Storage Temp

-20C~+60°C

Life Span

Ta 40C L70>54000Hours

IP Class

IP65

IK Class

PC IK08

Certificate

CE, RoHs, IK08

Lamp Body Color

Milky PC

Product Size (mm)

650*58*62

1250*58*62

1550*58*62

Individual package size (mm)

660*65*65

1260*65*65

1560*65*65

Packing Size (mm)

680*215*215

1280*215*215

1580*215*215

Quantity/carton

9PCS

9PCS

9PCS

Gross weight (kg) ±0.3

12

12

14

Installation mode

Surface Mount/Suspension Mount

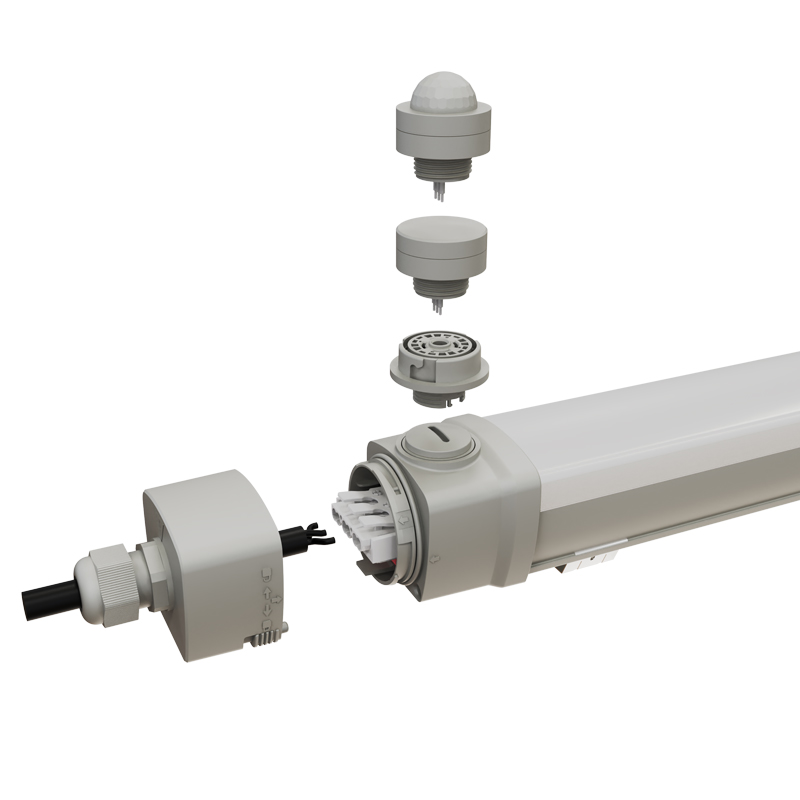

Easy Sensor Installation LED Tri-proof Light

The installation of motion sensors, occupancy sensors, or other sensors with a Zhaga socket is made easier with LED tri-proof lights that have a reserved sensor socket. This dedicated connection point eliminates the need for extra wiring or modifications.

Optional wireless control sensors

There are three wireless control options - Microwave Sensor, PIR Sensor and Zhaga Socket - that detect motion and activate the lights accordingly. This results in significant energy savings.

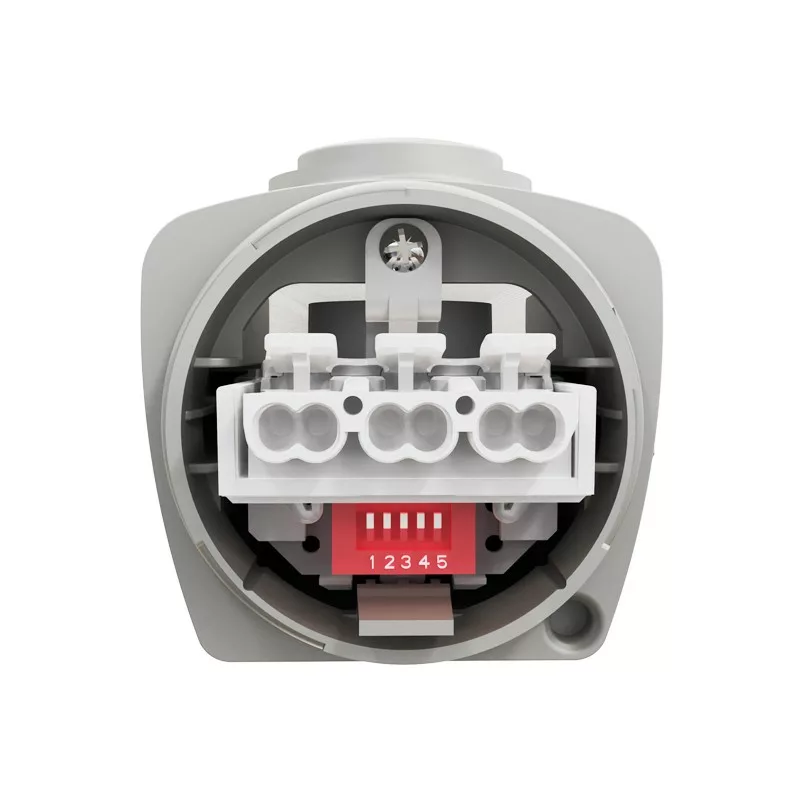

Wattage and CCT are Adjustable

With adjustable power and color temperature knobs, you can customize the light according to your preferences and needs, saving energy and creating a more comfortable environment

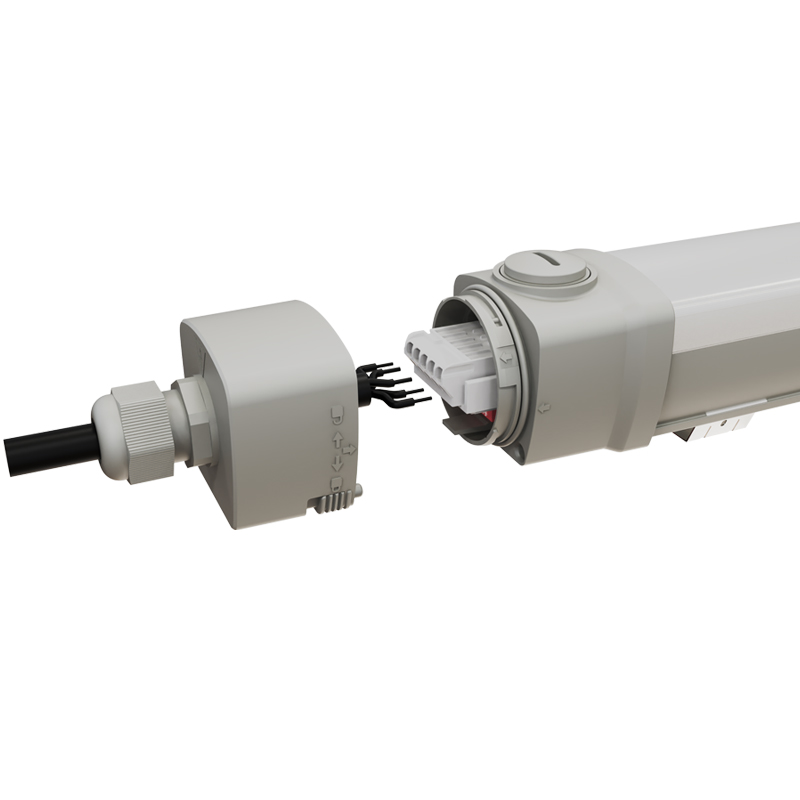

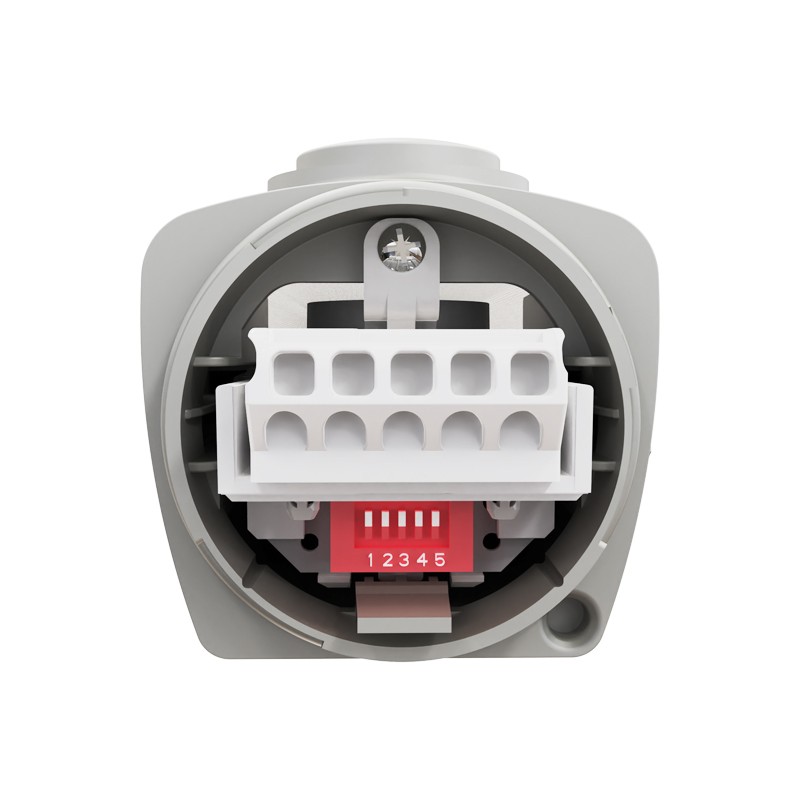

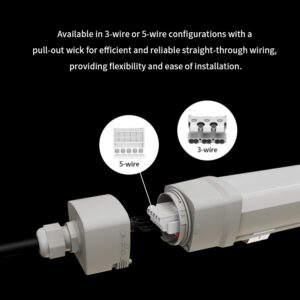

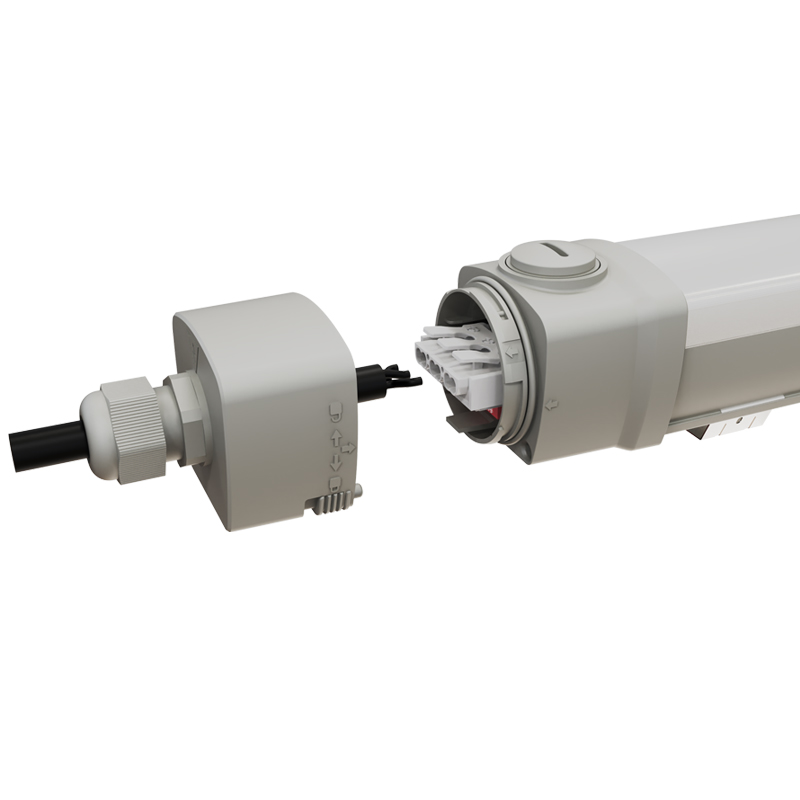

Wiring Convenience

Available in 3-wire or 5-wire configurations with a pull-out wick for efficient and reliable straight-through wiring, providing flexibility and ease of installation.And with quick-connect posts to speed up the installation process, saving you time and effort

Convenience And Automation

PIR sensors facilitate by automating the lighting process. There is no manual operation to turn the light on or off as the sensor detects motion and performs the lighting.

As a leading China-based supplier of Motion Sensor LED Tri-proof Lights, Our Motion Sensor LED Tri-proof Lights, boasting an IP65 ingress protection rating and IK08 impact resistance, are the ideal choice for applications that demand both durability and intelligent lighting control.

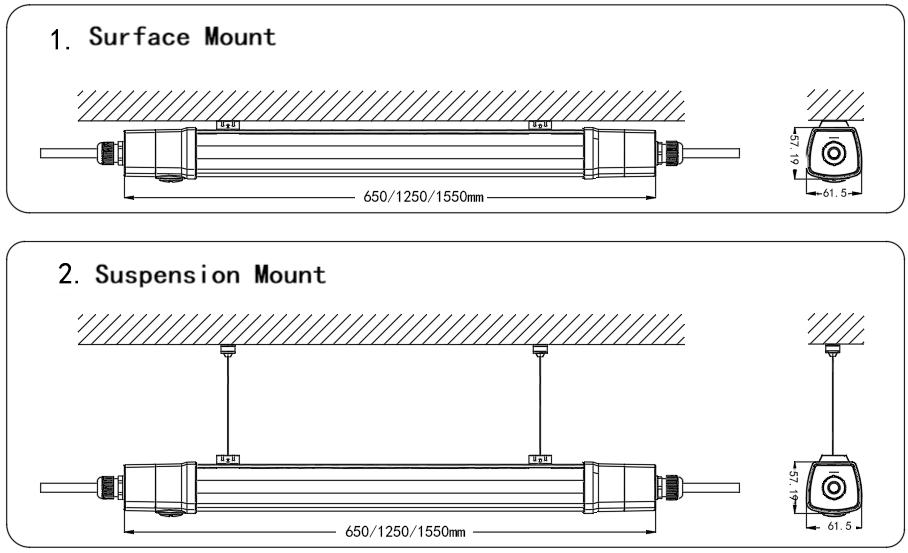

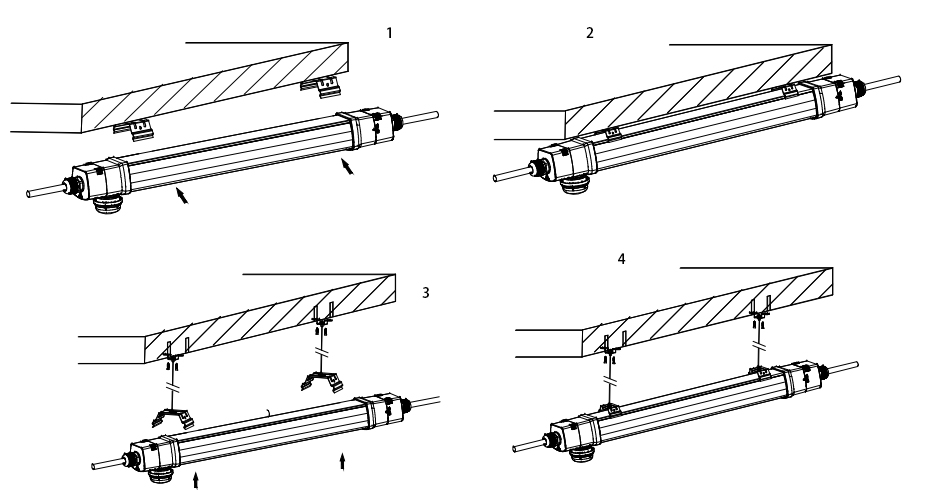

Installation Mode

Motion Sensor LED Tri-proof Light Installation-mode

Applications

1.Supermarkets(Supermarkets LED Tri Proof Light)

In the bustling aisles of supermarkets, our Motion Sensor LED Tri-proof Lights ensure aisles are illuminated only when necessary, maximizing energy savings and reducing operational costs. The Supermarkets LED tri proof light automatically activate when shoppers approach, providing ample illumination for easy product selection and a safe shopping experience.

2. Workshops(workshop LED Tri Proof Light)

Workshops, often characterized by dust, moisture, and potential impact hazards, demand robust lighting solutions. Workshop LED tri proof light , with their IP65 rating and IK08 impact resistance, can withstand these challenging environments. The motion sensors ensure that lights are activated only when workers are present, optimizing energy consumption and enhancing worker safety.

3. Warehouses(Warehouse LED Tri Proof Light)

Vast warehouses require efficient lighting systems that minimize energy waste. Warehouse LED tri proof light, with their motion detection capabilities, ensure that aisles and storage areas are illuminated only when occupied, reducing overall energy consumption. This intelligent lighting approach not only saves money but also contributes to a more sustainable environmental footprint.

4. School Lighting(School LED Tri Proof Light)

Schools, with their diverse spaces and varying occupancy levels, can benefit from the intelligent lighting control provided by our school LED tri proof light. In classrooms, hallways, and common areas, these lights activate when students or staff are present, ensuring adequate illumination while conserving energy during unoccupied periods.

5. Car Parking Lighting(Parking Lot LED Lights)

Parking lot LED lights, with their robust construction and motion detection capabilities, provide ample illumination when vehicles enter or exit the parking area, deterring potential criminal activity while minimizing energy consumption during unoccupied times. Car parking areas, often dimly lit and susceptible to vandalism, demand secure and efficient lighting solutions.

6. Walkways(Commercial LED Tri Proof Light)

Commercial LED tri proof light, with their IP65 weatherproof rating and motion detection capabilities, ensure safe passage for pedestrians while minimizing energy consumption during non-use periods. Walkways, especially those in outdoor settings, require reliable lighting that activates only when pedestrians are present.

parking lot lighting
hospital lighting
warehouse lighting

Leading China-based LED tri proof light suppliers, we are committed to providing high-quality, energy-efficient lighting solutions that enhance safety and convenience across diverse commercial and industrial applications. Contact us today to learn more about how our Motion Sensor LED Tri-proof Lights can illuminate your business with efficiency and safety.
