Series TG5 Industrial & Marine IP69K LED Flood Light

The TUBU TG5 LED floodlight is built on a standardized component inventory system, enabling fast delivery and a flexible, configurable lighting solution.

It supports 100W–240W power options, IK08 or IK11 protection ratings, single, dual, or tri-CCT configurations, and Loop-in and Loop-out cable entry are optional. It also offers 3-core or 5-core through-wiring, C4 or C5 corrosion-protection grades, and optional photocell-sensor configurations.

Get A Quote Now
Industrial & Marine IP69K LED Flood Light_TG5

Features:

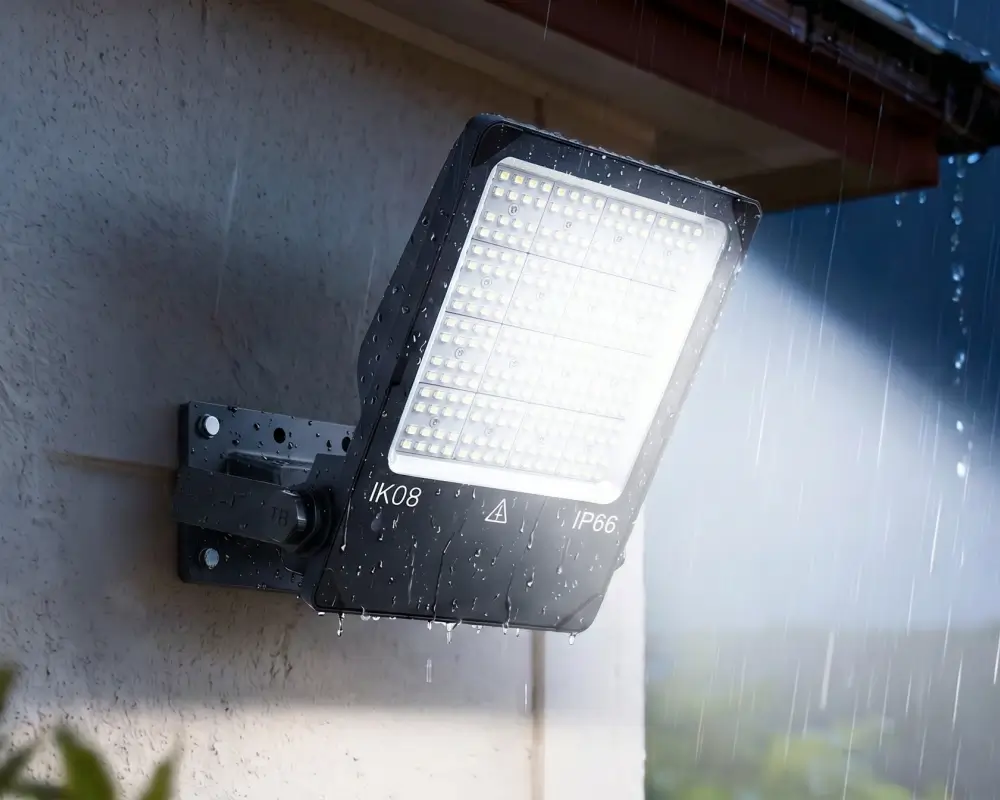

  • IP66, IP69K, IK08 or IK11
  • System efficiency up to 3030 Sanan SMD LED CRI ≥80 with 160 lm/W and 180 lm/W options; up to 200 lm/W with CRI 70
  • 2 sizes cover 100W to 240W
  • CCT selectable as WW, NW and CW
  • Adjustable Power 100%, 75%, and 50%
  • Loop-in and Loop-out cable ent optional
  • Photocell control works as 25-75lux, 200-600lux and disable modes
  • 3 core/5 core through wiring optional

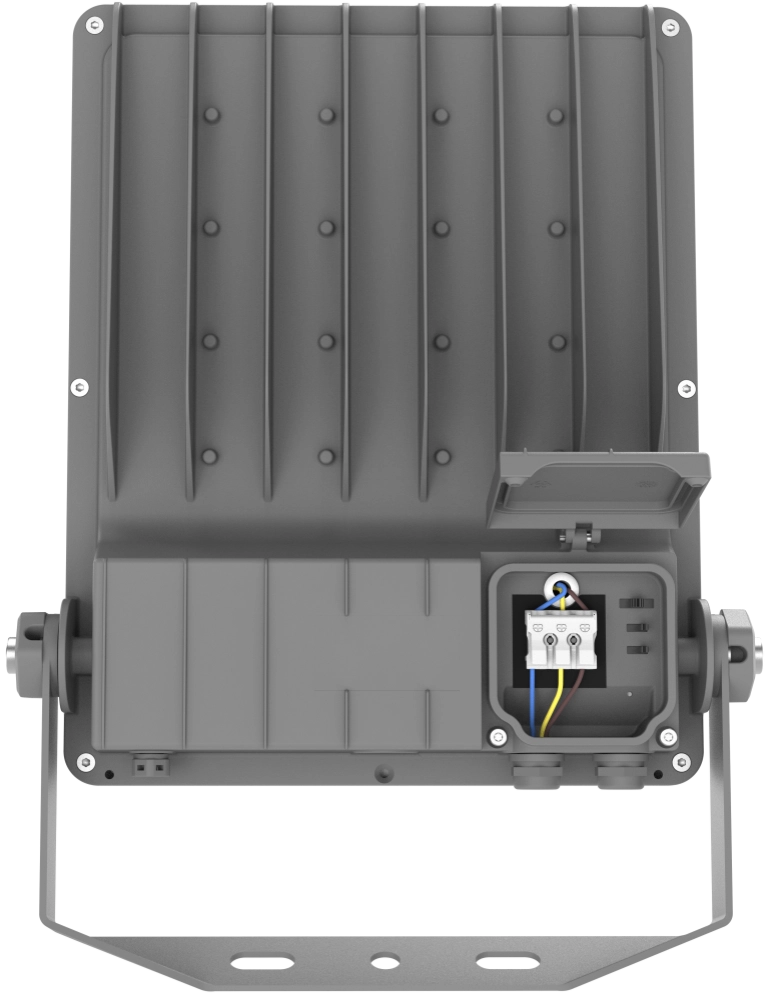

  • Open the wiring cover on the back and make the connections independently
  • Corrosion resistance grade C4/C5
Download Datasheet
Share 0
Post 0
Share 0
Share 0
Pin 0
Post 0
L10-k_mob_bg01

Tech Specs

Product Model

TBTG5-100

TBTG5-150

TBTG5-200

TBTG5-240

Power

100W (75W/50W)

150W (112.5W/75W)

200W (150W/100W)

240W (180W/120W)

Input Voltage

100-240VAC, 50/60Hz

PF

＞0.95 @220VAC

Function Optional

ON/OFF or 0–10V Dimming

CCT

Single CCT: 3000K / 4000K / 5000K / 6000K
2 CCT: 3000K & 4000K
3CCT: 3000K & 4000K & 5000K

Efficiency

160Lm/W±10% @ 3030led (single & dual CCT) Ra80 25°, 45°, 60°, 90°, 120°, 135°, T2M, T2M, P80X150°

Luminous Flux (Lm)

100W: 13500 ~ 16500
75W: 10125 ~ 12375
50W: 6750 ~ 8250

150W: 20250 ~ 24750
112.5W: 15187.5 ~ 18562.5
75W: 10125 ~ 12375

200W: 27000 ~ 3300
150W: 20250 ~ 24750
100W: 13500 ~ 16500

240W: 32400 ~ 39600
180W: 24300 ~ 29700
120W: 16200 ~ 19800

Efficiency

180Lm/W±10% @ 3030led (single & dual CCT) Ra80 60°x120°, 90°x120°, Type3

Luminous Flux (Lm)

100W: 16200 ~ 19800
75W: 12150 ~ 14850
50W: 8100 ~ 9900

150W: 24300 ~ 29700
112.5W: 18225 ~ 22275
75W: 12150 ~ 14850

200W: 32400 ~ 39600
150W: 24300 ~ 29700
100W: 16200 ~ 19800

240W: 38880 ~ 47520
180W: 29160 ~ 35640
120W: 19440 ~ 23760

Efficiency

200Lm/W±10% @ 3030led (single CCT) Ra70 60°x120°, 90°x120°, Type3

Luminous Flux (Lm)

100W: 18000 ~ 22000
75W: 13500 ~ 16500
50W: 9000 ~ 11000

150W: 27000 ~ 33000
112.5W: 20250 ~ 24750
75W: 13500 ~ 16500

200W: 36000 ~ 44000
150W: 27000 ~ 33000
100W: 18000 ~ 22000

240W: 38880 ~ 47520
180W: 32400 ~ 39600
120W: 21600 ~ 26400

LED Brand

sanan / Hongli

Driver Brand

Inventronics

Light Type

SMD 3030

Operating Temperature

-40°c ~ +45°c

Storage Temperature

-40°c ~ +60°c

Life Span

5 Year

IP Class

IP66, IP69K

IK Class

IK08 （Glass） / IK11(Polycarbonate)

Certificate

CE / RoHS

Lamp Body Color

Gray / black

Product Size (mm)

357x295x56

435x315x56

435x315x56

435x315x56

Packing Size (mm)

390x315x286

496x335x217

496x335x217

496x335x217

Quantity / Carton

4

3

3

3

Gross Weight (kg)

11

10

11

11.5

Installation Mode

Bracket mounting/Pole mounting

FAQ

1. What power selectable options are available for the TG5 LED Flood Light?

The TG5 LED Flood Light offers three power settings: 100%, 75%, and 50%, allowing users to adjust power consumption according to different project requirements.

2. Why choose the photocell option for the TG5 LED Flood Light?

The photocell option is recommended for applications that require automatic lighting control. Depending on the installation environment, such as urban roads, public spaces, or other outdoor facilities, the luminaire can automatically adjust its operation based on ambient light levels, reducing energy consumption and maintenance requirements.

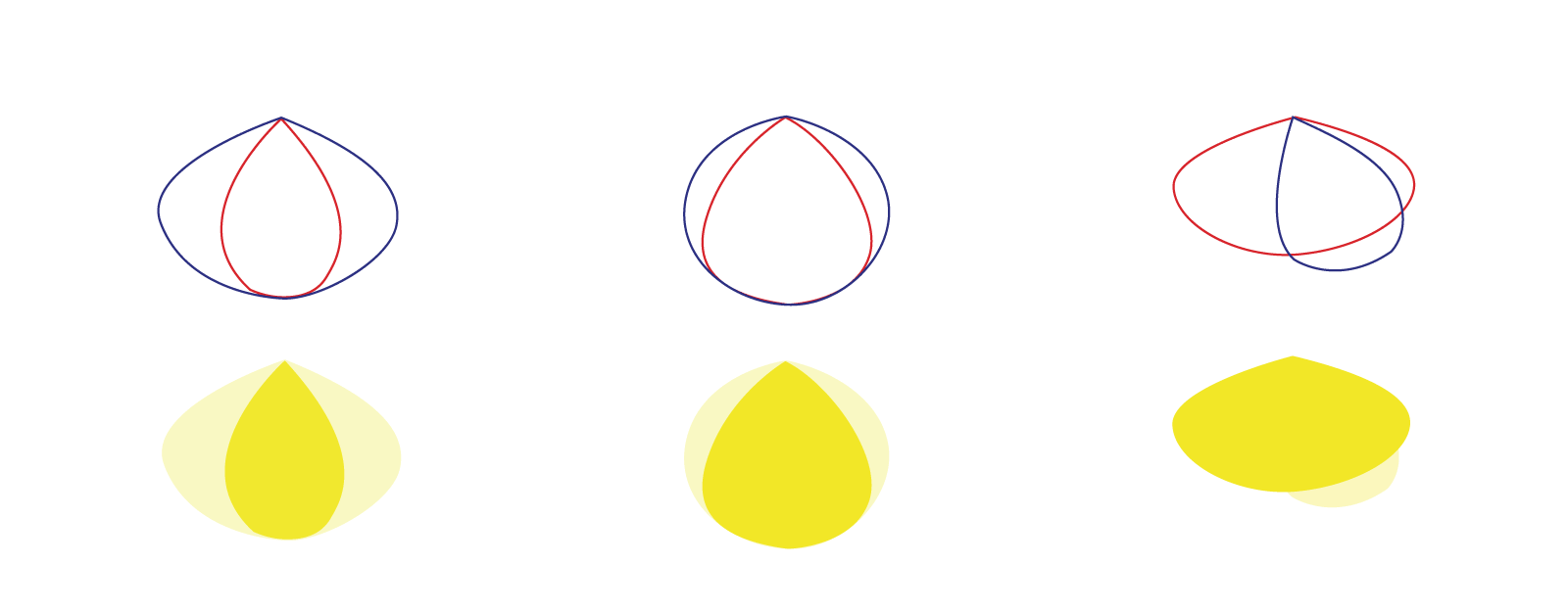

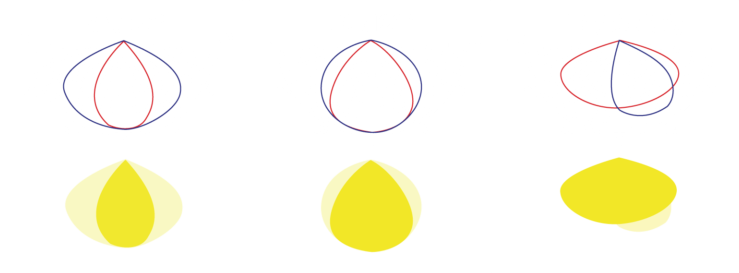

3. What beam angle options are available for different efficacy versions of the TG5 LED Flood Light?

What beam angle options are available for different efficacy versions of the TG5 LED Flood Light?

Beam angle options vary depending on the selected luminous efficacy.

  • 160 lm/W version: 25°, 45°, 60°, 90°, 120°, 135°, T2M and P80×150.
  • 180 lm/W and 200 lm/W versions: 60°×120°, 90°×120° and Type 3.

Please select the appropriate beam angle based on the installation height and application requirements to achieve optimal lighting performance.

4. What CCT options are available for the TG5 LED Flood Light?

The TG5 LED Flood Light is available in three CCT configurations to meet different project requirements.

  • Single CCT: 3000K, 4000K, 5000K, or 6000K (one fixed CCT selected when ordering)
  • Dual CCT: 3000K & 4000K (switchable via a 2-position DIP switch)
  • Triple CCT: 3000K, 4000K & 5000K (switchable via a 3-position DIP switch)

Please select the appropriate CCT configuration based on the application and lighting requirements.
