Wine Cellar Tubular LED Tri-Proof Light

Features

  • IP67&IP69K
  • PMMA IK08/PC IK10
  • Anti-ammoinia
  • System efficiency up to 35lm/W
  • High CRI >80
  • Wide beam angle of 120°
  • Environmentally friendly, no mercury, No UV, No IR
  • The specific amber LED module protects wine and champagne against riboflavin effects from photosensitivity.
  • Certified by the Champagne Committee under the requirements of amber luminaire qualification protocol for bottle storage.
  • Qualified by an independent laboratory under ISO 17025 for EN13032-4.
  • Against water pressure of 100bar(1450psi) and temperature of 80℃.
  • Quick Start instant 100% luminous flux.
  • 5 Year Warranty on complete fixture. (LEDs, Driver, & Housing)
  • Certificate: CE, RoHS Certified.
  • Surface Mount or Suspended

Description

The TUBU Wine Cellar LED Tubular Light - is an ideal solution for preserving and safeguarding your stored wine. It's crucial to understand the significant influence UV and blue spectrum light can have on different wine types, especially white, sparkling, and rosé varieties.

However, our specially designed amber LED module ensures that wine and champagne are shielded from the harmful effects of riboflavin caused by photosensitivity. This module has been certified by the Champagne Committee, meeting the stringent requirements of the amber luminaire qualification protocol for bottle storage.

In addition to its protective capabilities, the TUBU Wine Cellar Tubular LED Tri-proof Light offers exceptional features. It is resistant to both ammonia and chemicals, ensuring the longevity of your wine cellar. Furthermore, it can withstand high temperatures, making it a reliable lighting option for your wine storage environment.

Tech Specs

Product Code

TBL95F-20W

TBL95F-40W

TBL94F-50W

TBL92F-60W

Power

20W

40W

50W

60W

Input Voltage

200-240VAC/100-277VAC (50/60HZ)

Input Current

0.09A@220VAC

0.19A@220VAC

0.23A@220VAC

0.28A@220VAC

PF

0.90@220VAC

Dimming Option

0-10V/Dali

CCT

590-595nm

Ra>80

Luminous Flux

700/1700Lm±5%

11400/3400Lm±5%

1750/4250Lm±5%

2100/5100Lm±5%

Ra>80

Efficiency

35/85Lm/W±5%

LED Brand

2835/3030/3535

Beam Angle

120°C

Operation Temp

-20C~+40°C

Storage Temp

-20C~+60°C

Life Span

Ta 40℃ L70>54000Hours

IP Class

IP67 & IP69K

IK Class

PMMA IK08 & PC IK10

Certificate

CE, RoHs, CB, IK10, IP69K, ENEC

Lamp Body Color

Milky PC/PMMA Housing & 304/316 Stainless Steel End Caps

Product Size (mm)

Ø75*552

Ø75*1152

Ø75*1452

Ø75*1452

Packing Size (mm)

730*260*260

1330*260*180

1630*260*180

1630*260*180

Quantity/carton

9PCS

6PCS

6PCS

6PCS

Gross weight (kg) ±0.3

12

15

23

23

Installation mode

Surface Mount/Suspension Mount

Wine Cellar LED Tubular Light

Cost-efficient and Long Lifespan

Product Detail Presentation

Shining Bright with Wide Beam

120° wide beam angle for maximum coverage and visibility. A+ Energy Efficiency Grade instantly releases 100% energy efficiency!

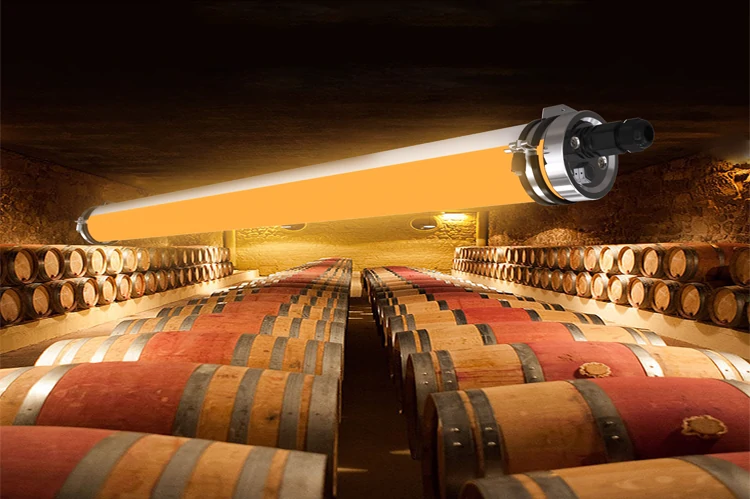

Safeguarding Wine's Brilliance

Module with amber LED. Neutralizes the damaging effects of riboflavin photosensitivity, providing a safe environment for your wine collection. And certified by the Comité de Champagne.

Advantages of Wine Cellar Lighting?

Wine cellar lighting is a lighting system designed specifically for wine cellars. It should not only meet the lighting needs of the wine cellar, but also consider the impact on the wine. Wine cellar lighting is an important part of wine cellar design. Reasonable lighting design not only creates a cozy and comfortable atmosphere for the wine cellar, but also protects the quality of the wine.

What are the Basic Requirements of Cellar Lighting?

The color temperature of wine cellar lighting should be chosen between 2700K and 3000K, which belongs to the warm light range. Too high a color temperature will give the wine a bluish tint and affect the quality of the wine.

LED wine cellar lighting should have a color rendering index (Ra) of not less than 90. Lighting with high color rendering can better reproduce the true color of wine bottles and labels.

The light in the wine cellar should be evenly distributed to avoid glare and shadows.

LED cellar lights should avoid ultraviolet and infrared rays, which can harm wine.

What Are the Lighting Requirements for Different Types of Wine Cellars?

Red Wine Cellar - Red wine is particularly sensitive to light, so the lighting in a red wine cellar should be softer, warmer and avoid direct light.

White wine cellars - White wines are relatively resistant to light, but prolonged exposure to bright light should be avoided.

Spirits cellar - Spirits such as whisky and vodka are less sensitive to light, but care should still be taken to avoid direct light and strong lighting.

What Are the Recommendations for Cellar Lamp Selection?

There are various options for lighting a wine cellar, such as downlights, spotlights, chandeliers and so on. The specific choice should be decided according to the size, layout and decoration style of the wine cellar.

The choice of lamps and lanterns should take into account both aesthetics and practicality. On the one hand, the appearance of the lamps and lanterns should be coordinated with the overall style of the wine cellar; on the other hand, the performance of the lamps and lanterns should be in line with the requirements of the wine cellar for light, such as color temperature, color rendering, light uniformity and so on.

When choosing cellar light fixtures, energy saving and environmental protection factors should also be considered. You can choose LED and other energy efficient lamps and lanterns to reduce energy consumption and reduce the impact on the environment.

What Are the Considerations for Wine Cellar Light Fixtures?

Avoid excessive lighting - Excessive lighting can accelerate the oxidization and aging of wine.

Clean the fixtures regularly - Dust on wine cellar lighting affects the effectiveness of the light and may harbor bacteria, so the fixtures should be cleaned regularly.

Choose a qualified electrician - Wine cellar wiring and sockets should be protected from moisture and water and installed by a qualified electrician.

Installation Mode

Wine Cellar Tubular LED Tri-Proof Light Installation Method

Applications

WINE AND CHAMPAGNE CELLARS
champagne LED lighting
Wine Cellar LED Lighting

Looking for Quality Wine Cellar Lighting? Just Come to Tubu Wine Cellar Lighting Factories!

TUBU is China's leading wine cellar lighting suppliers, we are committed to providing global customers with high quality, cost-effective wine cellar lighting products and services. We have experienced professional teams and a perfect supply chain system can provide customers with a full range of wine cellar lighting solutions.

Product Service - We provide wine cellar lighting sales products-Wine Cellar Tubular LED Tri-Proof Light.

Design Service - We provide professional wine cellar lighting ideas design service, which can according to the customer's wine cellar size, layout and decoration style, for customers to develop personalized lighting solutions.

We cooperate with several well-known wine cellar lighting manufacturers to ensure that we can provide our customers with high quality products. Our wine cellar lighting prices are reasonable and we provide perfect after-sales service.

If you are looking for quality wine cellar lighting solutions, please contact TUBU wine cellar lighting wholesale today!
