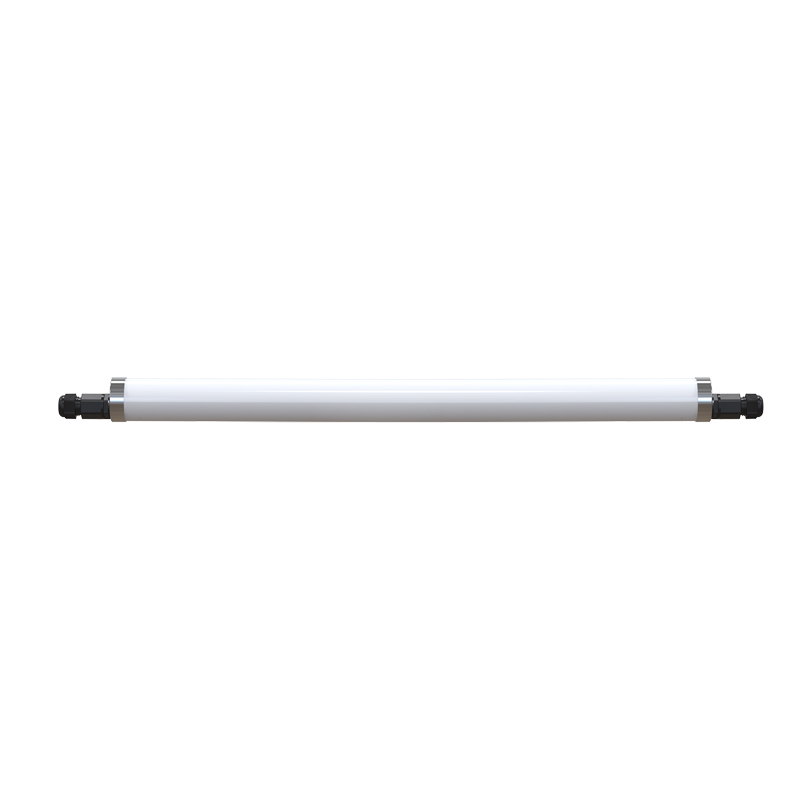

47mm Diameter Mini Round Tube Tri-Proof Light

Features:

  • IP69K,IP66
  • PC IK08
  • Diameter 47mm round tube
  • System efficiency up to 150lm/w
  • High CRI >80, SDCM<3
  • Environmentally friendly, no mercury, No UV, No IR
  • Wide beam angle 120°
  • Energy Efficiency Grade:C
  • Quick Start instant 100% Luminous flux
  • 5Year Warranty on complete fixture. (LEDs, Driver, & Housing)
  • Certificate: CE, RoHS Certified
  • Surface Mount or Suspension Mount

Description

The Mini Tubular LED Tri-proof Light is a 47mm diameter round tube with IP66 and PC IK08 rating, so it has excellent dust and water resistance, suitable for indoor and outdoor applications.

With system efficiencies of up to 150 lm/W, it provides bright lighting while consuming less energy. It contains no mercury, UV, or IR emissions, making it safe for you and the environment. The wide beam angle of 120° ensures wide light coverage, eliminates dark spots, and provides even illumination.

47mm Diameter Mini Round Tube LED Tri-proof Light offers the convenience of fast startup and instant 100% light flux, eliminating any lag or flicker.

We offer a comprehensive 5-year warranty on the entire luminaire including LEDs, driver, and housing. And TUBU's Mini Tubular LED Tri-proof Light is CE and RoHS certified, meeting the highest safety and quality standards.

Choose from surface or pendant mounts for hassle-free installation, allowing you to choose the method that best suits your space. Whether you need commercial, residential, or outdoor lighting, our 47mm diameter mini round tube are the perfect solution.

Tech Specs

Product Code

TBL9M2F-15W

TBL9M4F-30W

TBL9M5F-45W

Power

15W

30W

45W

Input Voltage

200-240VAC/100-277VAC (50/60HZ)

Input Current

0.07A@220VAC

0.14A@220VAC

0.23A@220VAC

PF

0.90@220VAC

CCT

2700-6500K

Ra>80

Luminous Flux

1950Lm/2250Lm(±5%)

3900Lm/4500Lm(±5%)

5850Lm/6750Lm(±5%)

Ra>80

Efficiency

130Lm/W±5% / 150Lm/W±5%

LED Brand

Lumileds/Hongli 2835

Beam Angle

120°C

Operation Temp

-20C~+40°C

Storage Temp

-20C~+60°C

Life Span

Ta 40C L70>54000Hours

IP Class

IP66

IK Class

IK Class

PC IK08

Certificate

CE, RoHs

Lamp Body Color

Milky PC/PMMA Housing & 304/316 Stainless Steel End Caps

Product Size (mm)

Ø47*552

Ø47*1152

Ø47*1452

Packing Size (mm)

690*245*310

1290*245*310

1590*245*310

Quantity/carton

20PCS

20PCS

20PCS

Gross weight (kg) ±0.3

17.5

18.5

21.5

Installation mode

Surface Mount/Suspension Mount

Built to Last, Rain or Shine!

With an IP66 protection level and PC IK08 structure, it is highly dustproof, waterproof, and durable.

Small Size Big Purpose

The 47 mm diameter size makes it ideal for small spaces where large luminaires can not be fitted

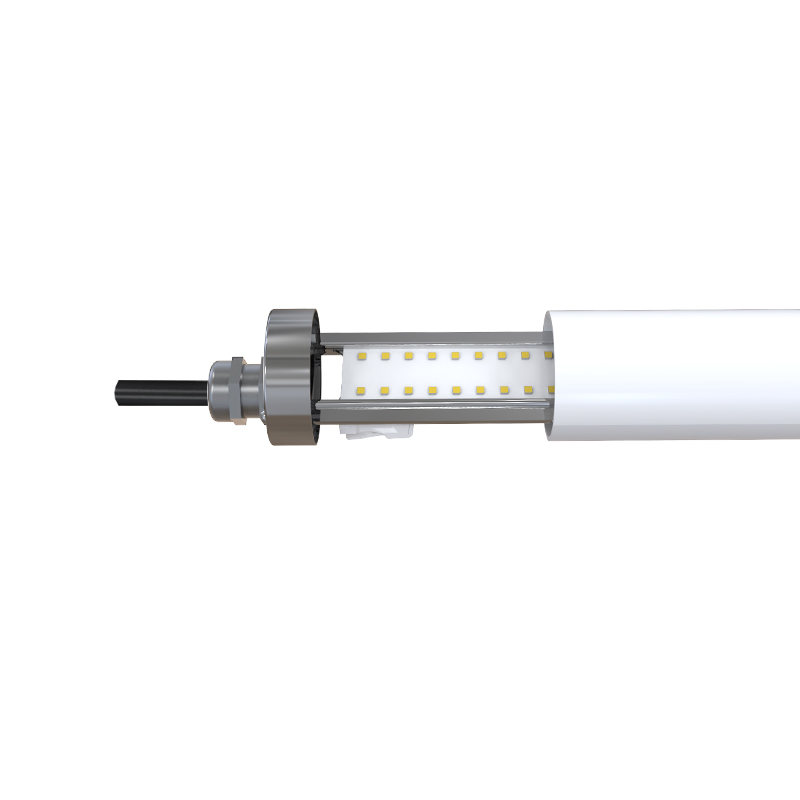

All Modules are Replaceable

All modules of this product are removable and replaceable, ensuring that your triple protection light stays up-to-date and benefits from the latest features and simplifies the maintenance and repair process.

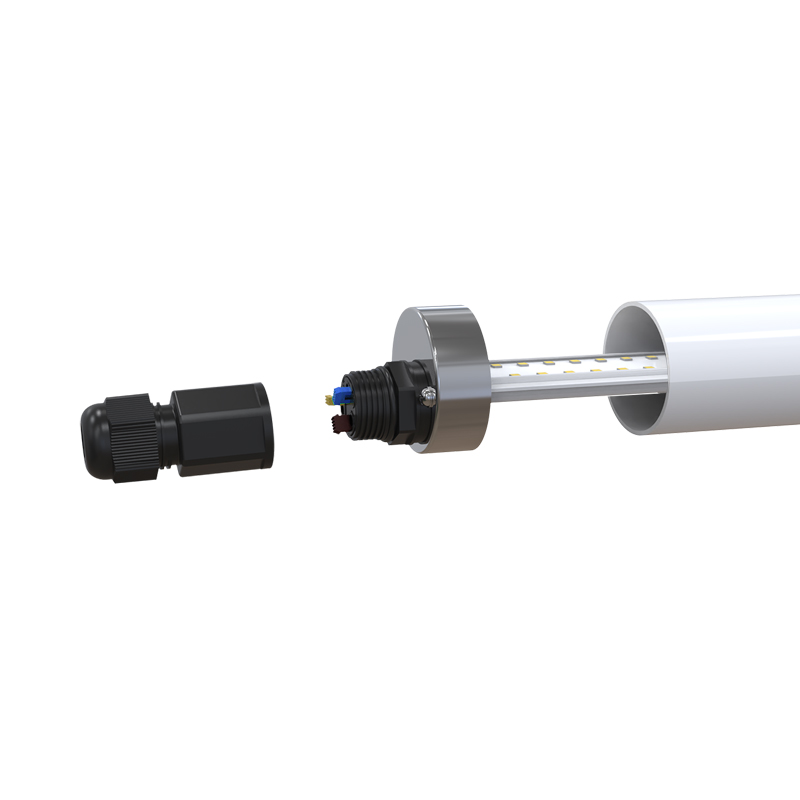

Easy to Wire and Easy to Use

The 3-conductor straight-through cable with quick-binding posts is designed to simplify the wiring process for faster, more efficient installation. Push-in or snap-in mechanisms allow for easy insertion of wires and secure hold.

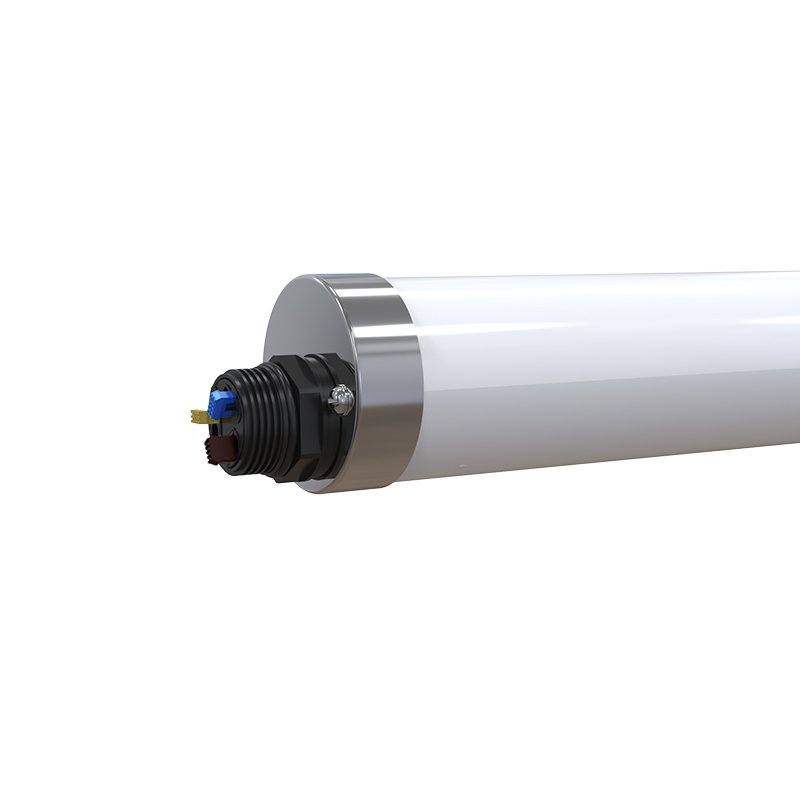

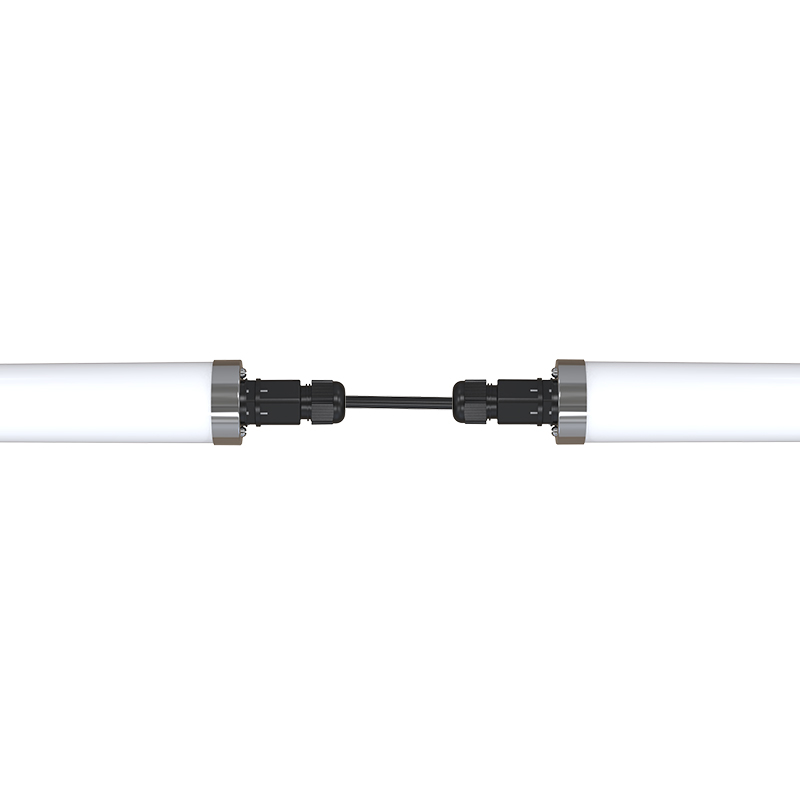

Spliceable Quick-Connect Terminals

The spliceable quick-connect terminal makes it easy to connect multiple Led triple-guard lights to a single switch, reducing the clutter of wire connections and making maintenance more straightforward. Provides convenience and flexibility in managing lighting systems.

Installation Mode

45mm-Diameter-Round-Tube-Tri-proof-Light-Installation-mode

Applicaiton

Supermarket lighting LED lights
Office Lighting LED Lights
School lighting LED lights
