IP66 Marine LED searchlight
Features:
Description
TUBU IP66 Marine LED Searchlight With its powerful features and excellent performance, this Searchlight is designed to meet the needs of the marine environment. Choose from four different power size options - 80W, 120W, 160W and 200W - to find the perfect brightness level for your needs. Whether you need a subtle glow or a powerful beam, this searchlight has it all.
The IP66 rating ensures that the Marine LED Searchlight is completely protected from dust and powerful water jets, making it highly durable and reliable. With a color temperature of 6000K and a beam angle as narrow as 6°, it can provide highly focused, precise, and clear and bright white light, improving visibility and clarity in search and rescue operations. clear goal.
It can withstand harsh environments, operating over a wide temperature range of -35°C to +55°C, ensuring reliable performance even in the most extreme weather conditions. With a beam distance of ≥500m at 1LUX, it can cover large areas very effectively in search and rescue scenarios where long-distance visibility is critical.
Tech Specs
Product Code | TB-SL80WBH1 | TB-SL120WBH1 | TB-SL160WAH2 | TB-SL200WAH2 |
|---|---|---|---|---|
product picture |  |  | |  |
Wattage(W) | 80W | 120W | 160W | 200W |
Input Voltage | AC 220V 50/60HZ/DC12V | |||
Adjustable Angle | Horizontal: 0～180°or 0～360°, vertical: +15°～-30° | Horizontal: 0～180°or 0～360°, vertical: +15°～-30° | Horizontal: 0~350°, vertical: +15°～-30° | Horizontal: 0~350°, vertical: +15°～-30° |
Beam Distance | ≥300m (1LUX) | ≥300m (1LUX) | ≥500m (1LUX) | ≥500m (1LUX) |
Light Source | LED | |||
Weight | 5Kg | 10Kg | 15Kg | 20Kg |
Power | / | 40W | / | 40W |
Working Temperature | -35℃～+55℃ | |||
Color Temperature | 6500K | |||
Beam Angle | 6° | |||
Lifespan | >30,000 hours | |||
IP Rating | IP66 | |||
Adjustable Speed | Horizontal: 1°～9°/S, vertical: 1°～6°/S | |||
Preset Position | 80pcs | |||
Repeated Positioning Accuracy | ±1° | |||
Communication Protocol | Pelco-D, Pelcl-P for option | |||
Communication Baud Bate | 2400 / 4800 / 9600 / 19200 bps for option | |||
Communication Interface | RS 485 | |||
IP66 Rated LED Searchlight
With an IP66 rating, it provides excellent protection against dust and water from powerful water jets. It ensures its durability and reliability in marine environments.
Clear Illumination
With a CCT of 6500K, the TUBU Marine LED Searchlight provide bright white light, improving visibility and clarity during search and rescue operations, And ensuring clear and accurate identification of targets.

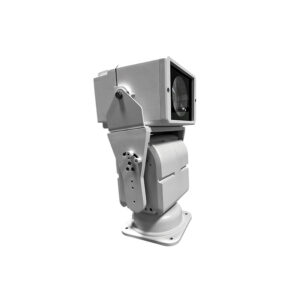

Multiple Size Power Options
The LED Searchlight comes in four different power size options - 80W, 120W, 160W, and 200W, allowing you to choose the right level of brightness for your needs.
Extreme Weather Resistance
TUBU LED Marine Searchlight are designed to withstand harsh environments and can operate in a wide temperature range from -35℃ to +55℃, ensuring reliable performance even in extreme weather conditions.

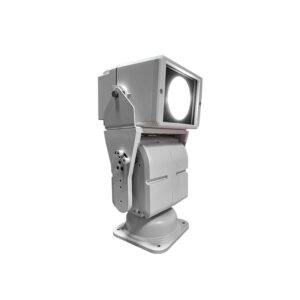

Beam Angle Concentration
The beam angle is as narrow as 4° for highly concentrated and precise light output over long distances. This enables precise illumination of specific targets over long distances.

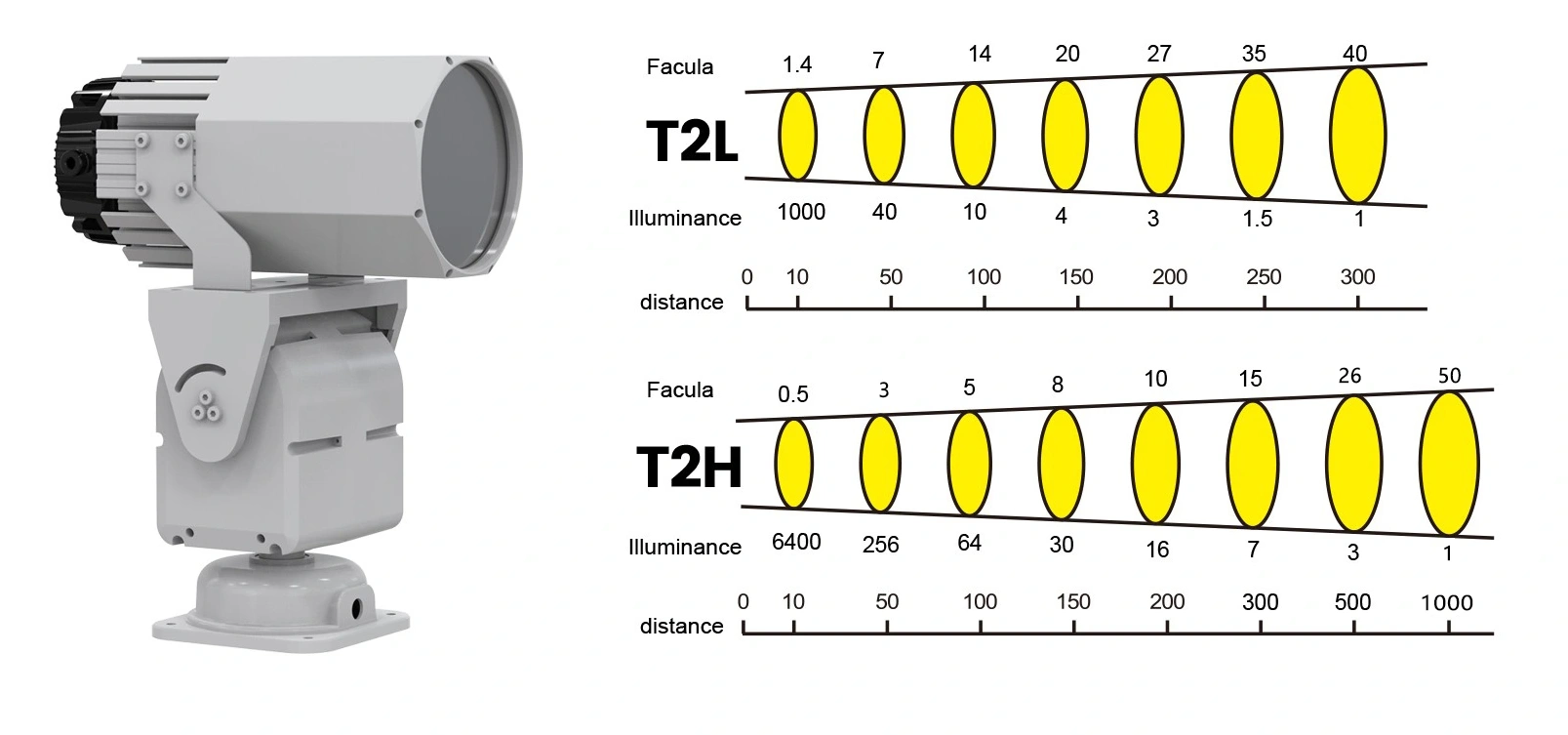

Long Distance Lighting
Beam distance ≥500m at 1LUX, very effective in covering large areas in search and rescue situations where long-distance visibility is critical.

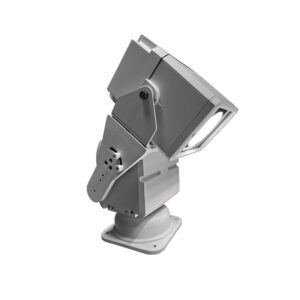

Flexible Installation
The adjustable angle base version provides installation versatility, allowing you to position the light at the desired angle for optimal lighting coverage and focus.

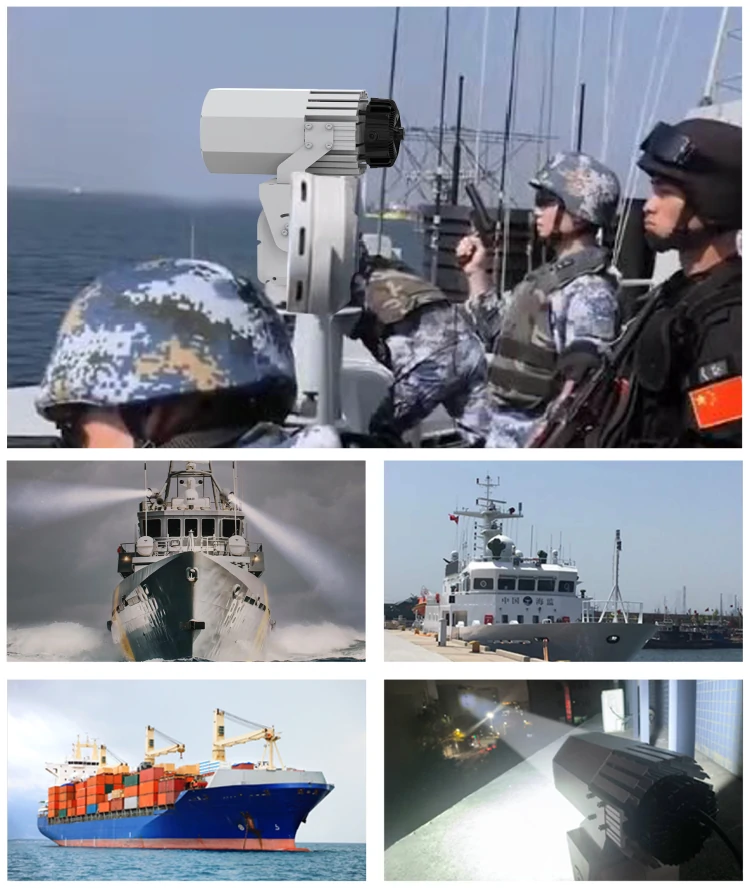

Applications
