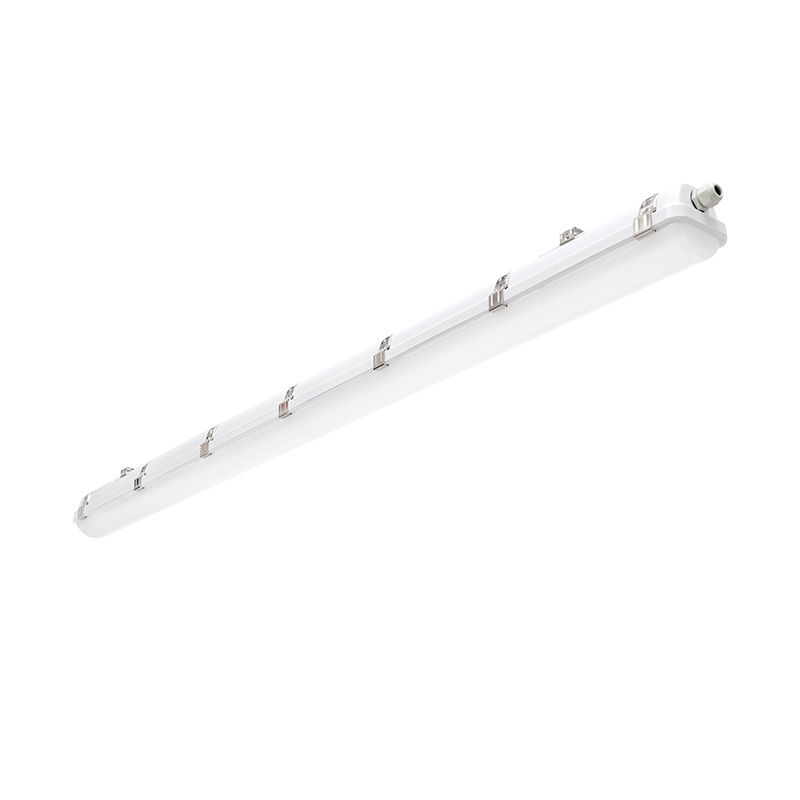

Batten IP66 LED Tri-proof Light with UV-resistant housing

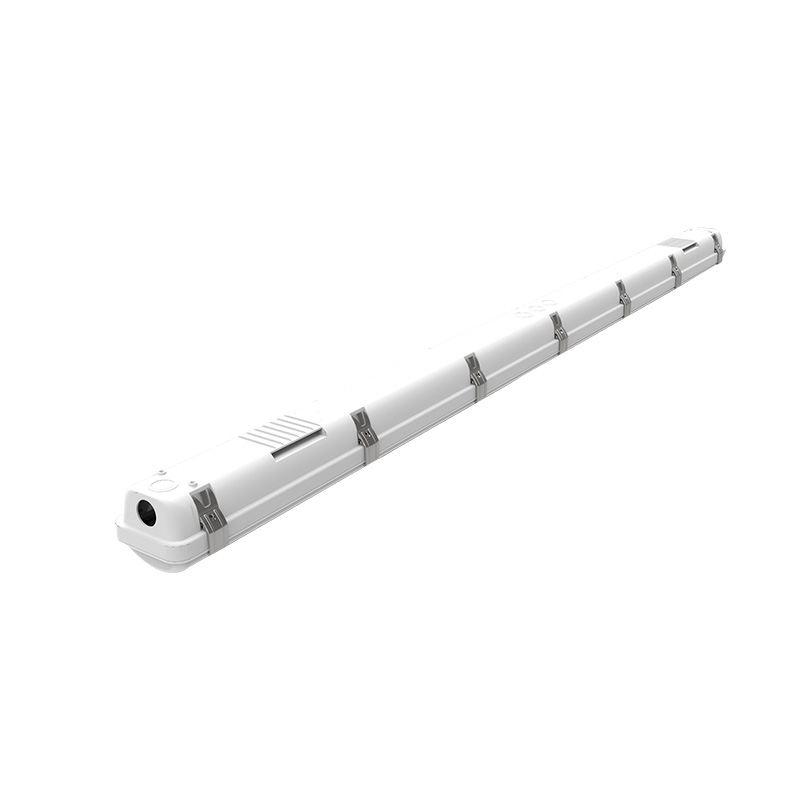

Batten IP66 LED Tri-proof Light with PC Base

Batten IP66 LED Tri-proof Light with 5-pole through wiring

Dimmable LED Batten Lights for Garage

Features:

Model: L10-K
IP66, IK10
Stainless steel clips & safety rope
5x2.5mm² through wiring
130Lm/W, 150Lm/W, 170Lm/W, 185Lm/W system efficiency, CRI>80
PC cover & PC base (V2)
Self-test emergency with LiFePO4 battery option
Microwave sensor options(wireless control)
5 years warranty, SAA, CE, RoHS, ENEC, RCM certified
Ambient t emperatures: -20°C ~ +40°C
Surface mount or suspension mount
Options: 1-10V, MW sensor, DALI, emergency

DATE SHEET

Description

TUBU IP66 dimmable LED batten lights for garage are a versatile lighting option that offers a range of features to meet a variety of application needs. The LED batten lamp features an all-plastic/PC housing, stainless steel clip, and safety rope series design to ensure durability and safety. There are 20W, 40W and 60W options to meet different lighting requirements.

This IP66 dimmable LED batten lights is ideal for use in a variety of environments, such as workshops, supermarkets, warehouses, storage spaces, schools, and parking lots. Its efficient design and high light efficiency ensure optimal lighting performance while reducing energy consumption.

One of the outstanding features of this tri proof fixture LED batten lights for garage is the use of the latest lithium-ion (LiFePO4) battery technology. This battery technology is known for its excellent stability, reliability, and long life, making it one of the most desirable choices on the market today. It also uses a constant current power supply, which reduces energy consumption. This not only saves electricity but also helps save money in the long run.

Dimmable LED batten lights for garage has high efficiency and low light decay, ensuring a longer service life. It also offers an option for self-testing emergency functions including a lithium iron phosphate battery. This emergency backup battery guarantees reliable lighting for up to 3 hours in the event of a power outage.

Video Presentation

Tech Specs

Product Code	TBL10K2F-20W-K	TBL10K4F-40W-K	TBL10K5F-60W-K
Power	20W(18W/15W/13W)	40W(36W/30W/25W)	60W(52W/44W/35W)
Input Voltage	200-240VAC/100-277VAC (50/60HZ)
PF	0.90@220VAC
Dimming Option	1-10V / DALI, MW sensor, emergency
Color Temperature	2700K / 3000K / 4000K / 5000K / 5700K / 6000K /6500K
Luminous Flux	2600lm / 3000lm	5200lm / 6000lm	7800Lm / 9000Lm
Efficiency	130Lm/W±5% / 150Lm/W±5% (Ra>80)
Luminous Flux	3400lm / 3700lm	6800lm / 7400lm	10200Lm / 11100Lm
Efficiency	170Lm/W±5% / 185Lm/W±5% (Ra>80)
LED Brand	Lumileds/Hongli 2835
Beam Angle	120°C
Operation Temp	-20C~+40°C
Storage Temp	-20C~+60°C
Life Span	Ta 40C L70>54000Hours
IP Class	IP66
IK Class	IK10
Certificate	SAA, RCM, ENEC, CE, RoHs
Lamp Body Color	PC Base(Grey)+PC(Milky)
Product Size (mm)	6009583	12009583	15009583
Packing Size (mm)	690335300	1290335210	1590335210
Quantity/carton	9PCS	6PCS	6PCS
Gross weight (kg) ±0.3	12.6	20.2	24
Installation mode	Surface Mount/Suspension Mount

Specification& Features

Safety elevated with Anti-Impact

Features an IP66-rated enclosure that protects against dust, water, and other environmental elements. LED batten lamp an IK08 strength rating, ensuring it can withstand impact and physical damage.

Emergency battery

and self-test function version

Emergency version with LiFeP04 battery for reliable backup power in case of power outage etc. In addition, Emergency batten light also has a self-test function. Allows the system to automatically perform periodic self-tests to ensure all components are functioning properly.

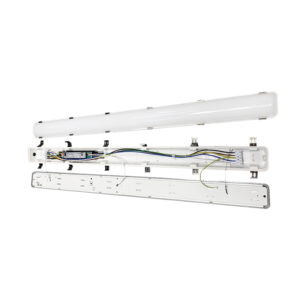

Flicker-free Boke brand driver

This IP66 Waterproof LED Batten Lights product uses SAA, ENEC, ROHS, CE, and RCM certified Boke brand driver. No flicker, isolation protection, guaranteed service life of up to 50,000 hours.

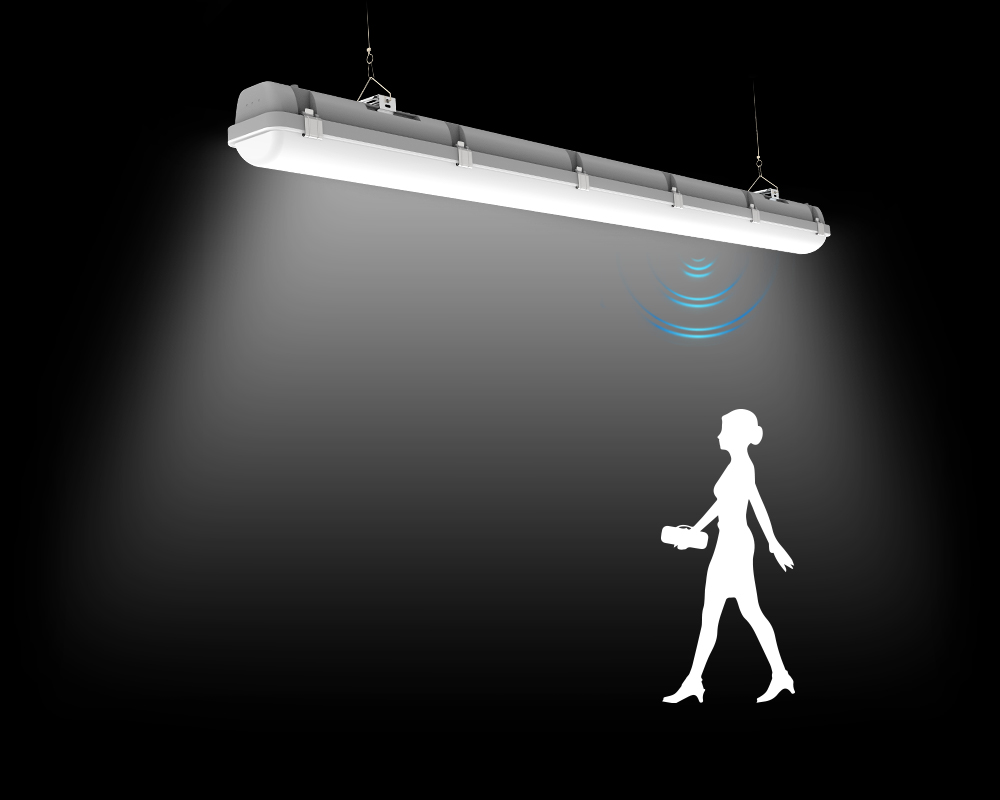

Microwave Sensor Version

The induction Sensor version features an advanced 3-step dim available that allows you to adjust the brightness as needed. Dimmable LED batten lights also comes with a convenient wireless remote control that allows you to easily control your lighting settings.

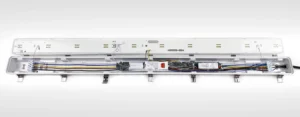

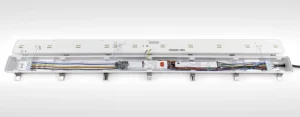

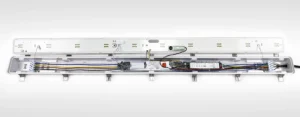

Reliable cabling and safety features

With 5x1.5mm² or 5x2.5mm² through wiring option, installed with stainless steel safe rope, ground wiring

Strength and UV protection

The light base is made of PC (polycarbonate) material, known for its strength and wear resistance. Plus, it comes with a UV shield that blocks harmful UV rays.

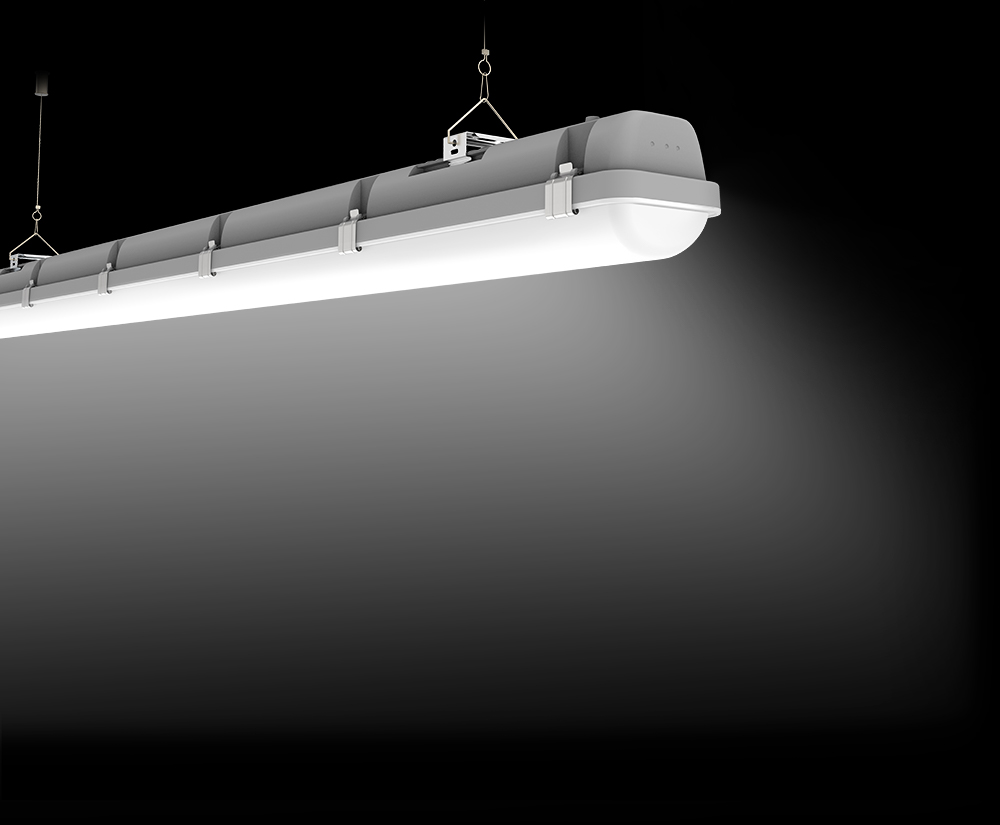

Installation mode

LED Batten Lights can be mounted in two ways, surface mounted LED batten or suspension mount LED batten. You can choose the LED Batten Lights that suits your installation.

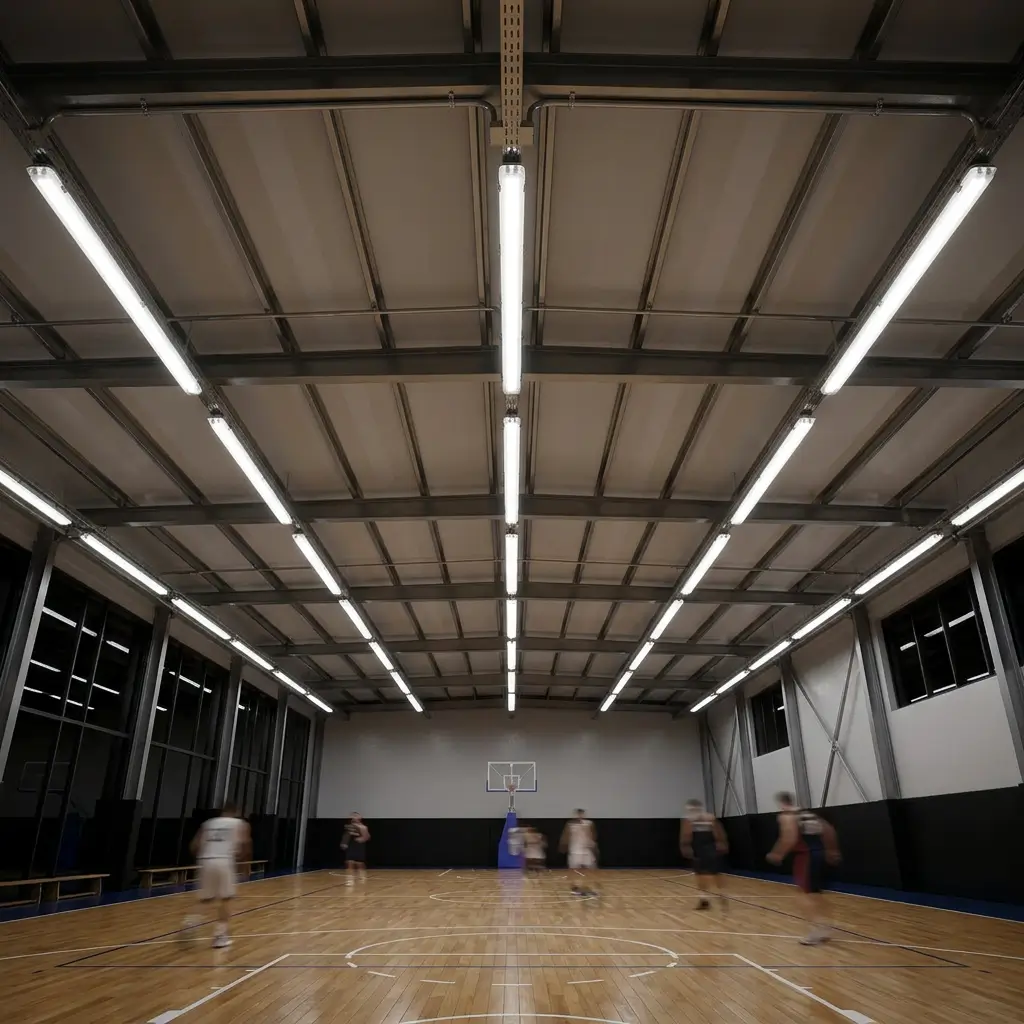

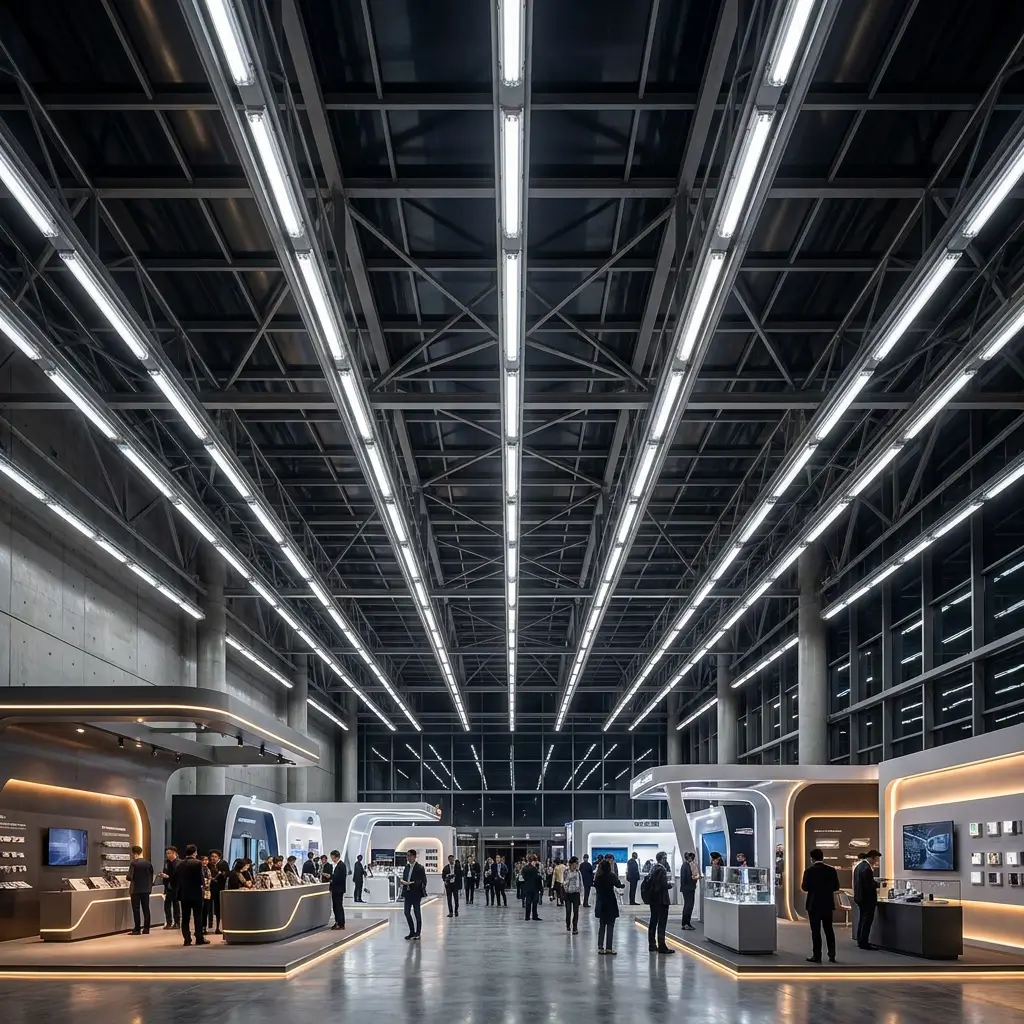

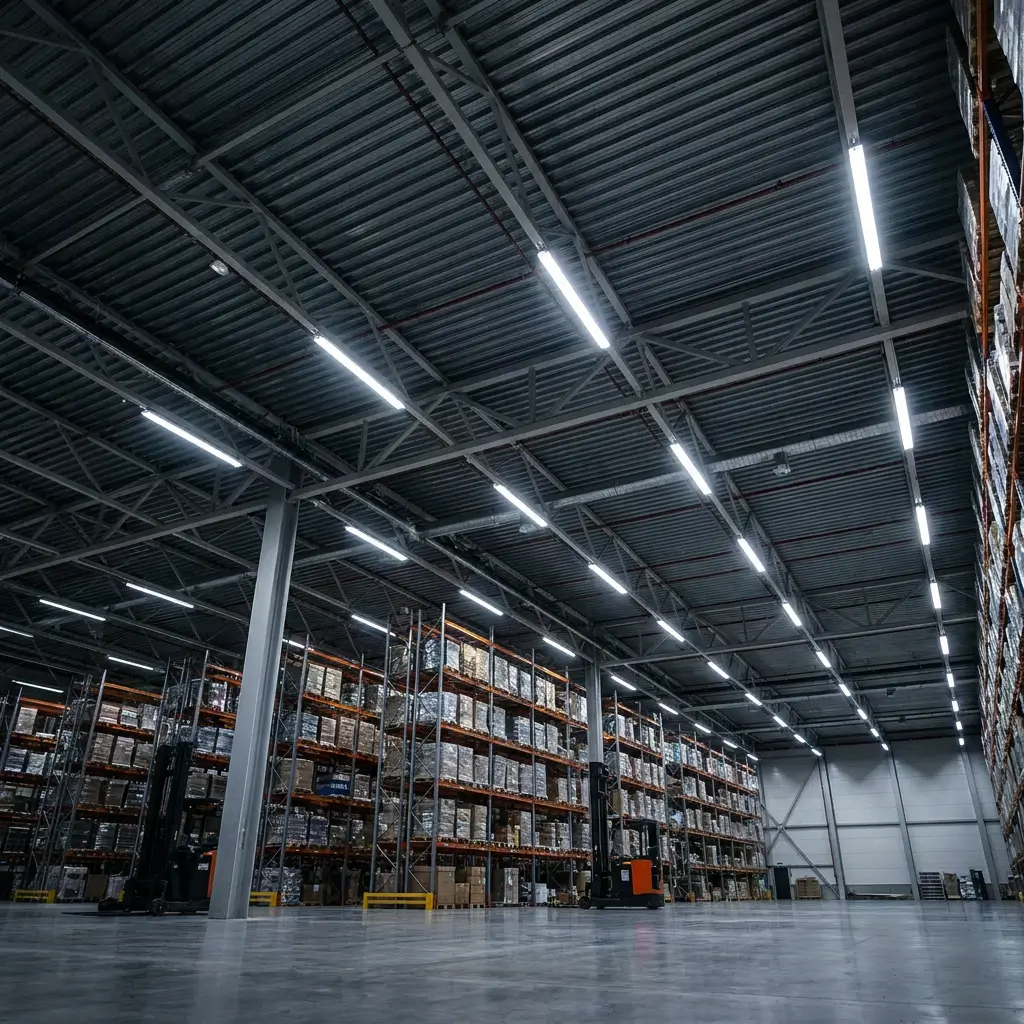

Applications

20w 40w 60w LED batten Suitable for workshops, storage,supermarker, schoolmlighting, warehouse, car parking lighting.
