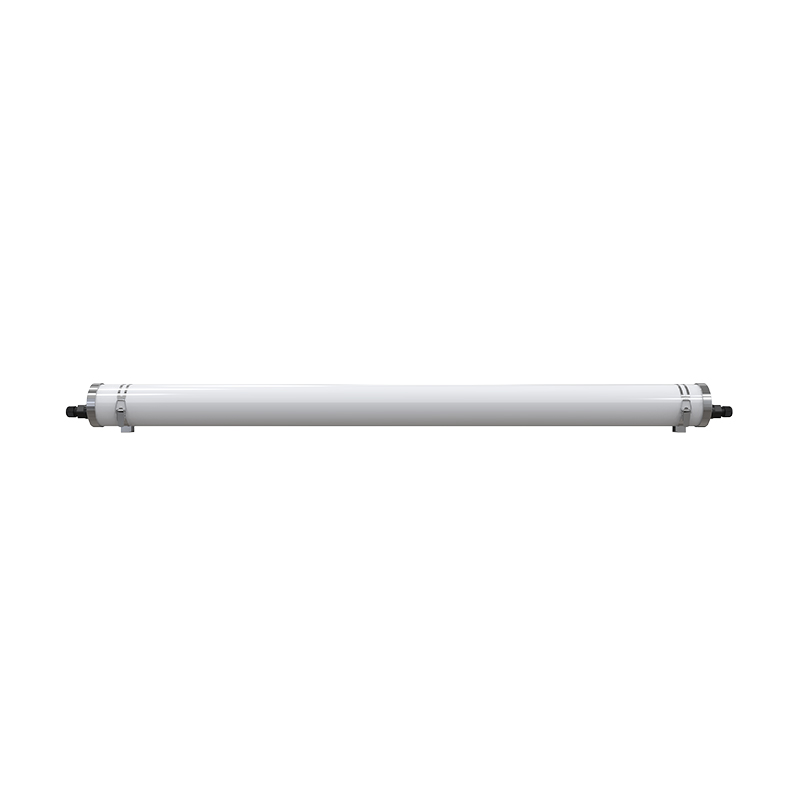

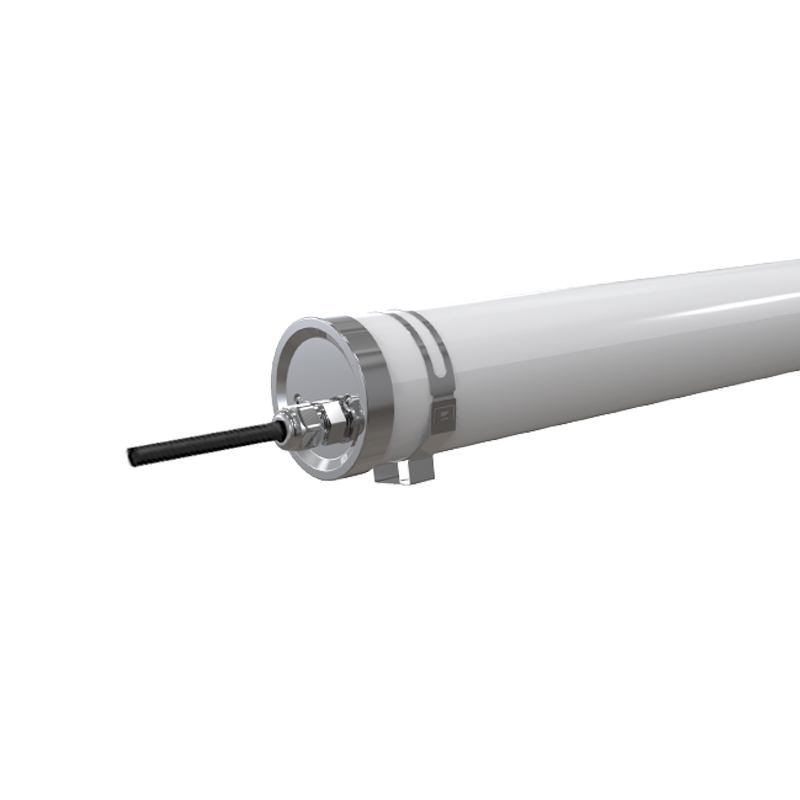

100mm Diameter Tubular LED Tri-Proof Light
Features:
Description
The Tubular Tri-proof Light has a diameter of 100 mm and is made of PMMA IK08/PC IK10 material, which guarantees excellent impact resistance and ensures long-lasting reliability, withstanding water pressures up to 100 bar (1450 psi) and temperatures of 80°C, very suitable for outdoor and industrial applications. Its ammonia resistance makes it a reliable lighting solution in harsh environments.
With system efficiencies of up to 170 lm/W, TUBU's 100mm diameter tubular tri-proof light offer excellent energy efficiency, ensuring cost savings in the long run. Its high CRI of over 80 enhances color rendering for a visually pleasing and realistic lighting experience. It also features an adjustable CCT to customize the right light source for the environment, and it contains no mercury, UV or IR emissions. This makes it a safe and sustainable choice for both indoor and outdoor environments.
The TUBU's LED tri-proof lights are CE, Restriction of Hazardous Substances Directive certified, and meet the highest safety standards.
Tech Specs
Product Code | TBL9P2F-30W | TBL9P4F-60W | TBL9P5F-80W |
|---|---|---|---|
Power | 30W | 60W | 80W |
Input Voltage | 200-240VAC/100-277VAC (50/60HZ) | ||
Input Current | 0.15A@220VAC | 0.3A@220VAC | 0.4A@220VAC |
PF | 0.90@220VAC | ||
Dimming Option | 0-10V/DALI/D4i | ||
CCT | 3000K/4000K/5000K/6000K | ||
Ra>80 Luminous Flux | 3900Lm/4500Lm(±5%) | 7800Lm/9000Lm(±5%) | 10400Lm/12000Lm(±5%) |
Ra>80 Efficiency | 130Lm/W(±5%) / 150Lm/W(±5%) | ||
LED Brand | Lumileds/Hongli 2835 | ||
Beam Angle | 120°C | ||
Operation Temp | -20C~+40°C | ||
Storage Temp | -20C~+60°C | ||
Life Span | Ta 40C L70>54000Hours | ||
IP Class | IP67&IP69K | ||
IK Class | PMMA IK08/PC IK10 | ||
Certificate | CE, RoHs, CB, IK10, IP69K | ||
Lamp Body Color | Milky PC/PMMA Housing & 304/316 Stainless Steel End Caps | ||
Product Size (mm) | Ø105*552 | Ø105*1152 | Ø105*1452 |
Packing Size (mm) | 730*345*240 | 1330*345*240 | 1630*345*240 |
Quantity/carton | 9PCS | 6PCS | 6PCS |
Gross weight (kg) ±0.3 | 14 | 15 | 17.5 |
Installation mode | Surface Mount/Suspension Mount | ||
Anti-Ammonia Tubular Tri-Proof Light
Anti-Ammonia Tri-proof Lights are IP67, IP69K, and IK10 certified to withstand the harsh environment of areas with high ammonia content and resist immersion, high temperature, high pressure, and severe impact.
Three-Phase Electricity Optional
The optional mode of 0-10V/DALI/D4i three-phase power ensures the compatibility of the equipment and ensures that the dimming mode can be easily integrated into the existing lighting infrastructure.
Excellent Durability and Light Diffusion
Creamy white PC/PMMA housing improves light diffusion, reduces glare, enhances aesthetics, increases durability, and is UV resistant
Stainless steel mounting brackets are long-lasting and will hold the LED lights securely in place for extended periods of time without damage

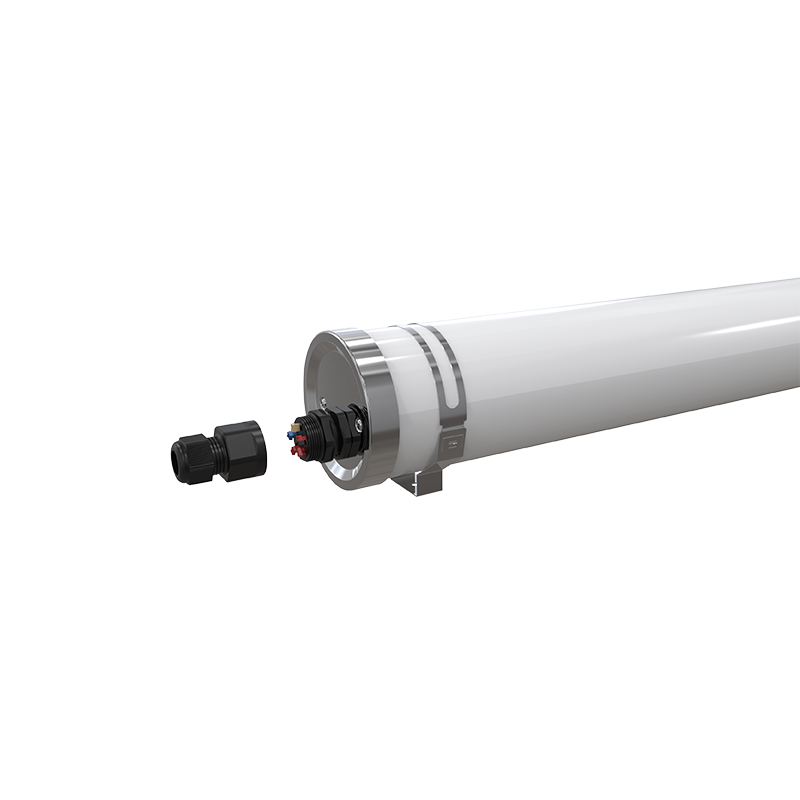

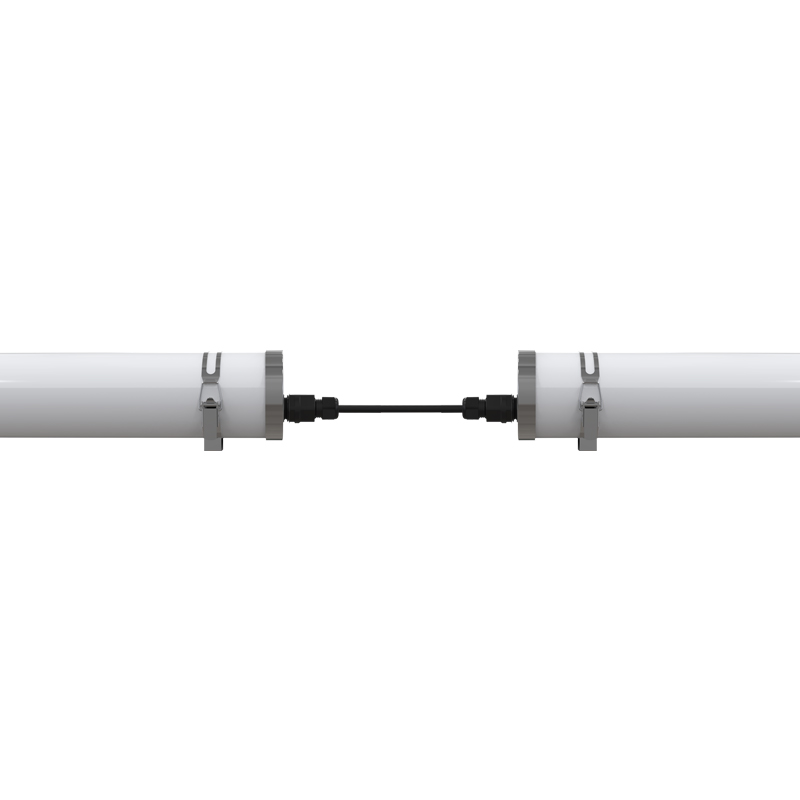

Quick Wiring Easy to Use
Comes with quick wire port integration for faster and easier installation. Efficient electrical connections are made using 5-conductor straight-through cables, ensuring energy-efficient performance.
Installation Mode
Application
