Suitable for HIGH-Temperature Ambient High Bay Light

Features:

  • High-temp ambient up to 65℃
  • High Output LED's, up to 160lm/W
  • CRI>70
  • Driver High PF>0.9, low THD, Flicker-free
  • Environmentally friendly, no mercury, No UV, No IR
  • 60°/90/120°beam angle
  • Energy Efficiency Grade: C
  • Quick Start instant 100% luminous flux
  • 5-Year Warranty
  • Certificate: CE, RoHS
  • Body: Aluminium alloy
  • Stainless steel screws
  • Options: 1-10V, DALI Dimming

Description

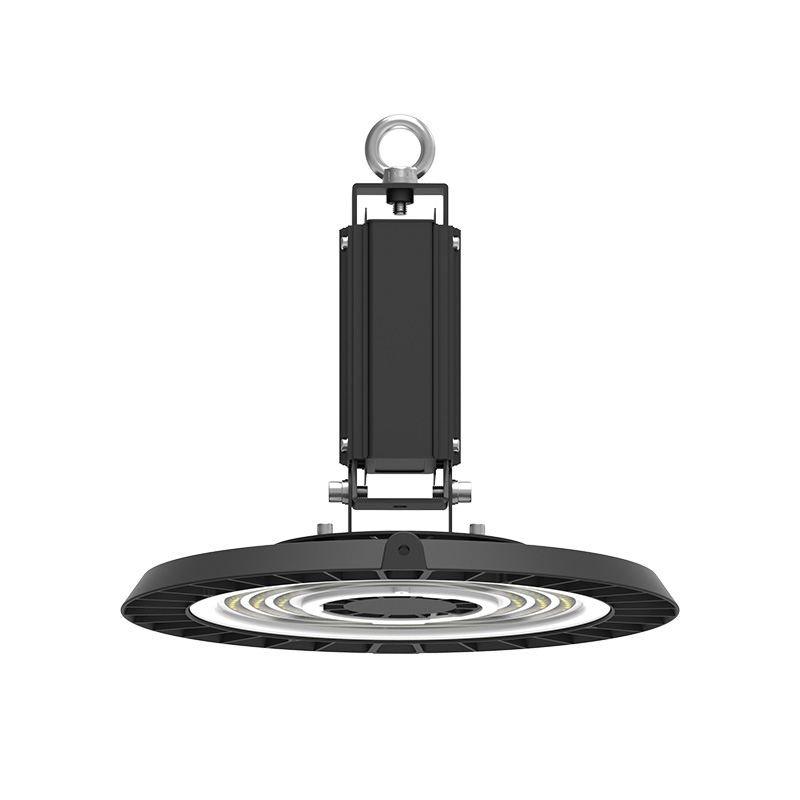

TUBU's HIGH-Temperature Ambient High Bay Light is ideal for industrial or warehouse spaces with ambient temperatures up to 65~70℃. This High Bay Light has an advanced thermal management system that dissipates heat quickly, ensuring long life with minimal lumen degradation. It is available in two wattages, 100W, and 150W, with a system efficiency of up to 160lm/W.

This HIGH-Temperature Ambient High Bay Light stands out with its excellent cooling performance and air mobility design, resulting in reduced weight and volume compared to other LED High Bay Lights with the same heat dissipation effect.

Additionally, the driver of this LED product boasts a high Power Factor (PF) of over 0.9, ensuring efficient energy usage. It also has low Total Harmonic Distortion (THD), resulting in flicker-free lighting.

You have the flexibility to choose from three different beam angles - 60°, 90°, and 120° - and the option of 1-10V and DALI dimming, allowing you to customize the lighting to your specific requirements.

Tech Specs

Product Code

TBF9-100W-H

TBF9-150W-H

Power

100W

150W

Input Voltage

200-240VAC(50/60Hz)

Dimming Option

0-10V/Dail Dimming

PF

>0.98

>0.98

CCT

3000K/4000K/5000K/6000K

Ra>80

Luminous Flux

15000Lm±5%/16000Lm±5%

22500Lm±5%/24000Lm±5%

Ra>80

Efficiency

150Lm/W±5% / 160Lm/W±5%

LED Brand

3030

Beam Angle

60°/90°/120°

Operation Temp

-40℃~+65℃

Storage Temp

-40℃~+85℃

Life Span

Ta 45℃ L70>54000Hours

IP Class

IP65K

IK Class

IK10

Certificate

CE, RoHs

Lamp Body Color

Black (RAL9005)

Product Size (mm)

345*345*308

385*385*308

Net weight (kg) ±0.3

3.35

3.7

Packing Size (mm)

384*152*390

424*150*430

Gross weight (kg) ±0.3

4.1

4.5

Installation mode

Hook Mount

Conquer the Heat, Illuminate with Ease

Can withstand ambient temperatures up to 65~70℃. Made to glow at extremely high temperatures!

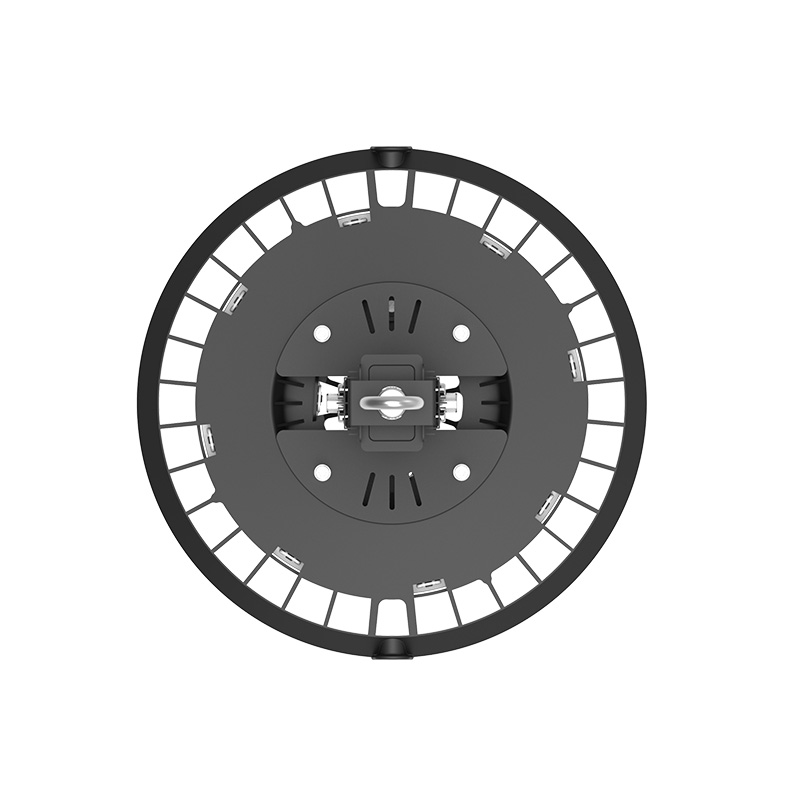

Excellent cooling performance

Adopts honeycomb cooling, with excellent airflow design, which can realize rapid heat dissipation, ensure long service life, and minimize lumen loss.

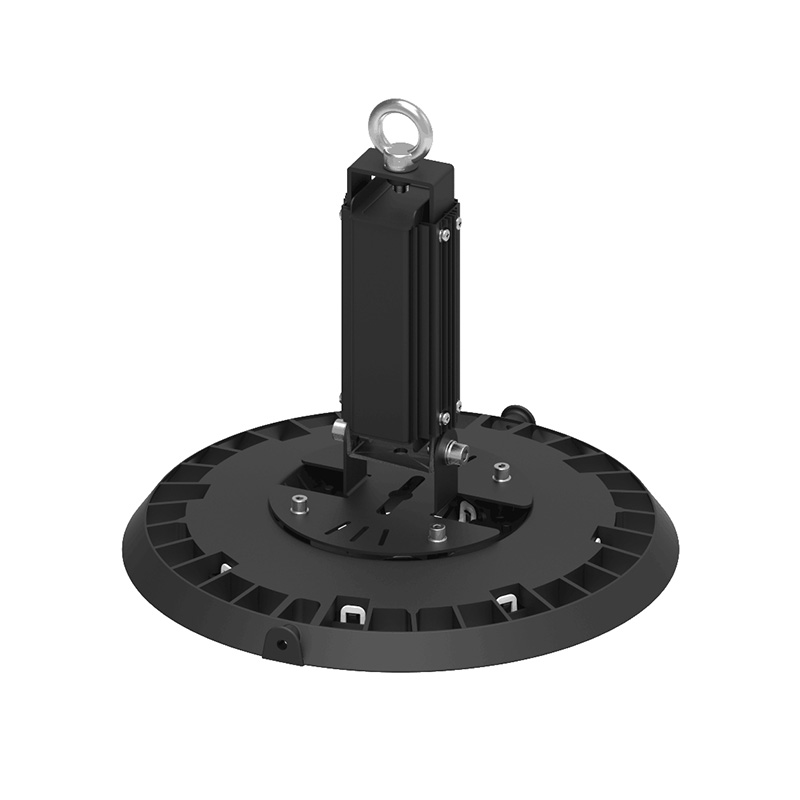

Two kinds of LED chips are optional

3030 and 5050 LED chips both have a good thermal management system, which helps to dissipate heat effectively. 3030 LED chips are smaller in size, and more flexible in design and installation, 5050 LED chips are famous for their high brightness, suitable for strong lighting applications.

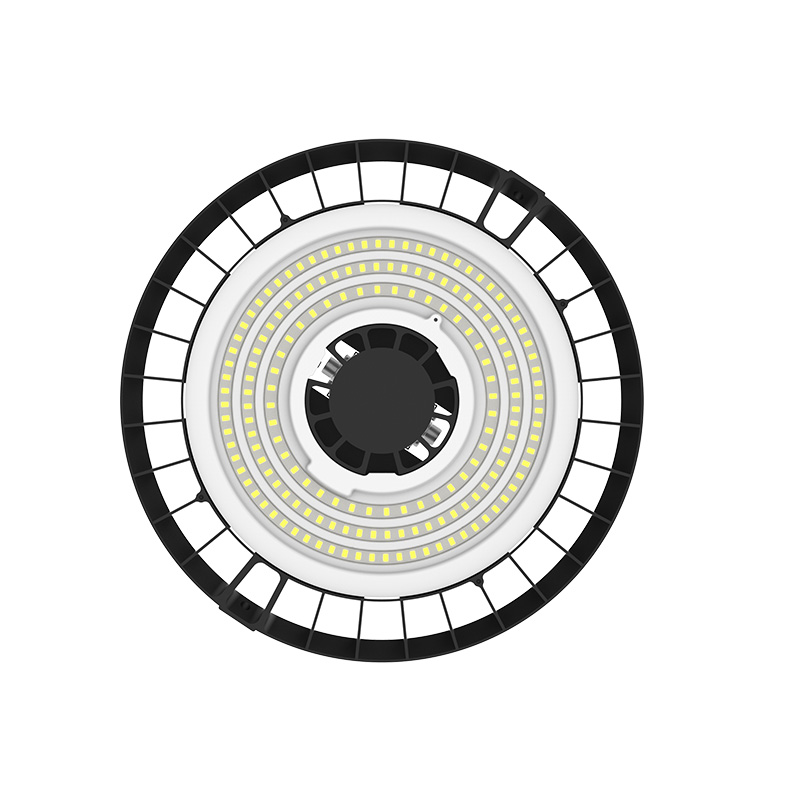

The flexibility of light sources

60°/90°/120° beam angle, the lighting can be flexibly adjusted according to your specific requirements.

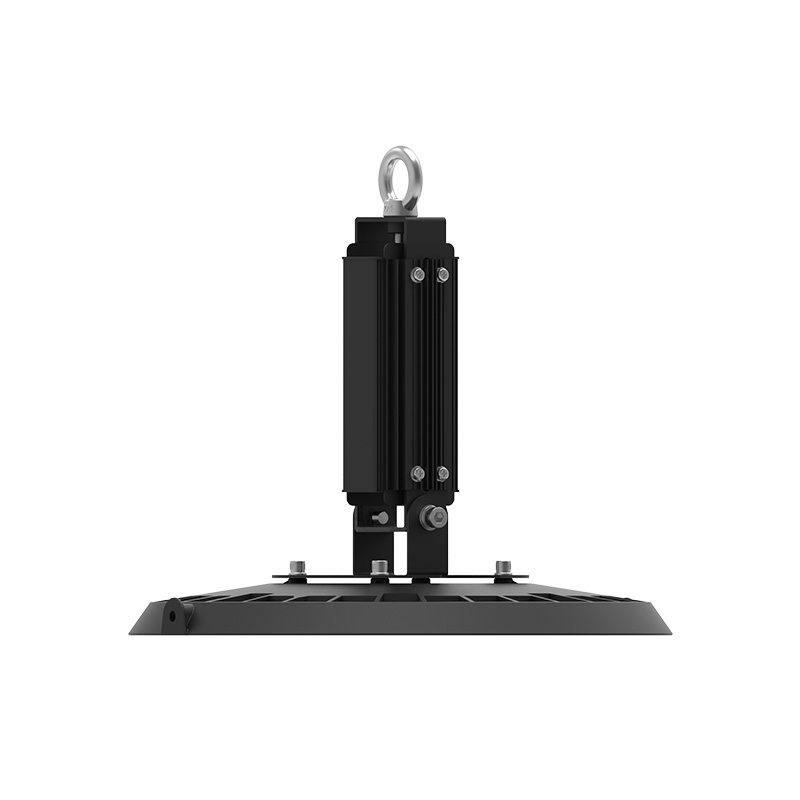

Adoption of Philips High-bay Power Supply

Philips high-bay power supply can be adapted to 55 ℃ -70 ℃ ambient temperature, 55 ℃ ambient temperature life up to 100,000 hours, 70 ℃ ambient temperature life up to 40,000 hours

Applications

High Temperature Ambient Lighting
High temperature lighting
Smelter lighting
