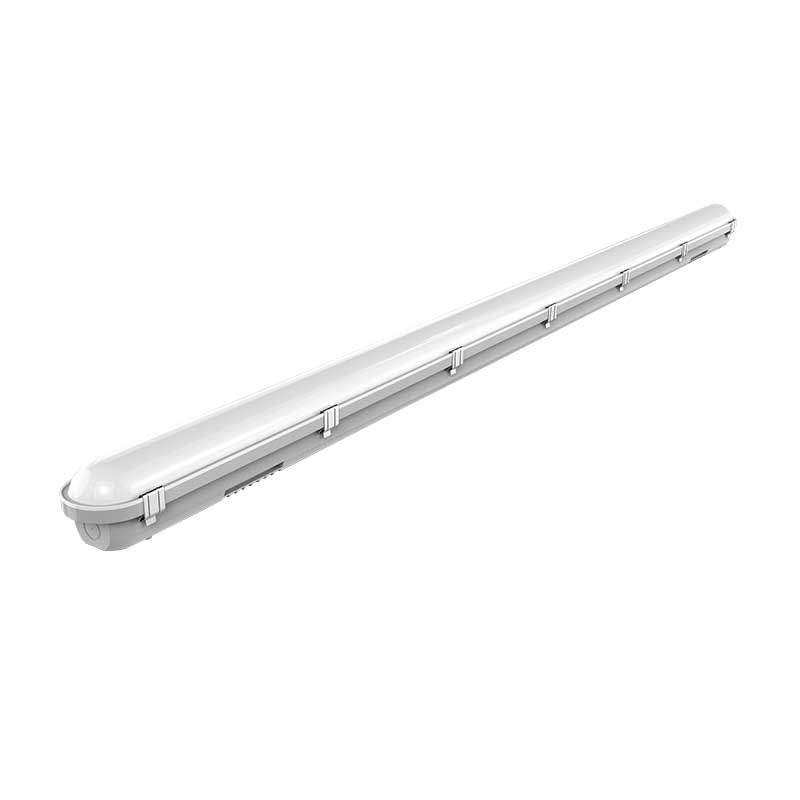

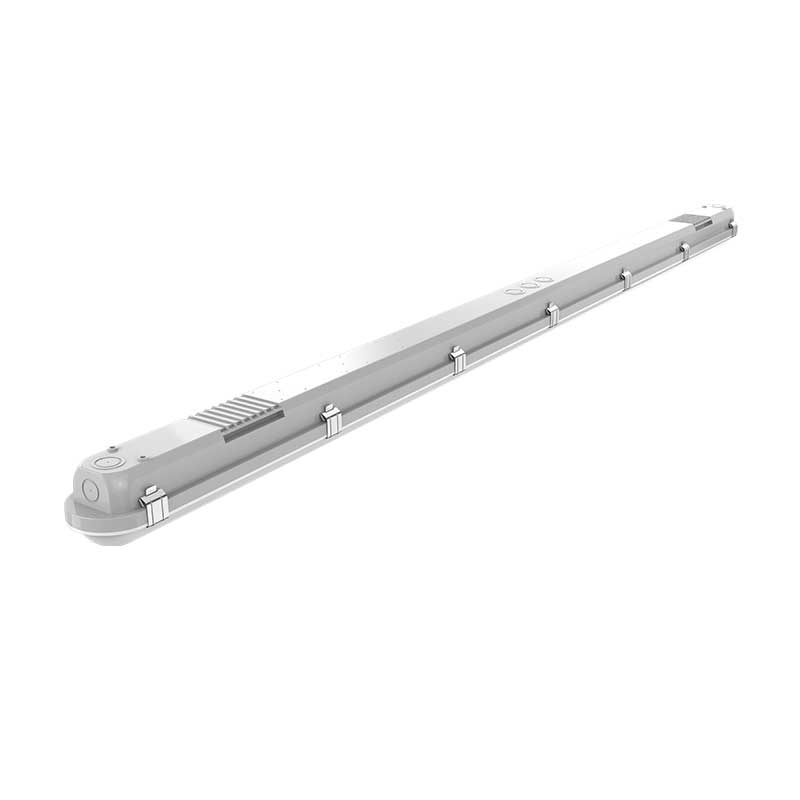

600mm 1200mm 1500mm Dimmable LED Batten Light

Features:

  • Model: L10-O
  • Wattage: 18W 36W 50W 60W option
  • OEM / ODM Customisation
  • IP66, IK08
  • Stainless steel clips
  • Isolated flicker free driver
  • PC milky cover
  • Microwave sensor options (wireless control)
  • Ambient temperature: -20°C ~ +40°C
  • 5 years warranty, CE, RoHS ENEC certified
  • Options: 0-10V, motion sensor, DALI, emergency
  • Surface mount or suspension mount

Description

This dimmable LED batten light are available in TBL10A2F-18W-O, TBL10A4F-36W-O, TBL10A5F-50W-O, TBL10A5F-60W-O. LED batten light 18W, 36W, 50W, 60W optional, 2700K to 6500K colors available, and surface mounting/suspension mounting options are available to meet different needs. 60W optional, 2700K to 6500K colours optional, and surface mounting/suspension mounting options are available to meet different needs. Dimmable LED batten lights adopt PC base (grey) + PC cover (milky white), simple and fashionable design. The structure design is reasonable, easy to install and saves time and cost.

600mm 1200mm 1500mm dimmable LED batten light adopts high quality LED chip, Hongli 2835, which ensures long life and low light decay, improve light efficiency and reduce energy consumption. efficiency and reduce energy consumption. 0.09A@220VAC-0.38A@220VAC, stable current, ensure the normal operation of the lamps and lanterns. 2340Lm-7800Lm, high luminance and cost. 7800Lm, high luminance output, illuminate your space. Dimmable batten light no strobe, no blue light hazard, protect vision health. 200-240VAC / 100- 277VAC (50/60Hz), wide voltage range, adapt to the global voltage standards in different regions. 130Lm/W±5% (Ra>80), high efficiency and energy ta 40°C l70> 54000 hours, long service life, reduce the frequency of replacement, reduce maintenance costs. 600mm 1200mm 1500mm dimmable LED batten light LED tri-proof light through the CE, RoHS and ENEC certifications to ensure product safety and reliability.

Video Presentation

Tech Specs

Product Code

TBL10A2F-18W-O

TBL10A4F-36W-O

TBL10A5F-50W-O

TBL10A5F-60W-O

Power

18W

36W

50W

60W

Input Current

0.09A@220VAC

0.23A@220VAC

0.28A@220VAC

0.38A@220VAC

Input Voltage

200-240VAC/100-277VAC (50/60HZ)


Dimming Option

0-10V / DALI


Color Temperature

2700K / 3000K / 4000K / 5000K / 5700K / 6000K /6500K


Luminous Flux

2340Lm

4680Lm

6500Lm

7800Lm

Efficiency

130Lm/W±5% (Ra>80)


LED Brand

Hongli 2835


Beam Angle

120°C


Operation Temp

-20C~+40°C


Storage Temp

-20C~+60°C


Life Span

Ta 40C L70>54000Hours


IP Class

IP66


IK Class

IK08


Certificate

ENEC, CE, RoHs


Lamp Body Color

PC Base(Grey)+PC(Milky)


Product Size (mm)

600*80*72

1200*80*72

1500*80*72

1500*80*72

Packing Size (mm)

650*290*430

1250*290*260

1550*290*260

1550*290*260

Quantity/carton

15PCS

9PCS

9PCS

9PCS

Gross weight (kg) ±0.3

19

18

21

21

Installation mode

Surface Mount/Suspension Mount


Wholesale Dimmable LED Batten Lights Advantages

Specification& Features

Our Dimmable LED Batten Lights feature advanced LED technology that is energy efficient and can significantly reduce energy consumption compared to traditional lighting fixtures. For purchasers who buy in bulk, this means significantly lower long-term operating costs, helping to improve overall economic efficiency.

Batten Light Has a Wide Range of Options to Meet Demand

We offer a wide range of wattages (18W, 36W, 50W, 60W, etc.), colour temperatures and dimming options to ensure that purchasers can choose the most appropriate batten light for their specific needs, and this variety of choices can help to meet the lighting needs of different places and uses, and enhance the lighting effect.

Reliable Quality and Durability of LED Batten Light

Our LED batten lamps are manufactured with high-quality materials and craftsmanship, providing excellent durability and stability. Strict quality control and testing ensure that each batch of lamps meets international standards and customer requirements. For purchasers who buy in bulk, this reduces replacement and repair costs due to quality issues.

Bulk Purchase, Batten Light at Favourable Price

For bulk purchasing, we offer favourable pricing policy and flexible payment methods. By purchasing in bulk, purchasers can enjoy more favourable prices and further reduce purchasing costs. Meanwhile, our sales team will provide full tracking service to ensure smooth delivery of orders.

Professionally Customised to Meet Special Needs

In addition to standard products, we also provide OEM/ODM customisation services to meet the special needs of purchasers.

Applications

Dimmable LED Batten Lights offer versatile applications, illuminating supermarkets, schools, garages, factories, and warehouses with energy-efficient, even lighting that enhances environments and ensures safety.

LED Lights in Schools
factory lighting
parking lot lights

Welcome to TUBU LED Batten Light Factory, We look forward to your choice and cooperation with the 600mm 1200mm 1500mm Dimmable LED Batten Light!

FAQ

LED Batten Light L10-O Series


What is LED batten light?

LED batten light, or LED strip light or LED triplex light, is a commonly used lighting fixture known for its length and ease of installation.

What does 600mm, 1200mm, 1500mm LED batten light mean?

600mm, 1200mm, 1500mm LED batten light refers to LED strip lights with lengths of 600mm, 1200mm and 1500mm respectively. They differ in length specifications, applicable scenarios and purchasing suggestions, but all of them are characterized by high energy efficiency, long lifespan and good light quality.

What are the applicable scenarios for LED batten light length specification?

  1. 600mm LED batten light, medium length, suitable for smaller spaces or places that need localized lighting, such as small stores, supermarkets, schools, display cabinets and other places in commercial lighting.

  2. 1200mm LED batten light, longer length, suitable for larger spaces or places that need overall lighting, such as garages, factories and warehouses in commercial lighting.

  3. 1500mm LED batten light, longer length, suitable for larger spaces or places that need stronger lighting. Such as factories, warehouses, workshops and other areas in industrial lighting, as well as large stores, exhibition halls and other places in commercial lighting.

Guide to choosing LED batten light

  1. Understand the requirements - Determine the required length, color temperature, brightness and other parameters according to the specific application scenario. Note: In addition to the existing L10-O series products, TUBU L10-O LED batten light is also available in customized length, color temperature and brightness.

  2. Choose Brand - Choose LED batten light with famous brand to ensure product quality and after-sales service.TUBU has more than 10 years of experience in manufacturing lamps and lanterns, we have been committed to researching and developing different types of LED lamps and lanterns, we are an ISO 9001 and ISO 14001 certified professional LED lighting manufacturer located in Shenzhen, China.

  3. Check for certifications - Make sure the product has passed relevant certifications, such as CE, RoHS, etc., to guarantee the safety and reliability of use. Our L10-O series has CE, ENEC certificates.

  4. Consider the price - Under the premise of meeting the quality requirements, reasonable cost control, choose cost-effective products. Our products are available in large quantities at favorable prices, if you need, contact TUBU immediately for a free quote.

Why choose TUBU as a supplier?

  1. TUBU is known for its excellent product quality and reliability, able to provide cost-effective prices while maintaining product quality.

  2. TUBU has an efficient logistics and delivery system that enables it to deliver products on time and provide excellent customer service, including timely response, professional advice and problem-solving capabilities.

  3. TUBU enjoys a good reputation and credibility in the market, TUBU is able to provide customized solutions and show a high degree of flexibility to meet the specific needs of more customers.

  4. TUBU focuses on environmental protection and sustainable development in its production and operations, and has recently launched a new environmentally friendly product - PCR Plastic Eo-friendly Tri-proof Lamps.
