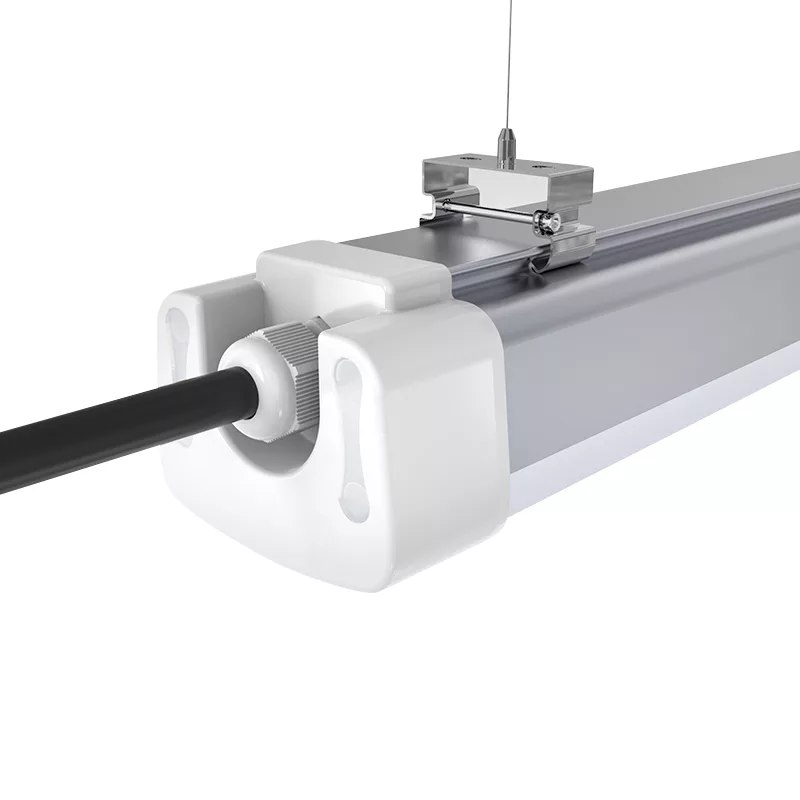

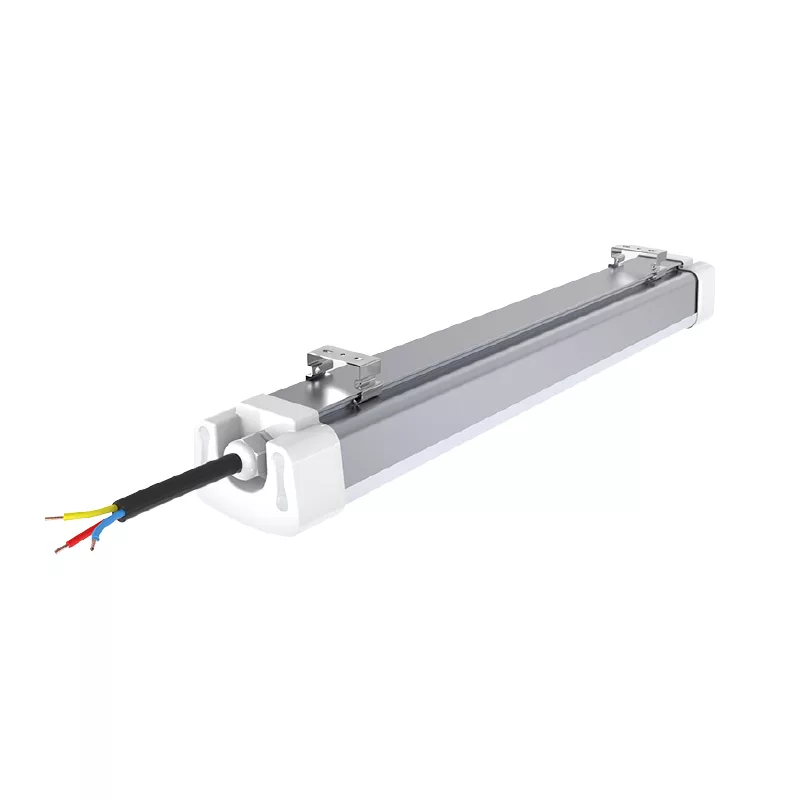

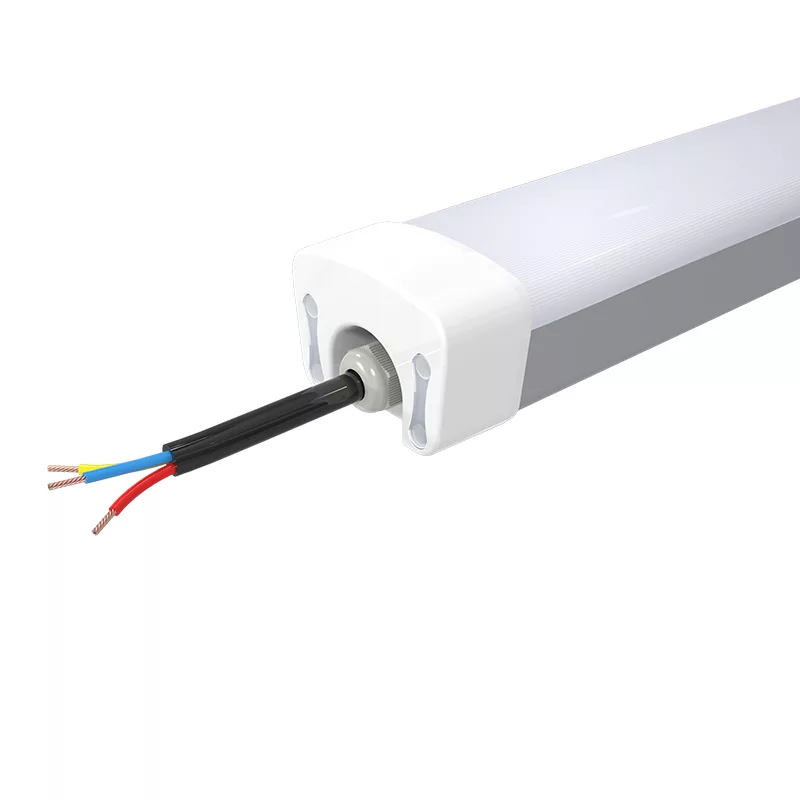

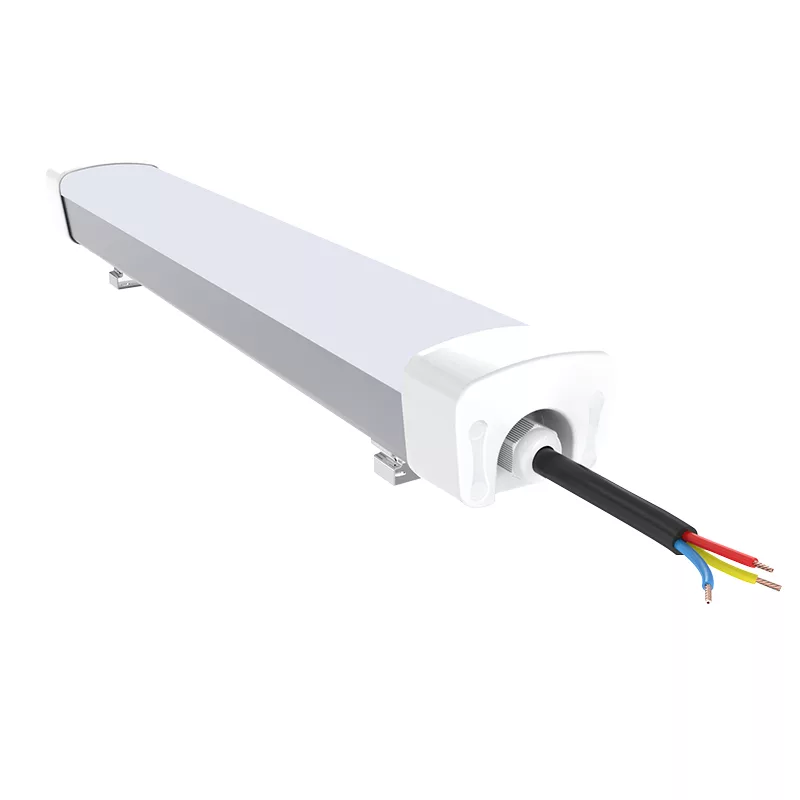

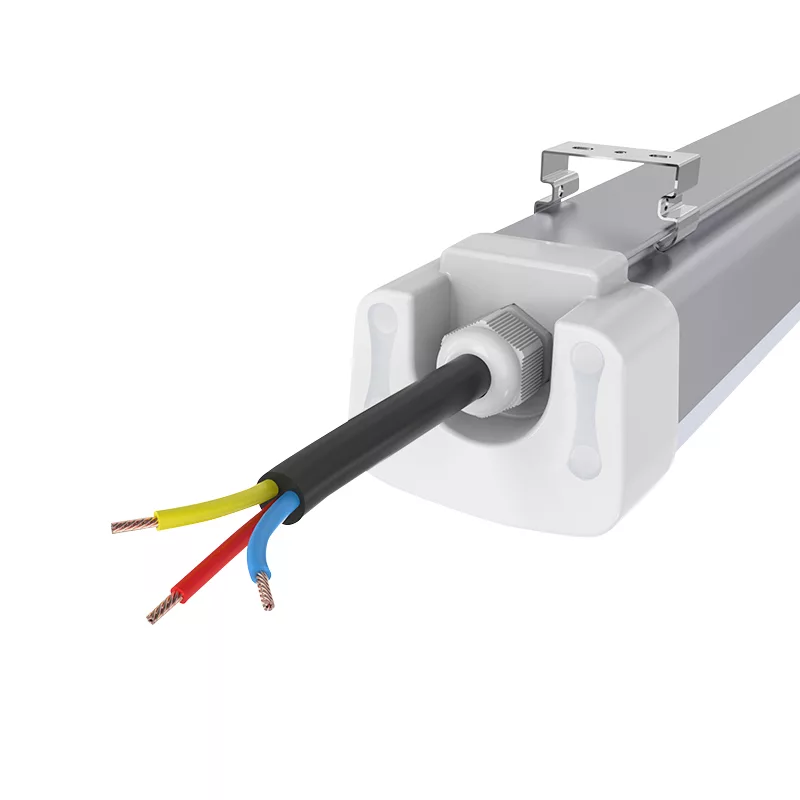

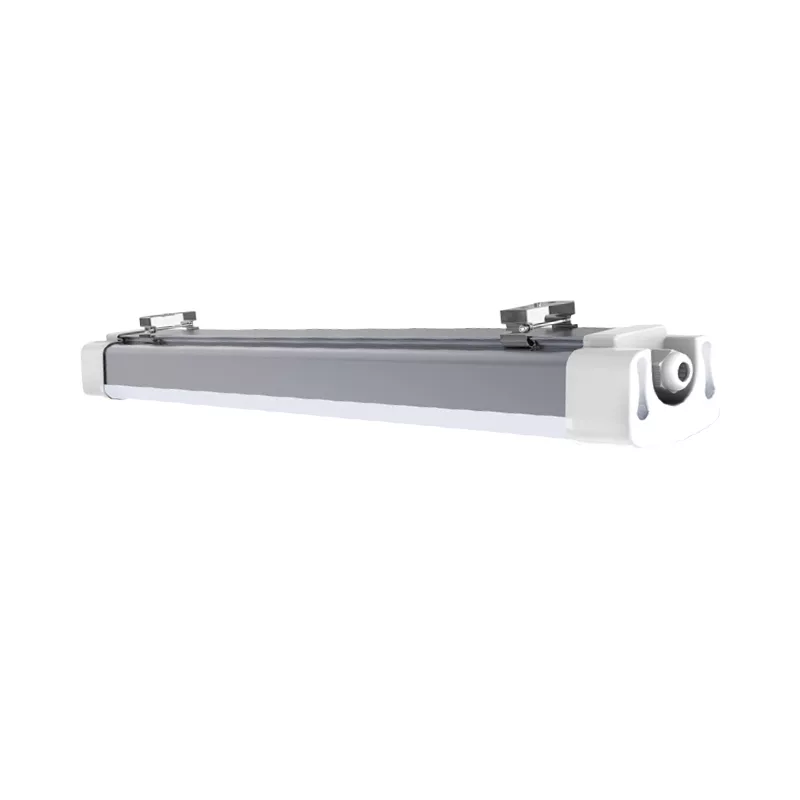

IP66 LED Commercial light L2

Features:

  • IP66, IK10
  • Aluminum 6063
  • Temperature of Operation: -20°C ~ +40°C; storage: -30°C~+60°C
  • High CRI>80
  • System efficiency up to 140Lm/W & 160Lm/W
  • Environmentally friendly, no mercury, no UV, no IR
  • Wide beam angle 120°
  • Energy efficiency Grade:C
  • 5 years warranty on complete fixture (LED’s, Driver & Housing)
  • Quick start instant 100% Iuminous flux
  • Certificate: CE, RoHs Certified
  • Surface Mount or Suspension Mount

Description

The IK10 IP66 LED Commercial Light L2 is not only robust but also offers excellent lighting performance. It uses high-quality LED beads with a color rendering index of CRI>80, which means that the color reproduction of the illuminated object is very accurate. The luminaire is available in a wide range of color temperatures. The luminaire can be ceiling-mounted or pendant-mounted, making it easy to choose between different installation environments, and the IK10 impact rating means that the luminaire can withstand 10 kg of impact, even in the event of an accidental shock, while the IP66 dust and waterproof rating ensures that the luminaire is completely protected against dust ingress and can withstand powerful jets of water.

tech specs

Product Code

TBL2-2F-30W

TBL2-2F-60W

TBL2-2F-80W

Power

30W

60W

80W

Input Voltage

AC100-240/277V   50/60HZ

Input Current

0.15A@220VAC

0.3A@220VAC

0.4A@220VAC

PF

PF>0.9

Dimming Option

0-10V/Dali

CCT

2700K/3000K/4000K/5000K/5700K/6000K/6500K

Luminous Flux

4200Lm

8400Lm

11200Lm

Efficiency

140Lm±5%/160Lm±5%

140Lm±5%/160Lm±5%

140Lm±5%/160Lm±5%

LED Brand

Lumileds/Hongli 2835

Beam Angle

120°C

Operation Temp

-20C~+40°C

Storage Temp

-20C~+60°C

Life Span

50000Hours

IP Class

IP66

IK Class

IK10

Certificate

CE, RoHs, IK10

Lamp Body Color

Milky PC Housing

Product Size (mm)

Ø600*90.3*73.7mm

Ø1200*90.3*73.7mm

Ø1500*90.3*73.7mm

package size (mm)

640*205*170mm

1240*205*170mm

1540*205*170mm

Packing Size (mm)

680*215*215

1280*215*215

1580*215*215

Quantity/carton

4PCS

4PCS

4PCS

Gross weight (kg) ±0.3

9

15

18

Installation mode

Surface Mount/Suspension Mount

LED Commercial light Versatile Mounting & Quick Start

Surface or suspension mount for flexible installation. Quick start for instant 100% brightness.

LED Commercial light Ultra-Durable & Reliable

Commercial light IP66 dust & water resistant, IK10 impact resistant, Aluminum 6063 material, operates in wide temperatures (-20°C to +40°C).

LED Commercial light Certified & Energy Efficient

CE & RoHS certified for safety and quality. Energy efficiency Grade C.

LED Commercial light High Efficiency & Long-Lasting

Commercial light up to 160Lm/W system efficiency delivers exceptional brightness while minimizing energy use. Environmentally friendly with no mercury, UV, or IR emissions.

LED Commercial light Ultra-Durable & Reliable

High CRI (>80) offers excellent color rendering, perfect for retail stores, museums, and exhibitions. 120° wide beam angle provides uniform illumination with minimal glare.

LED Commercial Light Application Fields

LED commercial lights are suitable for various commercial places that require bright and energy-saving lighting, such as shops, offices, warehouses, hotels, etc.

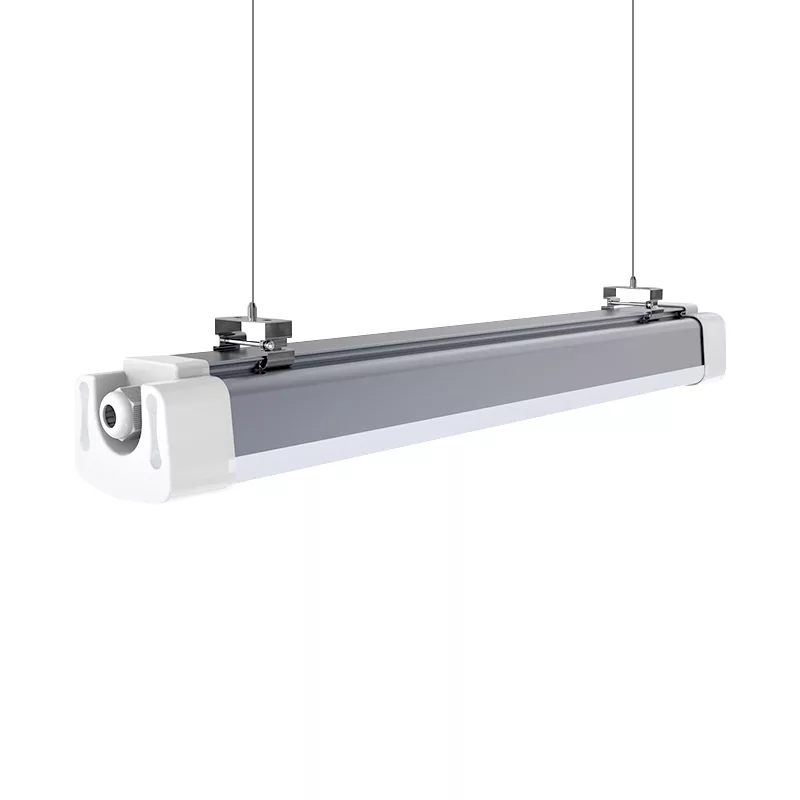

Installation Mode

IP66 LED Commercial light L2 Install

Applications

Office, Hotel, Warehouse, Pantry, Class room, Laboratory, Hospital, Conference room, Library, Waiting hall, Ticket office, Supermarket.

Lighting for offices
hospital lighting
warehouse lighting
