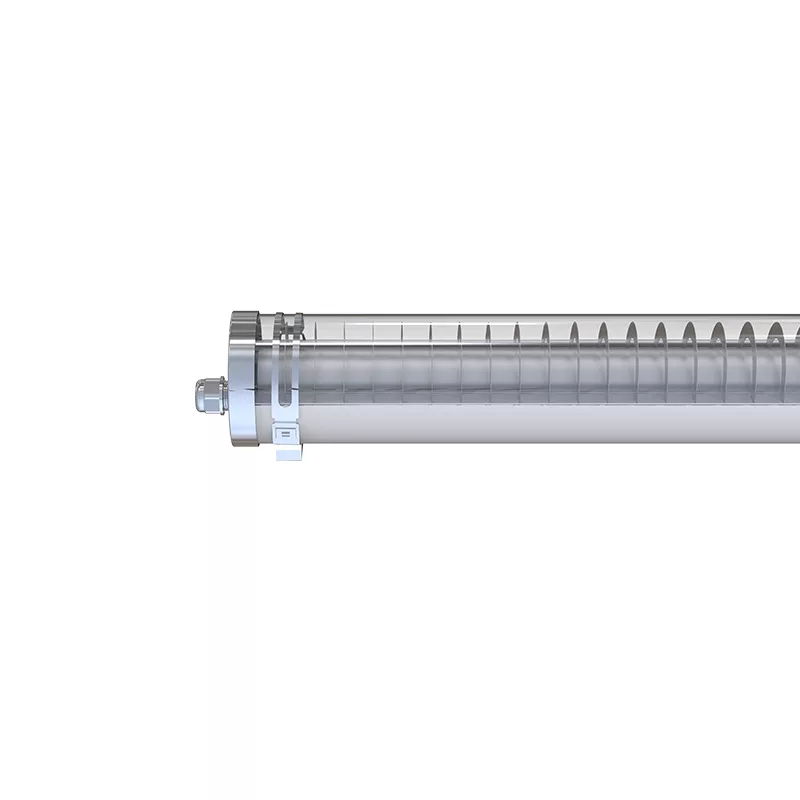

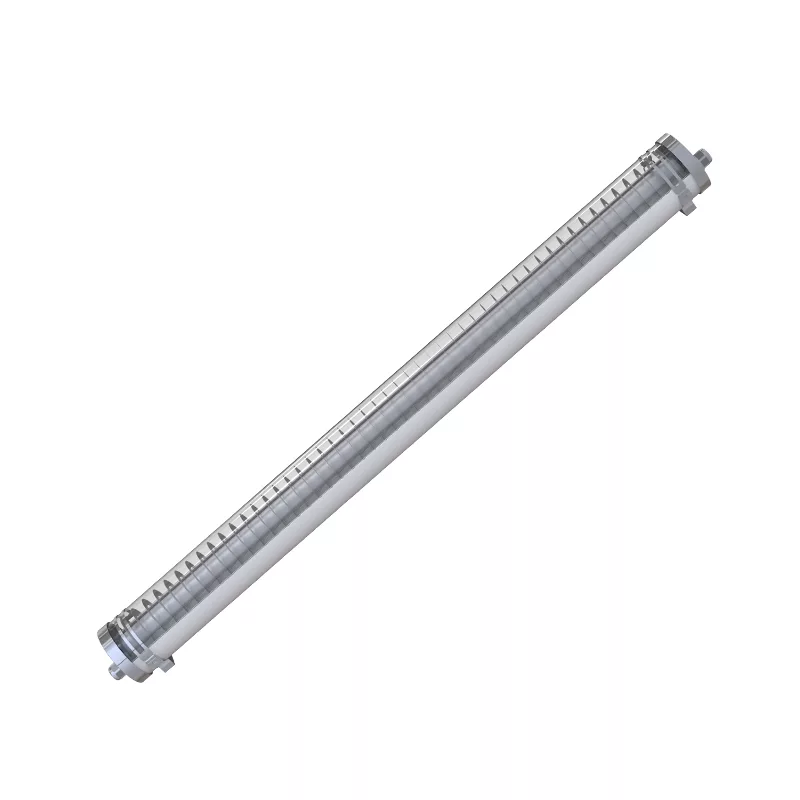

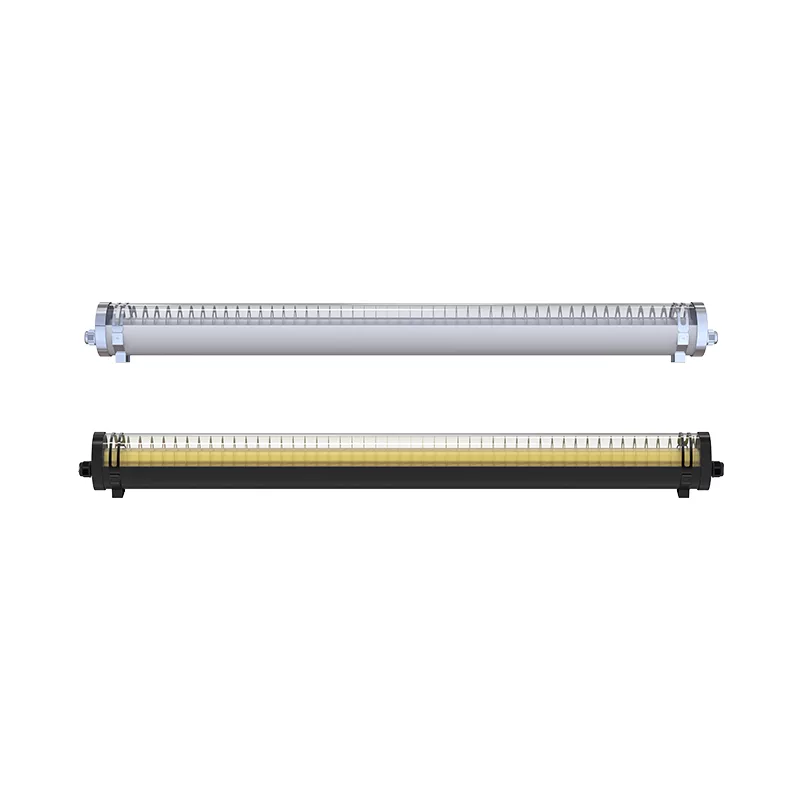

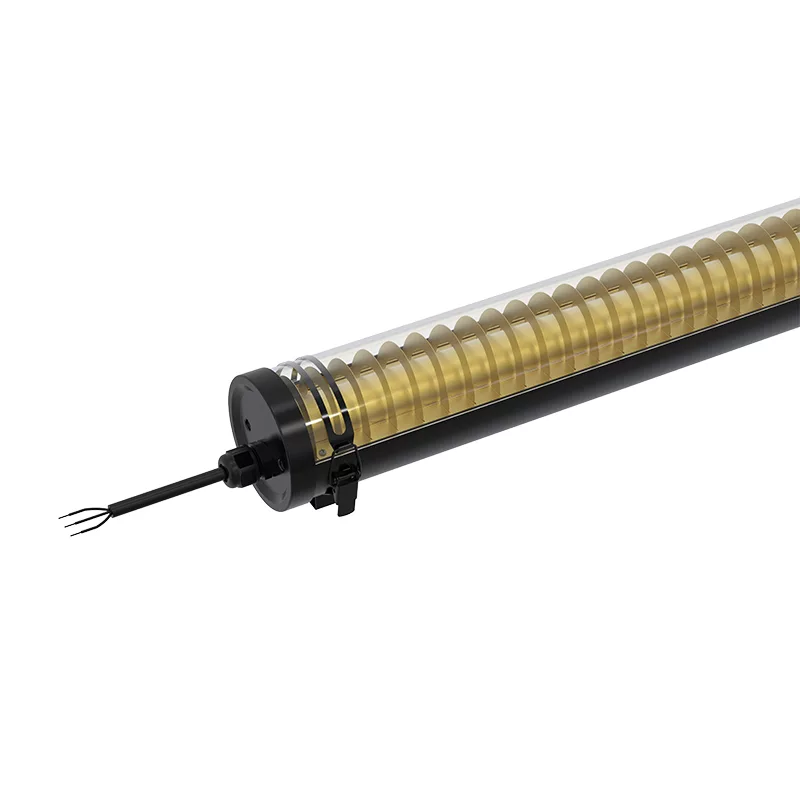

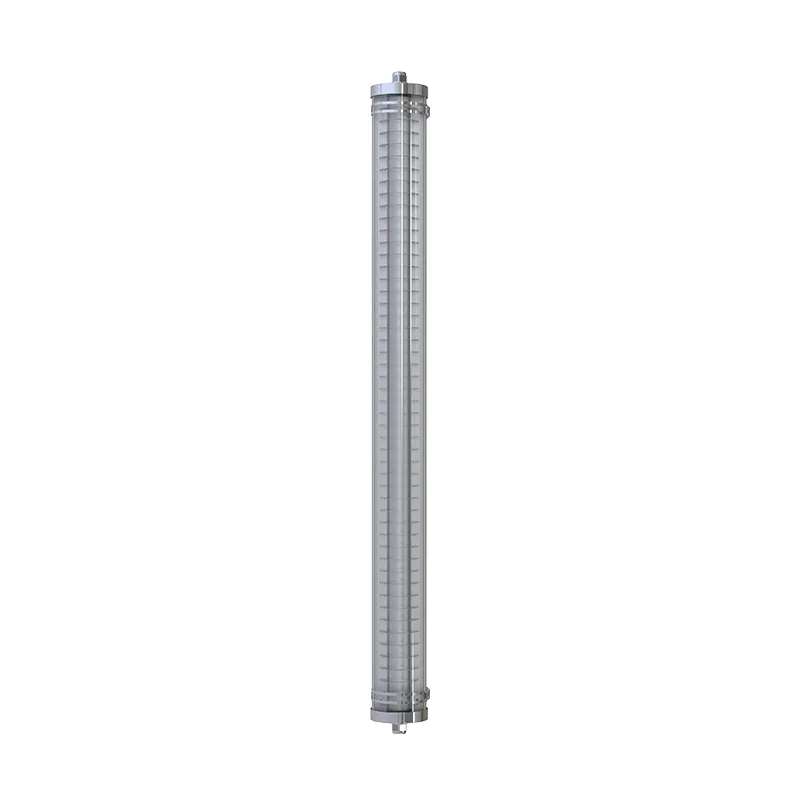

Ø100mm Grid Type LED Tubular Light

Features:

  • IP67 & IP69K & IK10
  • PMMA IK08 / PC IK10
  • Anti-ammoinia
  • Against water pressure of 100bar (1450psi) and temperature of 80°C
  • System efficiency up to 100Lm/W
  • High CRI>80
  • Environmentally friendly, no mercury, no UV, no IR
  • Wide beam angle 120°
  • Energy efficiency Grade:A+
  • Grid angle 45° / 90°
  • Quick Start instant 100% Iuminous flux
  • 5 years warranty on complete fixture (LED’s, Driver & Housing)
  • Certificate: CE, RoHs Certified
  • Surface Mount or Suspension Mount

Description

Ø100mm Grid Type LED Tubular Light is a new lighting product with high quality LED beads and drivers, high CRI>80, using LED light source, no mercury, no UV, no infrared radiation, green and environmental protection. Ø100mm Grid Type LED Tubular Light offers a variety of power options, such as 30W, 60W, 80W, PMMA IK08 / PC IK10 to meet the lighting needs of different scenes. Ø100mm Grid Type LED Tubular Light is easy to install and dismantle, easy to maintain, with high light output ratio, energy saving and environmental protection, easy to install, multiple power, super protection, etc.

Tech Specs

Product Code

TBL9p2F-20W

TBL9p4F-40W

TBL9p5F-60W

Power

20W

40W

60W

Input Voltage

200-240VAC/100-277VAC (50/60HZ)

Input Current

0.15A@220VAC

0.3A@220VAC

0.4A@220VAC

PF

0.90@220VAC

Dimming Option

0-10V/Dali

CCT

2700K/3000K/4000K/5000K/5700K/6000K/6500K

Luminous Flux

2000Lm

4000Lm

6000Lm

Efficiency

100Lm/W±5%(Ra>80)

LED Brand

Lumileds/Hongli 2835

Beam Angle

120°

Operation Temp

-20C~+40°C

Storage Temp

-20C~+60°C

Life Span

Ta 40C L70>54000Hours

IP Class

IP67 & IP69K

IK Class

PMMA IK08 & PC IK10

Certificate

CE, RoHS, IK10, IP69K

Lamp Body Color

Milky PC/PMMA Housing & 304/316 Stainless Steel End Caps

Product Size (mm)

Ø105*552

Ø105*1152

Ø105*1452

Packing Size (mm)

730*340*345mm

1330*345*240mm

1630*345*240mm

Quantity/carton

9PCS

6PCS

6PCS

Gross weight (kg) ±0.3

14

15

17.5

Installation mode

Surface Mount & Suspension Mount

Ø100mm Grid Type LED Tubular Light

Impact & Temperature Resistant

Choose between PMMA or PC diffuser, both with IK08 impact resistance - suitable for areas prone to physical abuse. PC option offers additional IK10 impact resistance for extreme environments.

Ultra-Durable & High-Pressure Resistant

IP67 & IP69K rated for dust, water, and high-pressure cleaning (100 bar, 1450 psi)

Unmatched Efficiency & Long-Lasting

Up to 170Lm/W system efficiency delivers exceptional brightness while minimizing energy consumption. 5-year warranty ensures lasting performance.

Exceptional Light Quality & Wide Coverage

High CRI (>80) offers excellent color rendering, and a wide 120° beam angle provides broad illumination.

Eco-Friendly & Versatile Mounting

Environmentally friendly with no mercury, UV, or IR emissions. Surface or suspension mount options for flexible installation.

Application

The grid type led tubular light can be used in the following applications car parks, food processing, poultry lighting, water treatment plants, farm lighting, railway stations, airports, car washing, inspection pits, tunnels, port installations, ships scenery.

Related Products

Installation Method

Installation of Ø100mm Grid LED Tube

Surface mounting

Determine the mounting location and mark the mounting hole position.

Secure the mounting bracket to the wall or ceiling using expansion bolts or screws.

Snap the lamp into the mounting bracket.

Turn on the power.

Lifting Installation

Determine the mounting position and mark the mounting hole locations.

Secure the hanging chain to the wall or ceiling using expansion bolts or screws.

Snap the lamp into the hanging chain.

Turn on the power.

Installation Mode

Grid LED Tube Precautions

Do not use it in humid or corrosive environments.

Do not touch the surface of the lamp to avoid burns.

When replacing the lamp, please cut off the power first.

Ø100mm Grid LED Tube is the ideal choice for your grille ceiling lighting!
