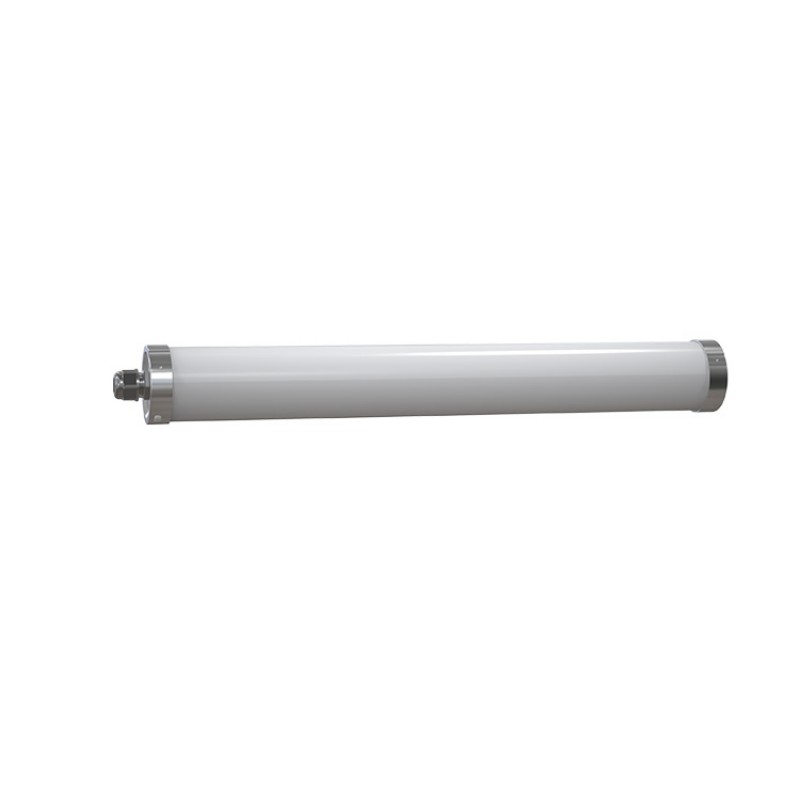

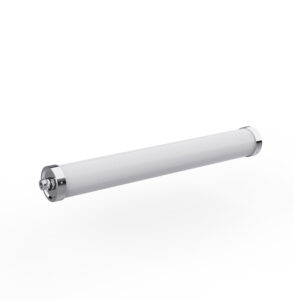

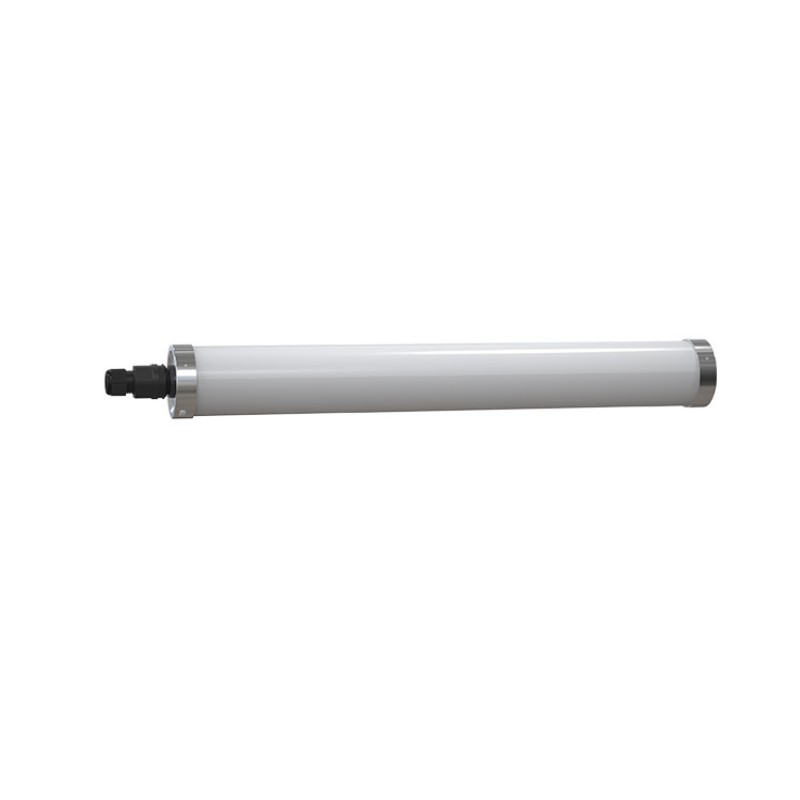

Tubular ECO IP65 LED Tri-proof Light

Features:

  • IP65 & IP69K
  • PMMA IK08/PC IK10
  • Anti- ammoinia
  • System efficiency up to 130lm/W&150lm/W
  • High CRI>80.
  • Environmentally friendly, no mercury, No UV, No IR
  • Wide beam angle of 120°
  • Energy Efficiency Grade: B
  • Quick Start instant 100% luminous flux.
  • 5 Year Warranty on complete fixture. (LEDs, Driver, & Housing)
  • Certificate: CE, RoHS Certified
  • Surface Mount or Suspended

Description

The TUBU Tubular ECO IP65 LED Tri-proof Light for quick installation is a linear LED product that offers high efficiency, reaching up to 150 lm/W. It is available in wattages of 25W, 40W, and 60W, making it suitable for a wide range of applications. Additionally, it provides flexible installation options, allowing you to choose between surface mount or suspension mount.

This Tubular ECO IP65 LED Tri-proof Light is designed with a PC cover that has passed IK10 impact testing, and there is also an option to choose PMMA IK08. For added convenience, you have the choice of including emergency battery backup and a 3-step dimming sensor function.

Our tri-proof light is a versatile solution that is IP65 waterproof, dustproof, and corrosion-proof. It is specifically designed to meet the demands of industrial and commercial environments such as car parks, warehouses, production areas, and various indoor applications.

Tech Specs

Product Code

TBL182F-25W

TBL184F-40W

TBL185F-60W

Power

25W

40W

60W

Input Voltage

200-240VAC/100-277VAC (50/60HZ)

Input Current

0.15A@220VAC

0.3A@220VAC

0.4A@220VAC

PF

0.90@220VAC

Dimming Option

0-10V/Dali

CCT

3000K/4000K/5000K/6000K

Ra>80

Luminous Flux

3250Lm/3750Lm(±5%)

5200Lm/6000Lm(±5%)

7800Lm/9000Lm(±5%)

Ra>80

Efficiency

130Lm/W / 150Lm/W(±5%)

LED Brand

Lumileds/Hongli 2835

Beam Angle

120°C

Operation Temp

-20C~+40°C

Storage Temp

-20C~+60°C

Life Span

Ta 40℃ L70>54000Hours

IP Class

IP65 & IP69K

IK Class

PMMA IK08/PC IK10

Certificate

CE, RoHs, CB, IK10, IP65, ENEC, RCM

Lamp Body Color

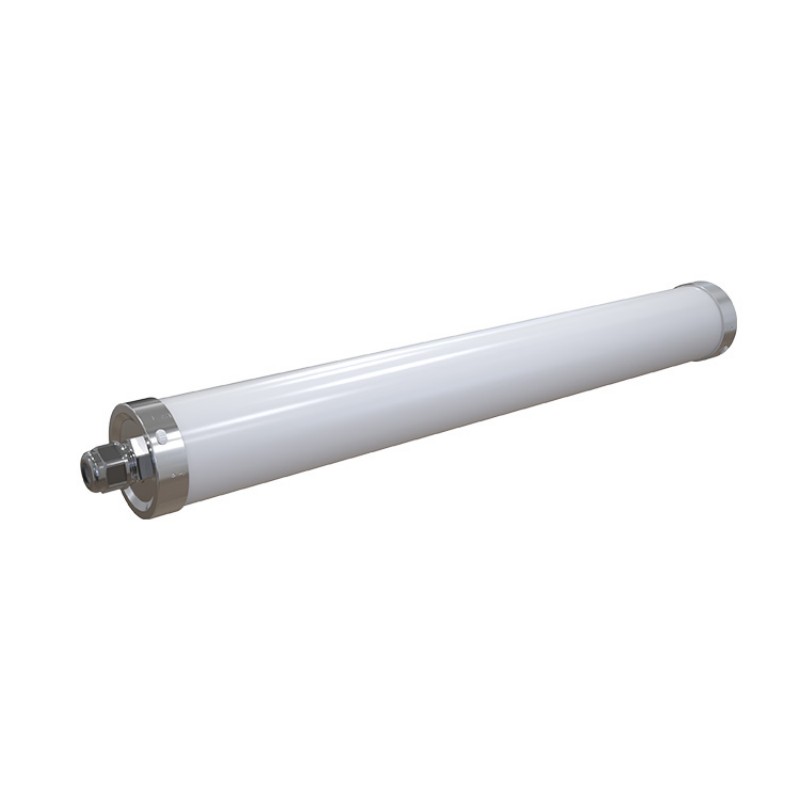

Milky PC/PMMA Housing & 304/316 Stainless Steel End Caps

Product Size (mm)

Ø75*552

Ø75*115

Ø75*1452

Packing Size (mm)

730*260*260

1330*260*180

1630*260*180

Quantity/carton

9PCS

6PCS

6PCS

Gross weight (kg) ±0.3

12

15

23

Installation mode

Surface Mount/Suspension Mount

High-Efficiency LED Tri-proof Light

With an impressive system efficiency of up to 130lm/W or 150lm/W (variant-dependent), embrace brighter illumination while drastically reducing energy consumption and cutting costs.

easy to use system

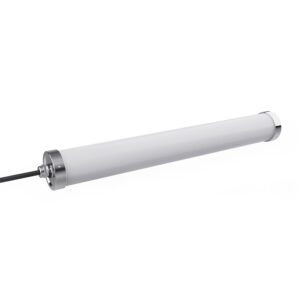

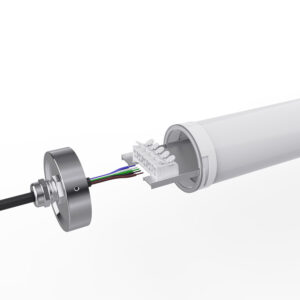

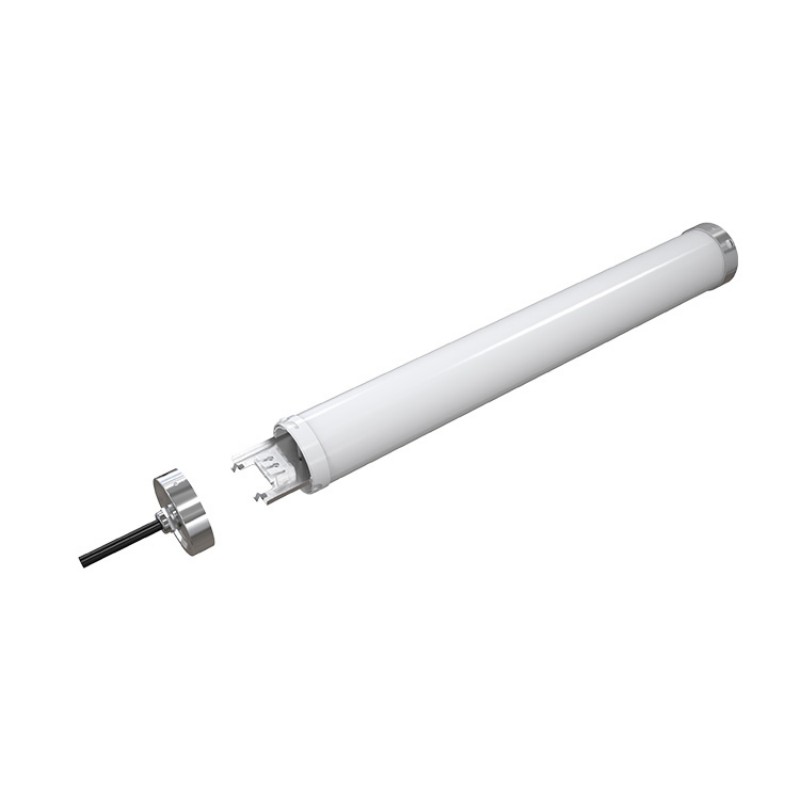

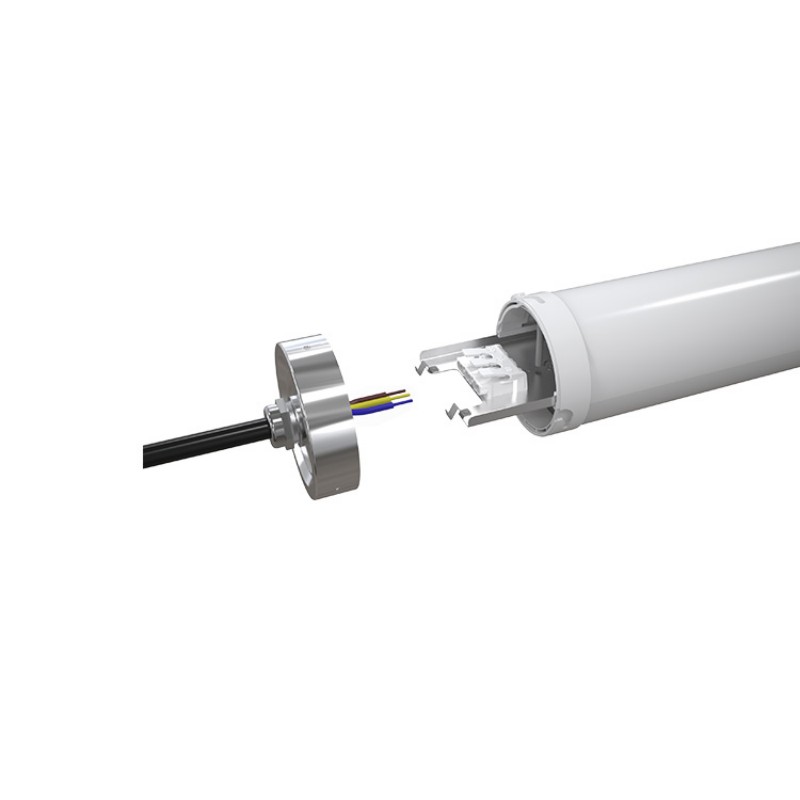

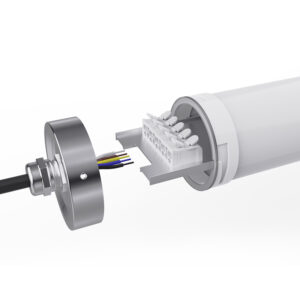

Equipped with a Cable gland and a removable end cap for easy access to the wiring port. The end caps can be easily removed without tools, making it easier to use.

Enter your text here...

IP65 degree of protection

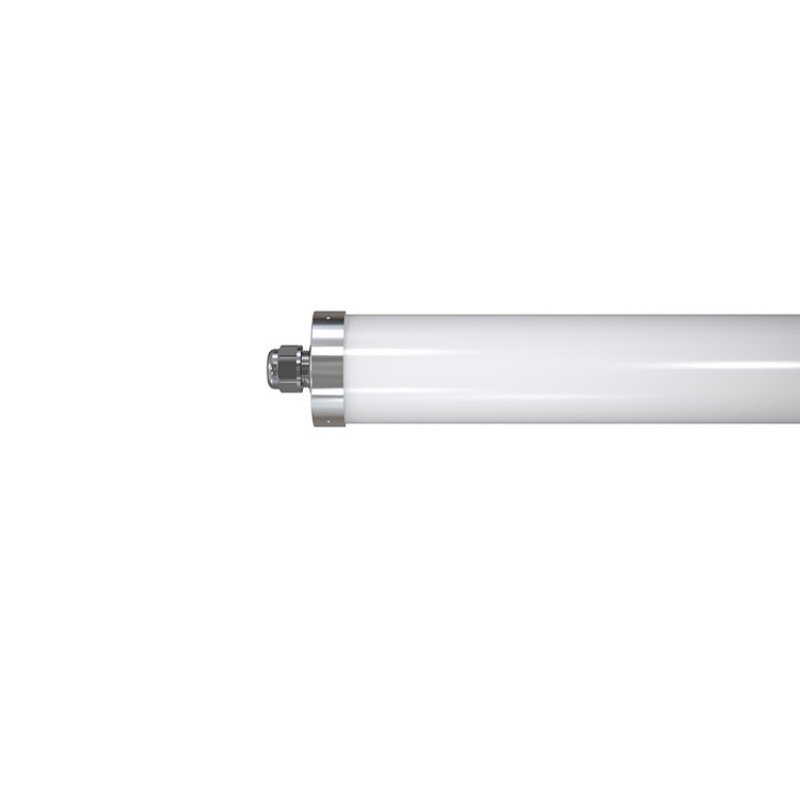

Compliant with IP65 rating - waterproof, anti-rust, anti-corrosion, and made of IK08-rated PMMA and IK10-rated PC materials, capable of withstanding high-strength impacts.

Emergency battery backup
and 3-step dimming sensor

Equipped with an emergency backup battery to keep lighting on during power outages or emergencies. Also equipped with a 3-step dimming sensor that automatically adjusts brightness based on ambient light conditions for greater convenience and energy efficiency.

Installation mode

IP65 LED Tri proof Light L18 Installation Mode

Applications

basketball lighting
LED lighting
Processing plant lighting
