Tube Style LED Tri-Proof Light
Features:
Description
TUB's tube type LED Tri-Proof Lights offer exceptional durability and performance. With IP67 and IP69K ratings, it is highly waterproof and dustproof, making it suitable for various indoor and outdoor applications. The light features a solid PMMA IK08/PC IK10 construction that is impact resistant and durable. It can withstand water pressures up to 100bar (1450psi) and temperatures up to 80°C. The wide beam angle of 120° provides ample lighting coverage, while its A+ energy efficiency rating ensures low power consumption.
The entire luminaire (including LEDs, driver, and housing) is also warranted for 5 years. It is also CE and RoHS certified and complies with international quality and safety standards.
The tube type LED tri-proof light can be surface mounted or suspended for flexible installation. Cable gland and Quick Terminals are also available for easy installation. At the same time, there are various color temperature options, including 3000K, 4000K, 5000K, and 6000K, which can be customized according to various lighting requirements.
Tech Specs
Product Code | TBL9M2F-15W | TBL9M4F-30W | TBL9M5F-45W | TBL9M2F-15W(Linkable) |
|---|---|---|---|---|
Power | 20W | 40W | 50W | 60W |
Input Voltage | 200-240VAC/100-277VAC (50/60HZ) | |||
Input Current | 0.09A@220VAC | 0.19A@220VAC | 0.23A@220VAC | 0.28A@220VAC |
PF | 0.90@220VAC | |||
Dimming Option | 0-10V/Dali | |||
CCT | 3000K/4000K/5000K/6000K | |||
Ra>80 Luminous Flux | 2600Lm±5% | 5200Lm±5% | 6500Lm±5% | 7800Lm±5% |
Ra>80 Efficiency | 130Lm/W±5% | |||
LED Brand | Lumileds/Hongli | |||
Beam Angle | 120°C | |||
Operation Temp | -20C~+40°C | |||
Storage Temp | -20C~+60°C | |||
Life Span | Ta 40C L70>54000Hours | |||
IP Class | IP67 & IP69K | |||
IK Class | PMMA IK08 & PC IK10 | |||
Certificate | CE, RoHS, CB, IK10, IP69K, ENEC, RCM, DLG ( Ammonia-resistance) | |||
Lamp Body Color | Milky PC/PMMA Housing & 304/316 Stainless Steel End Caps | |||
Product Size (mm) | Ø75*552 | Ø75*1152 | Ø75*1452 | Ø75*1452 |
Packing Size (mm) | 730*260*260 | 1330*260*180 | 1630*260*180 | 1630*260*180 |
Quantity/carton | 9PCS | 6PCS | 6PCS | 6PCS |
Gross weight (kg) ±0.3 | 12 | 15 | 23 | 23 |

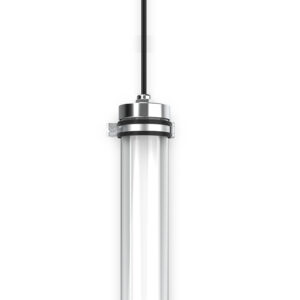

Installation mode | Surface Mount/Suspension Mount | |||
TUBU Tube Style Tri-proof Light
Dust and corrosion protection is ensured with a cream PC/PMMA housing and 304/316 stainless steel end caps. Experience longer lamp life with soft and diffused light output.

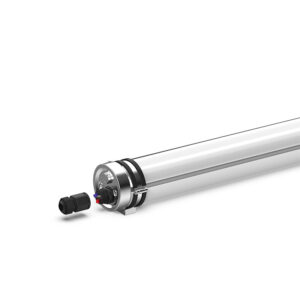

Straight through cable is optional
Compatible with 5-core- and 3-core straight-through cables. Allow users to choose the most suitable cable type according to their specific needs.
Two types of wiring

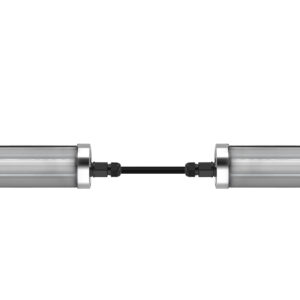

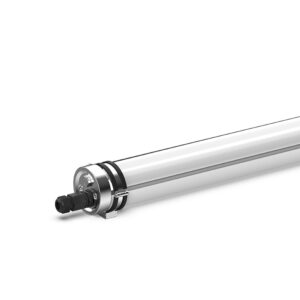

Available in Cable gland and Quick Terminals. Cable gland are quick and easy to install with no wiring required. Quick Terminals need the terminals to be open for connection and allow multiple LEDs to be spliced together at the same time.
CCT Optional
Available in four color temperatures including 3000K, 4000K, 5000K, and 6000K, it can be customized for various lighting requirements.
Unveiling Brightness
Safety, And Sustainability
It has a wide beam angle of 120° and an environmentally friendly light source. Mercury-free and with zero UV and IR radiation, it provides plenty of lighting while keeping you safe.
Installation mode
Applications
