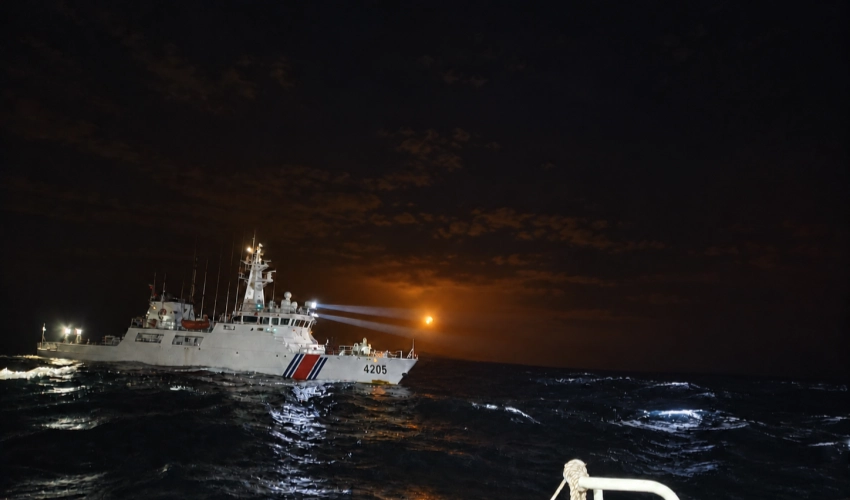

Marine patrol and search-and-rescue vessels need dependable lighting to identify distant objects, scan surrounding waters, and support nighttime operations. The right LED marine searchlight helps crews improve visibility when monitoring vessel movements, locating people in the water, or inspecting offshore areas.
With so many marine searchlights offering different features and functions, how do you choose the right one for your application? In this article, we introduce 5 Best LED marine searchlight types, highlighting their key features and suitable applications to help you choose the right solution for your operational requirements.
LED Searchlight Basic Line: For Routine Patrol and Marine Operations
The TUBU IP66 Marine LED Searchlight is a practical option for routine patrol duties, workboats, and general marine operations. It provides focused illumination for crews who need to inspect nearby waters, identify objects, and maintain visibility during nighttime navigation.
Available in T2L and T2H configurations, this series offers different illumination distances to match specific operational requirements.
Key Features:
Long-range illumination: T2L provides at least 300 meters at 1 lux, while T2H provides at least 1,000 meters at 1 lux.
Focused beam options: Available beam angles of 3° and 8° support different illumination requirements.
IP66 protection: Designed for dusty and wet marine environments.
Marine-grade construction: Aluminum housing, stainless-steel components, and a salt-resistant powder-coat finish support durability in corrosive conditions.
Energy efficiency: LED technology can reduce power consumption by 75% or more compared with traditional halogen lamps, according to TUBU's product specifications.
Suitable Applications: General patrol vessels, workboats, commercial marine vessels, and routine nighttime navigation.
For operators who need dependable marine illumination without advanced camera integration, the Basic Line offers a straightforward solution with multiple range options.

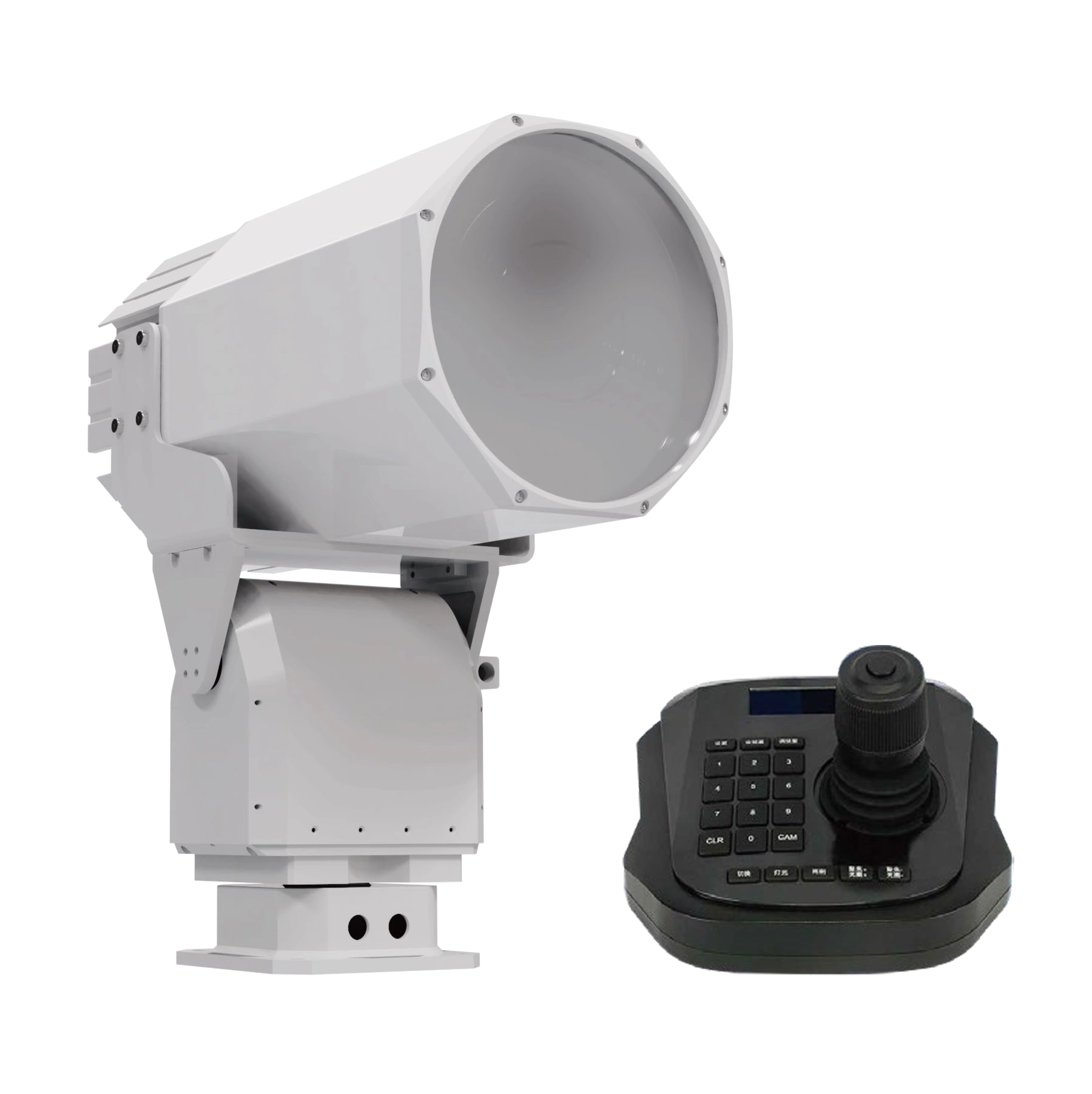

LED Searchlight Pro Line: For High-Intensity, Long-Range Illumination
For vessels operating over greater distances or performing more demanding nighttime missions, the TUBU High-Intensity LED Marine Searchlight offers higher output and a more concentrated beam.
Available in 240W and 300W configurations, the T3 series is designed to illuminate distant targets during maritime patrol, offshore operations, and search-and-rescue activities. Its narrow beam helps concentrate light on specific targets rather than spreading illumination over an unnecessarily wide area.
Key Features:
Extended beam distance: T3L provides at least 1,000 meters at 1 lux, while T3H provides at least 2,000 meters at 1 lux.
High-intensity beam: Beam angles of 2.5° and 3.5° support focused long-distance illumination.
Continuous rotation: The slip-ring system enables continuous 360° horizontal rotation without stopping at a cable limit.
Automated operation: Supports programmable automatic scanning and automatic return to a home position.
Marine durability: IP66 protection and a stated operating temperature range of -25°C to +55°C support demanding outdoor environments.
Suitable Applications: Professional patrol vessels, offshore vessels, large ships, maritime security operations, and search-and-rescue vessels requiring long-range illumination.
The Pro Line is particularly suitable when operators need to identify distant objects or scan a large area systematically. Actual visibility depends on weather, atmospheric conditions, target reflectivity, and the selected illumination level.
Stepless Beam Angle Zoom LED Searchlight: For Flexible Target Illumination
Different search tasks require different beam patterns. A narrow beam is useful for identifying distant targets, while a wider beam can illuminate a broader area during close-range inspection or rescue operations.
The TUBU Stepless Beam Angle Zoom LED Searchlight addresses this need with a continuously adjustable beam angle. Instead of relying on a fixed beam, operators can adjust the illumination to suit changing targets and working distances.
Key Features:
Adjustable beam angle: Continuously adjusts from 3.5° to 20°.
Long-range performance: Provides at least 1,000 meters at 1 lux when operating at the 3.5° beam angle.
Continuous horizontal rotation: Supports 0°–360° horizontal positioning.
Camera-synchronized zoom: Coordinates the lighting zoom with a compatible camera system to support target observation.
Marine-grade design: Features IP66 protection, corrosion-resistant surface treatment, and an operating temperature range of -25°C to +55°C.
Suitable Applications: Search-and-rescue vessels, patrol boats, offshore operations, and marine missions that alternate between distant target identification and wider-area illumination.
For example, during a nighttime search, an operator can use a narrow beam to examine a distant object and then widen the beam when more surrounding water needs to be illuminated. This flexibility helps one searchlight support multiple lighting tasks without changing the fixture.
LED Marine Searchlights with Surveillance Camera: For Nighttime Monitoring
For patrol and security operations, illumination alone may not be enough. Crews may also need to observe targets, monitor vessel movements, and integrate lighting equipment into a wider surveillance system.
The TUBU LED Marine Searchlight with Surveillance Camera combines long-range illumination with visual monitoring capabilities. It is designed for applications where operators need both a focused light beam and camera-based observation.
Key Features:
Long-range illumination: T3L provides at least 1,000 meters at 1 lux, while T3H provides at least 2,000 meters at 1 lux.
Integrated visual monitoring: The listed camera configuration includes a 5MP sensor, 30× optical zoom, and 16× digital zoom.
Continuous 360° rotation: Enables operators to direct illumination and observation toward different targets.
Automated scanning: Supports programmable automatic scanning and automatic return to a preset home position.
Optional system integration: The cloud-control platform supports up to 200 preset positions and communication options for integration with compatible monitoring systems.
Marine protection: The lighting unit is rated IP66, while the optional cloud-control platform is rated IP65.
Suitable Applications: Coast guard vessels, maritime surveillance, nighttime patrol, offshore security, and large vessels requiring coordinated illumination and visual monitoring.
This type of searchlight is especially relevant when operators need to observe a target while illuminating it. Depending on the selected configuration, it can also support integration with existing surveillance and remote-control systems.
Manual LED Marine Searchlight: For Direct and Simple Operation
Not every vessel requires automated scanning or camera integration. Some operators prefer a straightforward searchlight that can be manually directed toward a target when needed.
The TUBU Manual LED Marine Searchlight is designed for vessels that prioritize direct control and practical long-range illumination.
Available in T2L and T2H configurations, the series provides different beam angles and illumination distances to accommodate varying operational needs.
Key Features:
Two illumination options: T2L provides at least 300 meters at 1 lux, while T2H provides at least 1,000 meters at 1 lux.
Focused beam angles: Available in 3° and 8° configurations.
Manual directional adjustment: Allows operators to direct the beam toward the area of interest.
IP66 protection: Designed for demanding marine environments.
Corrosion-resistant construction: Uses aluminum, stainless-steel components, and a salt-resistant powder-coat finish.
Wide operating temperature range: The listed models are designed to operate from -40°C to +55°C.
Suitable Applications: Small patrol boats, workboats, commercial vessels, harbor operations, and marine applications where direct manual lighting control is preferred.
The Manual Line is a practical choice when crews need to adjust the illumination direction themselves without relying on a complex automated control system. It can also be considered for vessels with straightforward installation and operation requirements.
Looking for a Professional Marine LED Searchlight Manufacturer?
TUBU provides LED marine searchlight solutions for patrol vessels, search-and-rescue boats, and offshore operations. Contact our team to discuss your illumination requirements, mounting options, and product configurations for your next vessel project.
