Global supply chain pressures continue to reshape port infrastructure across Europe and North America. Terminal operators and EPC contractors face mounting pressure to upgrade berth lighting, container stacking zones, and ship-to-shore crane areas to support 24/7 operations, stricter safety regulations, and sustainability targets. Conventional metal-halide and sodium floodlights, long the standard in maritime facilities, no longer meet the combined demands of operational efficiency, energy reduction, and long service life in aggressive coastal environments.
Corrosion-driven failures, uneven light distribution, and frequent lamp replacements drive unplanned maintenance costs and operational downtime. Port engineering teams now specify LED solutions engineered specifically for marine-grade conditions—not repackaged commercial floodlights. TUBU addresses these complex challenges with future-ready marine LED floodlight systems featuring high salt-spray resistance, precision optics, and class-leading energy efficiency, designed to deliver consistent performance over the full asset lifecycle.
Challenges of Coastal Port Lighting Environments
Ports and harbour facilities operate within ISO 9223 corrosivity categories C4 to CX, the highest tiers on the international corrosion scale. Chloride ions carried in salt-laden air penetrate protective coatings and initiate electrochemical attack on metal housings, fasteners, and mounting hardware at rates three to ten times faster than inland locations. Untreated carbon steel can lose 50–200 microns of material annually, compromising structural integrity within just a few years.
Humidity compounds the problem. Coastal relative humidity typically ranges from 70–90%, and diurnal temperature swings drive repeated condensation cycles within luminaire enclosures. Internal moisture corrodes PCB traces, degrades solder joints, and accelerates driver failure—even in fixtures with high IP ratings. Strong UV radiation and wind-borne sand particles further erode surface finishes and sealants, while sulphide emissions from vessel exhaust and cargo-handling operations introduce additional chemical stressors.
What Makes an LED Floodlight Suitable for Coastal Ports?
High Corrosion Resistance Design
Marine-grade floodlights require multi-layer corrosion protection beyond basic powder coating. This includes chromate conversion pre-treatment, fluoropolymer or marine-grade polyester topcoats validated through 1,000+ hour neutral salt spray testing per ISO 9227, and 316-grade stainless steel for all external fasteners, brackets, and hardware. Galvanic isolation between dissimilar metals prevents accelerated bimetallic corrosion at connection points.
High Protection Rating
IP66 provides baseline dust and high-pressure water-jet resistance, but port applications require IP66/IP69K dual certification to withstand high-temperature, high-pressure washdown procedures used in quay maintenance. Integrated pressure equalisation membranes prevent internal vacuum effects that draw in moist, salt-laden air during temperature cycling.
High Luminous Efficiency and Uniform Lighting
Port terminals require uniform horizontal and vertical illuminance across large areas to support vessel navigation, crane operations, and ground personnel safety. Precision-engineered optics—with beam angles ranging from narrow 10° spot to wide 120° flood—minimise glare and light spill while maximising utilisation factor. System efficacy above 160 lm/W ensures energy targets are met without compromising lux levels or uniformity ratios.
Long-Term Stable Operation
Thermal management directly determines LED lifespan in coastal installations. Die-cast aluminium housings with hollow-core heat dissipation structures maintain stable junction temperatures despite high ambient humidity and elevated operating temperatures. Temperature monitoring circuitry and surge protection (10kV/20kA) safeguard against electrical disturbances common in industrial port grids.
Low Maintenance Burden and High Operational Safety
Modular construction enables tool-free component replacement without removing the fixture from its mount. IK08 or IK11 impact resistance protects against accidental contact and wind-borne debris. Tempered glass front panels resist thermal shock and chemical exposure. These features reduce maintenance frequency and elevate worker safety in elevated mounting positions.
Native Intelligent Adaptability for Smart Port Upgrades
Forward-compatible control interfaces—0–10V dimming, DALI-2, and IoT-ready connectivity—support integration with port management systems for scheduled dimming, motion-responsive operation, and energy monitoring. Native intelligence avoids costly aftermarket retrofits as terminals transition to smart port architectures.
Best LED Flood Lights for Coastal Port Applications

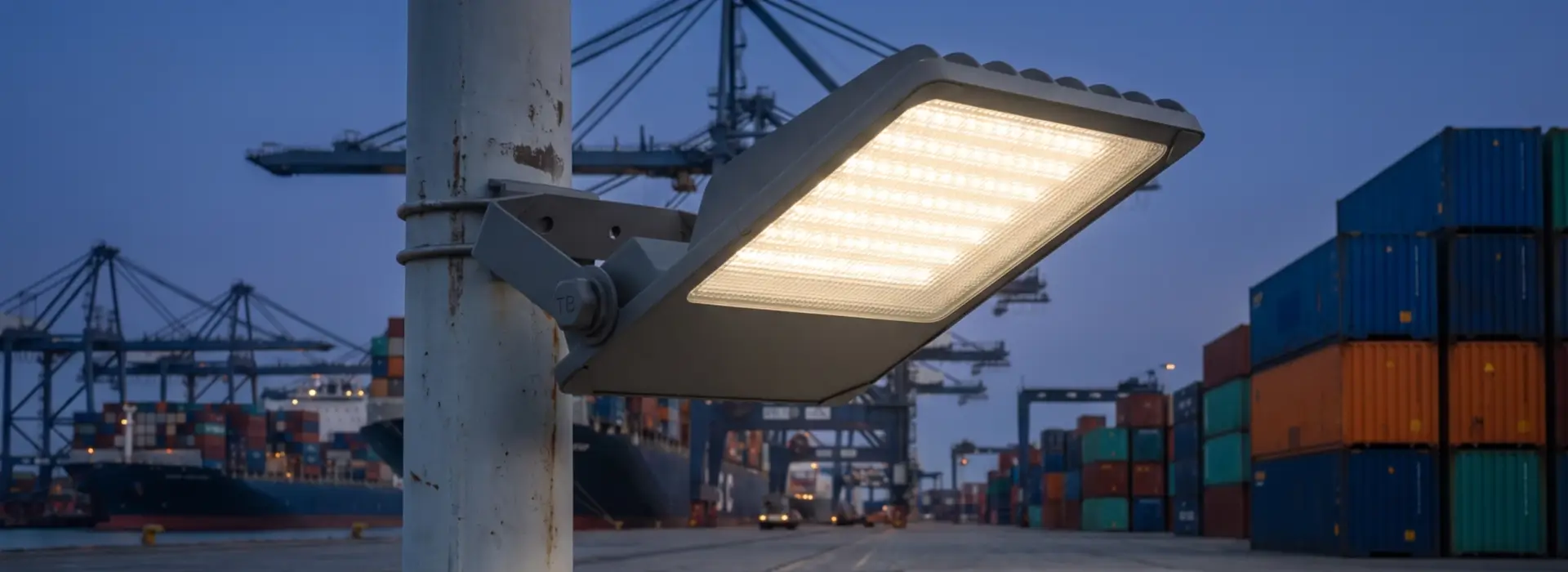

TUBU TG5 LED Flood Light Solution
Engineered for large-area industrial and marine environments, the TUBU TG5 series is a standardised LED floodlighting portfolio suited to a wide spectrum of port applications including auxiliary berth lighting, low-to-medium mast container yard lighting, port warehouses, landside public zones and offshore platform facilities. Built on a standardised component system, the luminaire delivers marine-grade environmental resilience alongside fast delivery, simplified maintenance and flexible upgrade paths, reducing total lifecycle costs for port infrastructure projects.
Features:
- IP66 & IP69K, IK11(PC) ,IK08 (Glass)
- 160lm/W/180lm/W/ (200lm/W Ra70)
- 100W~240W
- CCT & Photocell & Power adjustable
- Photocell control with 25-75lux, 200-600lux and disablemodes
- Plug-and-play PIR sensor
- 3 core/5 core/ through wiring are optional
- Back-access wiring compartment for fast and independent connections
- Corrosion resistance grade C4/C5
Why Choose TUBU LED Flood Lights for Port Projects?
TUBU specialises in industrial LED lighting, with a focused R&D and manufacturing portfolio of heavy-duty industrial and marine lighting solutions. Its production facilities operate under ISO 9001 quality management systems, and its standardised component architecture and mature production workflows ensure consistent lead times even for large-volume port retrofit and new-build projects.
All TG5 series luminaires carry CE and RoHS certification, meeting European market entry requirements and aligning with the technical specifications of most European port tender projects. Every unit undergoes salt spray validation, thermal cycling testing and burn-in inspection before shipment to guarantee consistent performance across production batches.
TUBU backs the TG5 series with a 5-year system warranty covering LED modules, drivers and housing structural integrity. For port projects, dedicated technical teams provide end-to-end engineering support including photometric calculations, mounting layout design and control system integration. For distributors and system integrators, project-specific documentation and customised support packages are available to streamline delivery and execution for projects across Europe and North America.
Conclusion: Reliable Lighting for Long-Term Port Operations
Port infrastructure investments are measured in decades, not years. Specifying the correct floodlight technology directly impacts total cost of ownership, operational uptime, and site safety performance over the asset lifecycle. Coastal environments reward rigorous engineering and punish generic solutions—the difference between a fixture that survives three years and one that performs reliably for ten is defined by material science, thermal design, and corrosion protection strategy.
TUBU TG5 LED floodlights combine marine-grade environmental resilience with high-efficiency optical performance and smart-port readiness, giving terminal operators, EPC contractors, and lighting distributors a technically validated solution for quay, yard, and high-mast applications.
Request a TUBU TG5 photometric plan and salt-spray test report tailored to your port project.
Contact our business team to discuss your specific berth layout, mounting heights, and compliance requirements. We provide full end-to-end specification support, including DIALux lighting simulations, detailed installation drawings, and compliance documentation aligned with European and North American port standards.
