[av_heading tag=’h1′ padding=’10’ heading=’Anti-glare, Glare-free UGR19 UGR22 Tubular Light IP67 IP69K ‘ color=” style=’blockquote modern-quote modern-centered’ custom_font=” size=” subheading_active=” subheading_size=’15’ custom_class=” admin_preview_bg=” av-desktop-hide=” av-medium-hide=” av-small-hide=” av-mini-hide=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=”][/av_heading]

[av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” admin_preview_bg=”][/av_textblock]

[av_section min_height=” min_height_px=’800px’ padding=’large’ shadow=’no-border-styling’ bottom_border=’no-border-styling’ bottom_border_diagonal_color=’#333333′ bottom_border_diagonal_direction=” bottom_border_style=” id=’overview’ color=’main_color’ custom_bg=’#e9e9e9′ src=” attachment=” attachment_size=” attach=’scroll’ position=’top left’ repeat=’no-repeat’ video=” video_ratio=’16:9′ overlay_opacity=’0.5′ overlay_color=’#000000′ overlay_pattern=” overlay_custom_pattern=” av_element_hidden_in_editor=’0′]
[av_one_fifth first min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ padding=’0px’ border=” border_color=” radius=’0px’ background_color=” src=” background_position=’top left’ background_repeat=’no-repeat’ animation=” mobile_breaking=” mobile_display=”]

[/av_one_fifth][av_three_fifth min_height=” vertical_alignment=’av-align-top’ space=” margin=’0px’ margin_sync=’true’ padding=’0px’ padding_sync=’true’ border=” border_color=” radius=’0px’ radius_sync=’true’ background_color=” src=” attachment=” attachment_size=” background_position=’top left’ background_repeat=’no-repeat’ animation=’bottom-to-top’ mobile_breaking=” mobile_display=”]

[av_heading tag=’h1′ padding=’10’ heading=’Anti-glare IP67 IP69K Tubular light design with honeycomb reflector, 40° 60° UGR19 / 90° UGR22′ color=’custom-color-heading’ style=’blockquote modern-quote modern-centered’ custom_font=’#5bba4a’ size=’36’ subheading_active=’subheading_below’ subheading_size=’20’ custom_class=” admin_preview_bg=” av-desktop-hide=” av-medium-hide=” av-small-hide=” av-mini-hide=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=”][/av_heading]

[av_textblock size=” font_color=” color=’#9e9e9e’ av-medium-font-size=” av-small-font-size=” av-mini-font-size=” admin_preview_bg=”]
What is UGR19? UGR19 stands for Unified Glare Rating of 19 or less, which is a parameter of how bright a luminaire is in a sample room layout, and is particularly important in office spaces where workers have to spend many hours a day and would be using display terminals for a large proportion of that time.
[/av_textblock]

[/av_three_fifth][av_one_fifth min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ padding=’0px’ border=” border_color=” radius=’0px’ background_color=” src=” background_position=’top left’ background_repeat=’no-repeat’ animation=” mobile_breaking=” mobile_display=”]

[/av_one_fifth][av_one_full first min_height=” vertical_alignment=’av-align-top’ space=” margin=’0px’ margin_sync=’true’ padding=’0px’ padding_sync=’true’ border=” border_color=” radius=’0px’ radius_sync=’true’ background_color=” src=” attachment=” attachment_size=” background_position=’top left’ background_repeat=’no-repeat’ animation=’bottom-to-top’ mobile_breaking=” mobile_display=”]

[av_image src=’https://tu-bu.com/wp-content/uploads/2019/12/TUBU-L9-IP69K-UGR19-2.jpg’ attachment=’6582′ attachment_size=’full’ align=’center’ styling=” hover=” link=” target=” caption=” font_size=” appearance=” overlay_opacity=’0.4′ overlay_color=’#000000′ overlay_text_color=’#ffffff’ animation=’no-animation’ admin_preview_bg=”][/av_image]

[/av_one_full][av_one_full first min_height=” vertical_alignment=’av-align-top’ space=” margin=’0px’ margin_sync=’true’ padding=’0px’ padding_sync=’true’ border=” border_color=” radius=’0px’ radius_sync=’true’ background_color=” src=” attachment=” attachment_size=” background_position=’top left’ background_repeat=’no-repeat’ animation=’bottom-to-top’ mobile_breaking=” mobile_display=”]

[av_image src=’https://tu-bu.com/wp-content/uploads/2019/12/TUBU-L9-IP69K-UGR19-2-4.jpg’ attachment=’6514′ attachment_size=’full’ align=’center’ styling=” hover=” link=” target=” caption=” font_size=” appearance=” overlay_opacity=’0.4′ overlay_color=’#000000′ overlay_text_color=’#ffffff’ animation=’no-animation’ admin_preview_bg=”][/av_image]

[av_hr class=’invisible’ height=’30’ shadow=’no-shadow’ position=’center’ custom_border=’av-border-thin’ custom_width=’50px’ custom_border_color=” custom_margin_top=’30px’ custom_margin_bottom=’30px’ icon_select=’yes’ custom_icon_color=” icon=’ue808′ font=’entypo-fontello’ admin_preview_bg=”]

[/av_one_full]
[/av_section]

[av_section min_height=” min_height_px=’700px’ padding=’large’ shadow=’no-border-styling’ bottom_border=’no-border-styling’ bottom_border_diagonal_color=’#333333′ bottom_border_diagonal_direction=” bottom_border_style=” id=” color=’main_color’ custom_bg=’#ffffff’ src=” attachment=” attachment_size=” attach=’scroll’ position=’top left’ repeat=’no-repeat’ video=” video_ratio=’16:9′ overlay_opacity=’0.5′ overlay_color=” overlay_pattern=” overlay_custom_pattern=” av_element_hidden_in_editor=’0′]
[av_one_fifth first min_height=” vertical_alignment=’av-align-top’ space=” margin=’0px’ margin_sync=’true’ padding=’0px’ padding_sync=’true’ border=” border_color=” radius=’0px’ radius_sync=’true’ background_color=” src=” attachment=” attachment_size=” background_position=’top left’ background_repeat=’no-repeat’ animation=’bottom-to-top’ mobile_breaking=” mobile_display=”]

[/av_one_fifth][av_three_fifth min_height=” vertical_alignment=’av-align-top’ space=” margin=’0px’ margin_sync=’true’ padding=’0px’ padding_sync=’true’ border=” border_color=” radius=’0px’ radius_sync=’true’ background_color=” src=” attachment=” attachment_size=” background_position=’top left’ background_repeat=’no-repeat’ animation=’bottom-to-top’ mobile_breaking=” mobile_display=”]

[av_heading tag=’h2′ padding=’10’ heading=’Why UGR19?’ color=” style=’blockquote modern-quote modern-centered’ custom_font=” size=’36’ subheading_active=” subheading_size=’15’ custom_class=” admin_preview_bg=” av-desktop-hide=” av-medium-hide=” av-small-hide=” av-mini-hide=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=”][/av_heading]

[av_textblock size=” font_color=” color=’#9e9e9e’ av-medium-font-size=” av-small-font-size=” av-mini-font-size=” admin_preview_bg=”]
The higher the UGR number the higher the glare from the luminaire and the increased discomfort for office workers. The glare can cause health and safety issues and welfare problems such as headaches, migraines and eyesight issues. The light fitting alone cannot be UGR19 compliant as it is not a characteristic of a luminaire but is a measure of how it performs in a physical space.
[/av_textblock]

[/av_three_fifth][av_one_fifth min_height=” vertical_alignment=’av-align-top’ space=” margin=’0px’ margin_sync=’true’ padding=’0px’ padding_sync=’true’ border=” border_color=” radius=’0px’ radius_sync=’true’ background_color=” src=” attachment=” attachment_size=” background_position=’top left’ background_repeat=’no-repeat’ animation=’bottom-to-top’ mobile_breaking=” mobile_display=”]

[/av_one_fifth]
[/av_section]

[av_section min_height=” min_height_px=’700px’ padding=’large’ shadow=’no-border-styling’ bottom_border=’no-border-styling’ bottom_border_diagonal_color=’#333333′ bottom_border_diagonal_direction=” bottom_border_style=” id=” color=’main_color’ custom_bg=’#232323′ src=” attachment=” attachment_size=” attach=’scroll’ position=’top left’ repeat=’no-repeat’ video=” video_ratio=’16:9′ overlay_opacity=’0.5′ overlay_color=” overlay_pattern=” overlay_custom_pattern=” av_element_hidden_in_editor=’0′]
[av_one_fifth first min_height=” vertical_alignment=’av-align-top’ space=” margin=’0px’ margin_sync=’true’ padding=’0px’ padding_sync=’true’ border=” border_color=” radius=’0px’ radius_sync=’true’ background_color=” src=” attachment=” attachment_size=” background_position=’top left’ background_repeat=’no-repeat’ animation=’bottom-to-top’ mobile_breaking=” mobile_display=”]

[/av_one_fifth][av_three_fifth min_height=” vertical_alignment=’av-align-top’ space=” margin=’0px’ margin_sync=’true’ padding=’0px’ padding_sync=’true’ border=” border_color=” radius=’0px’ radius_sync=’true’ background_color=” src=” attachment=” attachment_size=” background_position=’top left’ background_repeat=’no-repeat’ animation=’bottom-to-top’ mobile_breaking=” mobile_display=”]

[av_heading tag=’h2′ padding=’10’ heading=’Ideal Solution for Offices, Schools, Workshops, Receptions, Retail’ color=’custom-color-heading’ style=’blockquote modern-quote modern-centered’ custom_font=’#ffffff’ size=’36’ subheading_active=” subheading_size=’15’ custom_class=” admin_preview_bg=” av-desktop-hide=” av-medium-hide=” av-small-hide=” av-mini-hide=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=”][/av_heading]

[av_textblock size=” font_color=’custom’ color=’#ffffff’ av-medium-font-size=” av-small-font-size=” av-mini-font-size=” admin_preview_bg=”]
Recommended limits for glare have been set in EN 12464-1 for a variety of workplace categories.

These are:

UGR16 – Technical Drawing Office

UGR19 – Offices, Schools

UGR22 – Workshops, Receptions, Retail.

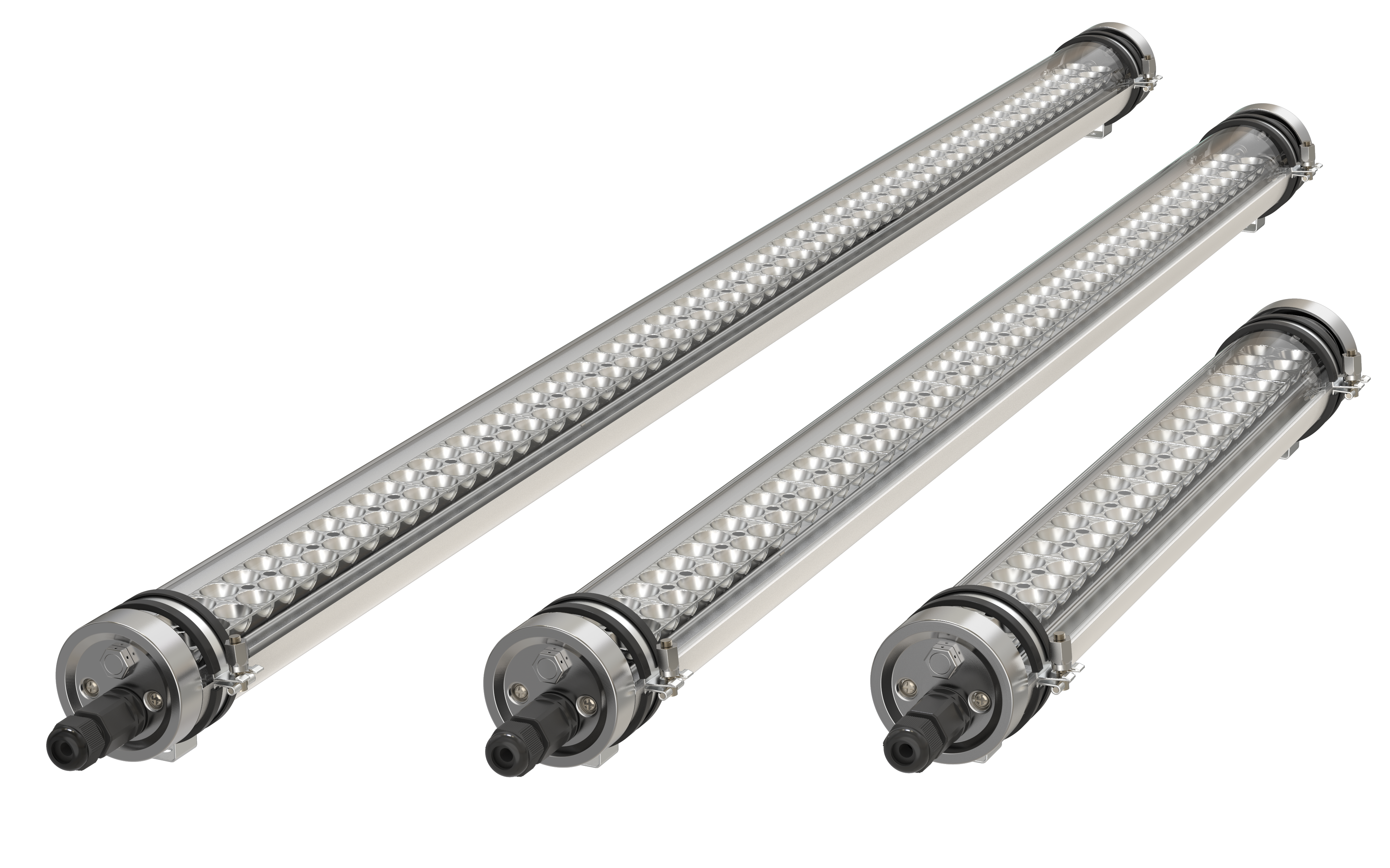

TUBU’s Anti-glare tubular light is an ideal solution for those areas.
[/av_textblock]

[/av_three_fifth][av_one_fifth min_height=” vertical_alignment=’av-align-top’ space=” margin=’0px’ margin_sync=’true’ padding=’0px’ padding_sync=’true’ border=” border_color=” radius=’0px’ radius_sync=’true’ background_color=” src=” attachment=” attachment_size=” background_position=’top left’ background_repeat=’no-repeat’ animation=’bottom-to-top’ mobile_breaking=” mobile_display=”]

[/av_one_fifth][av_one_full first min_height=” vertical_alignment=’av-align-top’ space=” margin=’0px’ margin_sync=’true’ padding=’0px’ padding_sync=’true’ border=” border_color=” radius=’0px’ radius_sync=’true’ background_color=” src=” attachment=” attachment_size=” background_position=’top left’ background_repeat=’no-repeat’ animation=’bottom-to-top’ mobile_breaking=” mobile_display=”]

[av_image src=’https://tu-bu.com/wp-content/uploads/2018/09/L9-anti-glare.png’ attachment=’6698′ attachment_size=’full’ align=’center’ styling=” hover=” link=” target=” caption=” font_size=” appearance=” overlay_opacity=’0.4′ overlay_color=’#000000′ overlay_text_color=’#ffffff’ animation=’no-animation’ admin_preview_bg=”][/av_image]

[/av_one_full]
[/av_section]

[av_section min_height=” min_height_px=’700px’ padding=’large’ shadow=’no-border-styling’ bottom_border=’no-border-styling’ bottom_border_diagonal_color=’#333333′ bottom_border_diagonal_direction=” bottom_border_style=” id=’features’ color=’main_color’ custom_bg=’#e9e9e9′ src=” attachment=” attachment_size=” attach=’scroll’ position=’top left’ repeat=’no-repeat’ video=” video_ratio=’16:9′ overlay_opacity=’0.5′ overlay_color=” overlay_pattern=” overlay_custom_pattern=” av_element_hidden_in_editor=’0′]
[av_one_fifth first min_height=” vertical_alignment=’av-align-top’ space=” margin=’0px’ margin_sync=’true’ padding=’0px’ padding_sync=’true’ border=” border_color=” radius=’0px’ radius_sync=’true’ background_color=” src=” attachment=” attachment_size=” background_position=’top left’ background_repeat=’no-repeat’ animation=’bottom-to-top’ mobile_breaking=” mobile_display=”]

[/av_one_fifth][av_three_fifth min_height=” vertical_alignment=’av-align-top’ space=” margin=’0px’ margin_sync=’true’ padding=’0px’ padding_sync=’true’ border=” border_color=” radius=’0px’ radius_sync=’true’ background_color=” src=” attachment=” attachment_size=” background_position=’top left’ background_repeat=’no-repeat’ animation=’bottom-to-top’ mobile_breaking=” mobile_display=”]

[av_heading tag=’h2′ padding=’10’ heading=’CE RoHS CB IK10 IP67 IP69K’ color=” style=’blockquote modern-quote modern-centered’ custom_font=” size=’36’ subheading_active=” subheading_size=’15’ custom_class=” admin_preview_bg=” av-desktop-hide=” av-medium-hide=” av-small-hide=” av-mini-hide=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=”][/av_heading]

[av_textblock size=” font_color=” color=’#9e9e9e’ av-medium-font-size=” av-small-font-size=” av-mini-font-size=” admin_preview_bg=”]
• PMMA Clear IK08 / PC Clear IK10

• 304/316 stainless steel end caps, breather, mounting bracket

• Against water pressure of 100bar(1450psi) and temperature of 80°C
[/av_textblock]

[/av_three_fifth][av_one_fifth min_height=” vertical_alignment=’av-align-top’ space=” margin=’0px’ margin_sync=’true’ padding=’0px’ padding_sync=’true’ border=” border_color=” radius=’0px’ radius_sync=’true’ background_color=” src=” attachment=” attachment_size=” background_position=’top left’ background_repeat=’no-repeat’ animation=’bottom-to-top’ mobile_breaking=” mobile_display=”]

[/av_one_fifth][av_one_full first min_height=” vertical_alignment=’av-align-top’ space=” margin=’0px’ margin_sync=’true’ padding=’0px’ padding_sync=’true’ border=” border_color=” radius=’0px’ radius_sync=’true’ background_color=” src=” attachment=” attachment_size=” background_position=’top left’ background_repeat=’no-repeat’ animation=’bottom-to-top’ mobile_breaking=” mobile_display=”]

[av_image src=’https://tu-bu.com/wp-content/uploads/2019/12/TUBU-L9-IP69K-UGR19-2-2.png’ attachment=’6516′ attachment_size=’full’ align=’center’ styling=” hover=” link=” target=” caption=” font_size=” appearance=” overlay_opacity=’0.4′ overlay_color=’#000000′ overlay_text_color=’#ffffff’ animation=’no-animation’ admin_preview_bg=”][/av_image]

[/av_one_full]
[/av_section]

[av_section min_height=” min_height_px=’700px’ padding=’large’ shadow=’no-border-styling’ bottom_border=’no-border-styling’ bottom_border_diagonal_color=’#333333′ bottom_border_diagonal_direction=” bottom_border_style=” id=’techspecs’ color=’main_color’ custom_bg=’#f8f8f8′ src=” attachment=” attachment_size=” attach=’scroll’ position=’top left’ repeat=’no-repeat’ video=” video_ratio=’16:9′ overlay_opacity=’0.5′ overlay_color=” overlay_pattern=” overlay_custom_pattern=” av_element_hidden_in_editor=’0′]
[av_heading heading=’Tech Specs’ tag=’h3′ style=’blockquote modern-quote modern-centered’ size=’36’ subheading_active=” subheading_size=’15’ padding=’10’ color=” custom_font=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” admin_preview_bg=”][/av_heading]

[av_hr class=’custom’ height=’30’ shadow=’no-shadow’ position=’center’ custom_border=’av-border-fat’ custom_width=’80px’ custom_border_color=’#5bba4a’ custom_margin_top=’0px’ custom_margin_bottom=’15px’ icon_select=’no’ custom_icon_color=” icon=’ue808′ font=’entypo-fontello’ admin_preview_bg=”]

[av_tab_container position=’top_tab’ boxed=’border_tabs’ initial=’1′]
[av_tab title=’Tech Specs’ icon_select=’yes’ icon=’ue84b’ font=’entypo-fontello’]

Model No                                  TBL92F-20W-DXG               TBL94F-40W-DXG              TBL95F50W-DXG              TBL95F60W-DXG
Input Power                                           20W                                      40W                                 50W                                  60W
Dimension                                     552 * Ø75mm                     1152 * Ø75mm                 1452 * Ø75mm                 1452 * Ø75mm
CCT                                                                                                   2700K & 4000K & 5000K & 5700K
CRI                                                                                                                      >80
Power Factor                                                                                                     >0.9
IP Grade                                                                                                      IP67 & IP69K
Input Voltage                                                                                      AC200-240VAC (50/60Hz)
Luminous                                                                                                      130lm/W
Beam Angle                                                                                                   40° 60° 90˚
Working Temp                                                                                               -20˚~45˚ C
Warranty                                                                                                          5 Years
L90                                                                                                            L70>54,000hrs

[/av_tab]
[av_tab title=’More Details’ icon_select=’yes’ icon=’ue855′ font=’entypo-fontello’]
Features

• Anti-glare, 40° 60° UGR19 / 90° UGR22

• IP67 & IP69K

• PMMA Clear IK06 / PC Clear IK10

• 304/316 stainless steel end caps, breather, mounting bracket

• Against water pressure of 100bar(1450psi) and temperature of 80°C

• System efficiency up to 130lm/W

• High CRI >80

• BOKE isolated driver, flicker free, ENEC/TUV/SAA/CE/C-tick certified

• 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)

• CE,RoHs, IK10, IP68, IP69K, CB certificates

• Surface Mounting bracket included, suspension cables are sold seperately

• Standard material for end caps, breather, surface mounting bracket is 304 stainless steel, 316 material is available for option.
[/av_tab]
[av_tab title=’Application’ icon_select=’yes’ icon=’ue864′ font=’entypo-fontello’]

  • Technical Drawing Office
  • Offices, Schools
  • Workshops, Receptions, Retail
