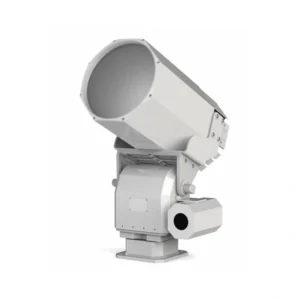

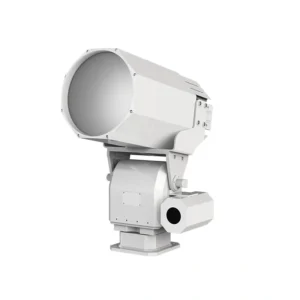

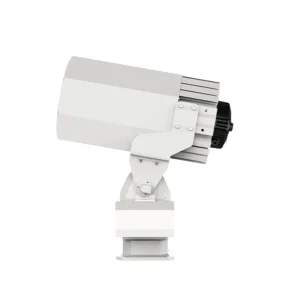

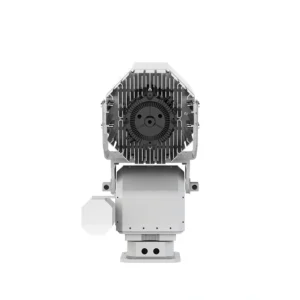

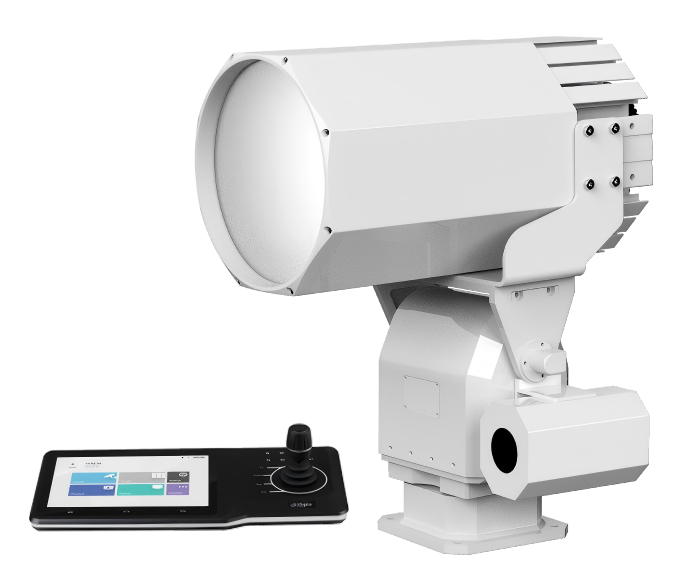

Camera LED Marine Searchlights
Features:
- Protection class: IP66
- Power: 240W available

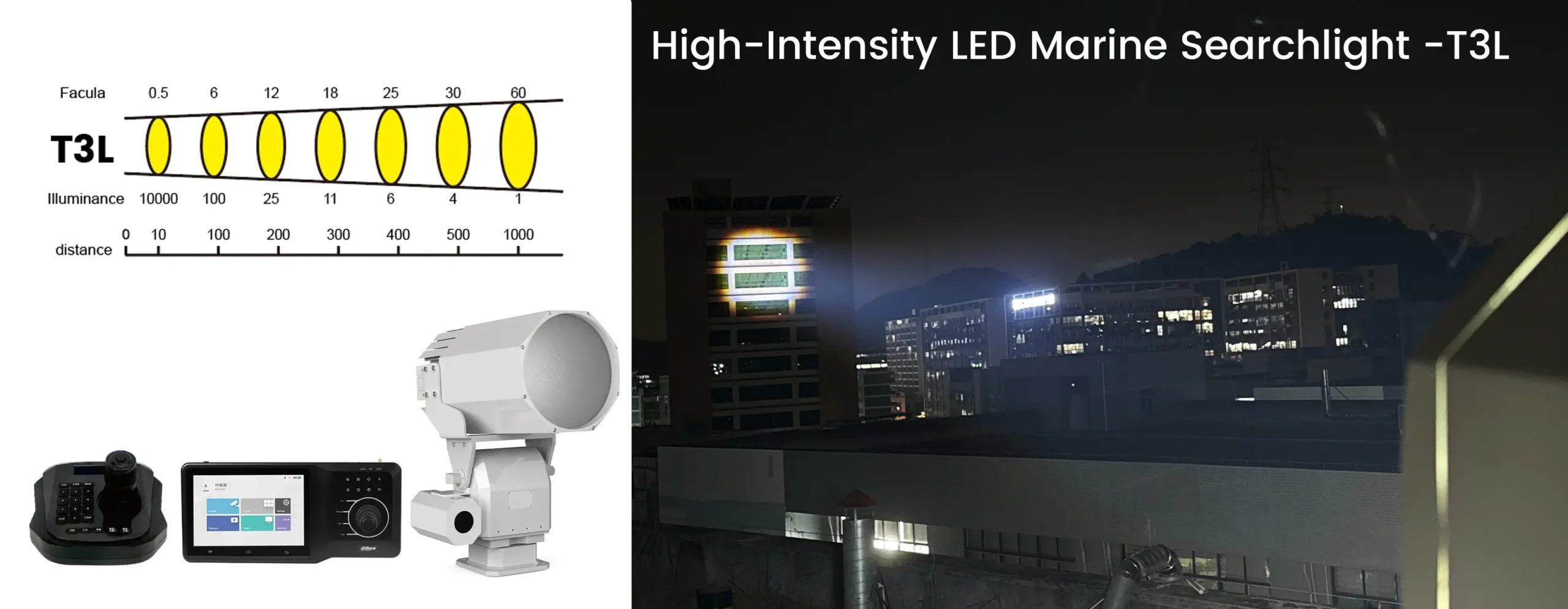

- Irradiation distance: T3L≥1000M(1LUX), T3H≥2000M(1LUX)
- Beam angle: 3.5-4.5° / 1.8-2.5°
- Slip-rings provide continuous 360° horizontal rotation with no stop points
- Auto-return to home position
- Auto-scan with user programmability
- Advanced proportional-speed control
- Approved for temperatures down to -40°C and up to +55°C
- Materials: marine-grade aluminum and stainless steel with salt-resistant powder coat finish
- Lower power consumption: LEDs consume 75% or more less power than Halogen lamps
- Longer life: LEDs last tens of thousands of hours compared to approximately 1000 to 2000 hours, depending on the Halogen lamp. This reduces lamp replacement costs, increases reliability
Description
The TUBU LED Marine Searchlights are engineered for demanding applications across national defense, marine operations, military missions, water conservation, offshore oil fields, wharfs, large warships, and maritime search-and-rescue. Built with IP66 protection, 240W output, and beam angle options of 3.5–4.5° or 1.8–2.5°, they deliver long-range illumination with a maximum distance of 2000 and 4000 meters for superior visibility in critical environments.
Designed with continuous 360° horizontal rotation via slip-ring technology, user-programmable auto-scan, auto-return positioning, and advanced proportional-speed control, these searchlights offer precise and responsive operation.
Their marine-grade aluminum and stainless-steel construction, with a salt-resistant powder-coat finish, ensures durability in harsh, corrosive ocean environments. Optional cloud-control capability provides 200 preset positions, ±0.1° positioning accuracy, support for ONVIF/GB28181 protocols, and RS-485 communication for seamless integration into modern monitoring systems.
With low power consumption, long LED lifespan over 50,000 hours, and superior reliability compared to halogen lights, TUBU searchlights deliver consistent, mission-ready performance for maritime and defense professionals.
Tech Specs
Model | TBSL-T3L-240E-BSX | TBSL-T3H-240E-BSX | |
|---|---|---|---|
Light Information | Light Source | LED | LED |
Power Consumption | 240W | 240W | |
Color Temperature | 4500K | 4500K | |
Input Voltage | AC220V (50/60Hz) | ||
Working Temperature | -40°C ~ +55°C | ||
IP Rating | IP66 | ||
Lifespan | >50,000 hours | ||
Beam Angle | 3.5-4.5° | 1.8-2.5° | |
Beam Distance | ≥1000m(1LUX), ≥2000m(0.25LUX) | ≥2000m(1LUX), ≥4000m(0.25LUX) | |
Housing Material | 1070 Pure aluminum cold forging, with salt-resistant, scratch-resistant white powder coat finish | ||
Packing Size (mm) | 600*500*800mm(wooden box package) | ||
Weight | 40Kg | ||
Cloud Platform (Optional) | Adjustable Speed | Horizontal: 1°～20°/S, vertical 1°～5°/S | |
Adjustable Angle | Horizontal: 0～360°, vertical +35°～-35°, or customizable | ||
Preset Position | 200pcs | ||
Repeated Positioning Accuracy | ±0.1° | ||
Communication Protocol | Protocols:ONVIF, GB/T28181 compliance | ||
Communication Baud Bate | 2400/4800/9600/19200bps(optional) | ||
Communication Interface | RS485 | ||
Power | 60W | ||
Ultra-Long Illumination Range for Critical Missions
With an irradiation distance of ≥1000 m at 1 lux and ≥2000 m at 1 lux, the TUBU Camera LED Marine Searchlight far outperforms typical marine lighting. TUBU Camera LED Marine Searchlight maintains high visibility at extreme distances—crucial for national defense, search and rescue, offshore platforms, and large-ship navigation.

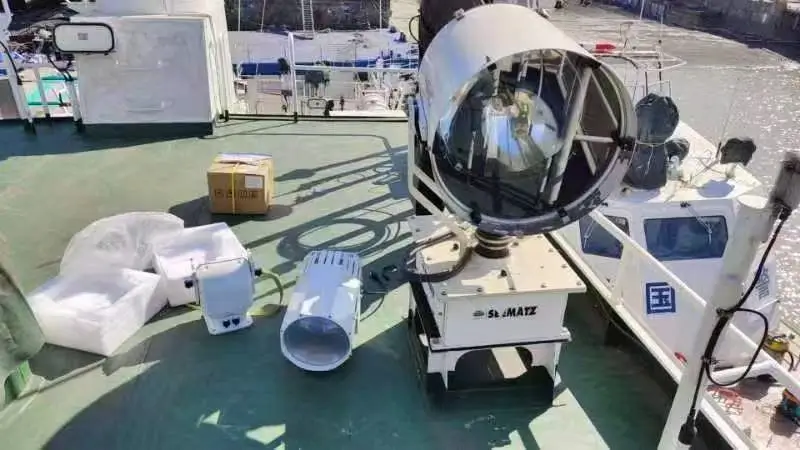

T3H Camera LED marine searchlights vs. SEEMATZ Searchlights
Compared with the TUBU camera-integrated LED marine searchlight, the SEEMATZ searchlight features a noticeably larger housing and uses a glass lens combined with a deep reflector structure, following a traditional halogen-style design. It is mounted on a heavy-duty rotating base with reinforced metal brackets to ensure stability in demanding maritime environments.

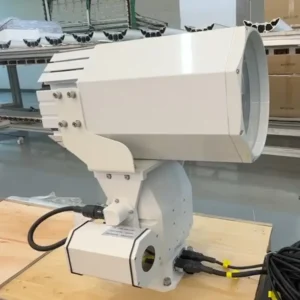

In contrast, the TUBU camera-integrated LED marine searchlight is more compact and modern in appearance, featuring a streamlined body with ventilation slots. It is built from cold-forged 1070 pure aluminum with a corrosion-resistant, scratch-proof white powder-coated finish. The unit integrates a high-definition camera module, offering higher protection levels, a full 360° viewing capability with strong image penetration, and advanced smart features.
Video comparisons of the two searchlights show clear performance differences:
The SEEMATZ searchlight (left side) produces a beam that scatters quickly over long distances, causing rapid brightness loss and reduced clarity for far-range targets. This limits its effectiveness during nighttime patrols, long-distance navigation, and search operations.

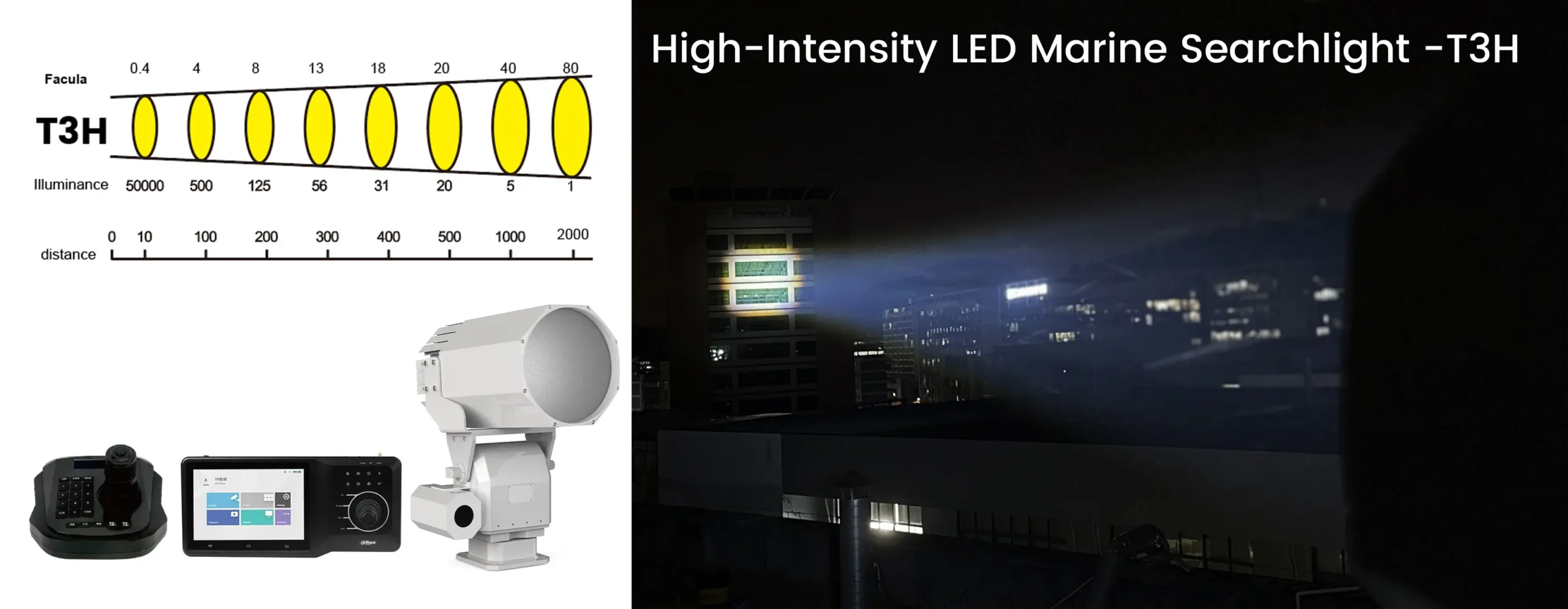

The TUBU T3H camera-integrated LED marine searchlight delivers a highly focused long-range beam that maintains strong brightness and target clarity even at distances up to 2 km. Its superior penetrating power allows the beam to cut through darkness, fog, and atmospheric interference while retaining sharp, clean illumination.
Overall, compared with the SEEMATZ unit, the TUBU LED searchlight is smaller, lighter, more energy-efficient, and provides significantly better illumination quality and long-range identification performance. This enables vessels to detect distant structures, hazards, and potential risks more quickly and accurately, enhancing situational awareness and overall navigational safety.

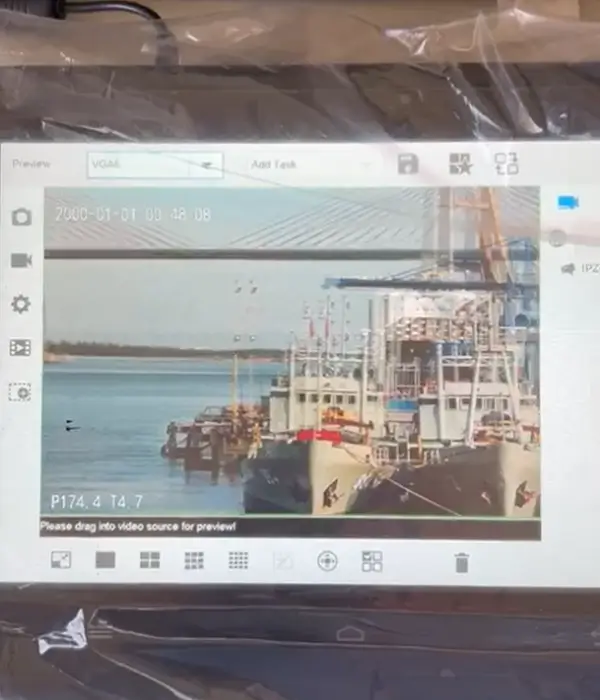

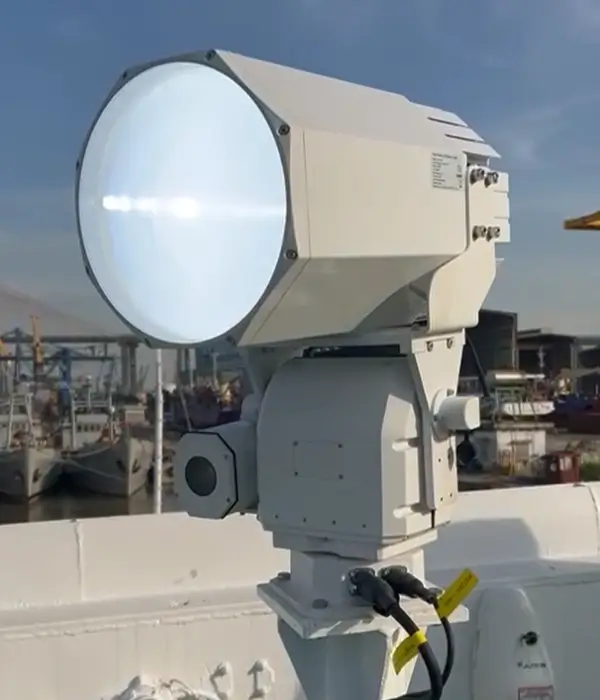

Equipped with visual capability
Equipped with visual functionality, featuring a 5MP sensor, 30x optical zoom, and 16x digital zoom. It also supports an optional controller with touch-screen capability.
Precision Beam Control for Maximum Visibility
This light features a narrow beam angle of 1.8–2.5° (3.5–4.5° for specific models), delivering a highly focused and penetrating beam with a color temperature of 4500–6000K.
It is capable of cutting through fog, rain, and harsh marine conditions, ensuring accurate target detection and long-distance identification in critical mission environments.
Intelligent 360° Motion Control
Equipped with slip-ring technology for true continuous 360° horizontal rotation and advanced proportional-speed control, users enjoy unmatched precision and smoothness.
Functions such as auto-return and user-programmable auto-scan allow efficient patrolling, monitoring, and target tracking with minimal manual effort.
Optional Cloud-Control Platform for Modern Integration
The optional smart platform supports:
- 200 preset positions
- ±0.1° positioning accuracy
- ONVIF & GB/T 28181 protocols
- RS485 communication
This ensures seamless integration with maritime surveillance, security systems, and remote operation centers—ideal for military, offshore, and large-vessel deployments.
Rugged Marine-Grade Construction for Extreme Conditions
Constructed from 1070 pure aluminum cold-forged and stainless steel, and finished with a salt- and scratch-resistant powder coat, the searchlight withstands corrosive marine environments.
Operating reliably from –40°C to +55°C, it is engineered for harsh climates, from polar missions to tropical offshore operations.
Energy-Efficient and Long-Lasting LED Technology
TUBU LED lights consume 75% less energy than halogen and xenon light sources while delivering significantly higher efficiency. With a lifespan of over 50,000 hours, compared to less than 2,000 hours for traditional lamps, they reduce maintenance, minimize downtime, and enhance long-term reliability. This is especially critical for defense vessels, oil fields, and remote offshore operations.
Applications
Camera LED Marine Searchlights are engineered for demanding missions across a wide range of professional environments, including national defense, marine operations, military applications, water conservation, offshore oil and gas fields, wharves, large surface warships, and maritime search-and-rescue scenarios.
