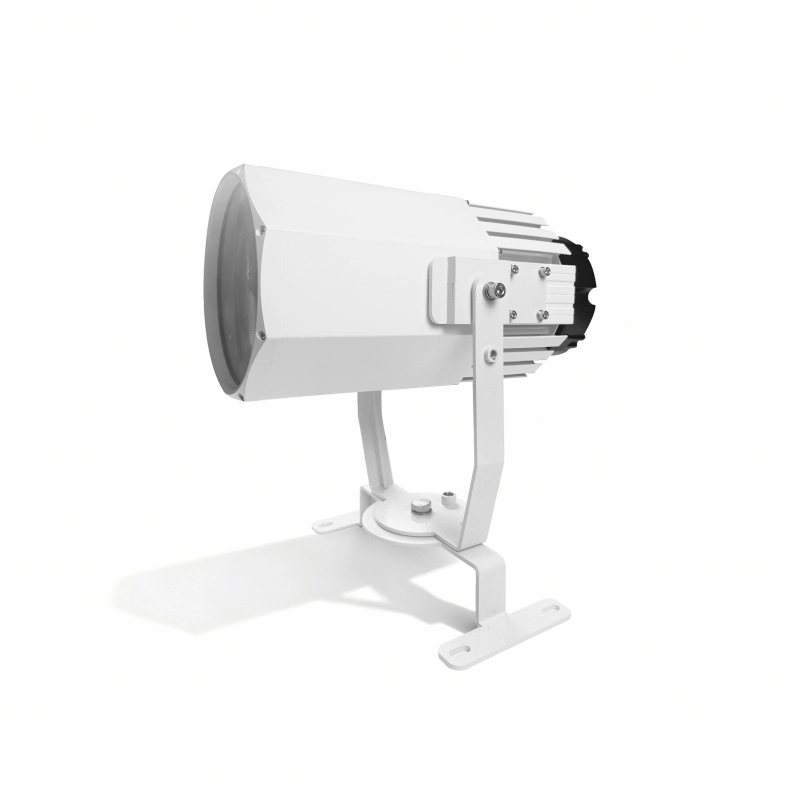

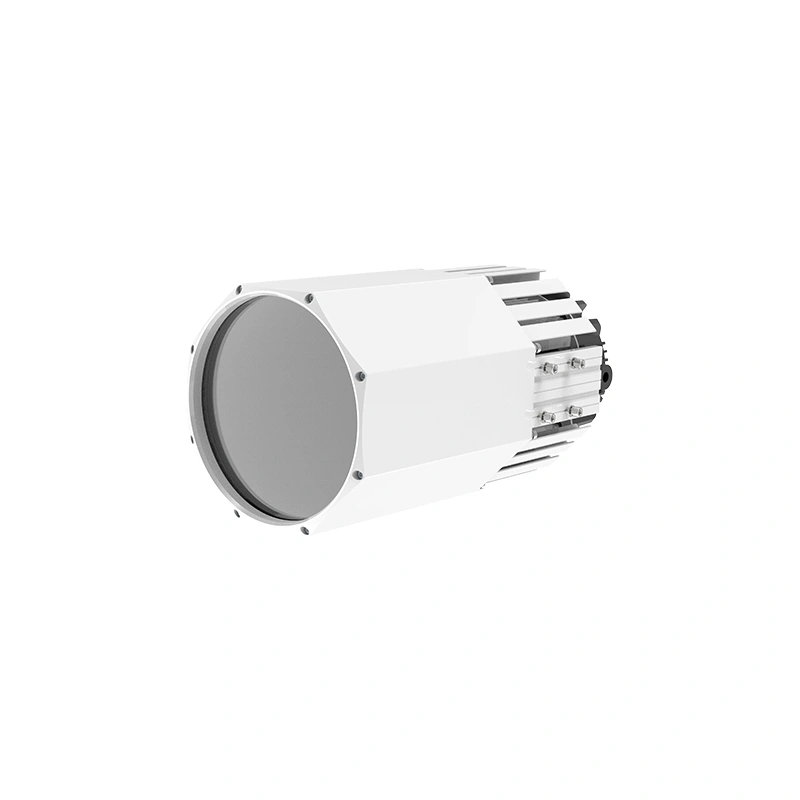

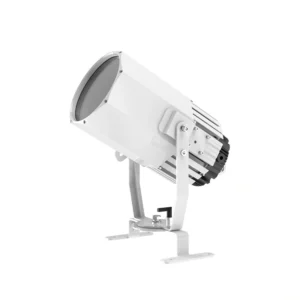

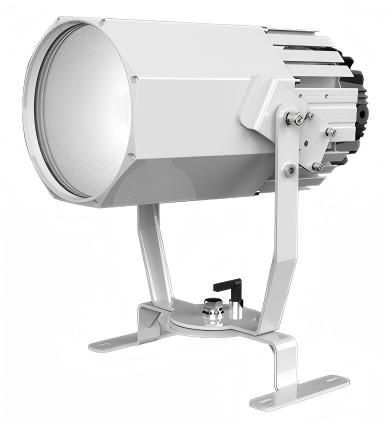

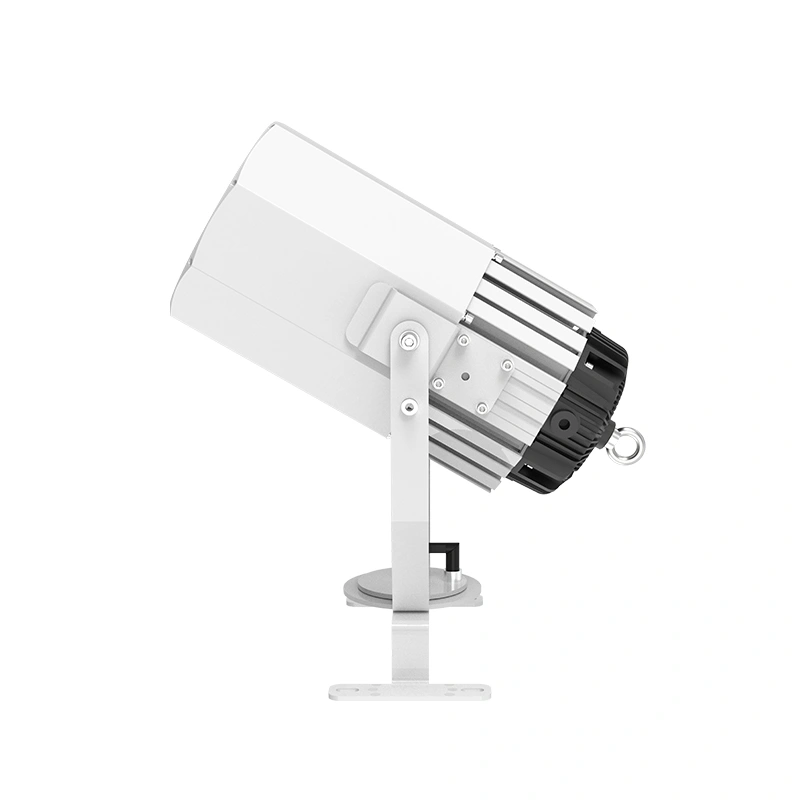

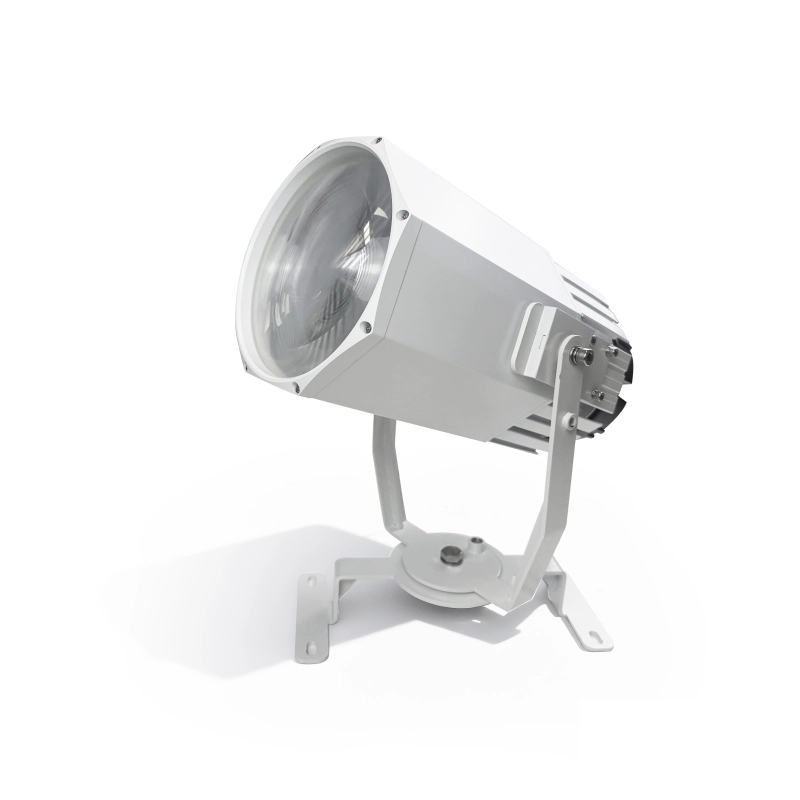

Manual LED Marine Searchlight
Features:
- Protection class: IP66
- Irradiation distance: T2L ≥300M (1LUX), T2H ≥800M (1LUX) , T3L ≥1000M(1LUX), T3H ≥2000M(1LUX)
- Beam angle: 8°/4°, 3.5°/2.5°
- Slip-rings provide continuous 360° horizontal rotation with no stop points
- Auto-return to home position
- Auto-scan with user programmability
- Advanced proportional-speed control
- Approved for temperatures down to -40°C and up to +55°C
- Materials: marine-grade aluminum and stainless steel with salt-resistant powder coat finish
- Lower power consumption: LEDs consume 75% or more or less power than Halogen lamps
- Longer life: LEDs typically last tens of thousands of hours, compared to about 1,000–2,000 hours for typical halogen lamps. This reduces replacement costs and increases reliability.
Description
The TUBU Manual LED Marine Searchlight delivers powerful, long-range illumination engineered for demanding maritime environments. Constructed from marine-grade aluminum and stainless steel, it features an IP66 weatherproof rating, a salt-resistant powder-coat finish, and a durable manual bracket that ensures stable, precise positioning during operation.
Offering beam distances from 300 m up to 2000 m (1 LUX) across multiple models, each unit provides highly accurate 2.5°–8° beam angles and advanced proportional-speed control for smooth, responsive manual adjustment.
Slip-ring technology enables continuous 360° rotation, complemented by auto-scan modes, user-programmable patterns, and automatic return-to-home functionality.
Designed to perform reliably within −40°C to +55°C, the searchlight combines high-efficiency LED output with over 75% energy savings compared to traditional halogen lamps. With LED lifespans of 50,000 hours, maintenance requirements are significantly reduced.
Available in 160W to 300W configurations with both AC and DC input options, the TUBU Manual LED Marine Searchlight delivers dependable, high-precision, long-distance lighting for vessels navigating the harshest marine conditions.
Tech Specs

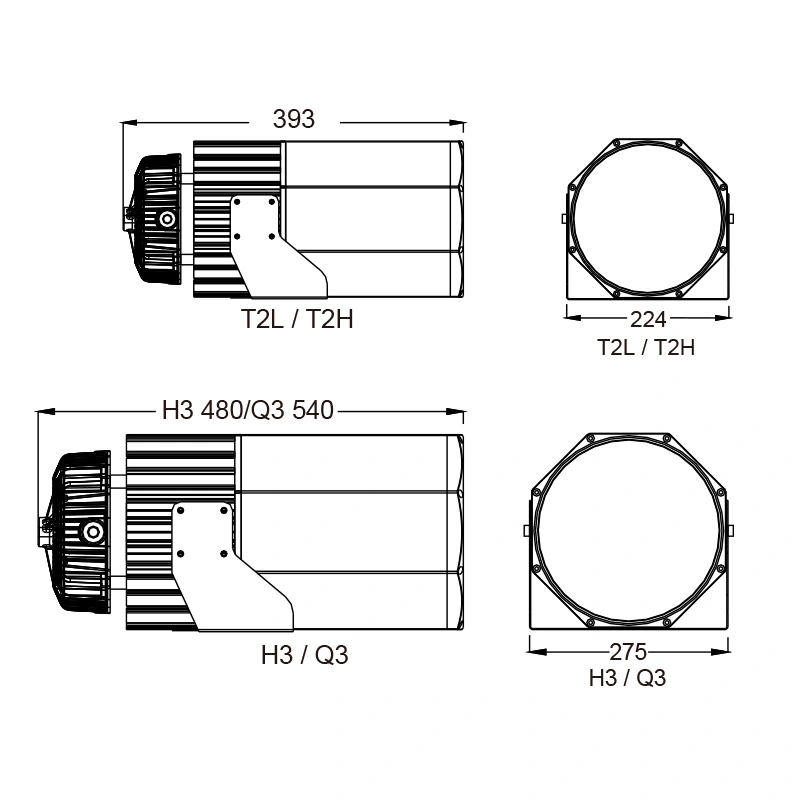

Model | TBSL-T2L/H-160E-C | TBSL-T3L/H-240E-C | |||
|---|---|---|---|---|---|
Light | Light Source | LED | LED | ||
Power Consumption | 160W | 240W | |||
Color Temperature | 6500K | ||||
Input Voltage | AC 220V-240V 50/60Hz / DC12V | ||||
Working Temperature | -40℃～+55℃ | ||||
IP Rating | IP66 | ||||
Lifespan | >50,000 hours | ||||
Beam Angle | 8°/3° | 3.5°/2.5° | |||
Beam Distance | ≥300m (1LUX)/≥800m (1LUX) | ≥1000m (1LUX)/≥2000m (1LUX) | |||
Housing Material | 1070 Pure aluminum cold forging, with salt-resistant, scratch-resistant white powder coat finish | ||||
Packing Size(mm) | 600*500*400mm | 700*500*500mm | |||
Weight | 12Kg | 23Kg | |||
Adjustable Angle | Horizontal: 0~360°, Vertical: +30°～-30° | ||||

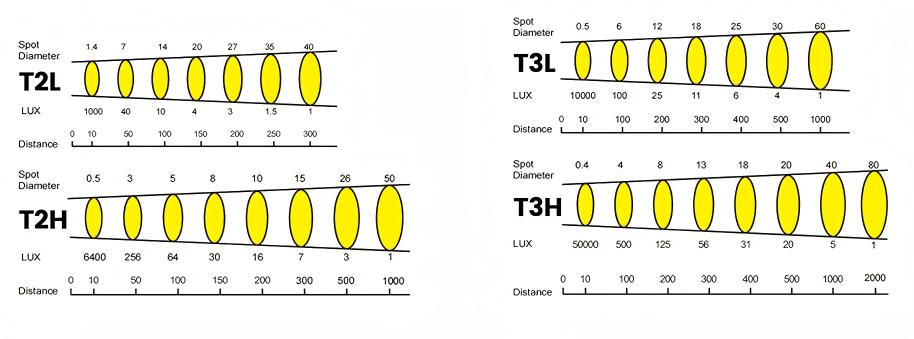

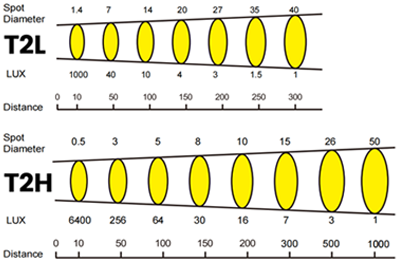

Multiple Models for Diverse Mission Requirements
TUBU offers a full range of searchlights from 160W to 240W, with beam angles from 2.5° to 8° and model-specific illumination distances ranging from 300 to 2,000 meters at 1 lux, providing both near-field and long-range performance options.
This model's flexibility allows users to choose the ideal searchlight for each operating environment, whether it’s coastal patrol, offshore operations, large-vessel navigation, oilfield exploration, or maritime search and rescue, ensuring precise performance across every mission scenario.
IP66 Marine-Grade Protection Built for Harsh Environments
Engineered with 1070 Pure aluminum cold forging, a salt-resistant, scratch-resistant white powder-coat finish, and a salt-resistant powder-coat finish, the searchlight is built to withstand heavy seas, salt spray, and extreme weather conditions.
With an IP66 rating, it delivers reliable performance in high-moisture, high-corrosion marine environments where rugged durability is essential.
Longer Lifespan, Less Maintenance
Manual LED marine searchlight delivers 50,000 hours of service life, dramatically longer than traditional halogen lamps, which typically last only 1,000–2,000 hours. This significantly lowers maintenance frequency, reduces downtime, and ensures continuous operational readiness for demanding maritime missions.

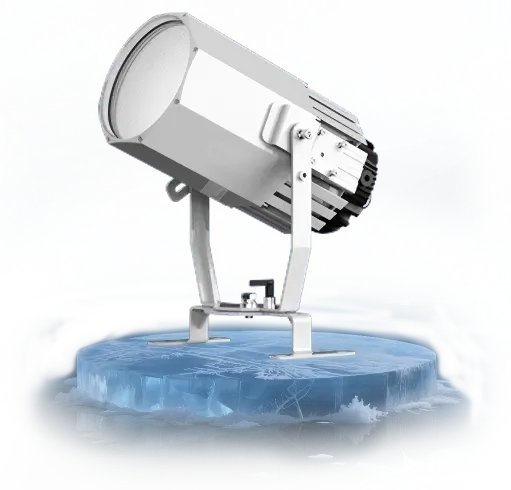

Wide Operating Temperature for Extreme Conditions
Designed to perform in environments ranging from –40°C to +55°C, the searchlight maintains stable output in both Arctic cold and tropical heat. Its robust construction and excellent thermal performance ensure reliable operation even in extreme weather conditions, making it a dependable choice for marine vessels.

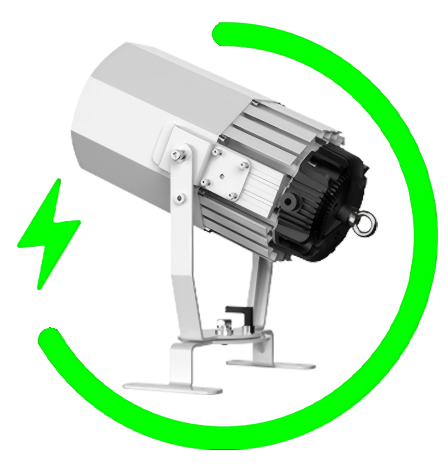

Ultra-Low Power Consumption
The TUBU manual-bracket LED marine searchlights operate at just 160–240 watts, while comparable halogen models typically draw 500-1000 watts. That means the LED option cuts power consumption by roughly 75% or more without sacrificing performance. As a result, it significantly eases the load on a vessel’s power system and boosts overall operational efficiency.
Applications
The Manual LED Marine Searchlight is engineered for high-demand operations across a wide range of professional maritime and defense environments. Its long-range illumination, marine-grade construction, and reliable performance make it ideal for the following applications:
- National Defense & Military Operations: provides powerful, focused illumination for surveillance, patrol, threat detection, and nighttime mission support on defense vessels and coastal installations.
- Marine Navigation & Offshore Operations: Ensures clear long-distance visibility for commercial vessels, fishing fleets, offshore platforms, and open-sea navigation in challenging weather conditions.
- Water Conservation & Infrastructure Inspection: Supports nighttime inspections of dams, reservoirs, waterways, and hydrological facilities, enabling clear identification of structural conditions and potential hazards.
- Expedition, Oil Field & Industrial Use: Offers dependable lighting for remote field expeditions, oil and gas operations, and rugged industrial environments where durability and long-range viewing are essential.
- Ports, Wharfs & Harbor Security: Enhances visibility for docking, cargo handling, perimeter monitoring, and harbor-side security in low-light or adverse weather environments.
- Large Surface Warships & Patrol Vessels: Delivers extended beam distance for wide-area scanning, lookout duties, and nighttime navigation on naval ships and large maritime vessels.
- Maritime Search and Rescue (SAR): Provides high-intensity, long-throw illumination for emergency response teams to locate persons, vessels, or obstacles quickly and accurately during critical rescue missions.
