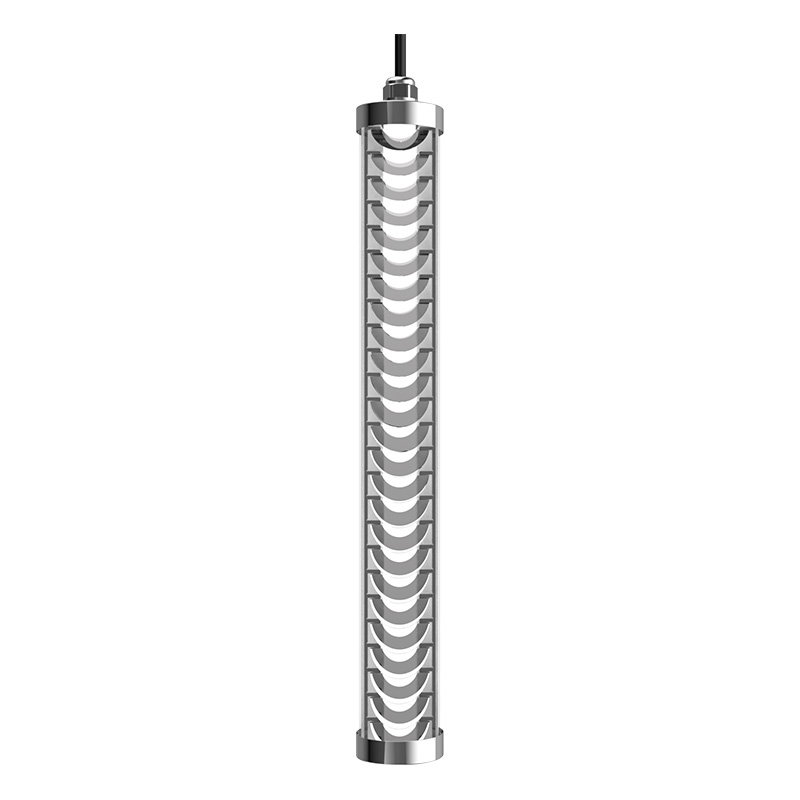

Grid Type LED Tubular Wall Light
Features:
Description
With a system efficiency of up to 100 lm/W and a wide beam angle of 60x120°, TUBU's Grid Type LED Tubular Wall Light provides powerful lighting while minimizing energy consumption. And resistant to ammonia and various chemicals, ensuring durability and longevity. Suitable for corridors, shared kitchens, hotel room headboards, rooftop restaurants, exterior walls of residential buildings, mirrors in suites, and more
Architectural art lighting design adds a touch of style to your space, the mesh grille diffuses light, blocks direct light from light sources, and reduces glare for softer, diffused lighting that enhances the overall ambiance of any space. Meanwhile, we offer a variety of CCT options, including 3000K, 4000K, 5000K, and 6000K.
Grid Type LED Tubular Wall Light is IP69K rated for excellent protection against dust, water, and pressure washing. It can withstand strong water streams from all directions without any water penetration.
With a range of certifications, including CE and the Restriction of Hazardous Substances Directive, they guarantee quality and meet industry standards, are environmentally friendly, and contain no mercury, UV, or infrared radiation.
Tech Specs
Product Code | TBL92F-20W-G | TBL94F-40W-G | TBL95F-50W-G | TBL95F-60W-G |
|---|---|---|---|---|
Power | 20W | 40W | 50W | 60W |
Input Voltage | 200-240VAC/100-277VAC (50/60HZ) | |||
Input Current | 0.09A@220VAC | 0.19A@220VAC | 0.23A@220VAC | 0.28A@220VAC |
PF | 0.90@220VAC | |||
Dimming Option | 0-10V / DALI / Emergency | |||
CCT | 2700K / 3000K / 4000K / 5000K / 5700K / 6000K /6500K | |||
Ra>80 Luminous Flux | 1200Lm/12000Lm | 2400Lm/14000Lm | 3000Lm/15000Lm | 3600Lm/16000Lm |
Ra>80 Efficiency | 60Lm/W±5% (45°) 100Lm/W±5% (90°) | |||
LED Brand | Lumileds/Hongli | |||
Driver Brand | BOKE | |||
Beam Angle | 60x120° | |||
Operation Temp | -20C~+40°C | |||
Storage Temp | -20C~+60°C | |||
Life Span | Ta 40C L70>54000Hours | |||
IP Class | IP67 & IP69K | |||
IK Class | PMMA IK08 & PC IK10 | |||
Certificate | CE, RoHS, CB, IK10, IP69K, ENEC | |||
Lamp Body Color | Milky PC/PMMA Housing & 304/316 Stainless Steel End Caps | |||
Product Size (mm) | Ø75*552 | Ø75*1152 | Ø75*1452 | Ø75*1452 |
Packing Size (mm) | 730*260*260 | 1330*260*180 | 1630*260*180 | 1630*260*180 |
Quantity/carton | 9PCS | 6PCS | 6PCS | 6PCS |
Gross weight (kg) ±0.3 | 13 | 12 | 14 | 14 |
Installation mode | Surface Mount & Suspension Mount | |||

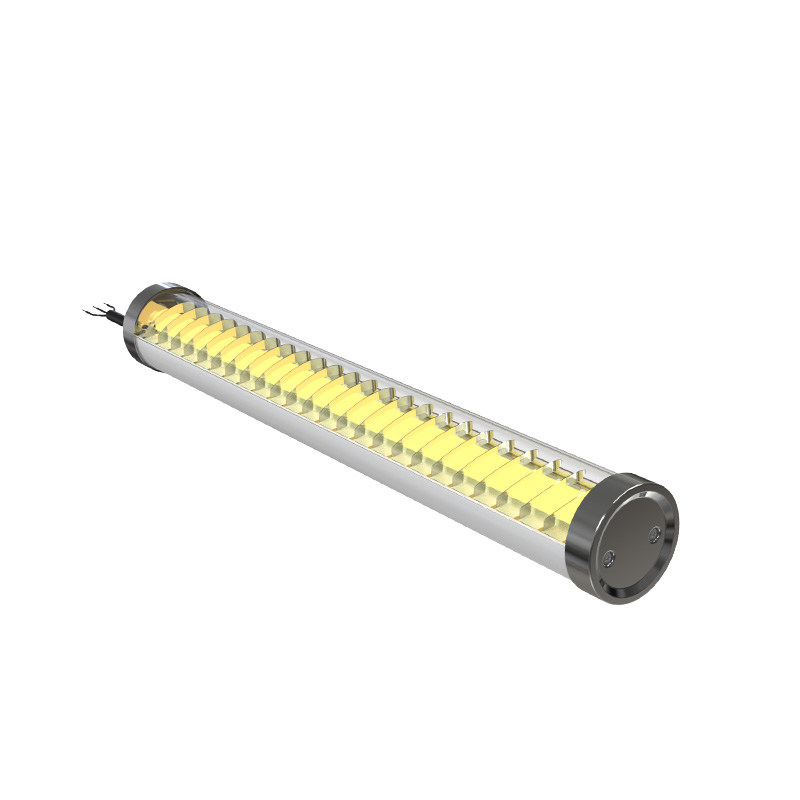

IP69K Grid Type LED Tubular Wall Light
System efficiency up to 60lm/W/100lm/W, wide beam angle 60x120°
optimum lighting comfort

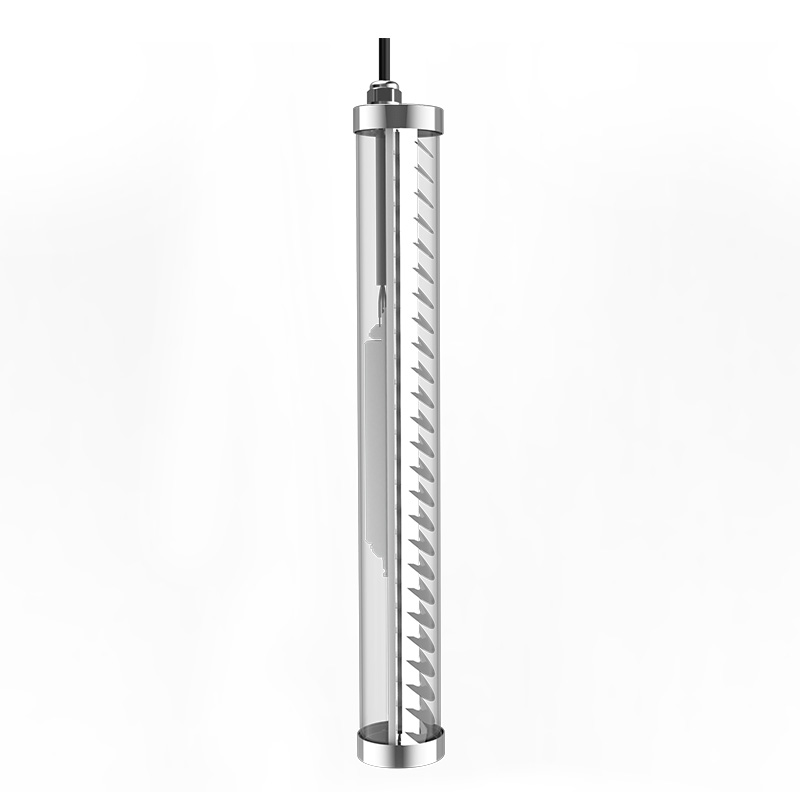

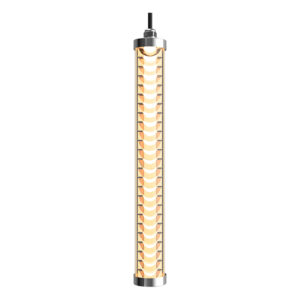

With optimum transparency and reflectivity, combined with Sammode technology and design. Metal louvers with slanted slats conceal light sources for optimum lighting comfort.
IP69K degree of protection
The IP69K degree of protection guarantees excellent protection against dust, water, and high-pressure cleaning. Can withstand strong water flow from all directions without any water penetration.

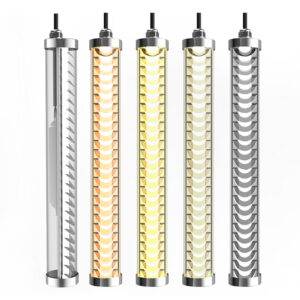

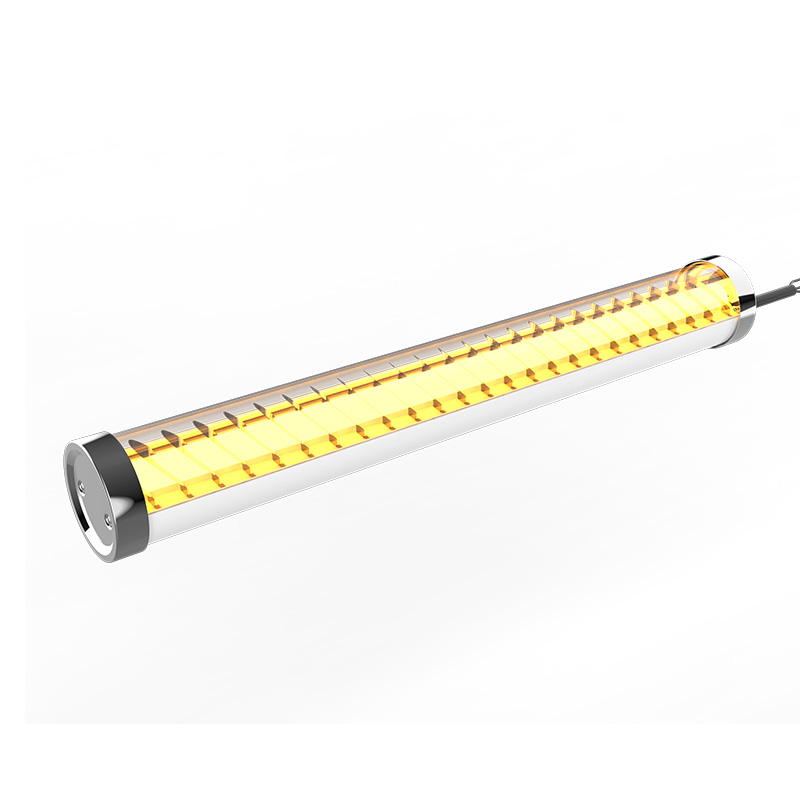

A variety of CCTs are available
3000K for a warm and pleasant atmosphere, 4000K for neutral and balanced light, 5000K for cool and bright lighting effects, and 6000K for daylight-like brightness. Create the perfect ambiance for any setting.
architectural art lighting
The grid-type wall light has a unique artistic design. Available in a variety of colors, you can choose the one that best suits your style and decor.
Installation Method
Application
